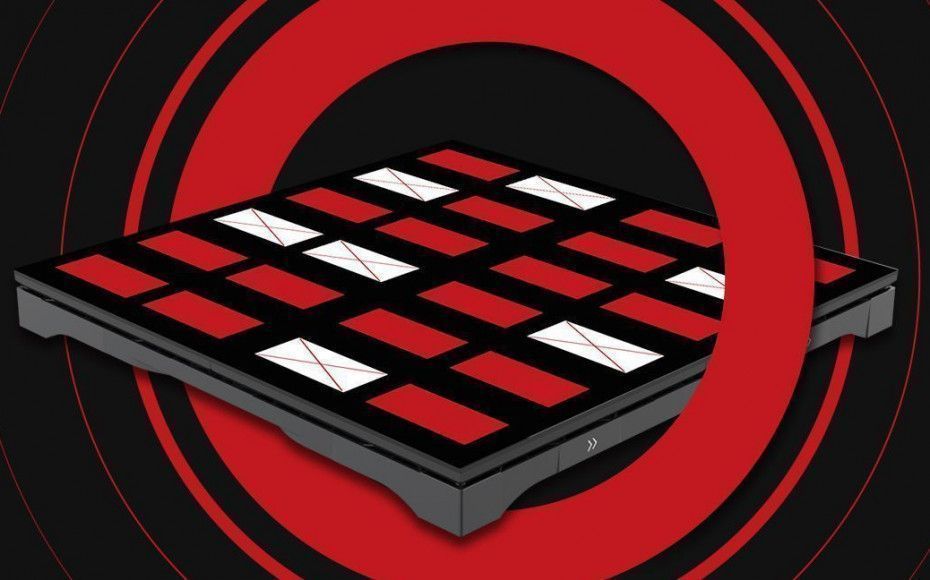

Black Marble BM5

Brilliant LED at your feet.

ROE Visual’s Red Dot award-winning Black Marble LED floor panel brings creativity to your feet. Available with a high-contrast glass or matte or mirror finish, these floor panels are suited for a wide range of creative uses, such as such as broadcast, live music, corporate events, xR Stages and a variety of other applications.

Request a Demo

Black Marble 5 Key Features

Top access for easy module maintenance
IP65 rating, outdoor use and wet cleaning to keep your floor in pristine condition.
Safety first, max. loading 2000kg/m2
Safe access - anti-skidding surface on all LED panels
Magnetic Modules, easy module swapping
Versatile system - Stairs and multilevel stages
BM5-PC-Matte
BM5-Glass
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • BM5-PC-Matte
  • 5.7692mm
  • SMD 1921 White
  • 2000nits
  • 600mm x 600mm x 103mm
    23.6” x 23.6” x 4.1”
  • 104 x 104
  • 13.5kg | 29.76lbs
  • 270W / 135W
  • 920 / 420
  • Solid
  • Front
  • n.a.
  • 140°
  • 3840Hz
  • 14bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, WEEE
  • BM5-Glass
  • 5.7692mm
  • SMD 1921 White
  • 800nits
  • 600mm x 600mm x 110mm
    23.6” x 23.6” x 4.3”
  • 104 x 104
  • 18.3kg | 40.35lbs
  • 270W / 135W
  • 920 / 420
  • Solid
  • Front
  • n.a.
  • 140°
  • 3840Hz
  • 14bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL
Comparison
<< product.title >>
  • Title
Black Marble LED Panels

Application Fields

  • Events
  • Broadcast
  • Concerts
  • Carshows
  • Hospitality
Jo Pauly

Our technical crew was amazed by the easy installation qualities of the Black Marble floor and the resulting high-quality visuals.

Jo Pauly

LED Floor ROE Visual

Engage your audience? Use a Black Marble Interactive LED Floor

Read More
