Jasper

Deliver perfect presentations

Jasper

Jasper is a modern LED display solution that offers uncompromised picture performance and optimal installation benefits, ideal for system intregration. The LED display  is easy to install using the dedicated mounting bracket. The resulting LED display is ready for high-end visuals to support your presentations.



Request a Demo

Jasper. High-end Indoor LED Display.

High-end LED Screen Integration

System integration requires products that combine high-end performance with flexible installation properties. The Jasper LED panels are developed to play into these exacting demands and offers a fitting solution for permanent video installations. Uncomplicated installation, flexible design and low costs of ownership go hand-in-hand with high-end performance and unequaled visual qualities.

Jasper. Outstanding Visual Performance

Outstanding Visual Performance

The Jasper LED panels provide an excellent visual performance due to the high contrast and robust 1515 Black LED, guaranteeing flawless image performance in all circumstances. The resulting video screen boasts a 99% color cover BT.709 and 95% color cover DCI-P3 for broadcast requirements.

Jasper. Flat Mounting with Slim-line Panels

Flat Mounting with Slim-line Panel Design

The Jasper LED panels provide easy-to-use and flexible solutions for hanging, stacking or wall-mounted configurations. The panels can be mounted to almost any surface type. With its standard panel size of  500x500mm Jasper can create bezel free video displays of any size required. The panels are mounted from the front side, while the LED modules are ready for front and rear service.

Jasper. Sustainable and Durable Solution

A Sustainable and Durable Solution

With its energy-saving power unit and high-quality components, the Jasper LED panel ensures years of easy operation and stable visual excellence.

Jasper. Optimal Cost-of-ownership

Optimal Cost-of-ownership

No special staff is needed for the basic operation and servicing of the Jasper LED panels. Servicing and maintenance of the video screen are easy and hassle-free. The modules have front service for easy replacement and the modular design saves on spare parts, reducting the maintenance costs.

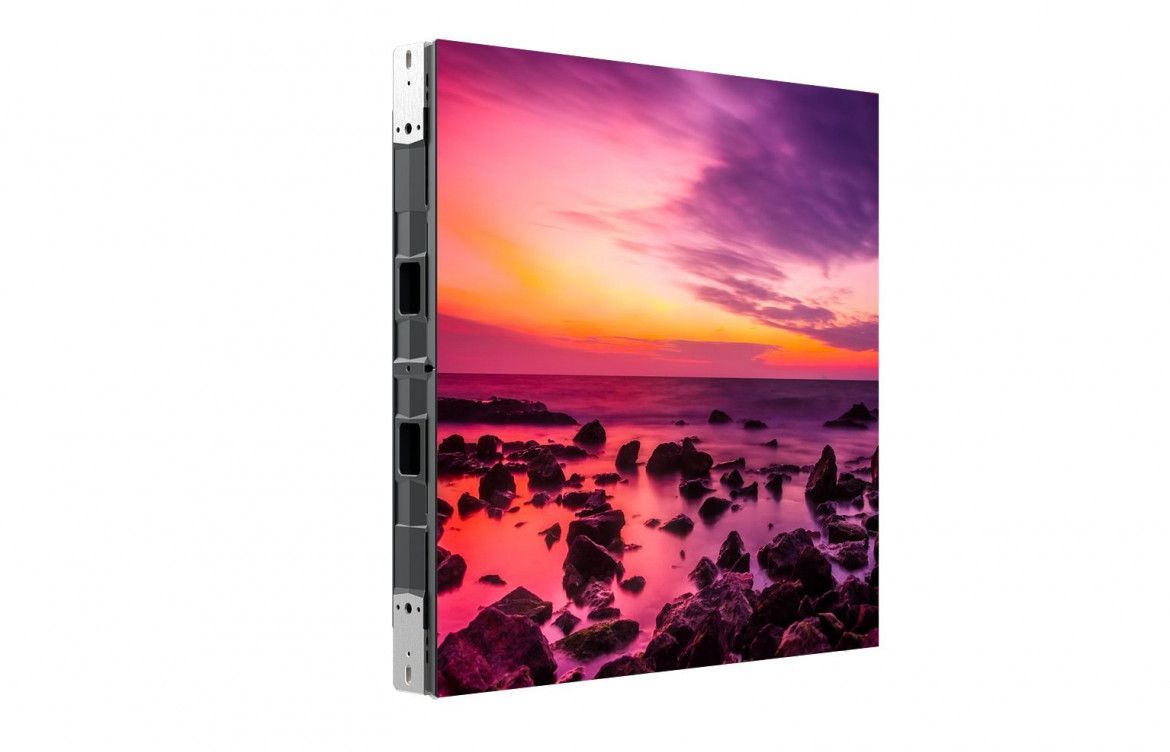

Jasper LED panel

Unrivalled Quality in Direct View LED

Jasper Indoor LED

From Boardroom to Lobby, ROE Visual has designed a range of products specially adapted for use in permanent installations. Jasper LED panels can create  LED displays in any size, offering unrivalled visual quality due to their high-contrast Black face LED and high brightness.

Jasper LED panel

Download Brochure

Download Brochure

Jasper Key Features

Slim-line panel design
High brightness 1500 nits
High-contrast black face LED
Modular design saves on spare parts
HDR technology
Pixel pitch 2.6, 3.9
500x500mm panel design
Front and rear service

Specs

Download All Specs
JA2.6
JA2.6 Half
JA3.9
JA3.9 Half
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • JA2.6
  • 2.604mm
  • SMD 1515 Black
  • 1500nits
  • 500mm x 1000mm x 60mm
    19.7” x 39.4” x 2.3”
  • 192 x 384
  • 14.15kg | 31.2lbs
  • 340W / 170W
  • 1160 / 530
  • Solid
  • Front / Rear
  • Concave 15° ~ Convex 15°
  • 140°
  • 160°
  • 3840Hz
  • 14bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ -113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Indoor
  • CE, ETL, FCC
  • JA2.6 Half
  • 2.604mm
  • SMD 1515 Black
  • 1500nits
  • 500mm x 500mm x 60mm
    19.7” x 19.7” x 2.3”
  • 192 x 192
  • 7.5kg | 16.53lbs
  • 190W / 95W
  • 650 / 300
  • Solid
  • Front / Rear
  • Concave 10° ~ Convex 10°
  • 140°
  • 160°
  • 3840Hz
  • 14bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Indoor
  • CE, ETL, FCC
  • JA3.9
  • 3.906mm
  • SMD 2020 Black
  • 1400nits
  • 500mm x 1000mm x 60mm
    19.7” x 39.4” x 2.3”
  • 128 x 256
  • 14.15kg | 31.2lbs
  • 340W / 170W
  • 1160 / 530
  • Solid
  • Front / Rear
  • Concave 15° ~ Convex 15°
  • 140°
  • 140°
  • 3840Hz
  • 14bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Indoor
  • CE, ETL, FCC
  • JA3.9 Half
  • 3.906mm
  • SMD 2020 Black
  • 1400nits
  • 500mm x 500mm x 60mm
    19.7” x 19.7” x 2.3”
  • 128 x 128
  • 7.5kg | 16.53lbs
  • 160W / 80W
  • 545 / 250
  • Solid
  • Front / Rear
  • Concave 10° ~ Convex 10°
  • 140°
  • 140°
  • 3840Hz
  • 14bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Indoor
  • CE, ETL, FCC
Compare products
Comparison
<< product.title >>
  • Title
Jasper for Boardroom LED displays

Application Fields

  • Corporate
  • Board Room
  • Retail
  • Public transport

Accessories

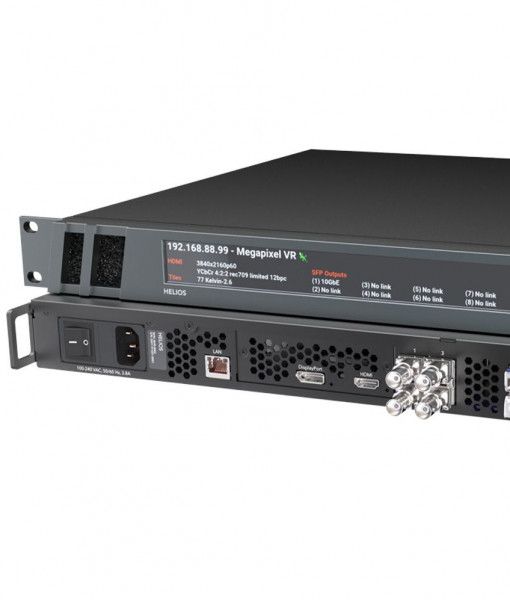

Processing Platform

Data Cable

Power Cable
3irobotics

3irobotics expressed their profound satisfaction with the recently installed screen. “The display effect and clarity of the screen are striking. This installation is really beyond our expectations, we can’t wait to put it to use.

3irobotics 3irobotics

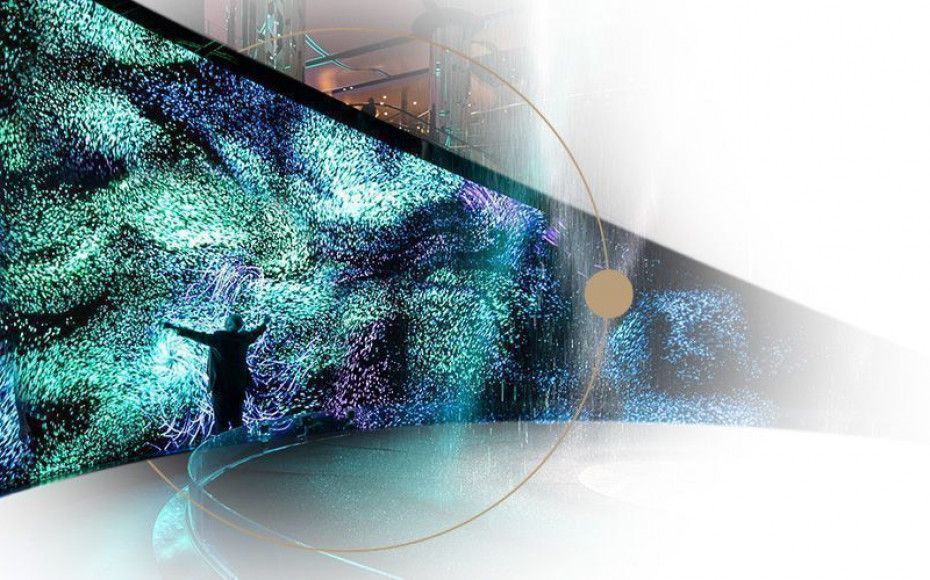

Fixed installation
