Diamond Series

A Lightweight Small-Pitch Alternative

The Diamond LED series in a DM2.6 and DM3.9 pixel pitch, delivers an indoor LED solution with exceptionally vivid colors. The lightweight panels are easy to hang or stack and can be mounted in flat or curved configurations. This cost-effectiveLED display is suited for many applications, such as rental or xR Stages.

Request a demo

Diamond Ultra Lightweight

Lightweight LED Panel

Diamond LED panels measure 500 x 500 mm and weigh less than 5.5kg (12-lbs) per panel. The lightweight magnesium alloy frame ensures extreme durability.

Diamond Curving Capabilities

Curving Capabilities

Flexible and easy to install in either concave or convex configurations, the Diamond LED panels encourages creativity in both stage design and fixed installations.

Diamond Superb Visual

Superb Visuals

The black, small pixel pitch LEDs guarantee amazing contrast, brightness and deliver a high-definition and very vivid viewing experience.

Diamond Magnet-assisted Assembly

Magnet-assisted Assembly

The Diamond LED panels have incorporated magnets in each panel, ensuring easy set-up for both stacking and hanging configurations.

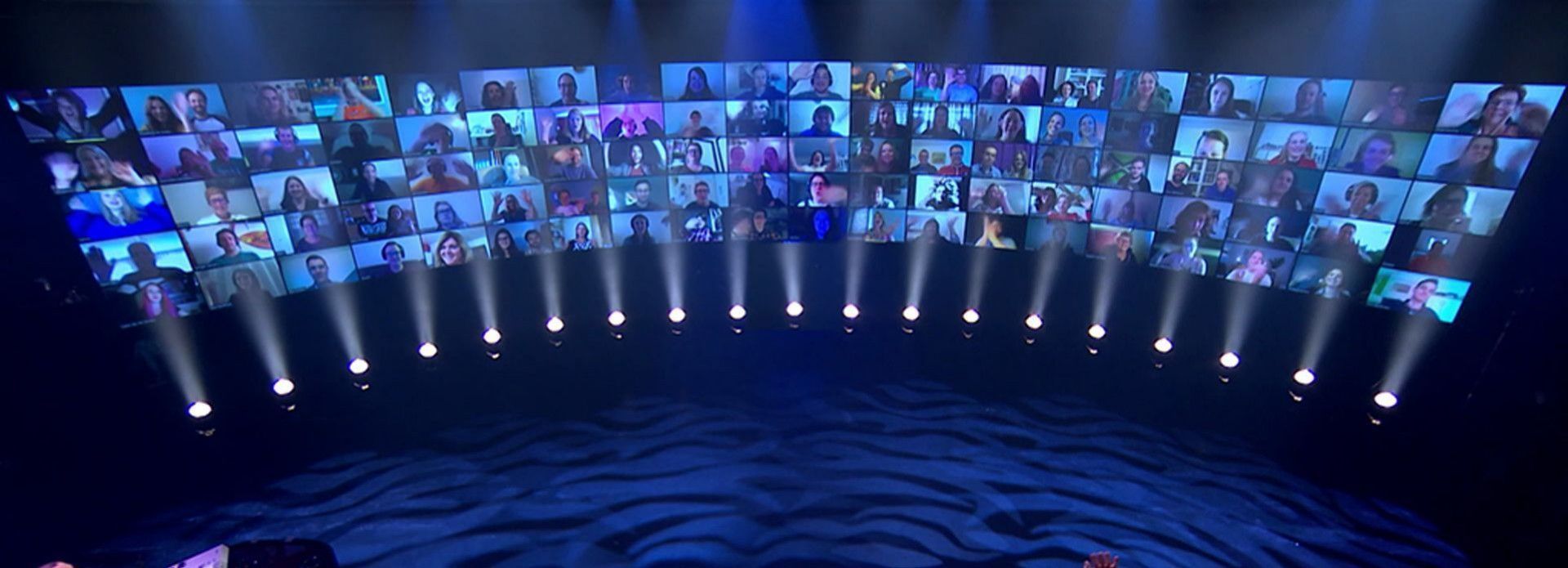

Even Tot Hier
View Case

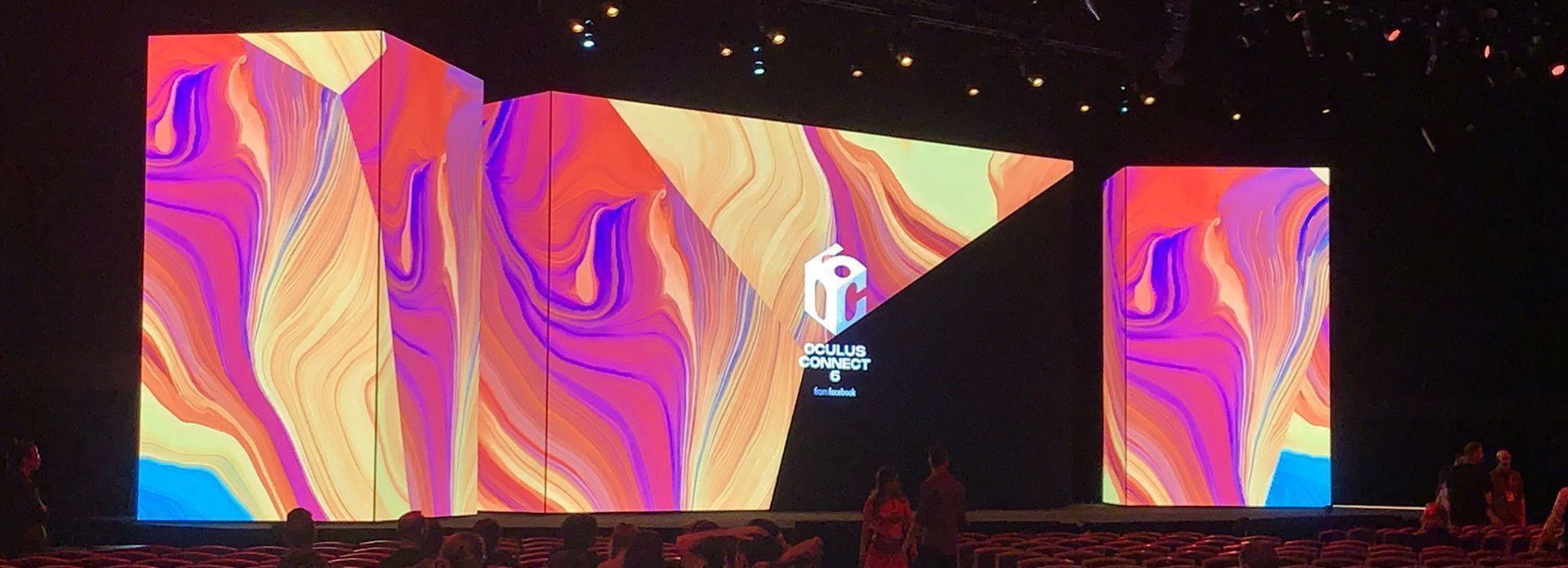

Facebook's Oculus Connect 6 Event

Downloads

Diamond Key Features

Lightweight Panel Design
90° Corner
Pixel Pitch DM2.6 - 2.6mm DM3.9 - 3.9mm
Indoor Use
Curved Configuration Possible
Black LED for High Contrast and Brightness
Saves Transport Volume
Cost Efficient

Specs

  • Tile
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • DM 2.6
  • 2.60mm
  • SMD 1515 Black
  • 1,500 nits
  • 500 x 500 x 80 mm 19.7" x 19.7" x 3.2"
  • 192 x 192
  • 5.76kg; 12.7lbs
  • 180W / 90W
  • 614 / 282
  • 140
  • 140
  • 3840Hz
  • 16bit
  • -20° -45°C 10-90% RH
    -4° -113°F 10-90% RH
  • -40° -60°C 10-90% RH
    -40° -140°F 10-90% RH
  • Indoor
  • CE, ETL, TÜV
  • DM 3.9
  • 3.91mm
  • SMD 2020
  • 1,500 nits
  • 500 x 500 x 80 mm 19.7" x 19.7" x 3.2"
  • 128 x 128
  • 5.76kg; 12.7lbs
  • 150W / 75W
  • 512 / 235
  • 140
  • 140
  • 3840Hz
  • 16bit
  • -20° -45°C 10-90% RH
    -4° -113°F 10-90% RH
  • -40° -60°C 10-90% RH
    -40° -140°F 10-90% RH
  • Indoor
  • CE, ETL, TÜV
The specifications are for reference, actual values may vary.

Download all specs

Diamond LED Panels

Application Fields

  • Events
  • Corporate Meetings
  • xR Stages
  • Exhibitions
  • Concerts

Accessories

eV4 LED processing

eV4 LED Processor

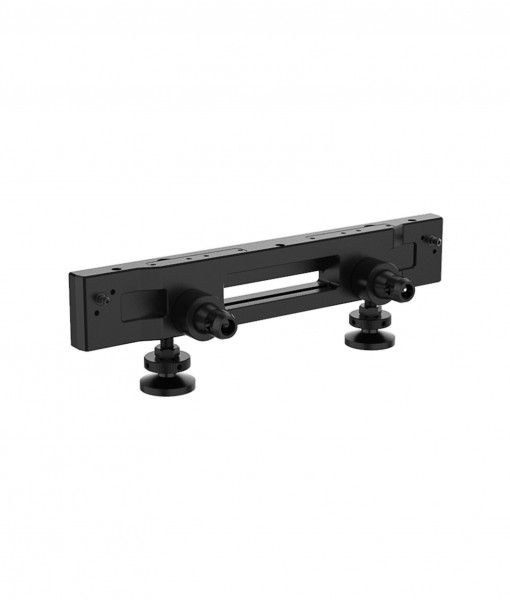

Base Bar

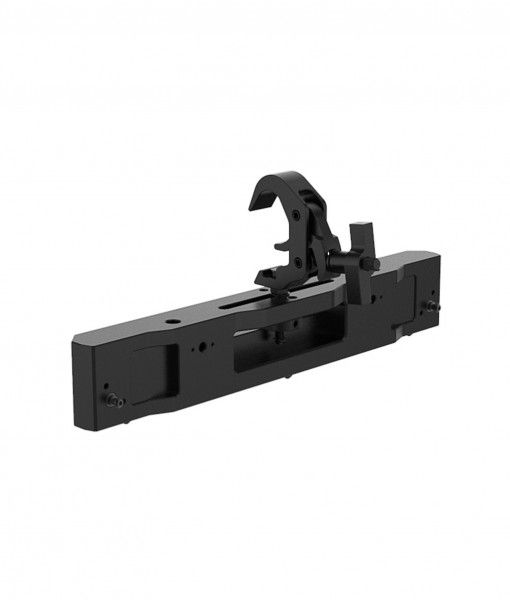

Hanging Bar

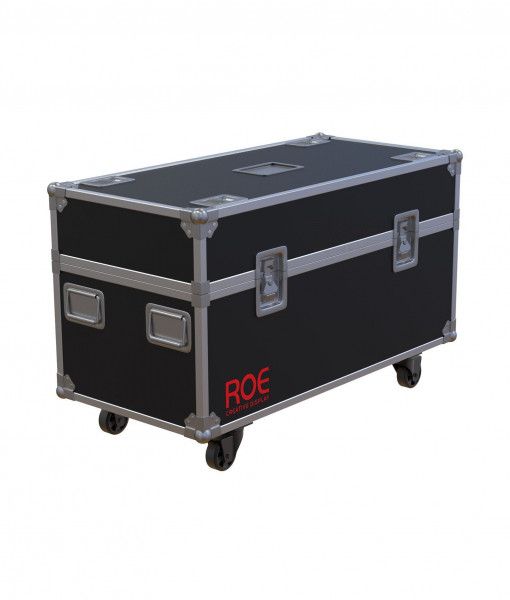

Flightcase

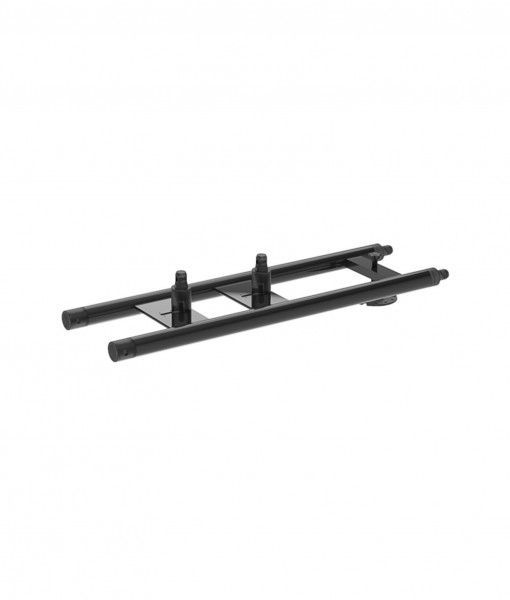

Base Truss

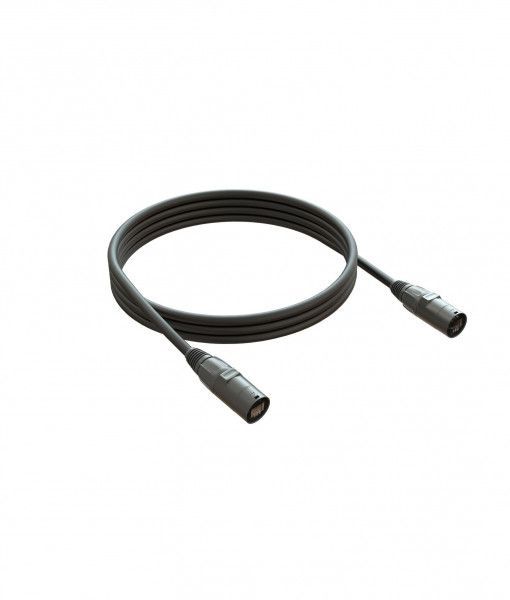

Data Cable

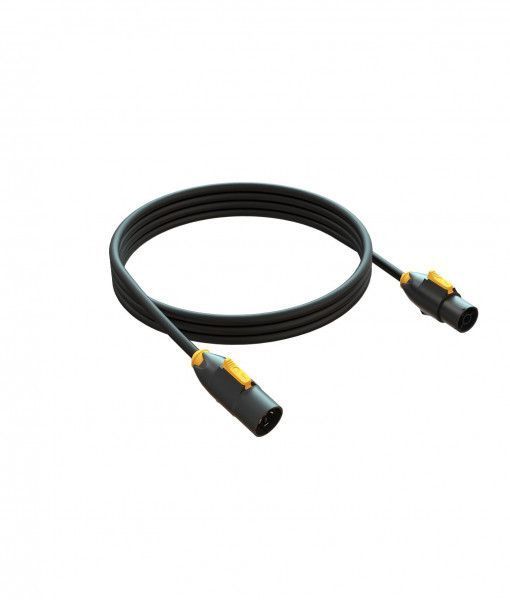

Power Cable

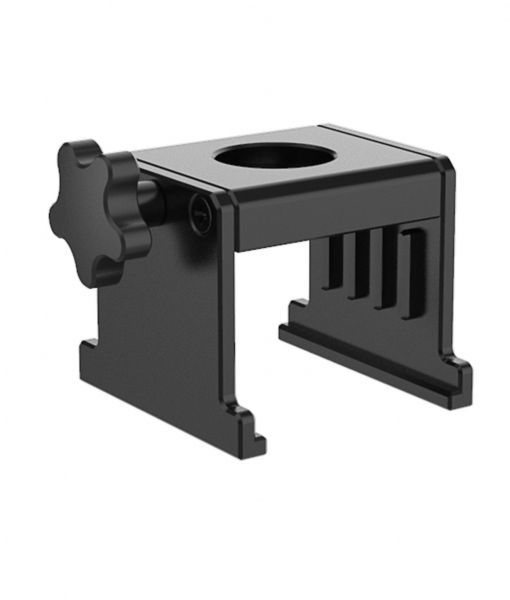

Rear Bridge

Hanging Curve Connection Plate

Curve Connection Plate
Connection Plate

Connection Plate
Connection Plate 4-Way

Connection Plate 4-Way
Marten Hylkema

“The ROE Visual Diamond screens provided a great digital canvas for this specific purpose. The curving capabilities are remarkable, creating an enhanced immersive setting and vivid color display makes the screen really stand out. We have used this screen for several types of applications now and are really satisfied with both the visual quality and the ease of use. The Diamond screens have proven to be a really good investment for us”.

Marten Hylkema MHB
