Black Quartz

The perfect outdoor LED screen solution

Guarantee audience safety with wind-load resistant LED screens.
Building outdoor LED screens can be a challenge. The Black Quartz LED panels by ROE Visual are designed as your fast-building, wind-load resistant LED screen solution.
Black Quartz offers a full-fledged LED screen appliance, combining an excellent visual performance with an integrated wind-bracing system, the perfect solution for your next tour or outdoor event.

Request more info

ROE Black Quartz LED screen
ROE Visual Black Quartz LED panel

Seamless small pitch screens

The rigid frame of the Black Quartz LED panels enables flawless connection of even the smallest 3.91mm pixel pitch. The magnesium-based touring frame guarantees optimal handling and transportation as well as an easy stacking or hanging solution. The high precision frames are fitted with pixel pitches ranging from 3.9mm to 6.2mm and have integrated edge protection.

Stunning visuals

Using only the best components, the Black Quartz stands out with an unrivaled visual performance. Using Black LED, Black Quartz supports a high contrast ratio and wide color gamut. High-performance processing cards include functionalities like: Natural true color, low latency, module calibration, edge correction, HDR10 and high grey scales on low brightness.

Bracing truss for Black Quartz LED panels Bracing truss for Black Quartz LED panels

Foldable wind bracing system

The Black Quartz LED panels are equipped with an incorporated bracing truss. Once mounted, the LED panels are wind-load resistant and can be used till windspeeds of 20m/sec. The LED modules, power box and receiving card are all mounted directly on the rigid frame, creating a fully integrated LED solution offering higher precision and less weight than conventional systems. The result is a seamless LED screen with a great visual performance that can be used in almost any environment.

Curving capabilities of ROE Black Quartz LED screen

Curving capabilities

The Black Quartz LED panels offer efficient curving capabilities in convex as well as concave set-ups, varying from -10° to 10°degree angles. The integrated standard locks can be used to obtain these curves with perfect accuracy. For other, customized angles, special locks are available.

Common Cathode technology ROE Black Quartz LED

Common Cathode technology

Black Quartz panels have an excellent visual performance due to the use of Common Cathode technology. Using the Common Cathode technology significantly reduces panel temperature and results in efficient heat-dissipation and reduced color differences in the LEDs, creating a stable and brilliant LED performance, with a relatively higher brightness compared with regular LED.

Fast and easy service access

Fast and easy service access

To facilitate on-site repair and quick maintenance, the modular design of the Black Quartz system offers front as well as rear module replacement. The modular design further enhances cost-effective maintenance, parts can be easily replaced without having to discard the whole panel and sub-frame.

View case study

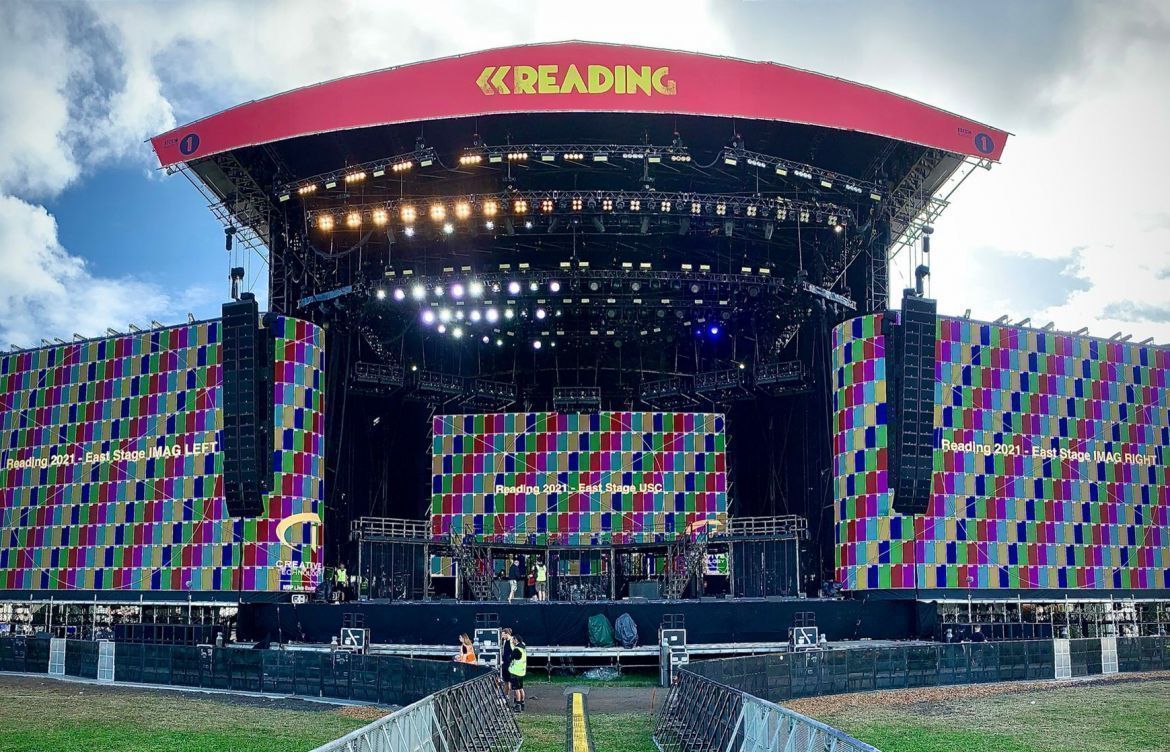

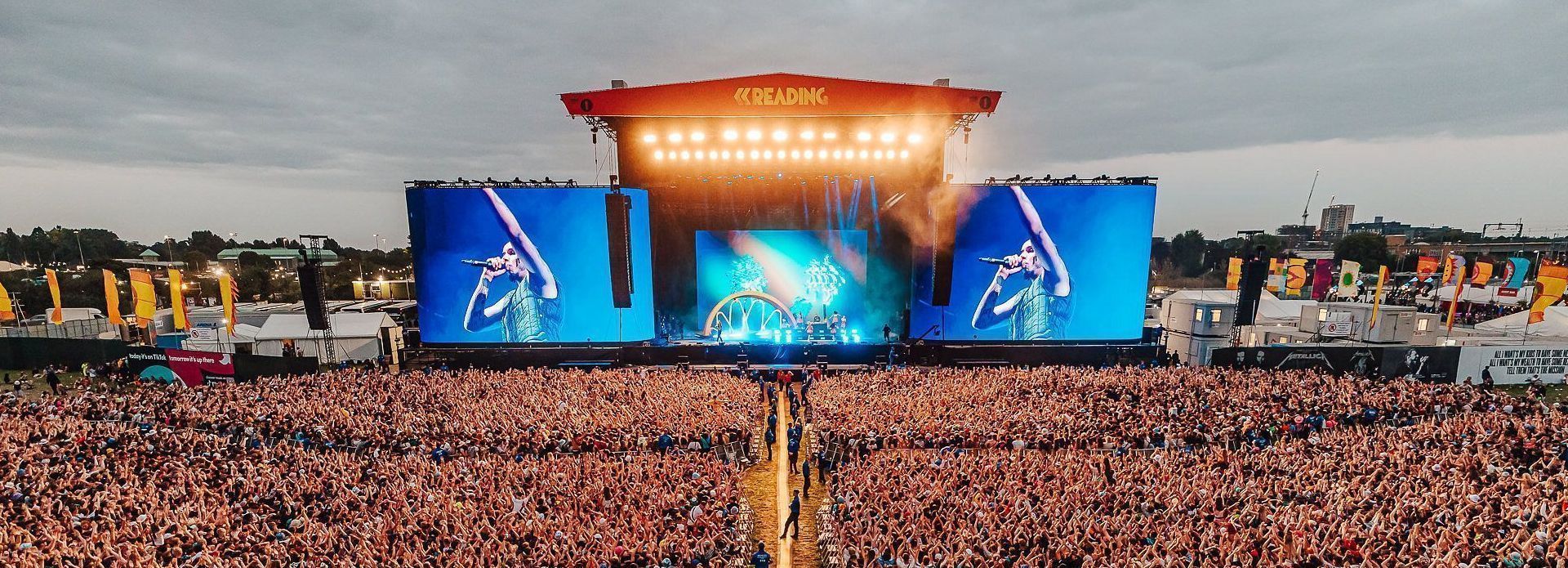

reading & Leeds Festival
View case study

Downloads

Bracing truss for Black Quartz LED panels
Outdoor use of LED screens

The Black Quartz LED panels are equipped with an incorporated bracing truss. Once mounted, the LED panels are wind-load resistant and can be used till wind speeds of 20m/sec.

But what if the outdoor conditions are different? When used outdoor, environmental aspects need to be taken into account. Read all about what you need to know before you build your LED screen outdoors here.

Download Whitepaper

Great Curving Options

The Black Quartz LED panels have great curving options. You can create nice smooth corners as well as full columns! Just add that extra creative touch to your outdoor screen.

Black Quartz Key Features

Panel design with integrated, foldable wind bracing system
Wind- load resistant till wind speeds of 20m/sec.
Easy use; Does not need additional hardware or tools, folds open and is locked in position instantly
Clever storage due to foldable design; Can be transported in dedicated dollies
Multi-functional frame design; Can be used in a hanging or stacking configuration
Bracing system offers climbing access during in-service maintenance
Parts can be easily replaced; Front and back access for module swap possible
Low brightness mode for unrivalled gray scales at indoor use
Black LED for high contrast ratio

Specs

Download All Specs
BQ3.9
BQ3.9 Half
BQ4.6
BQ4.6 Half
BQ6.2
BQ6.2 Half
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • Weight Per Panel (incl. Light Frame)
  • Max. Hanging
  • Max. Stacking
  • BQ3.9
  • 3.9mm
  • SMD1415 Black Common Cathode
  • 5000nits
  • 500mm x 1000mm x 82.62mm
    19.69” x 39.38” x 3.25”
  • 128 x 256
  • 17.8kg | 39.24lbs
  • 360W / 180W
  • 1230 / 565
  • Solid
  • Front / Rear
  • Concave 10° ~ Convex 10°
  • 110°
  • 160°
  • 3840Hz
  • 15bit
  • 1/8
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Outdoor
  • CE, ETL, FCC, WEEE
  • 22kg | 48.5lbs
  • 13 panels
  • 6 panels
  • BQ3.9 Half
  • 3.9mm
  • SMD1415 Black Common Cathode
  • 5000nits
  • 500mm x 500mm x 82.62mm
    19.69” x 19.69” x 3.25”
  • 128 x 128
  • 9.8kg | 21.61lbs
  • 190W / 85W
  • 650 / 300
  • Solid
  • Front / Rear
  • Concave 10° ~ Convex 10°
  • 110°
  • 160°
  • 3840Hz
  • 15bit
  • 1/8
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Outdoor
  • CE, ETL, FCC, WEEE
  • BQ4.6
  • 4.6mm
  • SMD1921 Black Common Cathode
  • 5000nits
  • 500mm x 1000mm x 82.62mm
    19.69” x 39.38” x 3.25”
  • 108 x 216
  • 17.8kg | 39.64lbs
  • 370W / 185W
  • 1265 / 580
  • Solid
  • Front / Rear
  • Concave 10° ~ Convex 10°
  • 110°
  • 160°
  • 3840Hz
  • 16bit
  • 1/6
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Outdoor
  • CE, ETL, FCC, WEEE
  • 22kg | 48.5lbs
  • 13 panels
  • 6 panels
  • BQ4.6 Half
  • 4.6mm
  • SMD1921 Black Common Cathode
  • 5000nits
  • 500mm x 500mm x 82.62mm
    19.69” x 19.69” x 3.25”
  • 108 x 108
  • 9.8kg | 21.61lbs
  • 190W / 85W
  • 650 / 300
  • Solid
  • Front / Rear
  • Concave 10° ~ Convex 10°
  • 110°
  • 160°
  • 3840Hz
  • 16bit
  • 1/6
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Outdoor
  • CE, ETL, FCC, WEEE
  • BQ6.2
  • 6.25mm
  • SMD1921 Black Common Anode
  • 5000nits
  • 500mm x 1000mm x 82.62mm
    19.69” x 39.38” x 3.25”
  • 80 x 160
  • 17.8kg | 39.24lbs
  • 450W / 225W
  • 1535 / 705
  • Solid
  • Front / Rear
  • Concave 10° ~ Convex 10°
  • 110°
  • 160°
  • 7680Hz
  • 16bit
  • 1/5
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Outdoor
  • CE, ETL, FCC, WEEE
  • 22kg | 48.5lbs
  • 13 panels
  • 6 panels
  • BQ6.2 Half
  • 6.25mm
  • SMD1921 Black Common Anode
  • 5000nits
  • 500mm x 500mm x 82.62mm
    19.69” x 19.69” x 3.25”
  • 80 x 80
  • 9.8kg | 21.61lbs
  • 230W / 115W
  • 785 / 360
  • Solid
  • Front / Rear
  • Concave 10° ~ Convex 10°
  • 110°
  • 160°
  • 7680Hz
  • 16bit
  • 1/5
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Outdoor
  • CE, ETL, FCC, WEEE
Specs
Compare products
Comparison
<< product.title >>
  • Title
Black Quartz LED panel

Application Fields

  • Touring productions
  • Festivals
  • Outdoor Events
  • Sports Events
  • Outdoor Advertising



Accessories

Title of product

Black Quartz Hanging Bar

Hang your screen safe and secure using the Hanging BAR
Title of product

Black Quartz Stacking Bar

Stable construction for ground-stacked screens
Helios processor

Processing platform

Black Quartz works on the HELIOS processing platform
Black Quartz dolly

Dolly

The Black Quartz dolly for safe transport of your LED panels.

Data Cable

Power Cable

Base Truss
Steven Embregts

Finding an outdoor screen solution that fits our exacting demands is not an easy task. When ROE Visual developed Black Quartz they have listened well to market feedback. This has translated in a screen that fits our needs perfectly. Not only does it offer a safe and secure structure, it also has a great visual performance under difficult circumstances.

Steven Embregts Technical Manager, Faber Audiovisuals
