The Carbon series MarkII offers a lightweight LED solution for the outdoor rental market with an unbeatable reputation for its outdoor performance. The Carbon series MarkII LED panels have a 12% weight reduction compared to the original Carbon series and are re-designed with a more robust yet lightweight structure. The CB MarkII LED panel is easy and fast to install and offers efficient servicing through its user-friendly design.

Download CB MKII Brochure

Carbon Series MarkII

The Unbeatable Outdoor LED Platform

CB MKII Video

The CB MarkII Key Features

Ultra Light Weight
Light weight
Concave and Convex
Curveable
Touring Frame Compatible
Touring frame compatible

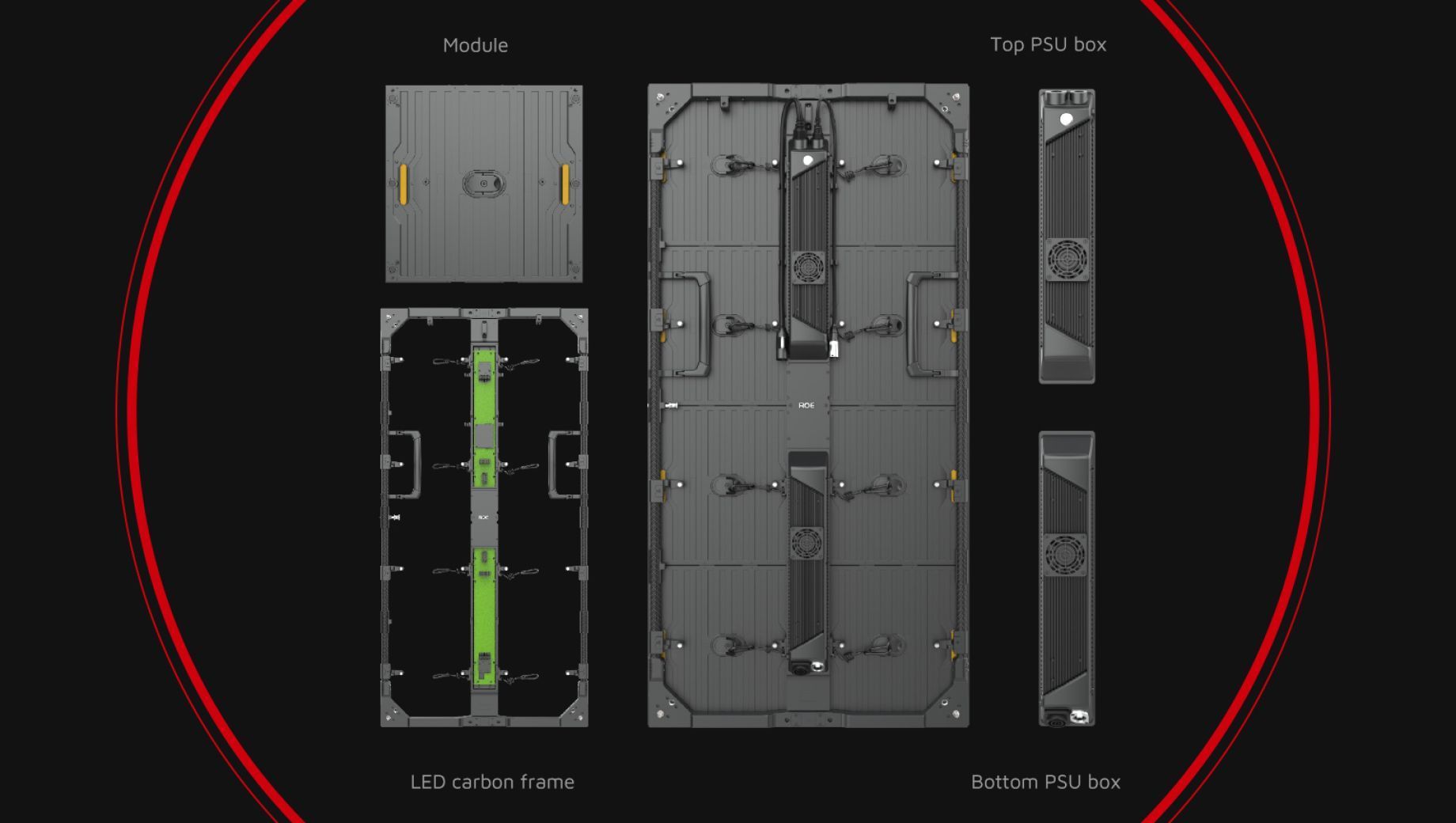

Fast Installation
Fast installation
Heat Dissipation
Heat dissipation

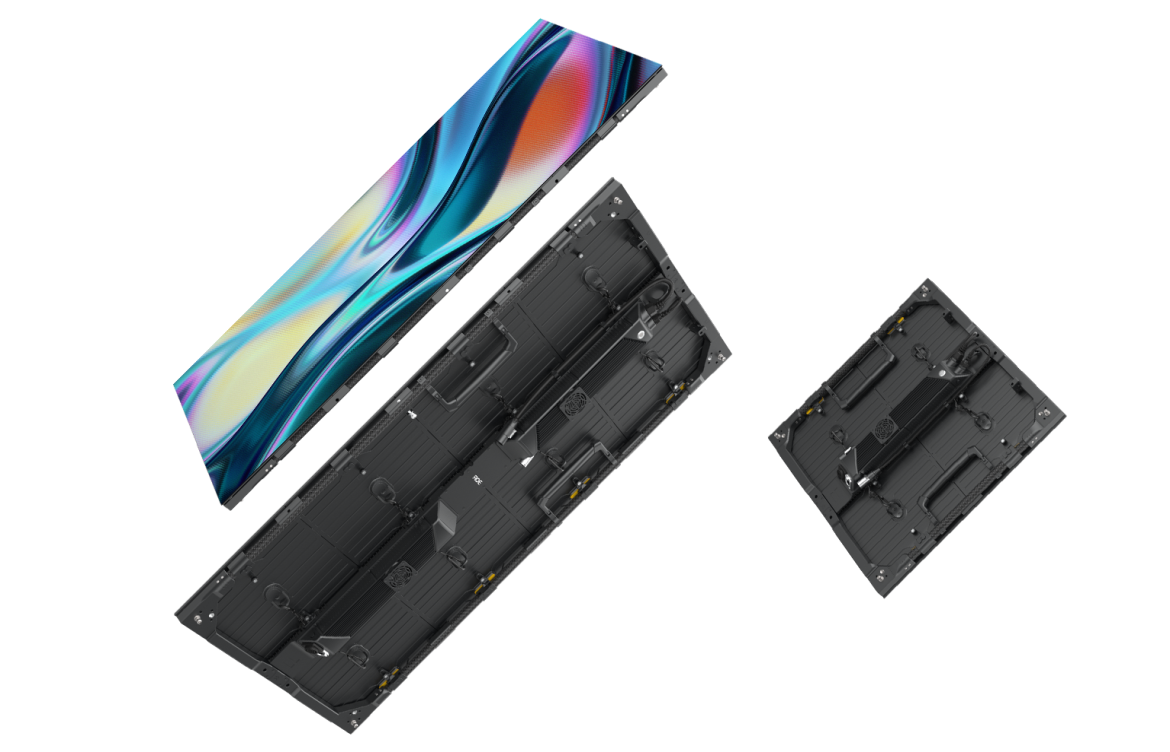

Half Panel
Half panel
Hanging System
Hanging system
Stacking System
Stacking system
LED Ceiling
LED Ceiling
CB3MKⅡ
CB3MKⅡ Half
CB5MKⅡ
CB5MKⅡ Half
CB8MKⅡ
CB8MKⅡ Half
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • Max. Hanging
  • Max. Stacking
  • CB3MKⅡ
  • 3.75mm
  • SMD 1515 Black
  • 4500nits
  • 600mm x 1200mm x 79mm
    23.6” x 47.2” x 3.1”
  • 160 x 320
  • 14kg | 31lbs
  • 600W / 300W
  • 2050 / 945
  • Solid
  • Front / Rear
  • Concave 15° ~ Convex 10°
  • 110°
  • 140°
  • 3840Hz
  • 16bit
  • 1/10
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, UKCA, WEEE
  • 12 panels
  • 5 panels
  • CB3MKⅡ Half
  • 3.75mm
  • SMD 1515 Black
  • 4500nits
  • 600mm x 600mm x 79mm
    23.6” x 23.6” x 3.1”
  • 160 x 160
  • 7.5kg | 16.53lbs
  • 290W / 145W
  • 990 / 455
  • Solid
  • Front / Rear
  • Concave 15° ~ Convex 10°
  • 110°
  • 140°
  • 3840Hz
  • 16bit
  • 1/10
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, UKCA, SAA, WEEE
  • 24 panels
  • 10 panels
  • CB5MKⅡ
  • 5.77mm
  • SMD 1921 White
  • 6000nits
  • 600mm x 1200mm x 79mm
    23.6” x 47.2” x 3.1”
  • 104 x 208
  • 12.2kg | 26.8lbs
  • 480W / 240W
  • 1640 / 755
  • Solid
  • Front / Rear
  • Concave 15° ~ Convex 10°
  • 110°
  • 140°
  • 7680Hz
  • 16bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, UKCA, WEEE
  • 12 panels
  • 5 panels
  • CB5MKⅡ Half
  • 5.77mm
  • SMD 1921 White
  • 6000nits
  • 600mm x 600mm x 79mm
    23.6” x 23.6” x 3.1”
  • 104 x 104
  • 6.5kg | 14.3lbs
  • 250W / 125W
  • 850 / 395
  • Solid
  • Front / Rear
  • Concave 15° ~ Convex 10°
  • 110°
  • 140°
  • 7680Hz
  • 16bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, UKCA
  • 24 panels
  • 10 panels
  • CB8MKⅡ
  • 8.33mm
  • SMD 1921 White
  • 6000nits
  • 600mm x 1200mm x 79mm
    23.6” x 47.2” x 3.1”
  • 72 x 144
  • 11kg | 24.3lbs
  • 530W / 260W
  • 1810 / 835
  • 23%
  • Front / Rear
  • Concave 15° ~ Convex 10°
  • 110°
  • 140°
  • 7680Hz
  • 14bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, UKCA, WEEE
  • 12 panels
  • 5 panels
  • CB8MKⅡ Half
  • 8.33mm
  • SMD 1921 White
  • 6000nits
  • 600mm x 600mm x 79mm
    23.6” x 23.6” x 3.1”
  • 72 x 72
  • 6kg | 13.2lbs
  • 260W / 130W
  • 890 / 410
  • 23%
  • Front / Rear
  • Concave 15° ~ Convex 10°
  • 110°
  • 140°
  • 7680Hz
  • 14bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, UKCA, SAA, WEEE
  • 24 panels
  • 10 panels
Comparison
<< product.title >>
  • Title

Application Fields

  • Touring and Festivals
  • Outdoor events
  • Sports Events
  • LED Ceiling for Virtual Production sets
