Vanish V8

Optimal Transparency in a Lightweight Panel

The Vanish V8 is the smallest and lightest member of the Vanish series of transparent LED panels. With a transparency of 60%, this LED panel offers outstanding performance through its high-brightness and excellent viewing angles. The ideal solution for indoor events and concerts.

Request Info

Vanish V8 LED panel

High-transparency

The Vanish V8 reaches an optimum transparency of 60%.  Ideal for a variety of creative applications for events or permanent installations, using the see-though effect.

Vanish V8 LED panel

Transparent or closed - your choice

The standard deliverable shutter plates offer dual application of the panels, the panels can be changed easily from non-transparent to transparent, broadening your application scope.

Vanish V8 LED panel

Lightweight Design

The Vanish V8 panels are characterized by their lightweight design. This results in easy handling and mounting, reduces transport volume. Their low self-weight is an advantage when using them as LED celing.

Vanish V8 LED panel

High Brightness

The Vanish V8 LED panel has an excellent video performance, due to its high brightness and wide viewing angle. Capture the audience attention with stunning visuals and optimal transparency.

Vanish V8 LED panel

Easy to Install

The Vanish V8 LED panel comes with a wide range of accessories such as connection locks, flight cases and hanging and stacking options. The magnet-assited assembly contributes to efficient handling and ease of installation.

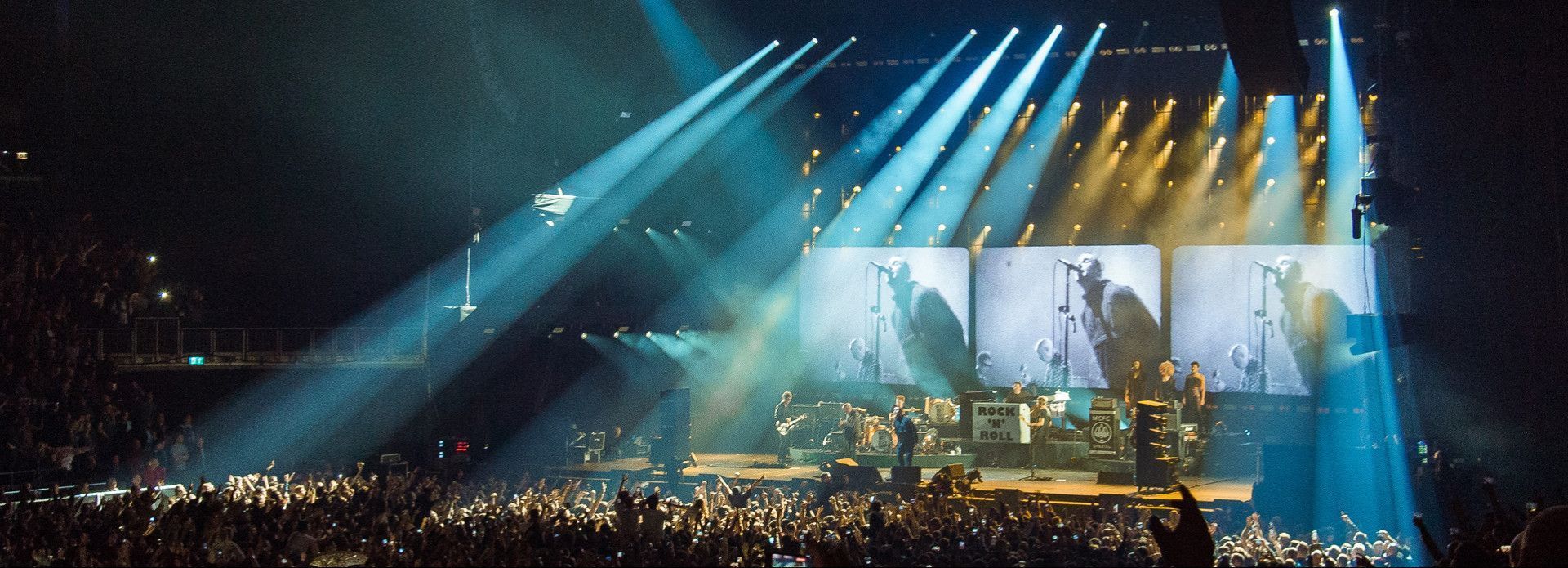

2019 Liam Gallagher - Why Me Why Not Arena Tour
Read the Story

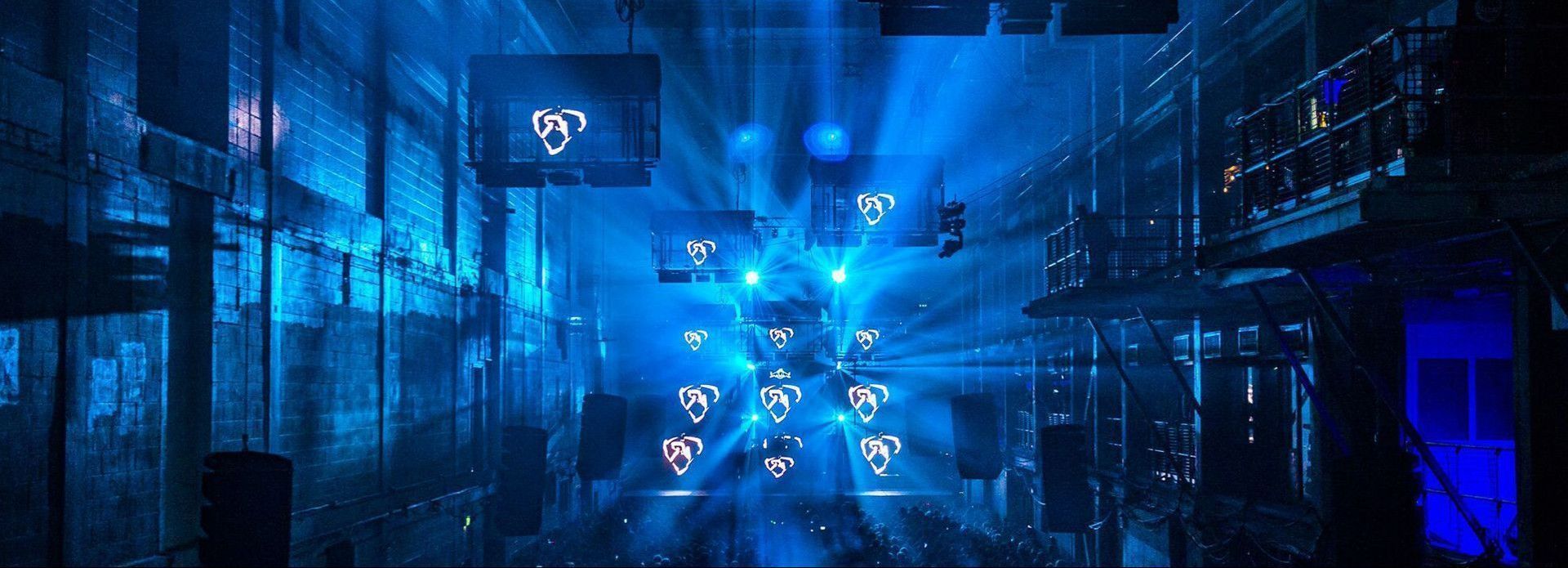

Vanish V8 at Printworks Venue
Vanish in action at Printworks

Vanish V8 Key Features

Easy Maintenance
Hanging and Stacking
Curving Options

Downloads

Specs

  • Tile
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Multiplexing
  • Refresh Rate
  • Gray Scale
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • Vanish V8
  • 8.9mm
  • SMD 1515 Black
  • 2500nits
  • 1000 x 500 x 35mm (Power Box 100.7mm), 39.4" x 19.7" x 1.4" (Power Box 3.9")
  • 112 x 56
  • 6.5kg; 14.33lbs
  • 320W / 160W
  • 1090 / 500
  • 60%
  • Concave 15°~Convex 5°
  • 140°
  • 160°
  • 4
  • 6576Hz
  • 16bit
  • -20° -45°C 10-90% RH
    -4° -113°F 10-90% RH
  • -40° -60°C 10-90% RH
    -40° -140°F 10-90% RH
  • Indoor
  • CE, ETL, FCC
The specifications are for reference, actual values may vary.

Download all specs

Vanish V8

Application Fields

  • Touring
  • Concert
  • Outdoor Events

Accessories

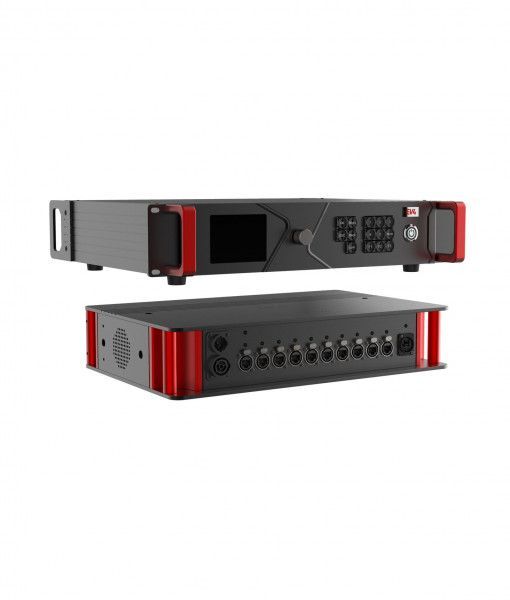

eV4 LED processor

eV4

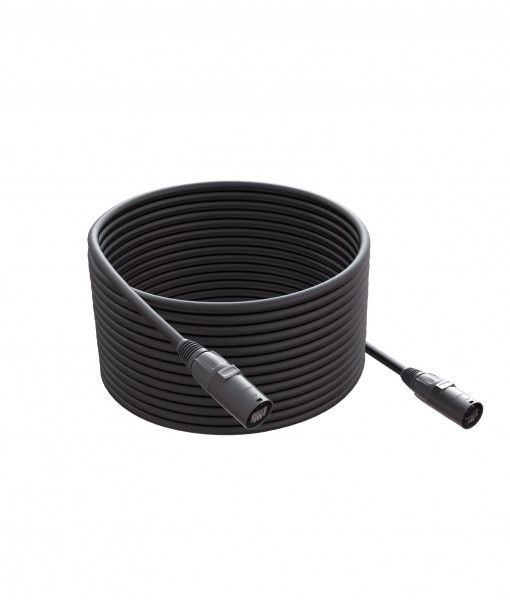

V8 Data Cable

Data Cable

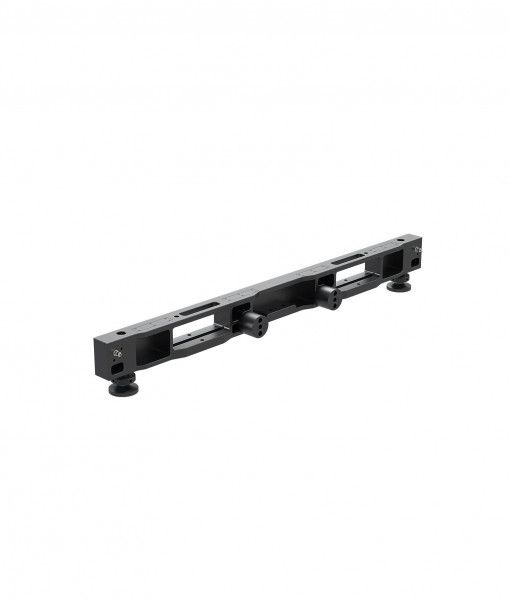

V8 Base Bar

Base Bar

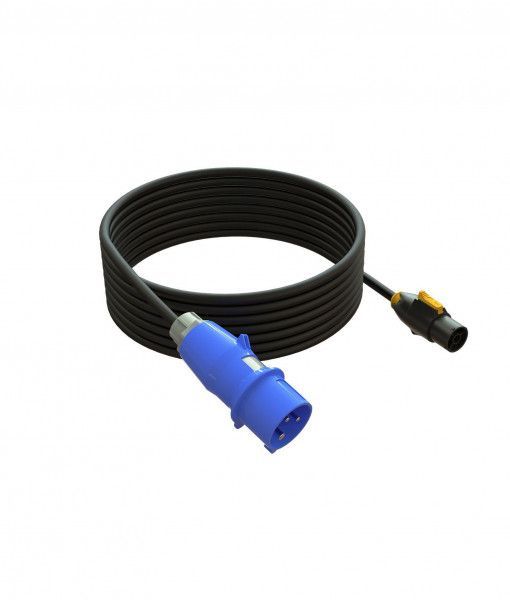

V8 Power Cable

Power Cable
Hanging Curve Connection Plate

Hanging Curve Connection Plate
Curve Connection Plate

Curve Connection Plate
Curve Connection Plate

Curve Connection Plate
Connection Plate 4-Way

Connection Plate 4-Way
Connection Plate

Connection Plate
DJ Snake with Vanish V8

Vanish LED panels show their trick at Paris Show

DJ Snake

Set designer Romain Pissenem from High Scream raised the bar, designing a set on a huge scale. The opening of the show, revealing DJ snake on the top of a life-size Arc de Thriomphe amidst a dazzling combination of lighting, visuals and special effects created a spectacular moment. This show is a brilliant example of the creative possibilities that the Vanish V8 screen offers. Combining a 62% transparency with an excellent visual performance and wide viewing angle, the Vanish V8 screen has become very popular among lighting designers.

Watch here

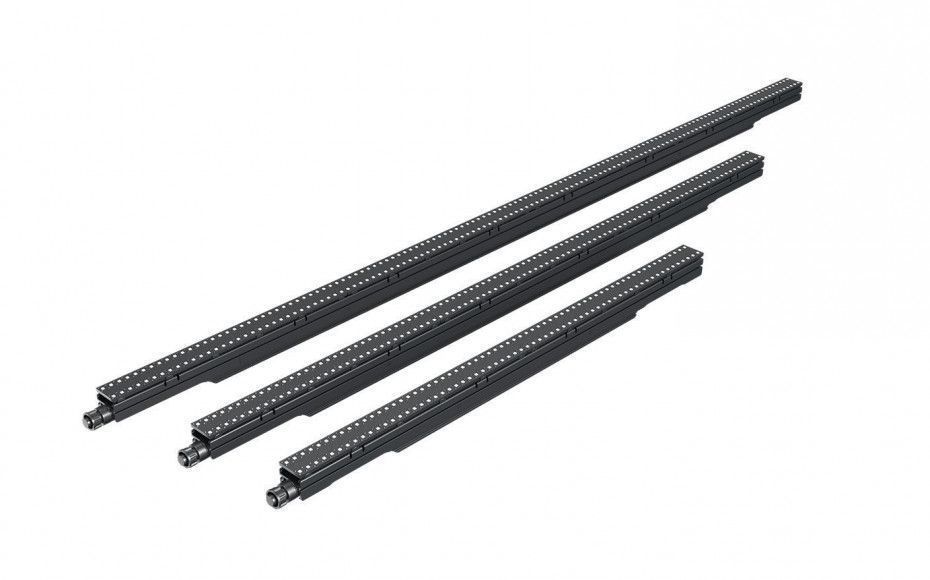

ROE Strip

More creative options with ROE Strip

Discover

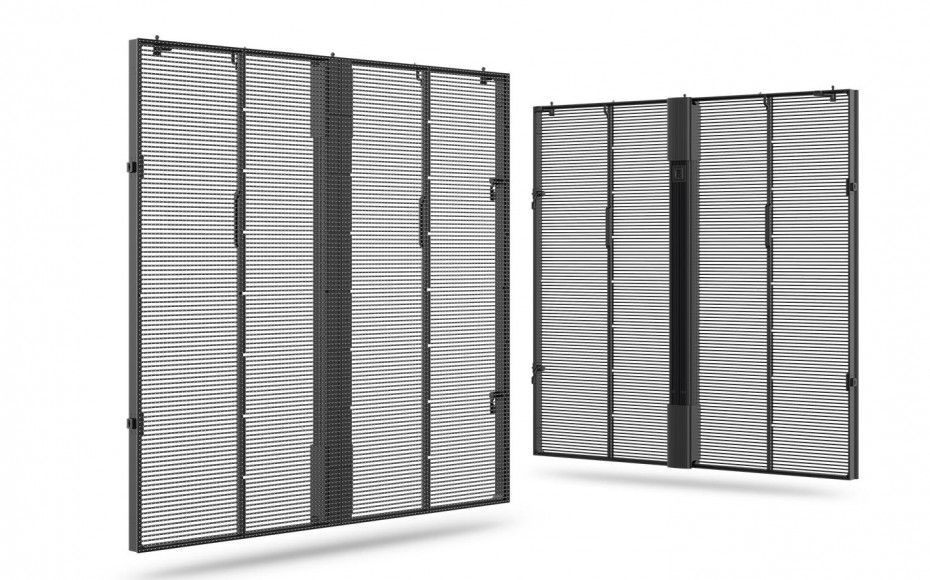

Vanish V8S

More Transparent LED panels

Explore
