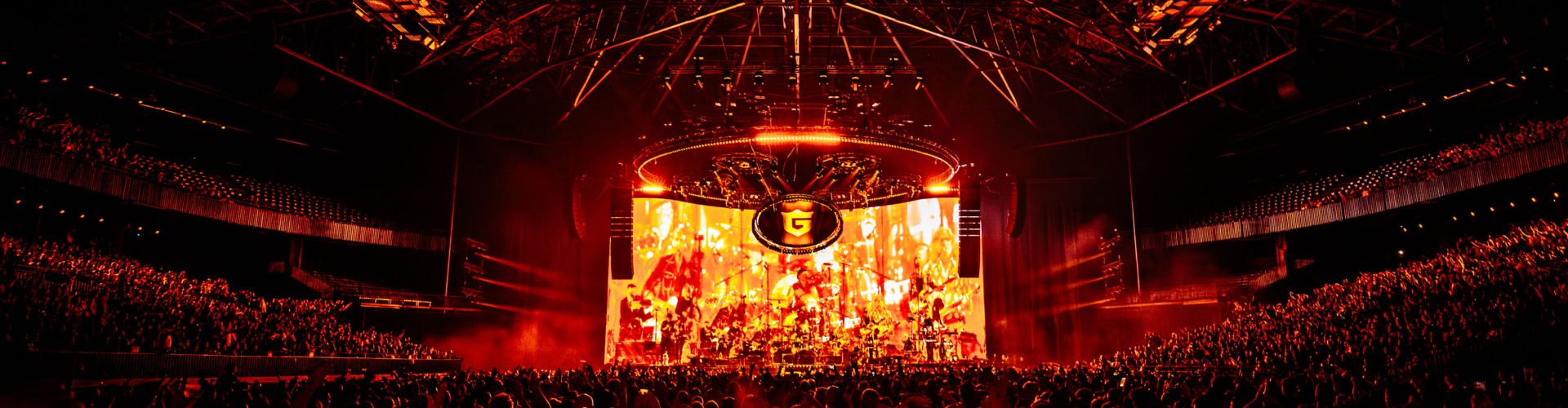

Emerald banner from FBR

Emerald

The Agile LED platform

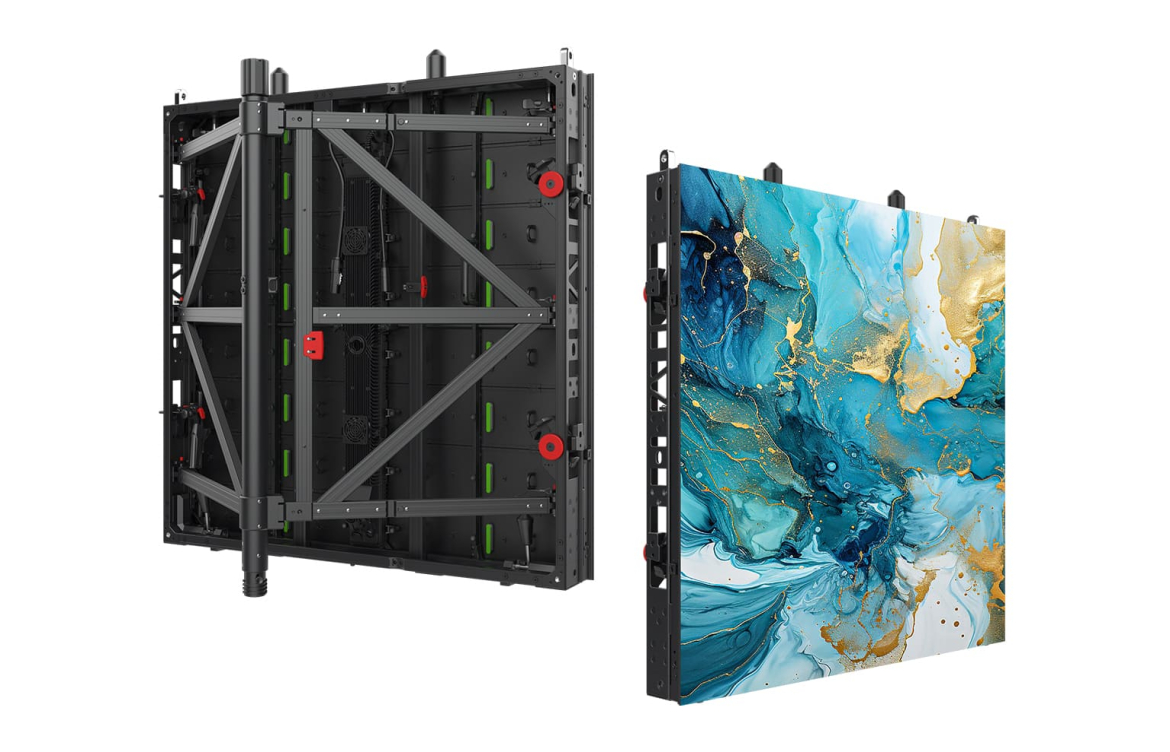

Emerald system

One System. Every Scenario.

Emerald is the all-in-one solution for demanding rental markets, from large-scale outdoor productions to high-end indoor displays. Its scalable design, toolless assembly, and smart accessories make it the go-to choice for production companies seeking maximum adaptability with minimal effort.

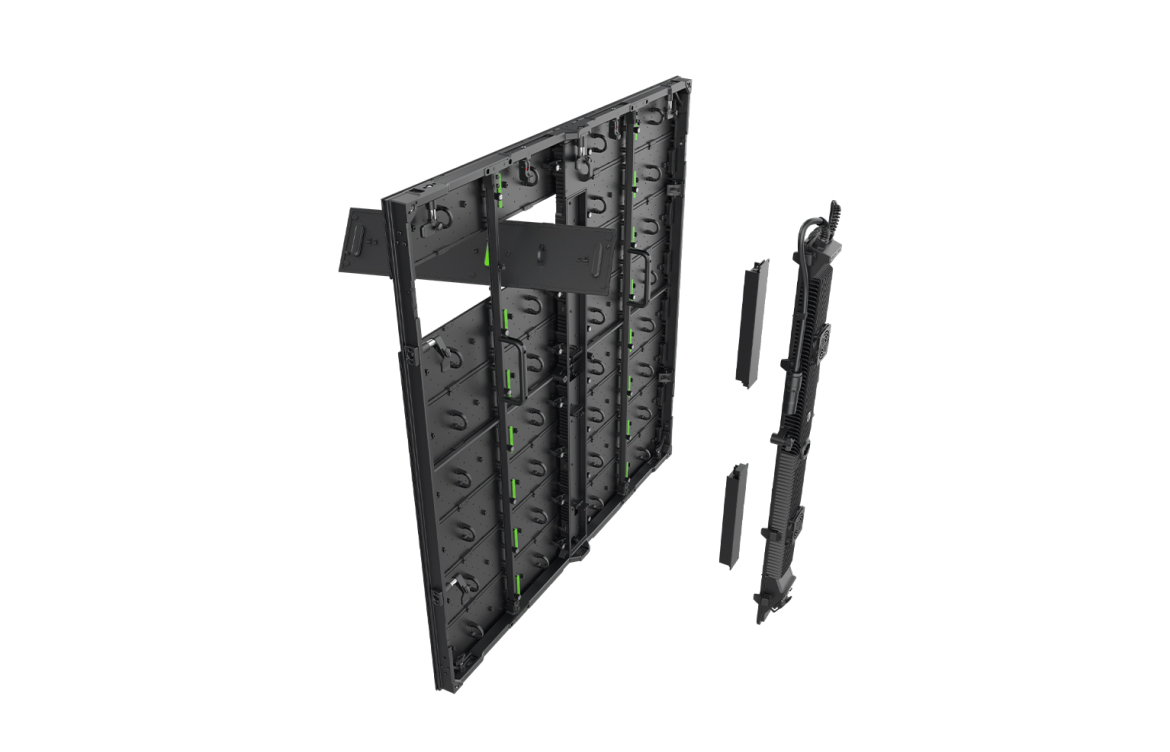

Emerald modular design

One Frame. Seamless Adaptability.

With Emerald, versatility comes built in. The base frame is engineered to support all module types — EM3.9-V, EM5.9, and EM8.9 — allowing you to switch between pixel pitches simply by replacing modules in the frame. Add the wind-resistant frame, and your indoor configuration transforms effortlessly into a rugged outdoor LED screen. Whether you’re facing a stadium crowd or a corporate event, Emerald adapts — so you don’t have to.

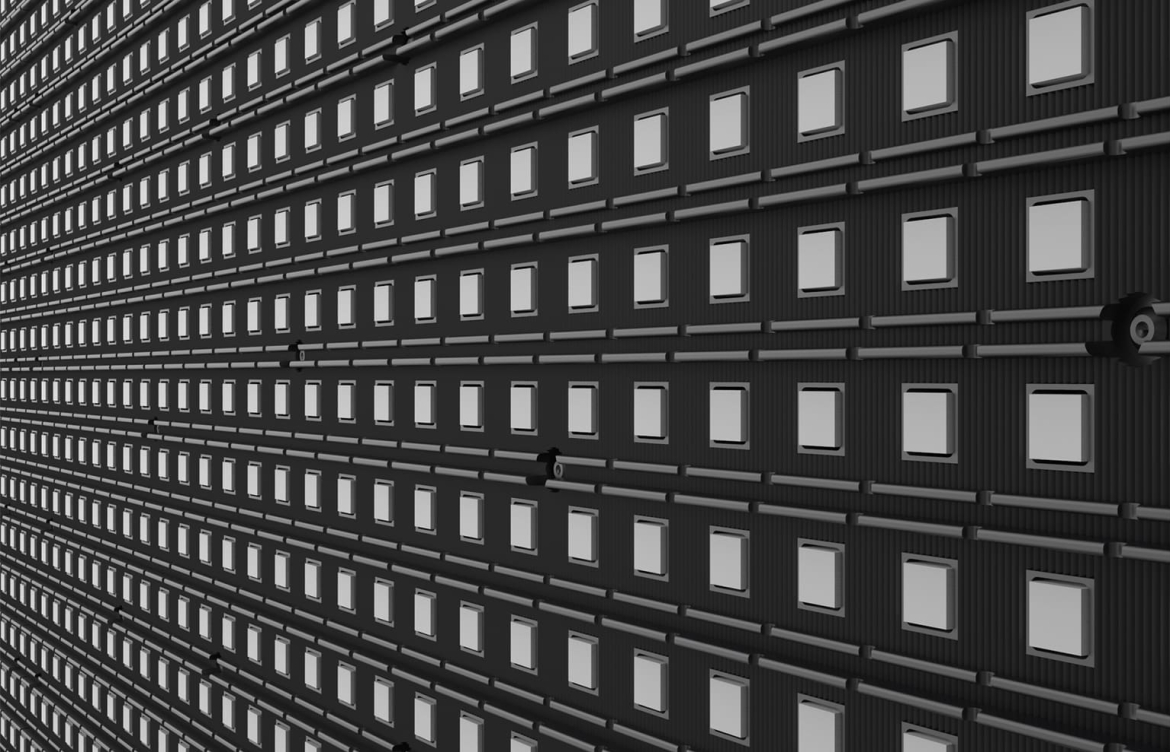

Emerald shaders

Built-in Protection. Enhanced Visuals.

The EM3.9-V and EM5.9 modules come equipped with integrated shaders above each LED and a protective edge below. This dual design not only shields the LEDs from impact during handling and use, but also improves contrast by reducing ambient light reflections. Whether you’re working in bright environments or fast-paced rental settings, Emerald delivers performance you can rely on — pixel by pixel.

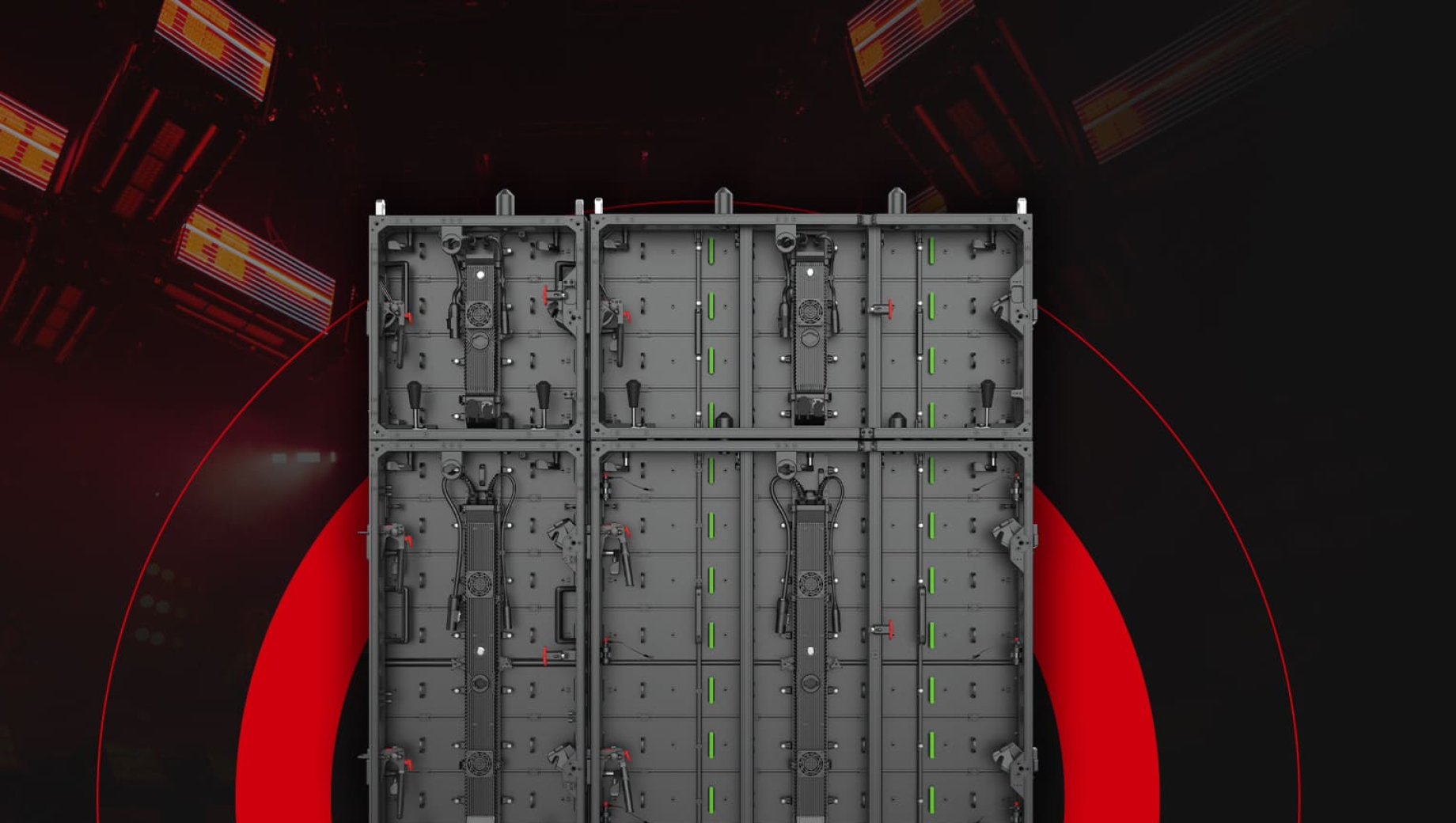

Emerald versatile

No Limits. Full Flexibility.

The Emerald LED panel is designed to meet the shifting demands of live events, touring, and fixed installations across all seasons. With multiple panel sizes and a modular, wind-resistant frame that can be added when needed, Emerald lets you build bold, boundary-free setups indoors or out. Wherever your creativity takes you, Emerald is ready to perform.

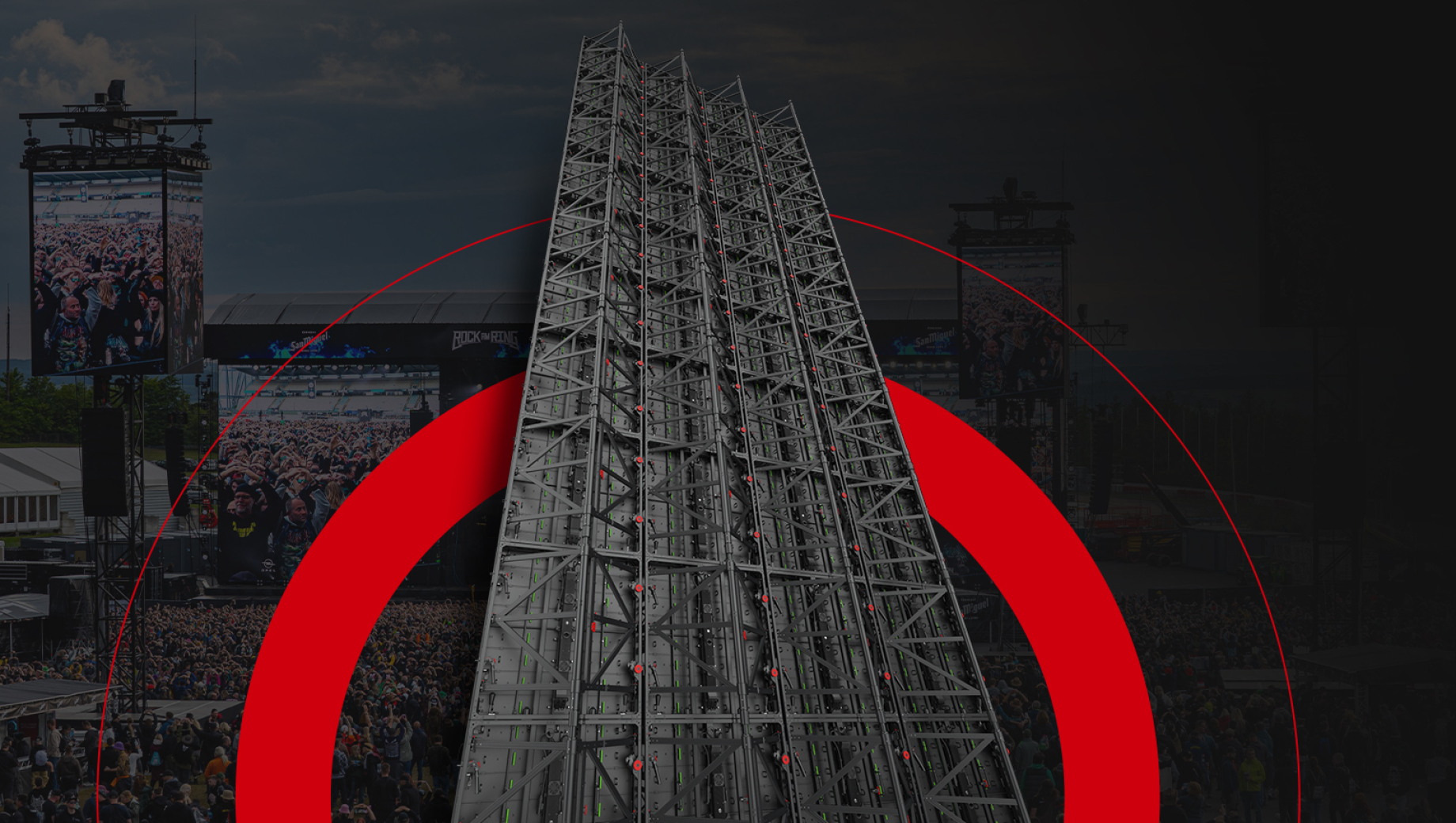

Emerald lightweight

Less Effort. Smarter Setup.

Live events are all about efficiency, and your gear should be able to keep up. Built with a lightweight magnesium alloy frame, Emerald weighs just 15.5 kg per square meter—20% lighter than most indoor LED panels. This smart design simplifies logistics, speeds up installation, and reduces labor costs, helping crews move fast without compromising stability or durability.

Emerald fast installation

Interchangeable Modules. Reliable Uptime.

When time matters, maintenance should be quick and hassle-free. Emerald’s interchangeable magnetic LED modules and integrated quick-release screws make repairs and replacements seamless, minimizing downtime and maximizing operational reliability. The result? A system you can count on, with less disruption and more peace of mind.

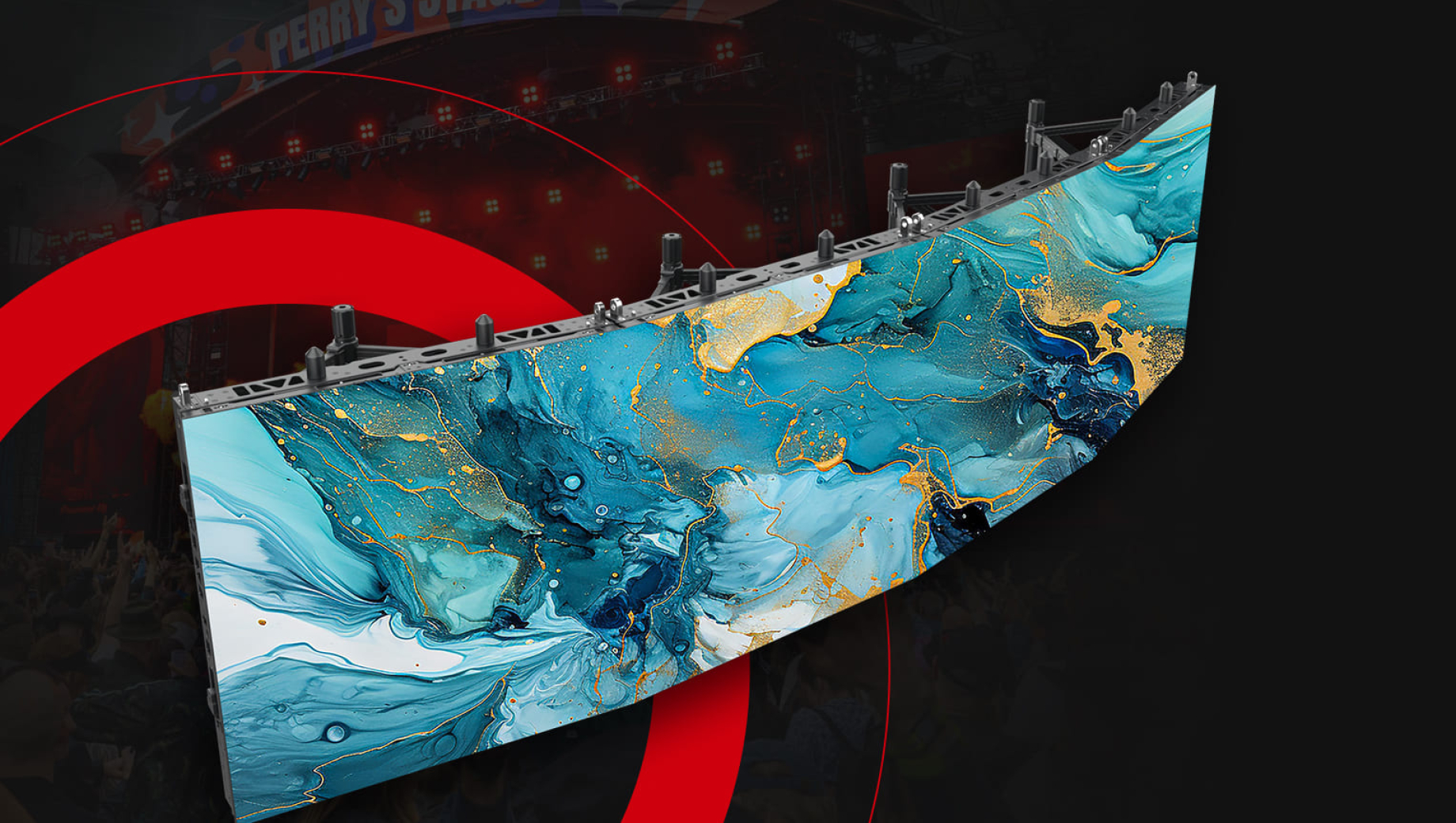

Emerald Curve

Designed to Curve. Built to Impress.

Whether your design calls for a concave sweep or a clean, linear setup, Emerald’s ability to curve with precision from 10 to -10 degrees adds powerful visual dimension to any stage or screen. This versatility opens new creative possibilities while keeping the setup efficient and structurally sound.

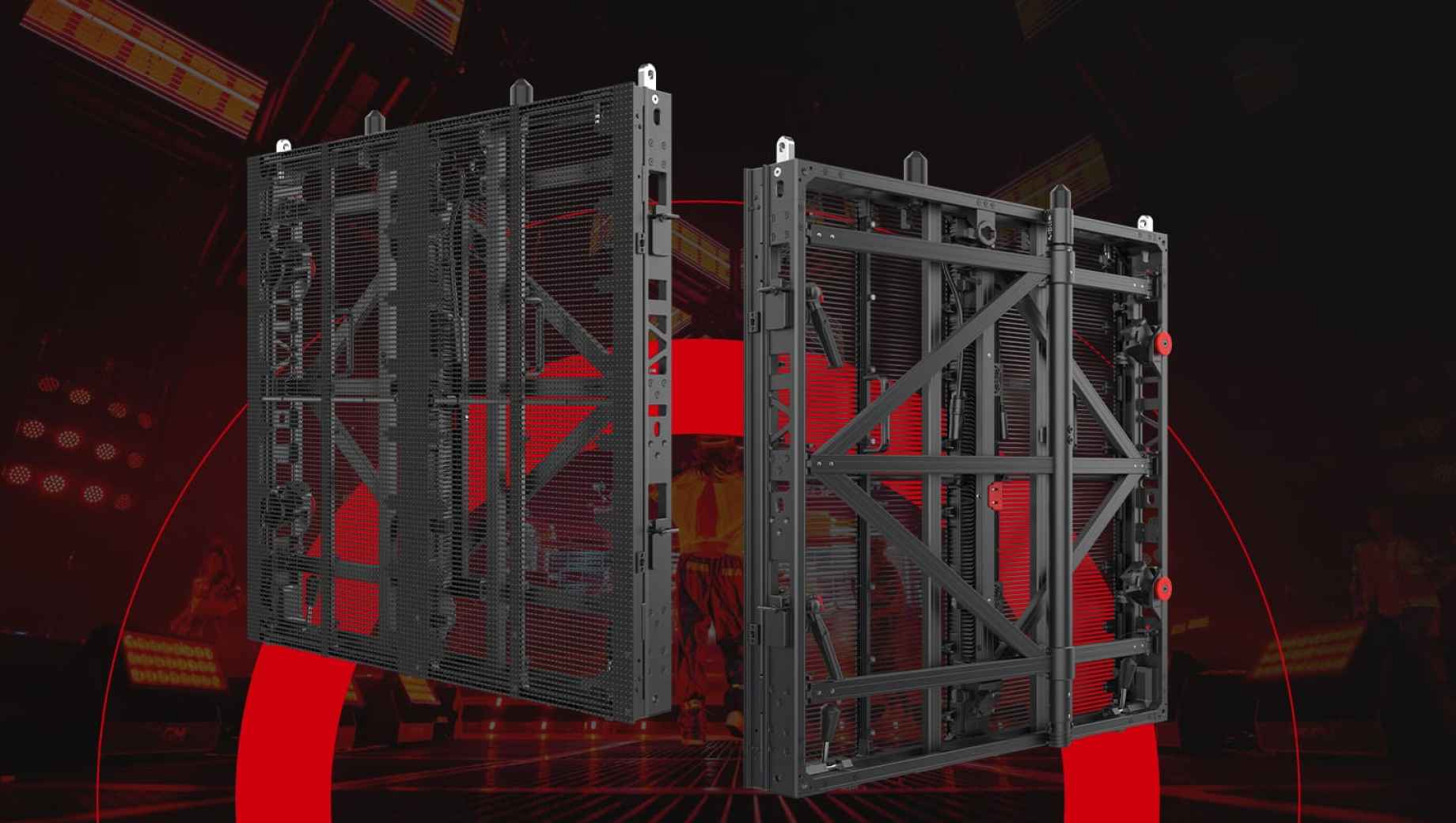

Emerlad Limitless

Lightweight Design. Limitless Creativity.

The EM8.9 adds a creative edge to the Emerald platform with 30% transparency, making it ideal for innovative stage designs and eye-catching visual effects at concerts and live events. Its see-through structure opens up new possibilities for lighting integration and layered depth, while its reduced weight makes it easier to handle and transport.

Downloads

Emerald Key Features

Panel design with integrated, foldable wind bracing system
Wind-load resistant till wind speeds of 20m/sec
Easy use; Does not need additional hardware or tools, folds open and is locked in position instantly
Clever storage due to foldable design; Can be transported in dedicated dollies
Multi-functional frame design; Can be used in a hanging or stacking configuration
Bracing system offers climbing access during in-service maintenance
Parts can be easily replaced; Front and back access for module swap possible
Low brightness mode for unrivalled gray scales at indoor use
Black LED for high contrast ratio

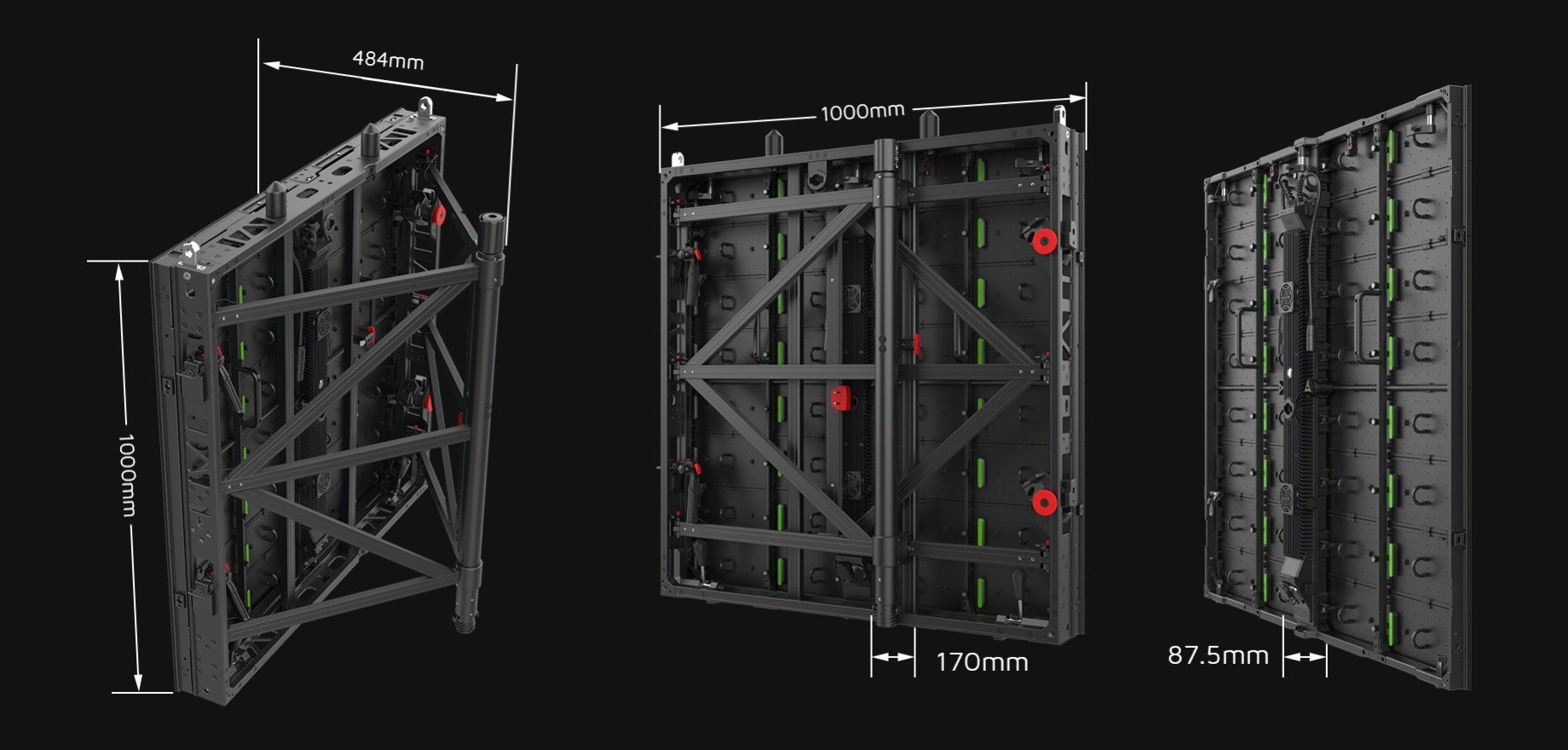

Specs

Download All Specs
EM3.9-V
EM5.9
EM8.9
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • Max. Hanging
  • Max. Stacking
  • EM3.9-V
  • 3.9mm
  • SMD 1415 Black
  • 5000nits
  • 500mm x 1000mm x 87.5mm
    19.69” x 39.4” x 3.44”
  • 128 x 256
  • 9.6kg | 21.16lbs
  • 400W / 200W
  • 1365 / 630
  • Solid
  • Front / Rear
  • Concave 10° ~ Convex 10°
  • 120°
  • 160°
  • 7680Hz
  • 16bit
  • 1/8
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, FCC, ETL, UKCA, WEEE, ROHS
  • 16 panels
  • 6 panels
  • EM5.9
  • 5.9mm
  • SMD 1921 Black
  • 5000nits
  • 1000mm x 1000mm x 87.5mm
    39.4” x 39.4” x 3.44”
  • 168 x 168
  • 15.9kg | 35.05lbs
  • 720W / 360W
  • 2455 / 1130
  • Solid
  • Front / Rear
  • Concave 10° ~ Convex 10°
  • 130°
  • 160°
  • 7680Hz
  • 16bit
  • 1/7
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, FCC, ETL, UKCA, WEEE, ROHS
  • 16 panels
  • 6 panels
  • EM8.9
  • 8.9mm
  • SMD 1415 White
  • 4500nits
  • 1000mm x 1000mm x 87.5mm
    39.4” x 39.4” x 3.44”
  • 112 x 112
  • 12.5kg | 27.56lbs
  • 570W / 285W
  • 1945 / 895
  • 48%
  • Front / Rear
  • Concave 10° ~ Convex 10°
  • 160°
  • 160°
  • 7680Hz
  • 16bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, UKCA, WEEE, ROHS
  • 16 panels
  • 6 panels
All specification values given are per panel. The specifications are for reference only, actual values may vary. The max. hanging amount is only valid when official ROE Visual hardware parts are used. The safety factor is 8. Climbing is only allowed if stated in the panel manual and only following the rules given therein. The max. stacking amount is only valid when official ROE Visual hardware parts are used and when sufficient ballast is applied – following the rules as stated in the panel manual and/or structural report. Specs
Compare products
Comparison
<< product.title >>
  • Title
Black Quartz LED panel

Application Fields

  • Touring productions
  • Festivals
  • Outdoor Events
  • Sports Events
  • Outdoor Advertising



Accessories

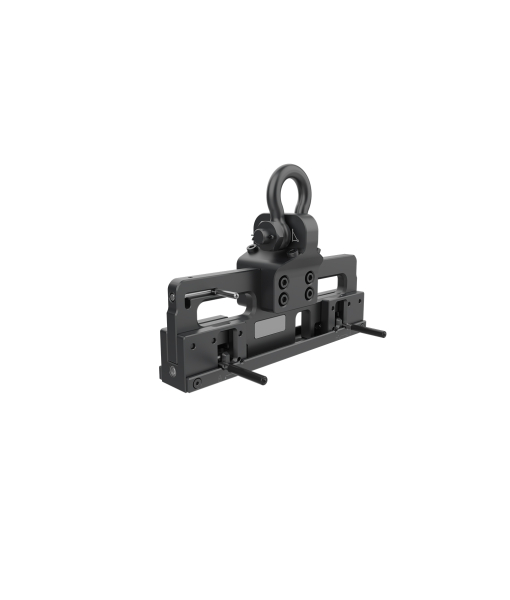

Hanging Bar 0.5m

Hanging Bar 0.5m

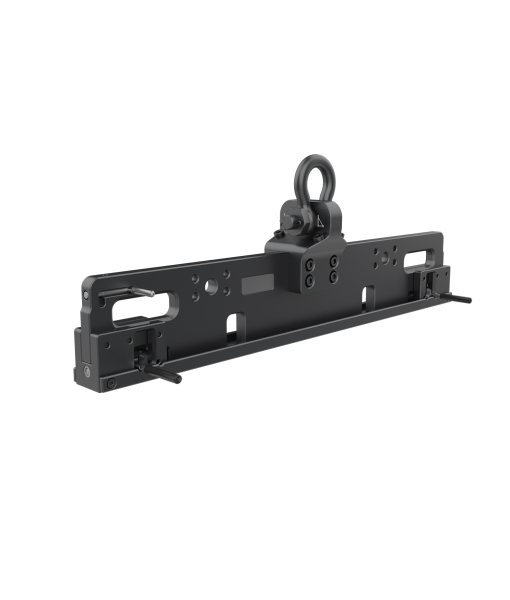

Hanging Bar 1m

Hanging Bar 1m

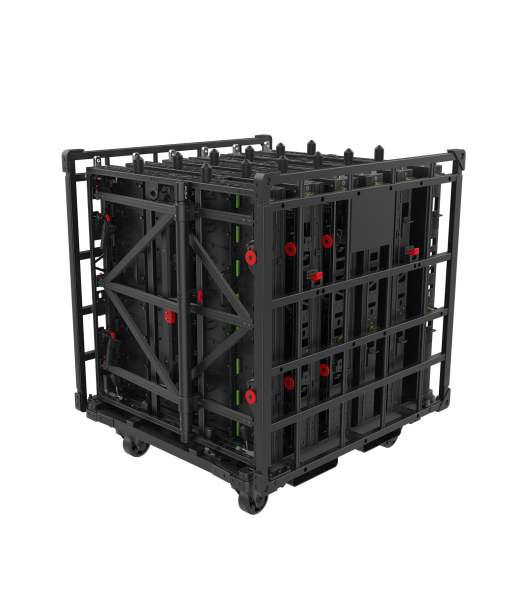

Emerald dolly

Dolly

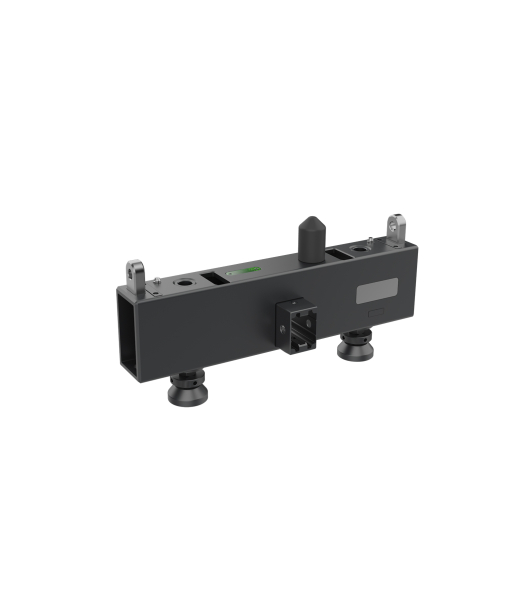

Base Bar 0.5m

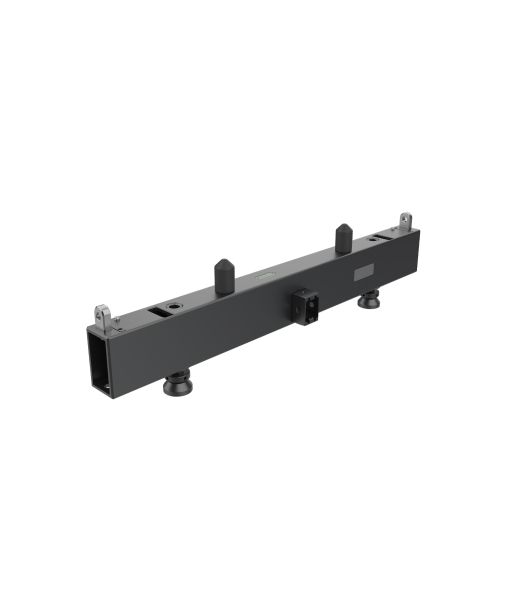

Base Bar 1m

Base Truss

Erwin Rintjema

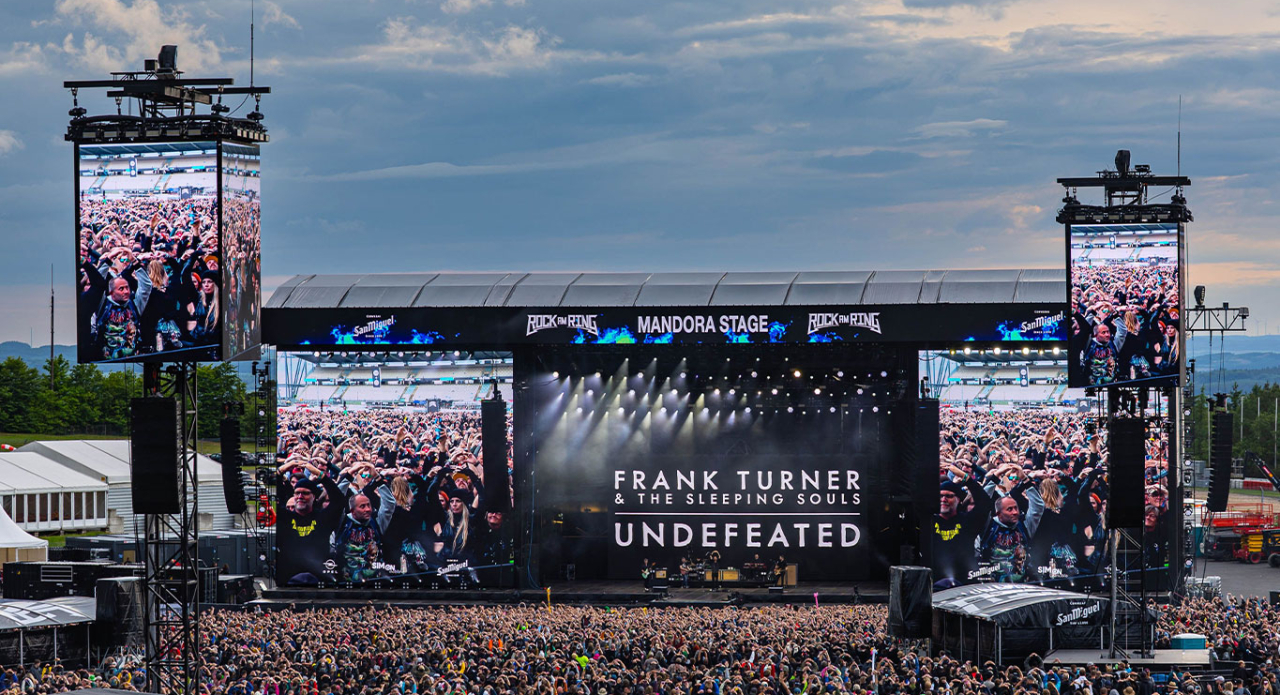

We were dealing with a highly stylised but technically demanding set design. Emerald offered the perfect flexibility. For straight sections, we used touring frames, while for curves, we removed them to achieve tight radii without gaps. This also delivered critical weight savings for safe rigging. The resolution and contrast, enhanced by the super-blackface finish, produced razor-sharp images that truly jumped off the screen.

Erwin Rintjema Sightline Productions
