Ruby

Next-generation LED panels

How to comprise the latest technology into an advanced LED panel and translate that to an outstanding viewing experience? ROE Visual has done just that. The Ruby LED panels are a new generation of LED panels equipped with features that are beneficial from build to performance.

Request info

Simply Stunning

Only the best is good enough. ROE Visual has developed unique 4in1 LED packages, exclusively available for Ruby. Stronger, less reflection and more contrast due to an optimized black body, the resulting colors are striking.

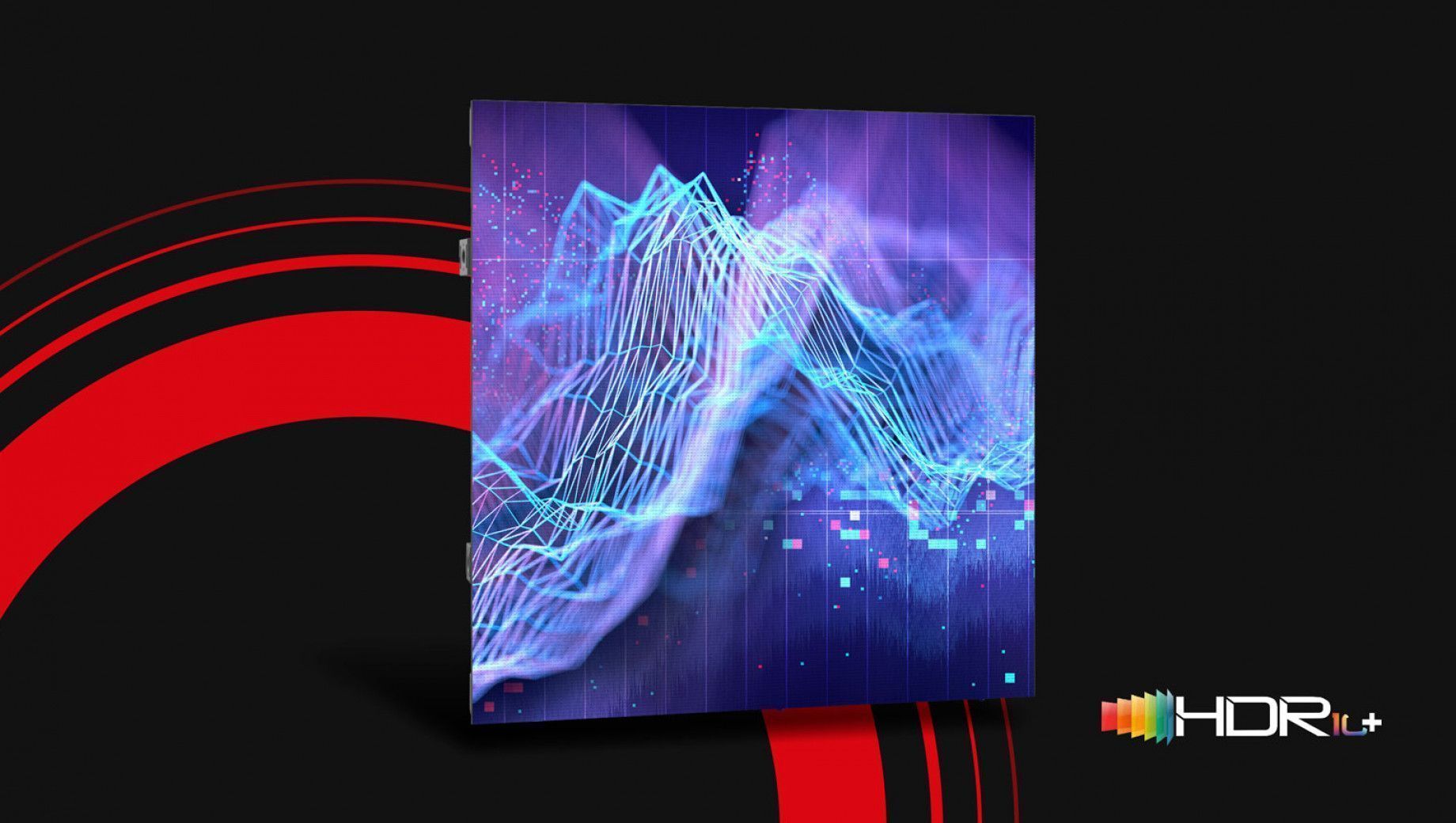

HDR. True Colors

Sporting advanced driver ICs and LEDs with large color space, Ruby is fully HDR adaptive. Adding excellent color depth and great grayscales to your visuals.

Ruby LED panels are fitted with exclusive 4in1 LEDs

Exclusive 4in1LED

The Ruby LED panels are fitted with exclusive 4in1 LEDs，which results in a remarkable LED performance, due to reduced glare and leads to a perfect in-camera performance of the LED screens. The enhanced black body between the individual LEDs creates more contrast and guarantees optimum brightness.

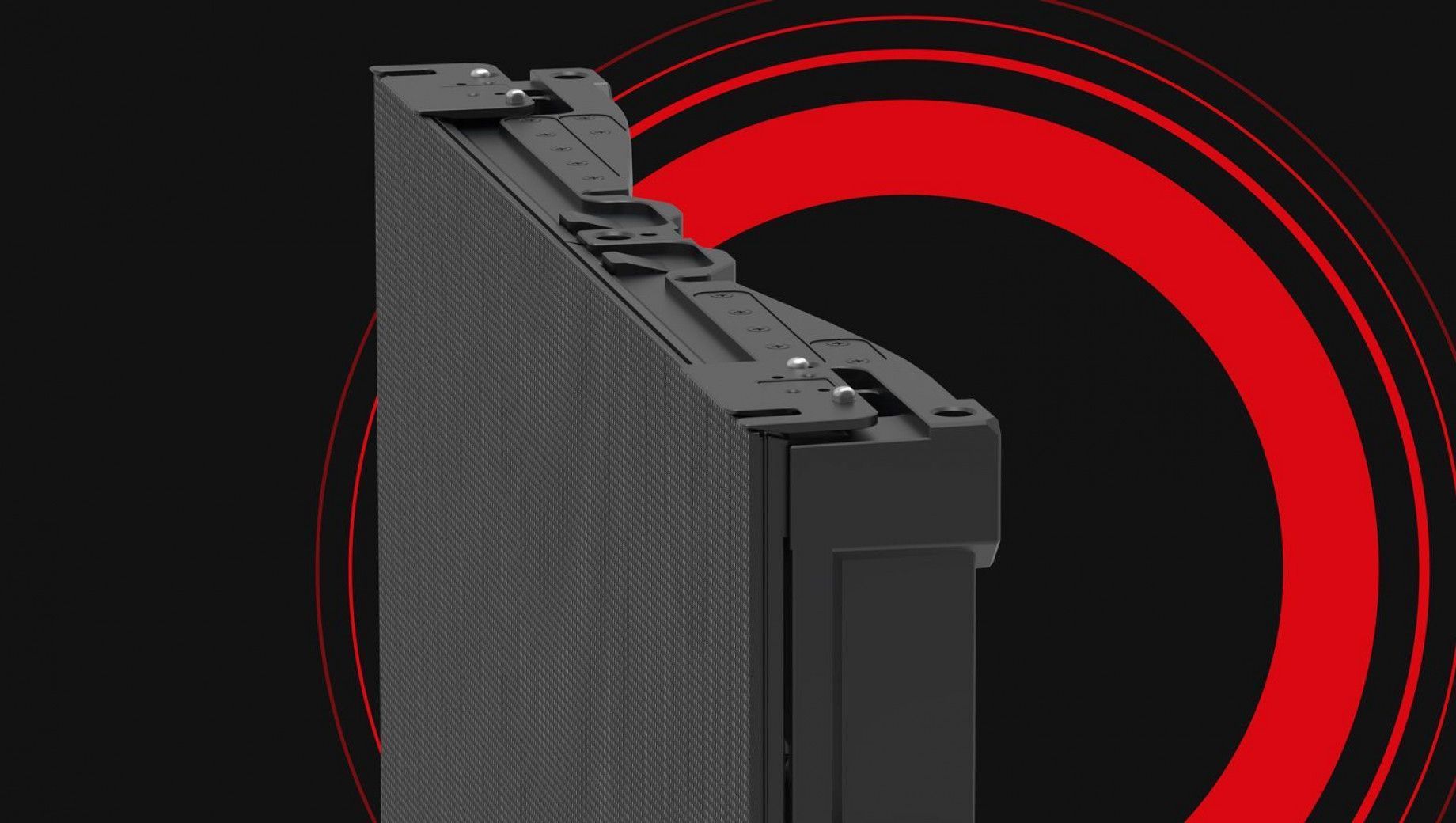

Ruby LED panel incorporates automatic edge-protection

Automatic Edge Protection

The Ruby LED panel incorporates automatic edge-protection on each corner of the panel, reducing pixel damage drastically. The magnet assisted assembly and vertically operated side locks make assembly quick, accurate and safe.

Grayscales for Ruby LED panel by ROE Visual

Shades of black coming alive

With its improved grayscales, Ruby offers precision imagery, showing black in endless scales and fluent gradients.

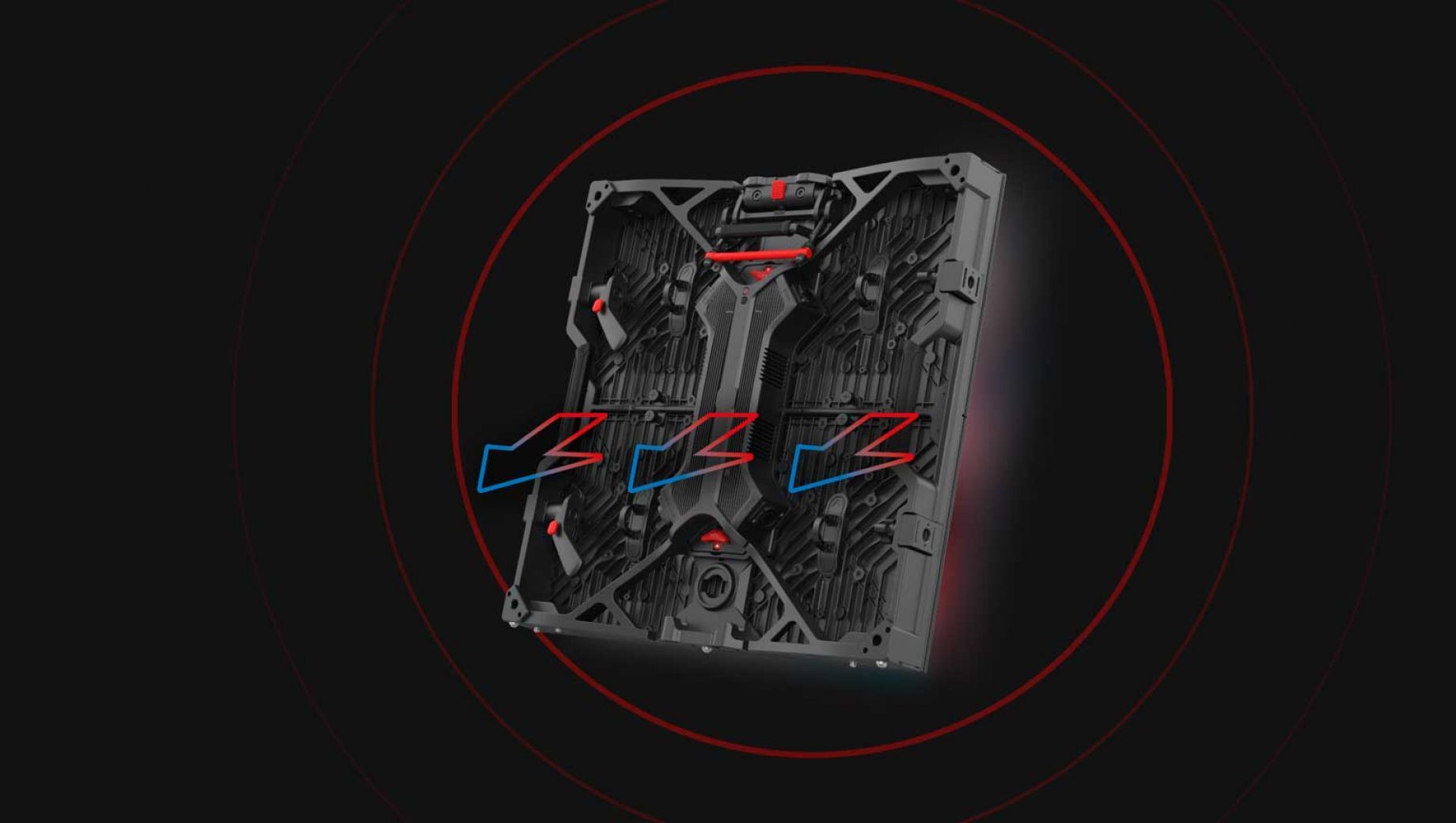

Cutting-Edge common cathode technology

Common Cathode technology significantly reduces panel temperature, resulting in efficient heat-dissipation, reduced color differences and higher brightness. Power consumption is reduced with 20-25%.

Unprecedented viewing angle

The absence of any mask enables an unprecedented wide viewing angle. With its high-brightness LED performance, the Ruby panels give an excellent visual performance for both direct viewing and on-camera visuals.

Easy does it.

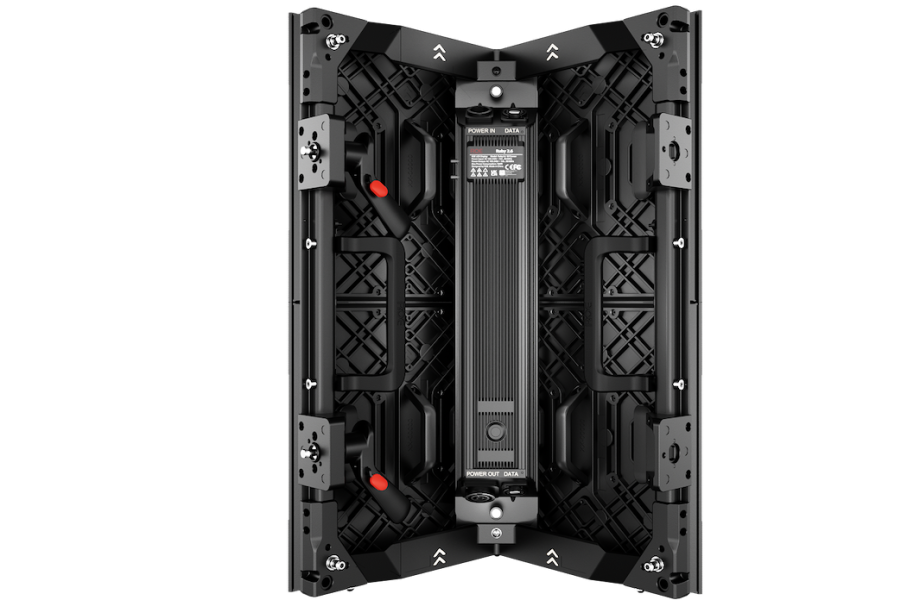

Easy maintenance with front and rear module service. Integrated PSU and Hub units make repair and replacement of spare parts easy and cost-effective.

Advantages of the ROE Visual Ruby 2.3 LED screen

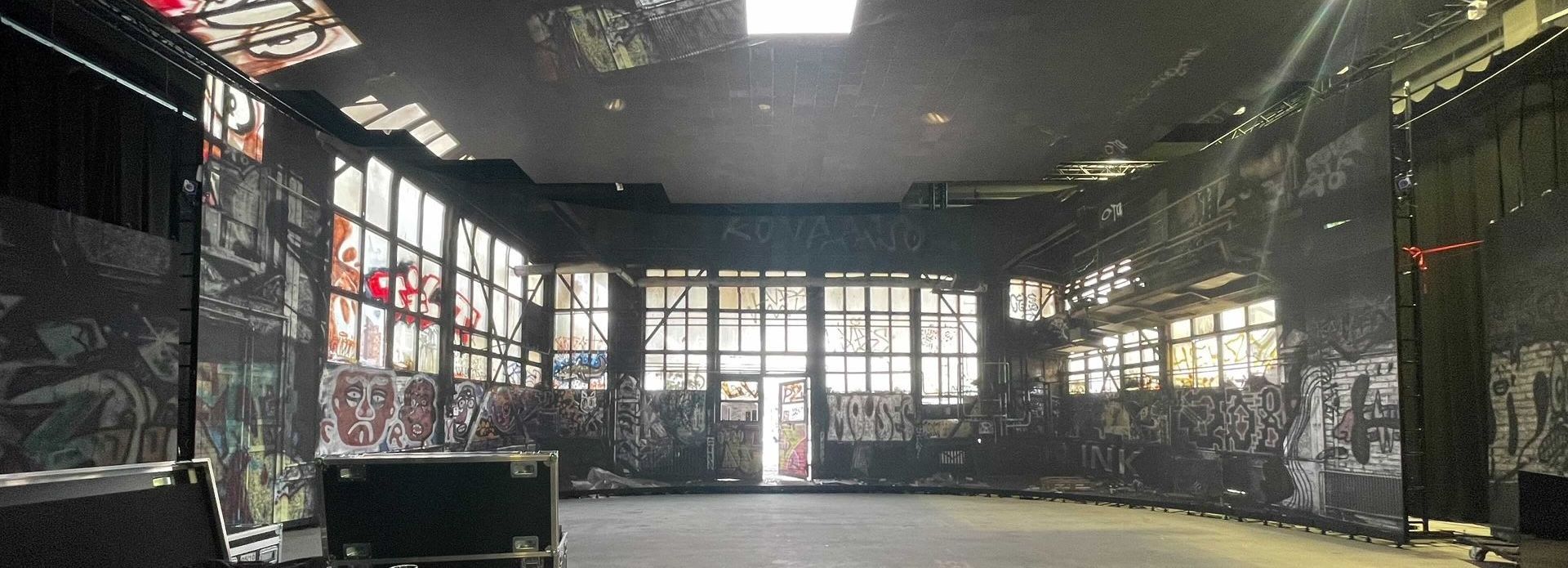

FireFrame
View case
View case

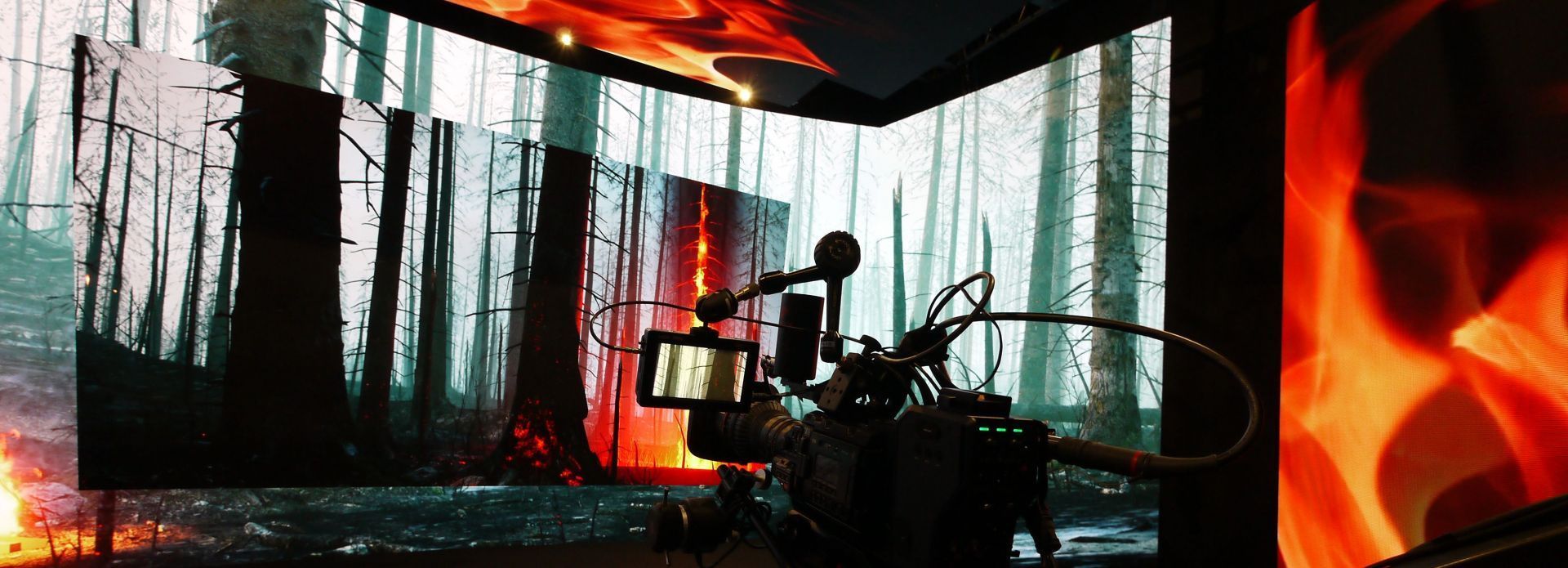

Hibino
View case
Ruby LED panel by ROE Visual
Downloads
4in1 LED

Details that matter

ROE Visual has developed unique 4in1 LED packages, exclusively available for Ruby. These LED packages have strong advantages. The LEDs are stronger, result in less reflection and more contrast, due to an optimized black body, and offer a large vieuwing angle, due to the absence of mask. The resulting colors are striking.

Ruby Key Features

Energy saving Common Cathode technology
Unique strong 4in1 LEDS
High-brightness - 1500 nits
Easy maintenance - front and rear module service
Automatic Edge-protection - reducing LED damage
HDR supported LED technology

Specs

  • Tile
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • Transparency
  • Serviceability
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Scan Ratio
  • Refresh Rate
  • Gray Scale
  • Max Hanging
  • Max Stacking
  • Operational Temp/Humidity
  • IP Rating
  • Certifications
  • Ruby 1.5
  • 1.56mm
  • 4 in 1 common cathode
  • 800nits
  • 500 x 500 x 73mm, 19.7” x 19.7” x 2.87”
  • 320 x 320
  • 8.16kg; 17.99lbs
  • 210W / 105W
  • Solid
  • Front / Rear
  • Concave 5°~Convex 3°
  • 140°
  • 140°
  • 1/16
  • 3840Hz
  • 14bit
  • 20 panels
  • 12 panels
  • -20°~ 45°C, 10~90% RH / -4°~113°F, 10~90% RH
  • Indoor
  • CE, ETL, FCC, RoHS
  • Ruby 1.9B
  • 1.95mm
  • SMD1212 black
  • 1500nits
  • 500 x 500 x 68mm, 19.7” x 19.7” x 2.68”
  • 256 x 256
  • 8.8kg; 19.4lbs
  • 160W / 80W
  • Solid
  • Front / Rear
  • Concave 5°~Convex 3°
  • 140°
  • 140°
  • 1/16
  • 3840Hz
  • 14bit
  • 20 panels
  • 12 panels
  • -20°~ 45°C, 10~90% RH / -4°~113°F, 10~90% RH
  • Indoor
  • CE, ETL, FCC, RoHS
  • Ruby 1.9BV2
  • 1.95mm
  • SMD 1212 black
  • 1500nits
  • 500 x 500 x 73mm, 19.7” x 19.7” x 2.76”
  • 256 x 256
  • 8.8kg; 19.4lbs
  • 240W / 120W
  • Solid
  • Front / Rear
  • Concave 5°~Convex 3°
  • 140°
  • 140°
  • 1/8
  • 7680Hz
  • 16bit
  • 20 panels
  • 12 panels
  • -20°~ 45°C, 10~90% RH / -4°~113°F, 10~90% RH
  • Indoor
  • CE, ETL, FCC, RoHS
  • Ruby-C 2.3
  • 2.31mm
  • 4 in 1 common cathode
  • 1500nits
  • 500 x 500 x 100mm, 19.7” x 19.7” x 3.94”
  • 216 x 216
  • 7.4kg; 16.3lbs
  • 180W/90W
  • Solid
  • Rear
  • Concave30°~Convex 30°
  • 140°
  • 140°
  • 1/12
  • 3840Hz
  • 15bit
  • 20 panels
  • 12 panels
  • -20°~ 45°C, 10~90% RH / -4°~113°F, 10~90% RH
  • Indoor
  • CE, ETL, FCC
  • Ruby 2.3
  • 2.31mm
  • 4 in 1 common cathode
  • 1500nits
  • 500 x 500 x 68mm, 19.7” x 19.7” x 2.68”
  • 216 x 216
  • 8.16kg; 17.99lbs
  • 180W / 90W
  • Solid
  • Front / Rear
  • Concave 5°~Convex 3°
  • 140°
  • 140°
  • 1/12
  • 3840Hz
  • 15bit
  • 20 panels
  • 12 panels
  • -20°~ 45°C, 10~90% RH / -4°~113°F, 10~90% RH
  • Indoor
  • CE, ETL, FCC
  • Ruby 2.6
  • 2.604mm
  • SMD1515 black
  • 1500nits
  • 500 x 500 x 68mm, 19.7” x 19.7” x 2.68”
  • 192 x 192
  • 8.5kg; 18.74lbs
  • 190W / 95W
  • Solid
  • Front / Rear
  • Concave 5°~Convex 5°
  • 140°
  • 140°
  • 1/12
  • 7680Hz
  • 16bit
  • 20 panels
  • 12 panels
  • -20°~ 45°C, 10~90% RH / -4°~113°F, 10~90% RH
  • Indoor
  • CE, ETL, FCC, RoHs
The specifications are for reference, actual values may vary.

Ruby LED Specs

Download all specs

Ruby Rental Series

The Ruby rental series are sturdy LED panels equipped with unique and robust 4in1 LEDs that are exclusively available for Ruby Rental Series. The 4in1LED packages are stronger and better suited for frequent handling and transportation. With less reflection and high contrast due to the optimized black body, and its 14-bit colour depth, the resulting colours are striking.

These panels stand their ground for almost any type of application, from live events and corporate presentations to studio work. Versatile and robust, this versatile LED panel offers a best-in-class LED display.

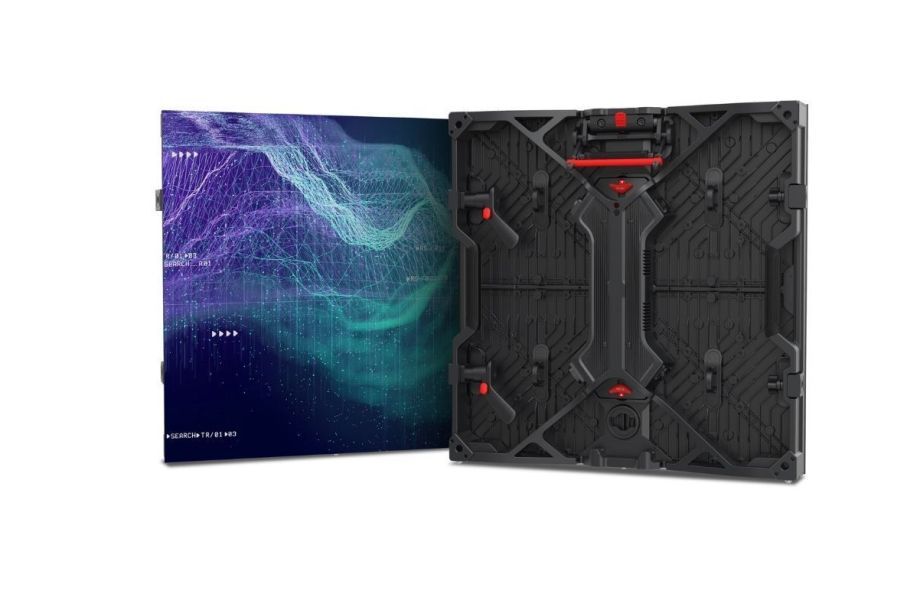

Ruby RB1.5

Ruby 1.5

The Ruby RB1.5 offers a mere 1.5 pixel pitch in a briliant LED panel with the unique 4in1 LED technology. Experience striking visuals brought in an advacned LED panel.Ruby RB1.5 offers a wide viewing angle, high contrast and reduced reflection.

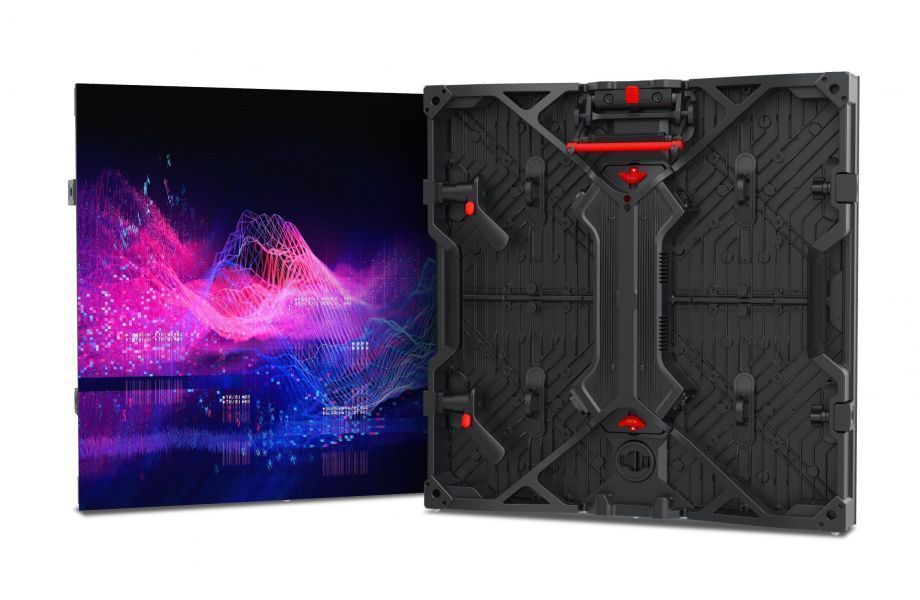

Ruby RB2.3

Ruby 2.3

The Ruby RB2.3 offers a robust LED panel with the unique 4in1 LED technology. The 2.3-pixel pitch and wide color gamut create brilliant visuals. Ruby RB2.3 offers a wide viewing angle, high contrast and reduced reflection.

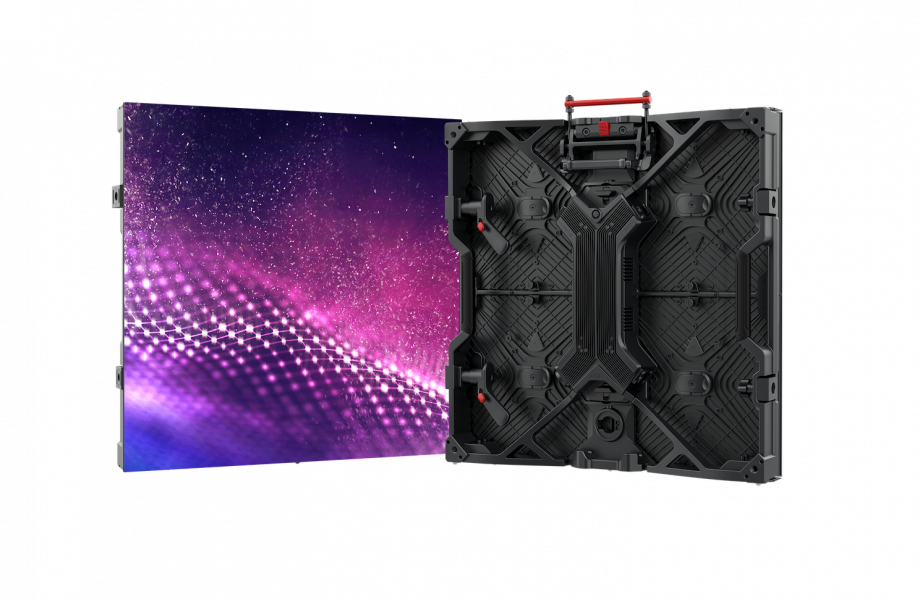

Ruby RB2.6

Ruby 2.6

The Ruby RB2.6 offers a robust LED panel with a high-contrast black LED. The 2.6-pixel pitch and wide color gamut create brilliant visuals. Ruby RB2.6 offers a wide viewing angle, high contrast and reduced reflection that pairs with a great bit-depth.

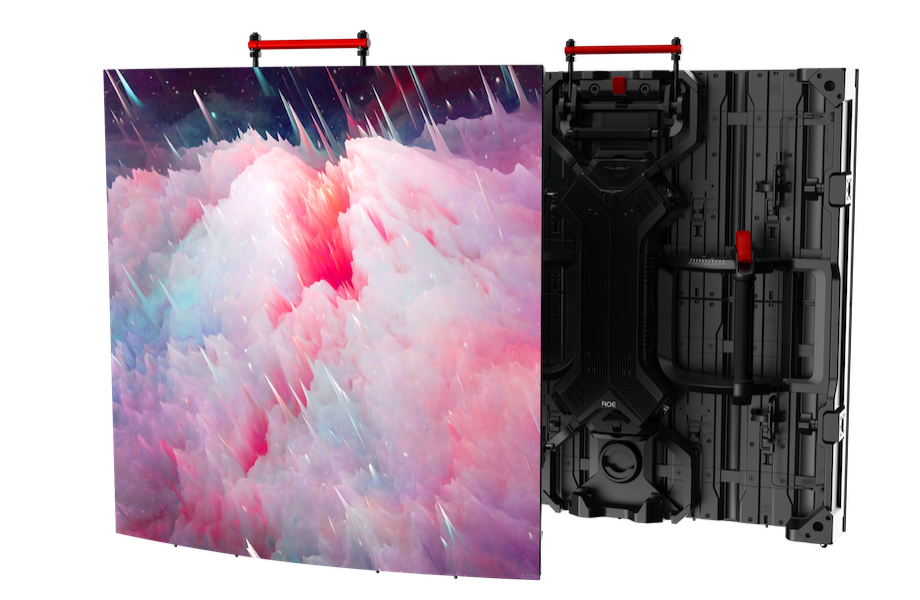

Ruby-C

Ruby-C

Create smooth and perfect curved LED displays with the Ruby-C. The Ruby-C offers all the qualities of the Ruby series in a curving LED panel. It has significant curving options, creating seamless curves from -30 to +30 degrees in 11 tiny steps to guarantee a smooth and even look.
The Ruby-C and the Ruby RB2.3 can be combined into one wall.

Ruby VP Series

The Ruby VP series are sturdy LED panels equipped with high-contrast black LEDs. The series comprises panels with pixel pitches ranging from 1.9 to 2.6. With less reflection and high contrast due to the optimized black body, and a 16-bit colour depth, the resulting colours are striking.
The Ruby VP series is equipped with features that are beneficial for any broadcast or film studio environment. High refresh rates, powerful driver ICs, and optimized multiplexing guarantee optimized on-camera behaviour.

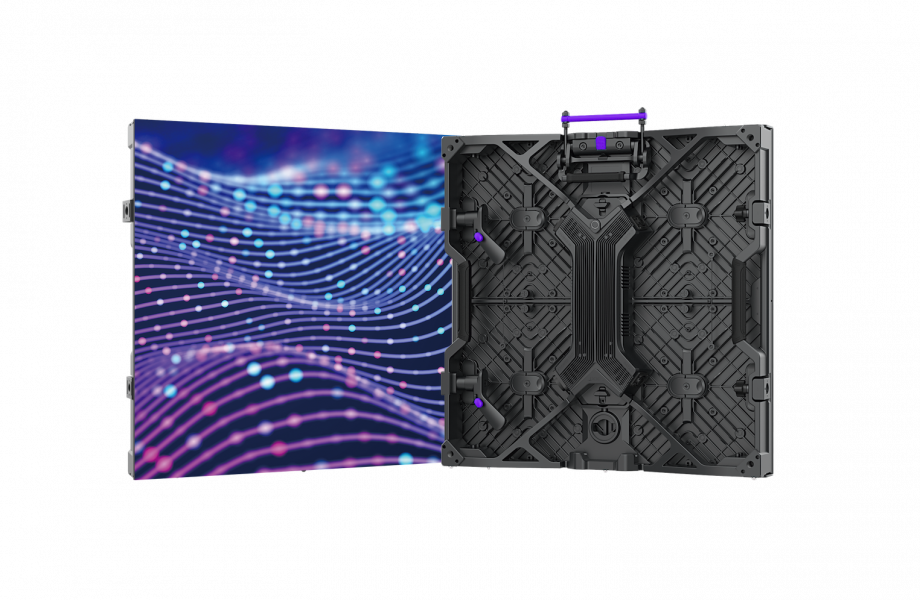

Ruby RB 1.9Bv2

Ruby 1.9BV2

The Ruby RB1.9BV2 is a robust LED panel equipped with a high-contrast black LED. The 1.9 -pixel pitch and wide color gamut create brilliant visuals. Ruby RB1.9Bv2 offers a high contrast LED panel with a reduced reflection that pairs with a bit-depth of 16bit. It has a refresh rate of 7860Hz and a scan ratio of 1/8.

Request a demo

Accessories

Ruby rear connector

Ruby Rear Connector

Use the rear connector to connect your panels to the Stacking system.

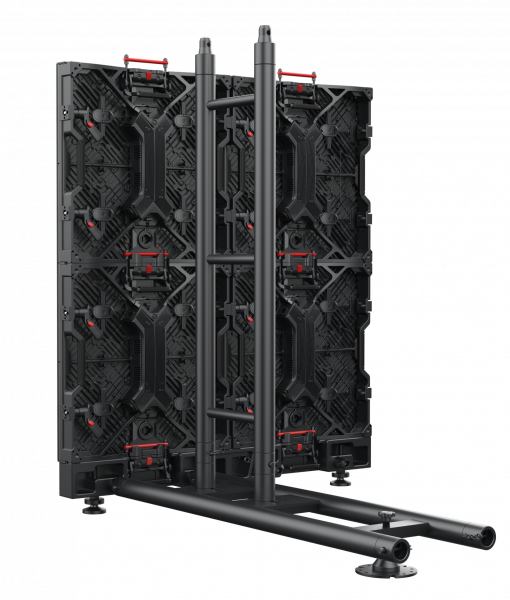

Ruby Stacking System

Ruby Stacking System

Use the Stacking System to support your LED screen.

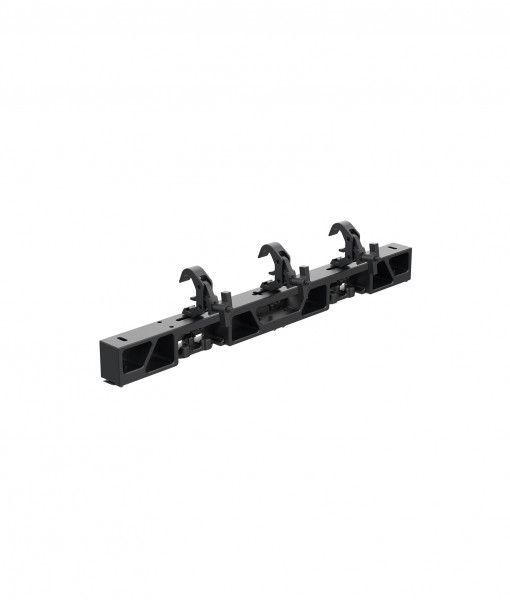

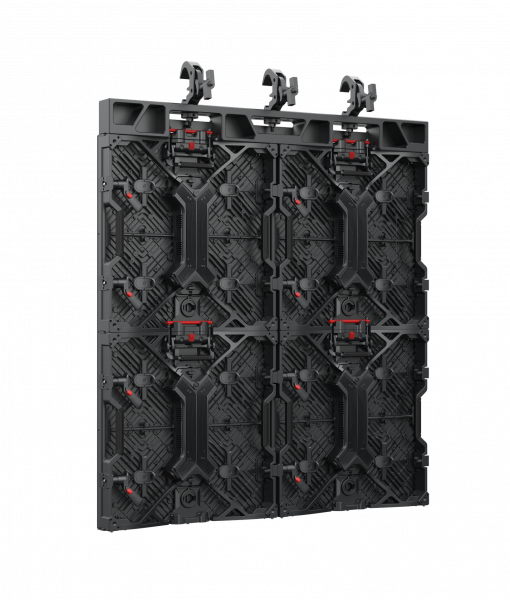

Ruby Hanging Bar

Use the Ruby Hanging Bar for a safe supporting your screen from a truss or other structures.

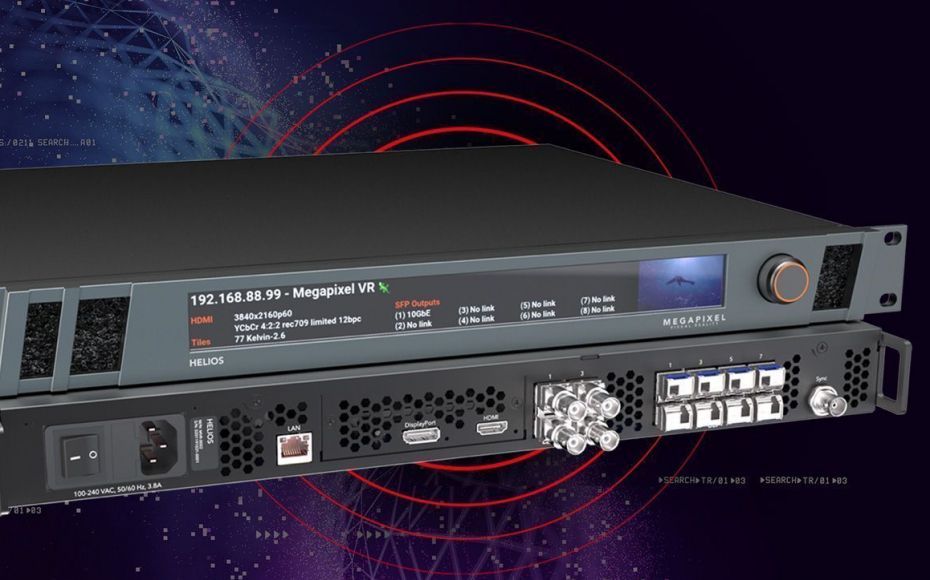

HELIOS processor

Processing Platform

Ruby works on the HELIOS processing platform

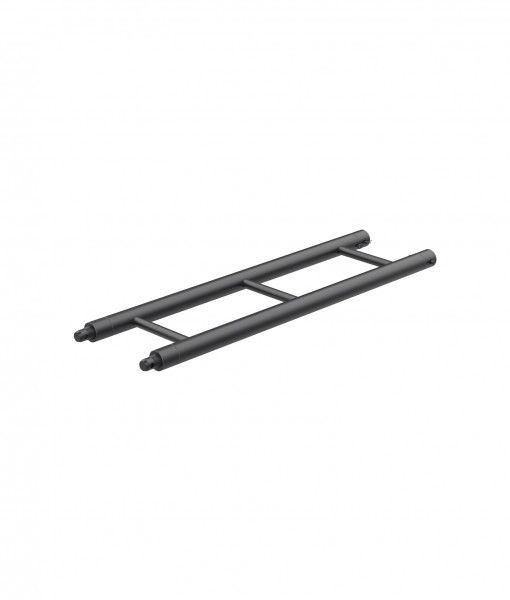

Rear Base Truss

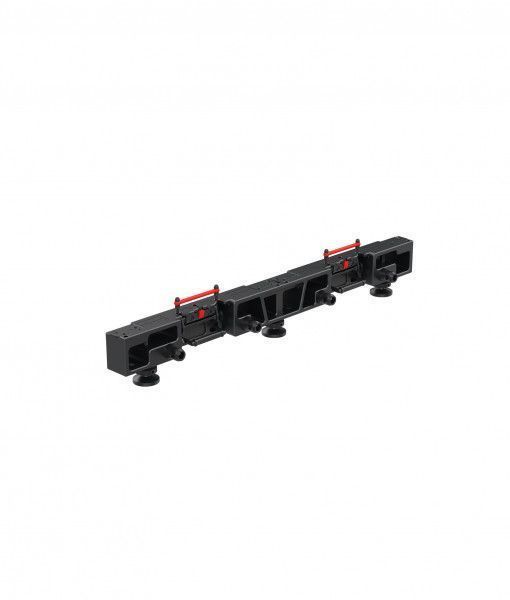

Base Bar

Hanging Bar

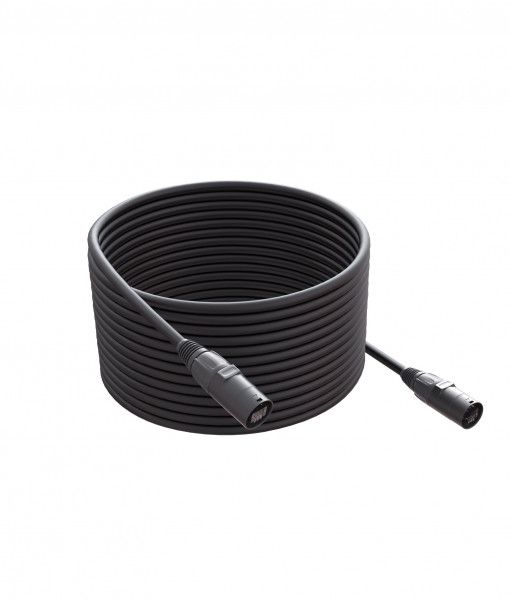

Data Cable

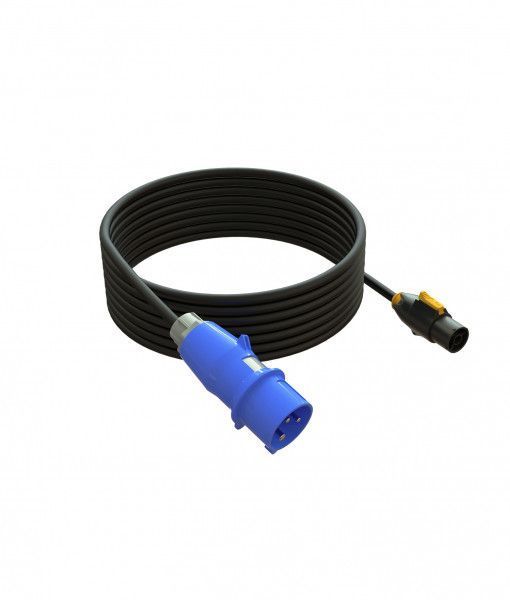

Power Cable
Graham Andrews

CT has been using ROE Visual LED panels because of their durability, ease-of-use for setup and tear-down, as well as its superior quality in color and brightness.

Graham Andrews Creative Technology

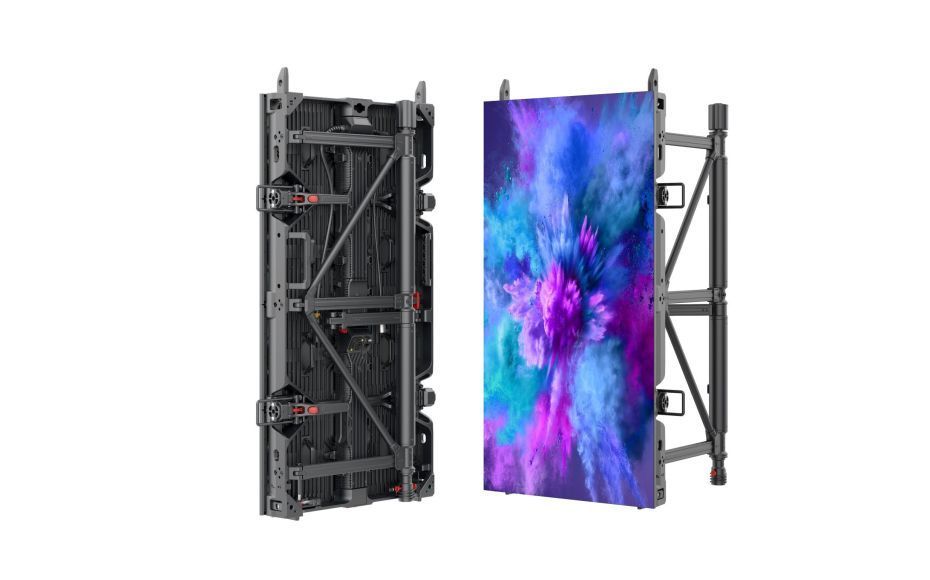

Black quartz led by roe visual
