Graphite

Durable Meets Lightweight

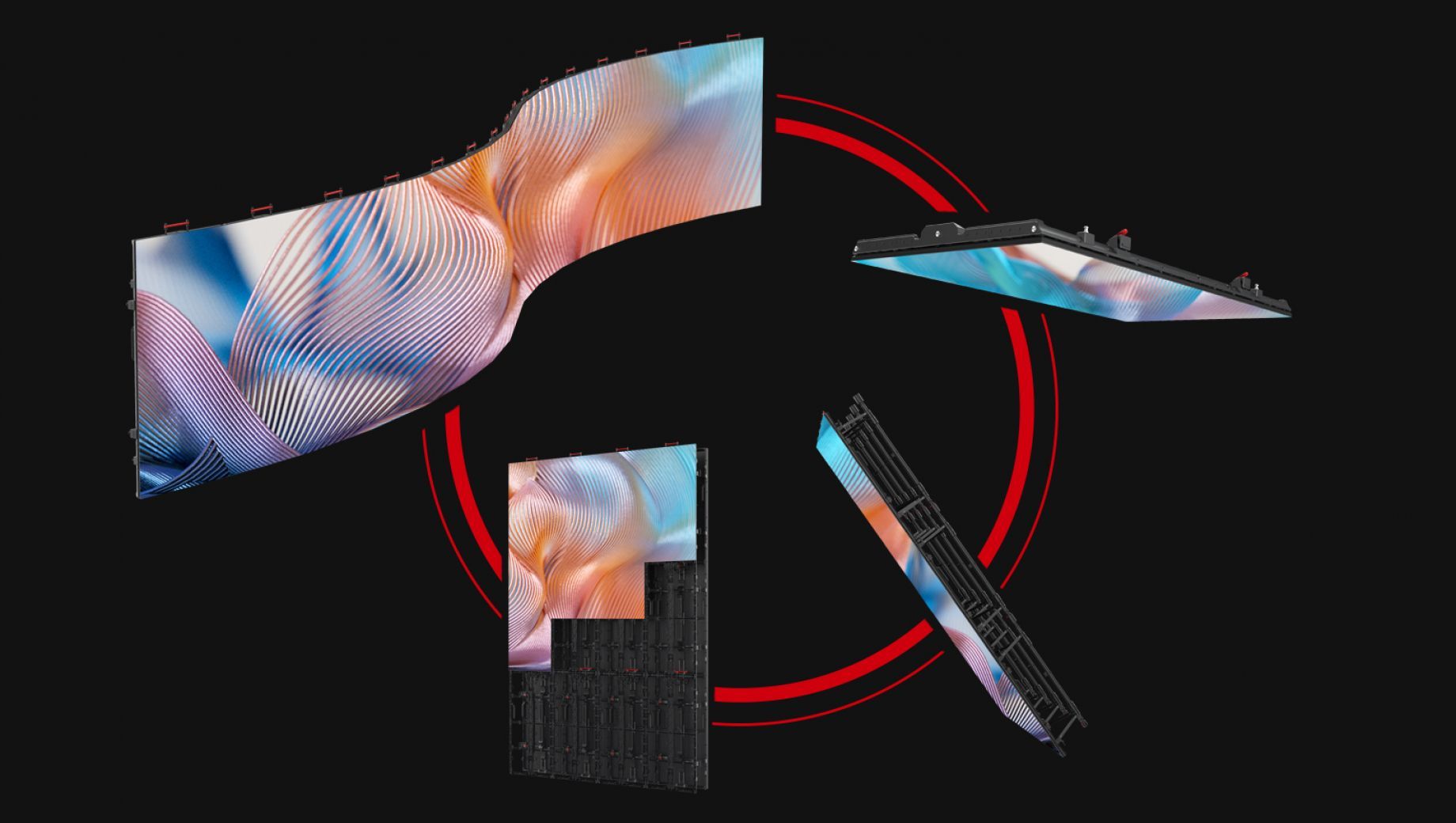

Graphite offers a durable yet lightweight LED screen solution that provides quick installation through its intuitive smart-lock system. Graphite is ideal for building large LED walls and ceilings fast and efficiently.

Graphite Key Features

Light weight
Light weight
Curveable
Curveable
Smart lock system
Smart lock system
Quick install
Quick install
Double slides hanging
Double slides hanging
Easy maintenance
Easy maintenance
Air Truss choice
Air Truss choice
High brightness
High brightness
Half panel
Half panel
GP2.6
GP2.6 Half
GP3.1
GP3.1 Half
GP3.9
GP3.9 Half
GP2.6 (4 in 1)
GP2.6 Half (4 in 1)
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • Max. Hanging
  • Max. Stacking
  • GP2.6
  • 2.604mm
  • SMD 1515 Black
  • 1500nits
  • 500mm x 1000mm x 80mm
    19.7” x 39.4” x 3.1”
  • 192 x 384
  • 9kg | 19.84lbs
  • 320W / 160W
  • 1100 / 500
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 160°
  • 7680Hz
  • 16bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Indoor
  • CE, ETL, FCC, UKCA
  • 12 panels
  • 6 panels
  • GP2.6 Half
  • 2.604mm
  • SMD 1515 Black
  • 1500nits
  • 500mm x 500mm x 80mm
    19.7” x 19.7” x 3.1”
  • 192 x 192
  • 5.2kg | 11.44lbs
  • 160W / 80W
  • 550 / 250
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 160°
  • 7680Hz
  • 16bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Indoor
  • CE, ETL, FCC, UKCA
  • 24 panels
  • 12 panels
  • GP3.1
  • 3.125mm
  • SMD 1515 Black
  • 1500nits
  • 500mm x 1000mm x 80mm
    19.7” x 39.4” x 3.1”
  • 160 x 320
  • 9kg | 19.84lbs
  • 320W / 160W
  • 1100 / 500
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 160°
  • 3840Hz
  • 14bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Indoor
  • CE, ETL, FCC, UKCA
  • 12 panels
  • 6 panels
  • GP3.1 Half
  • 3.125mm
  • SMD 1515 Black
  • 1500nits
  • 500mm x 500mm x 80mm
    19.7” x 19.7” x 3.1”
  • 160 x 160
  • 5.2kg | 11.44lbs
  • 160W / 80W
  • 550 / 250
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 160°
  • 3840Hz
  • 14bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Indoor
  • CE, ETL, FCC, UKCA
  • 24 panels
  • 12 panels
  • GP3.9
  • 3.91mm
  • SMD 1515 Black
  • 1500nits
  • 500mm x 1000mm x 80mm
    19.7” x 39.4” x 3.1”
  • 128 x 256
  • 9kg | 19.84lbs
  • 320W / 160W
  • 1100 / 500
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 160°
  • 3840Hz
  • 14bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Indoor
  • CE, ETL, FCC, UKCA
  • 12 panels
  • 6 panels
  • GP3.9 Half
  • 3.91mm
  • SMD 1515 Black
  • 1500nits
  • 500mm x 500mm x 80mm
    19.7” x 19.7” x 3.1”
  • 128 x 128
  • 5.2kg | 11.44lbs
  • 160W / 80W
  • 550 / 250
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 160°
  • 3840Hz
  • 14bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Indoor
  • CE, ETL, FCC, UKCA
  • 24 panels
  • 12 panels
  • GP2.6 (4 in 1)
  • 2.604mm
  • 4 in 1 common anode
  • 1500nits
  • 500mm x 1000mm x 80mm
    19.7” x 39.4” x 3.1”
  • 192 x 384
  • 8.6kg | 18.96lbs
  • 250W / 125W
  • 850 / 390
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 160°
  • 7680Hz
  • 16bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Indoor
  • CE, ETL, FCC, UKCA
  • 12 panels
  • 6 panels
  • GP2.6 Half (4 in 1)
  • 2.604mm
  • 4 in 1 common anode
  • 1500nits
  • 500mm x 500mm x 80mm
    19.7” x 19.7” x 3.1”
  • 192 x 192
  • 5.1kg | 11.24lbs
  • 125W / 62W
  • 425 / 195
  • Solid
  • Front / Rear
  • Concave 5° ~ Convex 5°
  • 140°
  • 160°
  • 7680Hz
  • 16bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Indoor
  • CE, ETL, FCC, UKCA
  • 24 panels
  • 12 panels
Comparison
<< product.title >>
  • Title

Application Fields

  • Touring productions
  • Indoor events
  • Corporate events
  • Indoor Sports Events
