Black Quartz

The perfect outdoor LED screen solution

Guarantee audience safety with wind-load resistant LED screens.
Building outdoor LED screens can be a challenge. The Black Quartz LED panels by ROE Visual are designed as your fast-building, wind-load resistant LED screen solution.
Black Quartz offers a full-fledged LED screen appliance, combining an excellent visual performance with an integrated wind-bracing system, the perfect solution for your next tour or outdoor event.

Request a demo

ROE Black Quartz LED screen

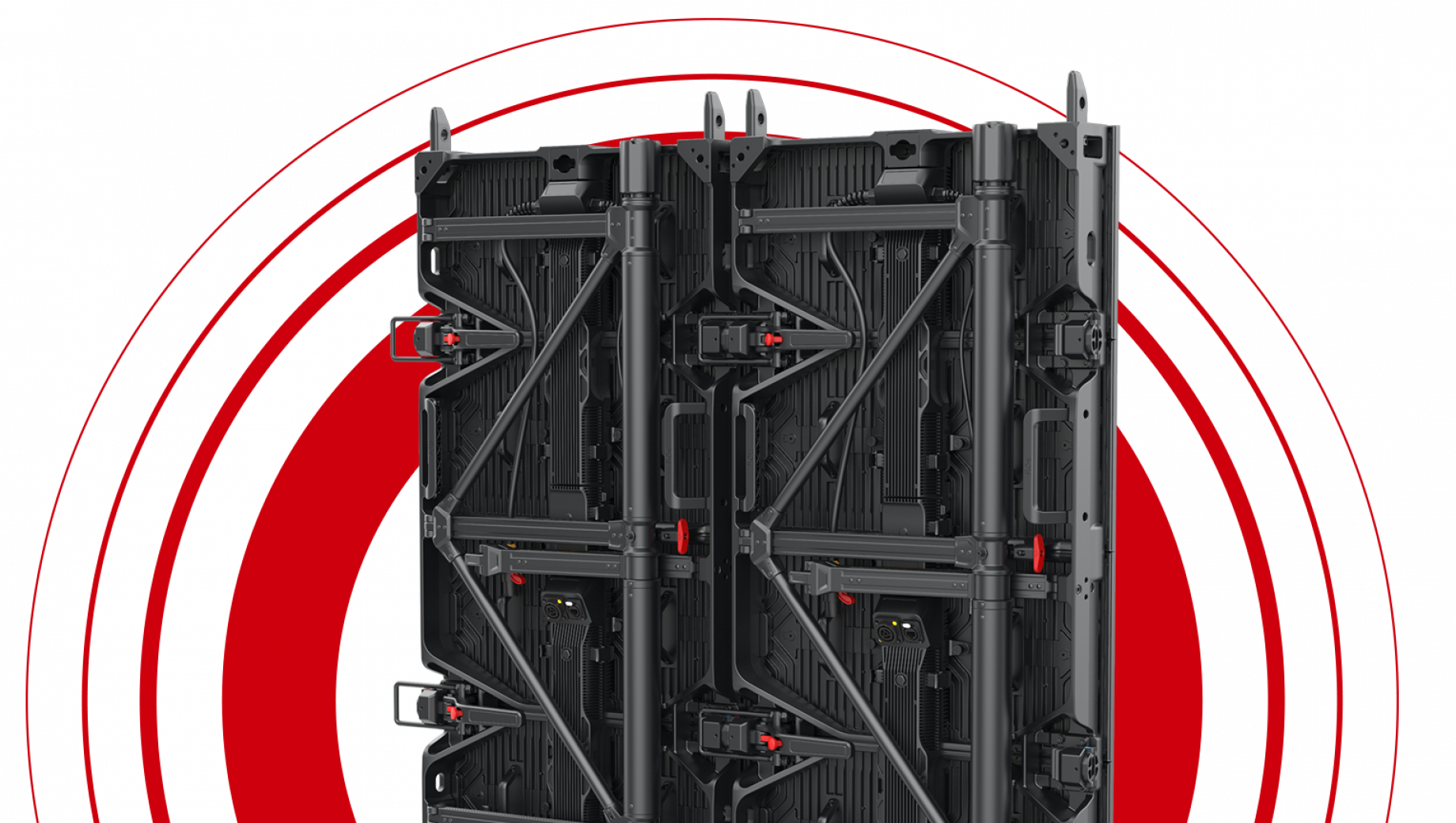

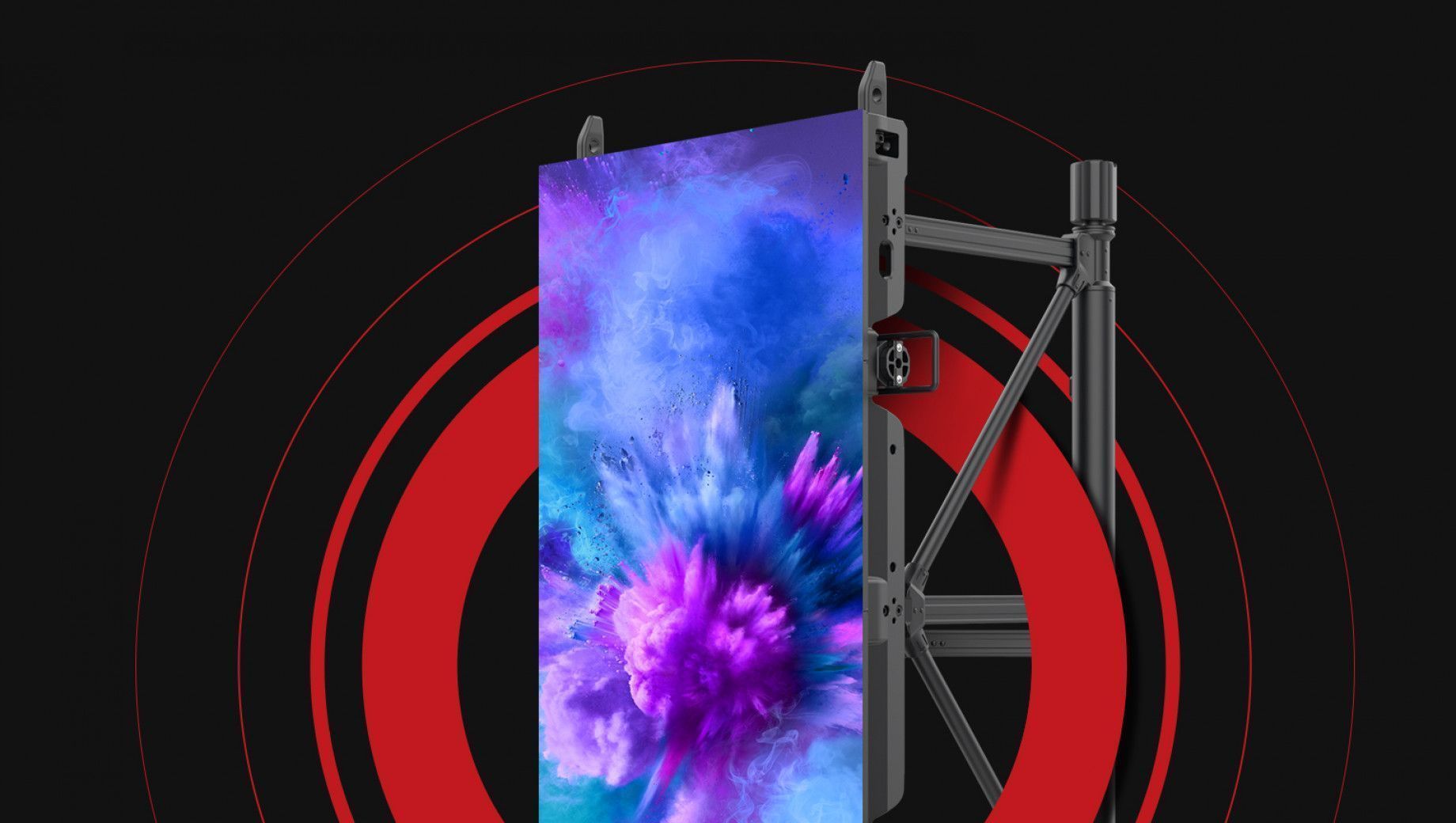

Bracing truss for Black Quartz LED panels
Outdoor use of LED screens

The Black Quartz LED panels are equipped with an incorporated bracing truss. Once mounted, the LED panels are wind-load resistant and can be used till wind speeds of 20m/sec.

But what if the outdoor conditions are different? When used outdoor, environmental aspects need to be taken into account. Read all about what you need to know before you build your LED screen outdoors here.

Download Whitepaper

Black Quartz Key Features

Panel design with integrated, foldable wind bracing system
Wind- load resistant till wind speeds of 20m/sec.
Easy use; Does not need additional hardware or tools, folds open and is locked in position instantly

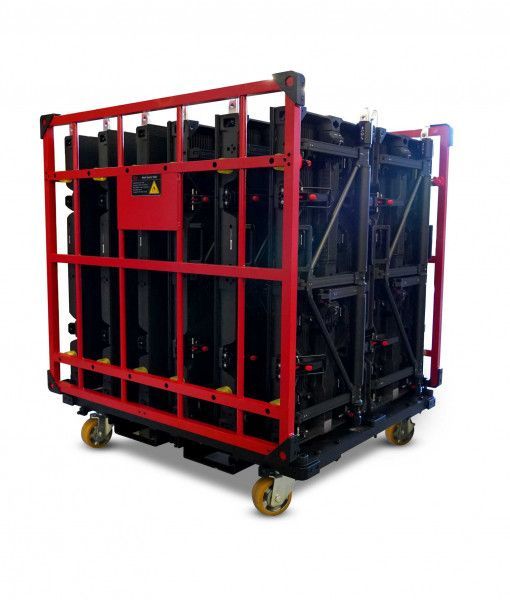

Clever storage due to foldable design; Can be transported in dedicated dollies
Multi-functional frame design; Can be used in a hanging or stacking configuration
Bracing system offers climbing access during in-service maintenance
Parts can be easily replaced; Front and back access for module swap possible
Low brightness mode for unrivalled gray scales at indoor use
Black LED for high contrast ratio
BQ3.9
BQ3.9 Half
BQ4.6
BQ4.6 Half
BQ6.2
BQ6.2 Half
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability

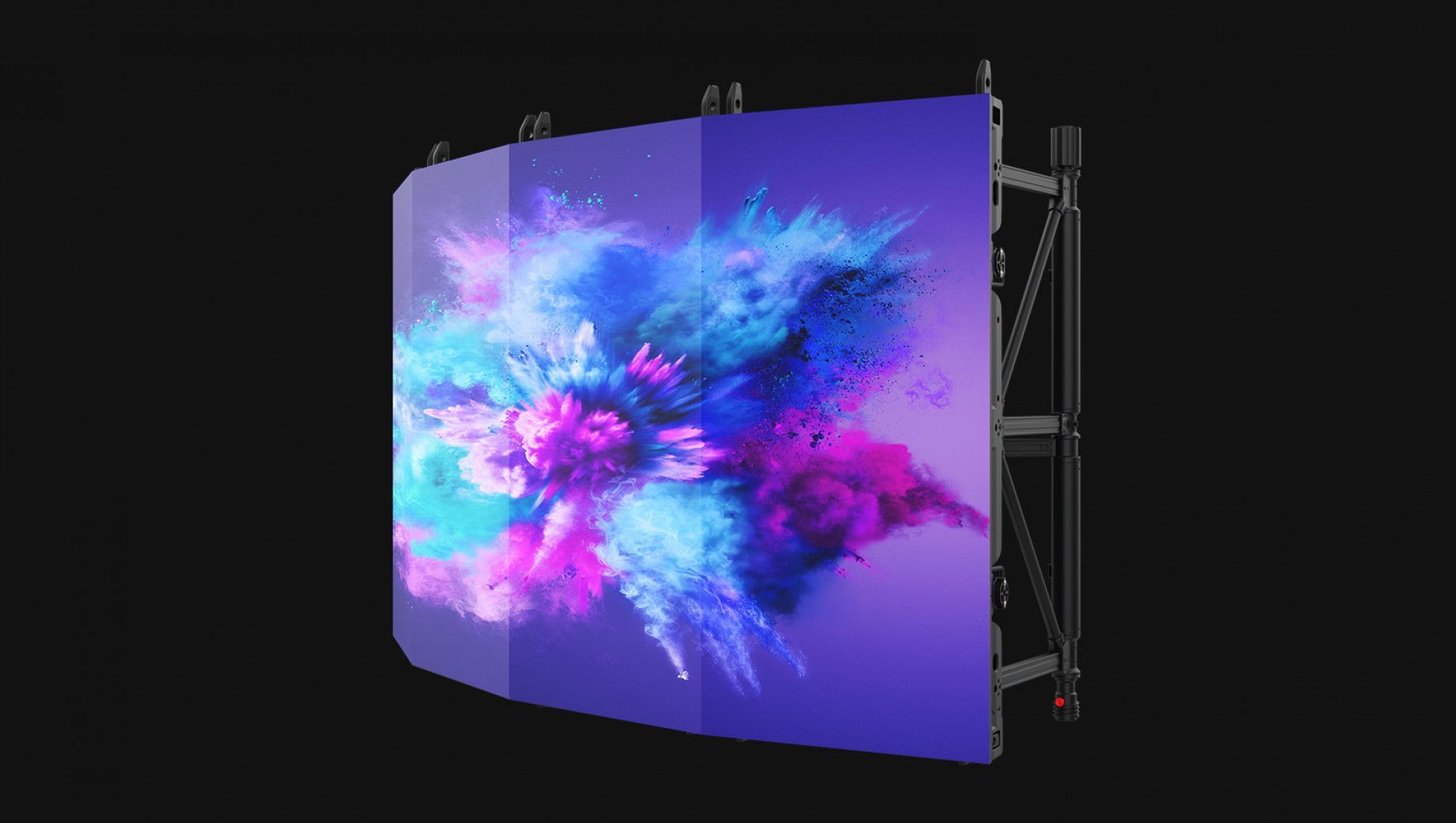

  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications

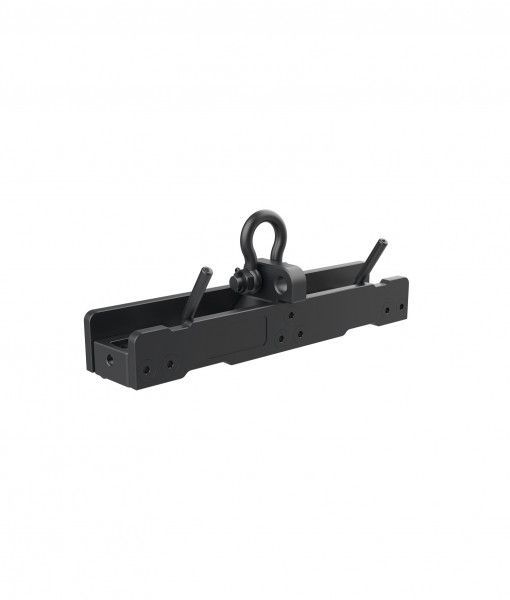

  • Max. Hanging
  • Max. Stacking
  • BQ3.9
  • 3.9mm

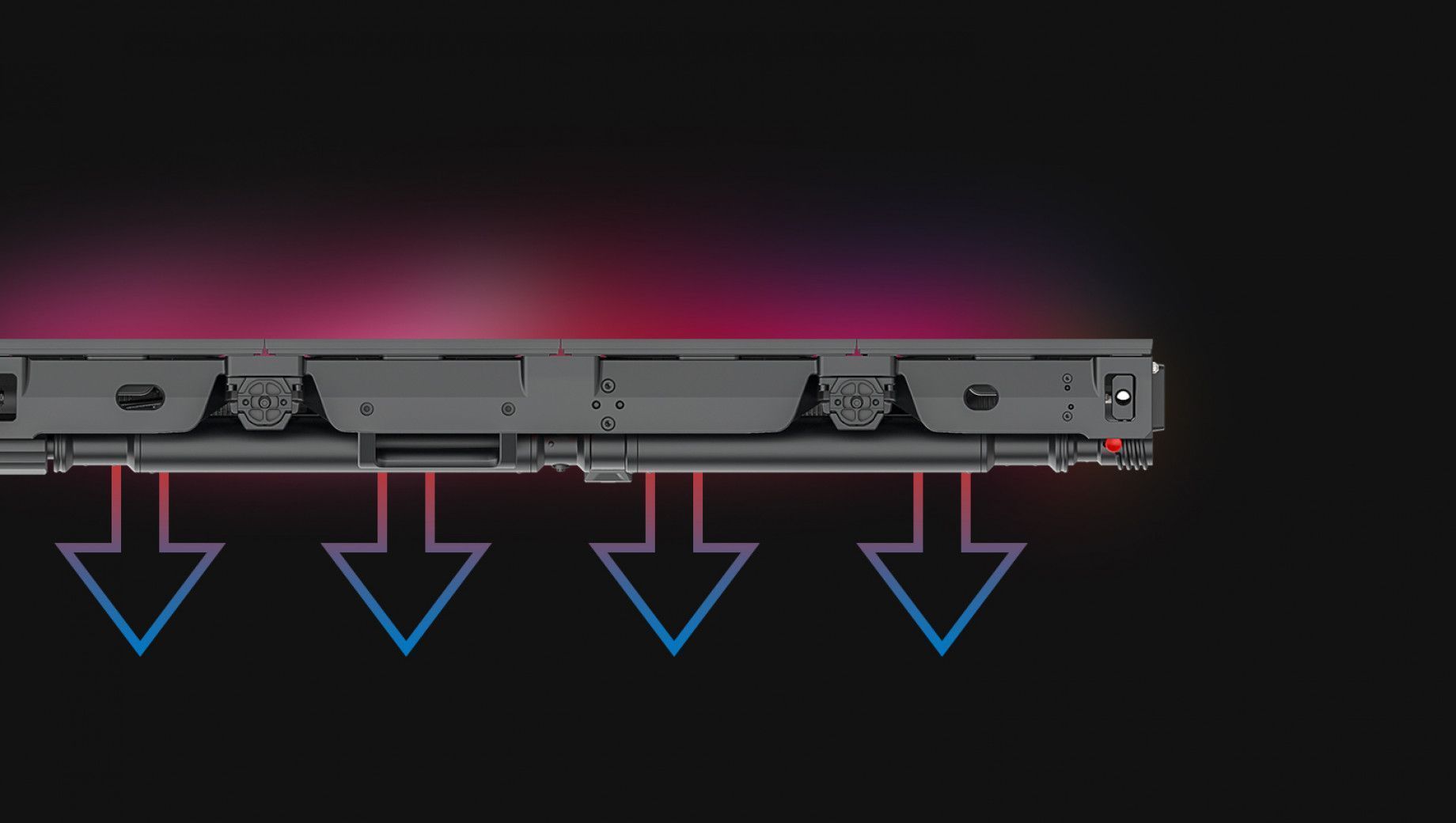

  • SMD1415 Black Common Cathode
  • 5000nits
  • 500mm x 1000mm x 82.62mm
    19.69” x 39.38” x 3.25”
  • 128 x 256
  • 17.8kg | 39.24lbs
  • 360W / 180W
  • 1230 / 565
  • Solid
  • Front / Rear
  • Concave 10° ~ Convex 10°
  • 110°
  • 160°
  • 3840Hz
  • 15bit
  • 1/8
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, WEEE
  • 13 panels
  • 6 panels
  • BQ3.9 Half
  • 3.9mm
  • SMD1415 Black Common Cathode
  • 5000nits
  • 500mm x 500mm x 82.62mm
    19.69” x 19.69” x 3.25”
  • 128 x 128
  • 9.8kg | 21.61lbs
  • 190W / 85W
  • 650 / 300
  • Solid
  • Front / Rear
  • Concave 10° ~ Convex 10°
  • 110°
  • 160°
  • 3840Hz
  • 15bit
  • 1/8
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, WEEE
  • BQ4.6
  • 4.6mm
  • SMD1921 Black Common Cathode
  • 5000nits
  • 500mm x 1000mm x 82.62mm
    19.69” x 39.38” x 3.25”
  • 108 x 216
  • 17.8kg | 39.64lbs
  • 370W / 185W
  • 1265 / 580
  • Solid
  • Front / Rear
  • Concave 10° ~ Convex 10°
  • 110°
  • 160°
  • 3840Hz
  • 16bit
  • 1/6
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, WEEE
  • 13 panels
  • 6 panels
  • BQ4.6 Half
  • 4.6mm
  • SMD1921 Black Common Cathode
  • 5000nits
  • 500mm x 500mm x 82.62mm
    19.69” x 19.69” x 3.25”
  • 108 x 108
  • 9.8kg | 21.61lbs
  • 190W / 85W
  • 650 / 300
  • Solid
  • Front / Rear
  • Concave 10° ~ Convex 10°
  • 110°
  • 160°
  • 3840Hz
  • 16bit
  • 1/6
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, WEEE
  • BQ6.2
  • 6.25mm
  • SMD1921 Black Common Anode
  • 5000nits
  • 500mm x 1000mm x 82.62mm
    19.69” x 39.38” x 3.25”
  • 80 x 160
  • 17.8kg | 39.24lbs
  • 450W / 225W
  • 1535 / 705
  • Solid
  • Front / Rear
  • Concave 10° ~ Convex 10°
  • 110°
  • 160°
  • 7680Hz
  • 16bit
  • 1/5
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, WEEE
  • 13 panels
  • 6 panels
  • BQ6.2 Half
  • 6.25mm
  • SMD1921 Black Common Anode
  • 5000nits
  • 500mm x 500mm x 82.62mm
    19.69” x 19.69” x 3.25”
  • 80 x 80
  • 9.8kg | 21.61lbs
  • 230W / 115W
  • 785 / 360
  • Solid
  • Front / Rear
  • Concave 10° ~ Convex 10°
  • 110°
  • 160°
  • 7680Hz
  • 16bit
  • 1/5
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, WEEE
Specs
Comparison
<< product.title >>
  • Title
Black Quartz LED panel

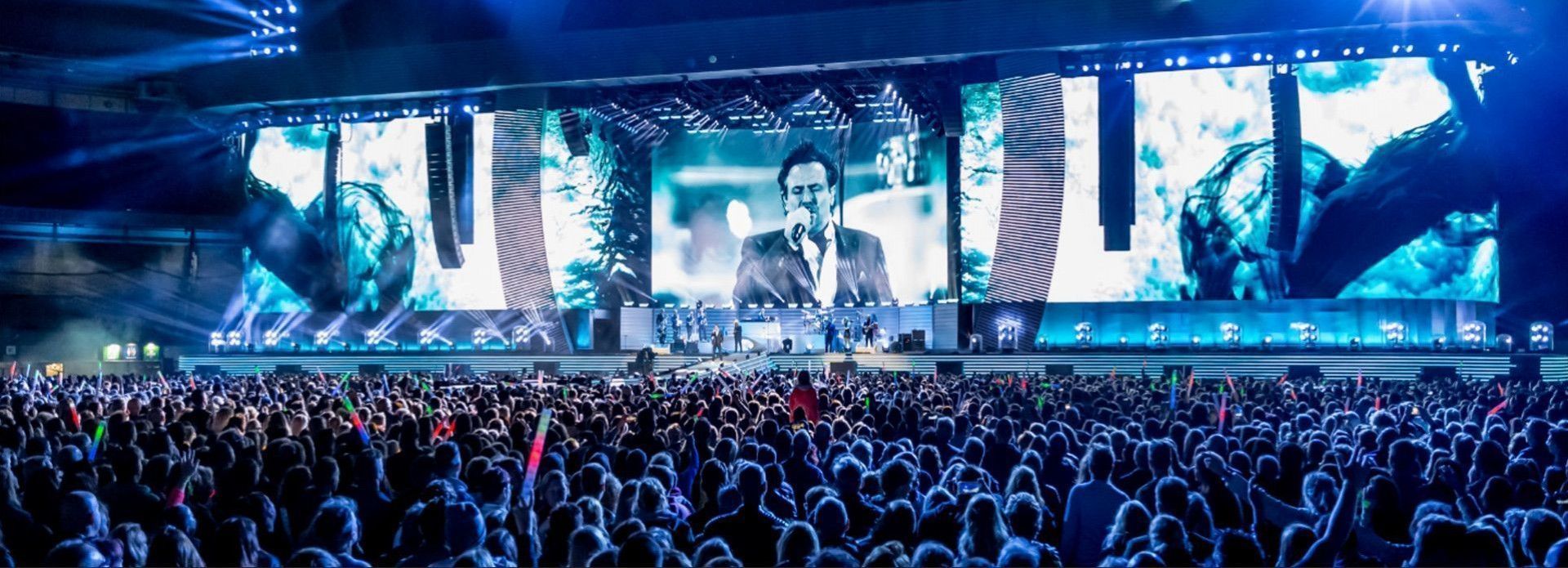

Application Fields

  • Touring productions
  • Festivals
  • Outdoor Events
  • Sports Events
  • Outdoor Advertising

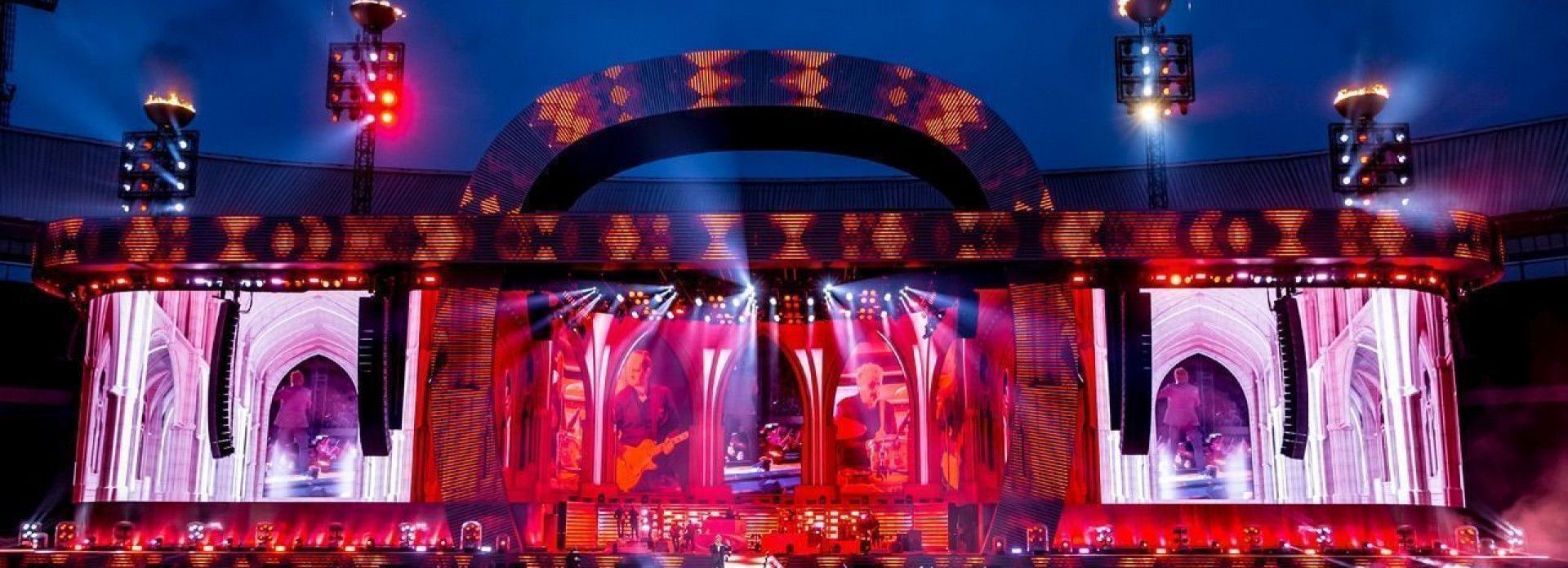

Steven Embregts

Finding an outdoor screen solution that fits our exacting demands is not an easy task. When ROE Visual developed Black Quartz they have listened well to market feedback. This has translated in a screen that fits our needs perfectly. Not only does it offer a safe and secure structure, it also has a great visual performance under difficult circumstances.

Steven Embregts Technical Manager, Faber Audiovisuals

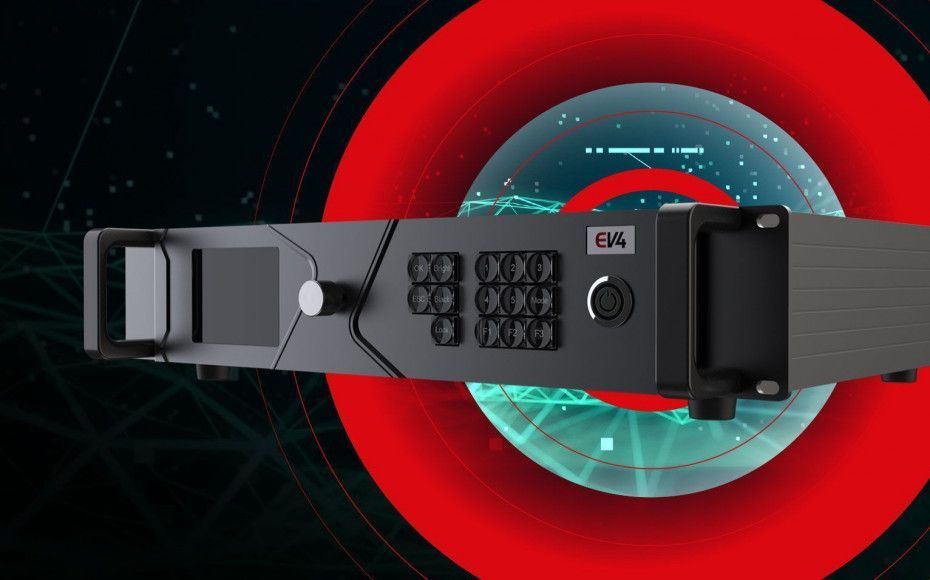

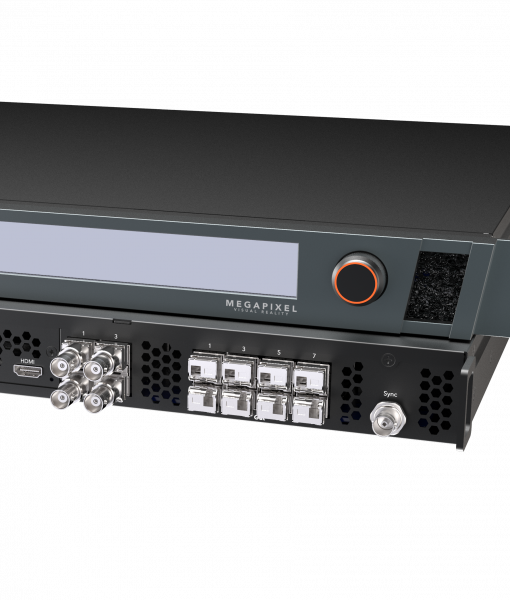

LED Processors ROE Visual

ROE Visual's favourite LED Processing platforms

Read more

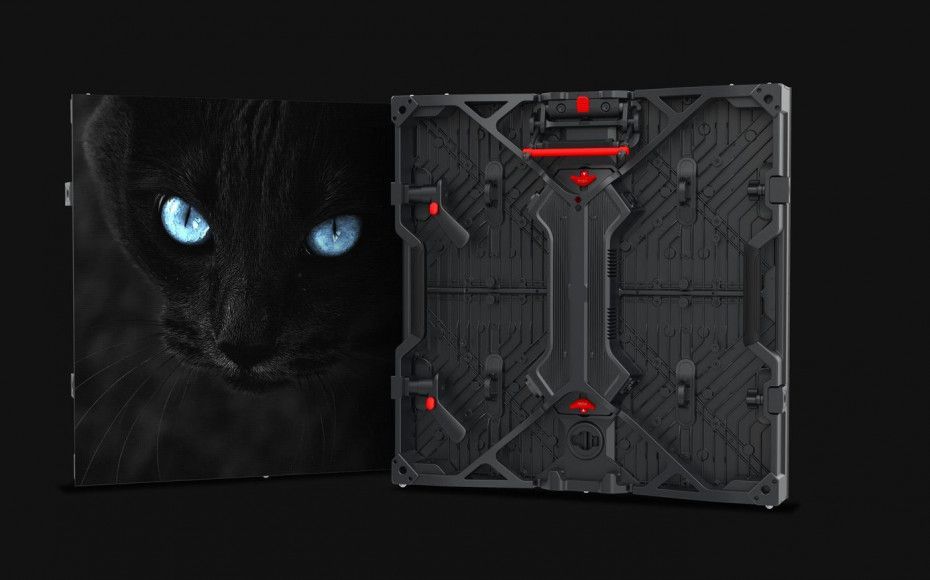

Ruby LED panel by ROE Visual
