Black Onyx

End-of-Life

The Black Onyx LED panel is end-of-life.

Back Onyx Discontinued

Although still in use as a lauded and reliable panel, we have to say goodbye to the iconic and much-loved Black Onyx LED panel. The ROE Visual Black Onyx series is discontinued, the replacement panel for Black Onyx is Ruby.

Replacement panel Ruby

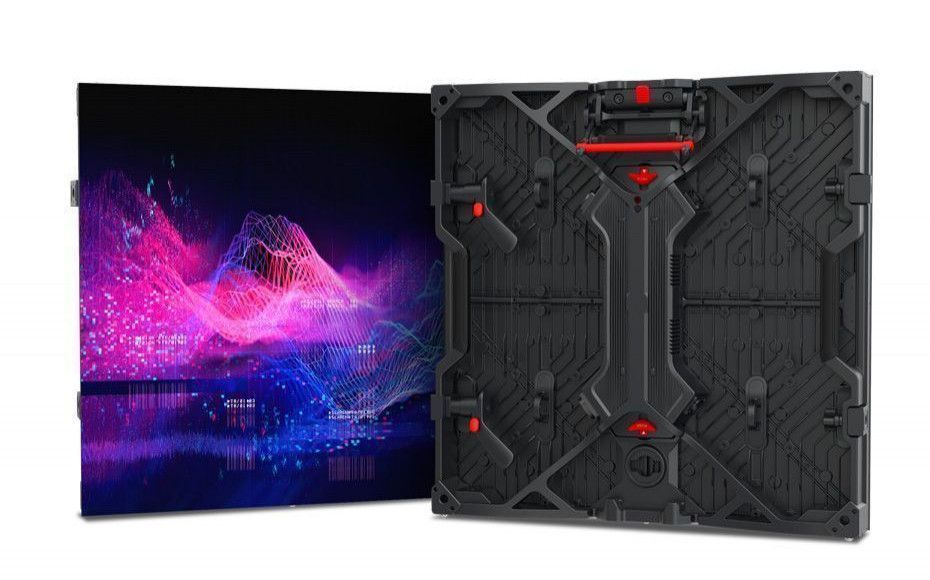

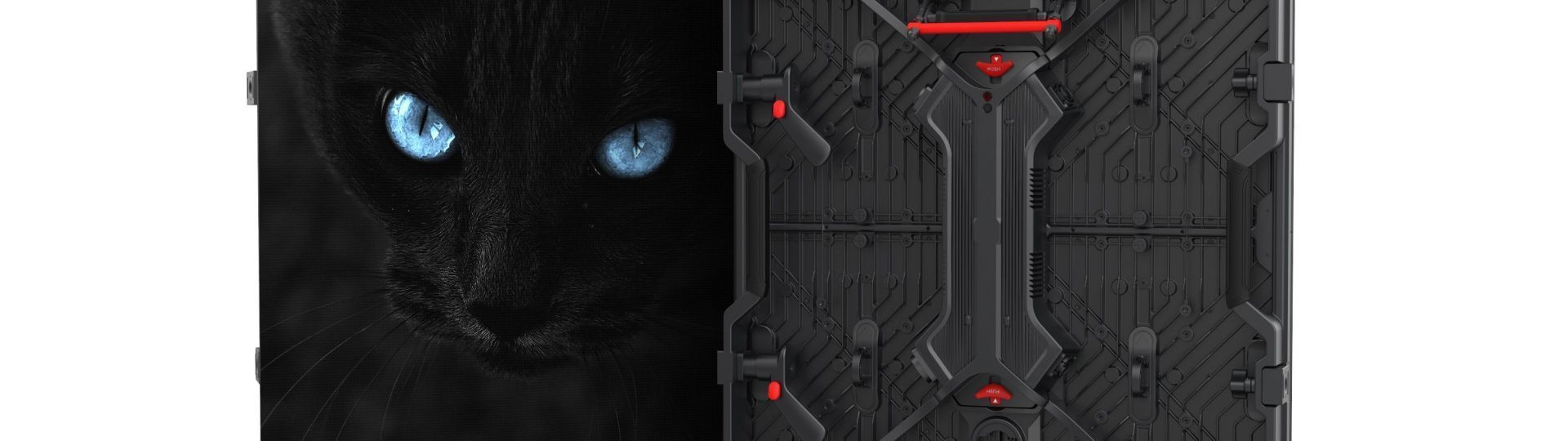

Ruby LED panel

Proud Black Onyx Successor

Ruby

Ruby is the proud successor or the Black Onyx series. Ruby offers a full-fledged LED screen appliance, full of modern LED techniques, such as common cathod. This next-generation LED panel with its 4in1 small pitch LEDs is the perfect solution for your next presentation or event.

Discover Ruby

Specs

Download all specs
  • Tile
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • BO 2
  • 2.84mm
  • SMD 1515 Black
  • 1800 nits
  • 500 x 500 x 90mm 19.69" x 19.69" x 3.54"
  • 176 x 176
  • 9.35kg; 20.61lbs
  • 160W / 80W
  • 546 / 251
  • Solid
  • Concave 10° ~ Convex 10°
  • 140
  • 140
  • 1920Hz
  • 16bit
  • -20° -45°C 10-90% RH
    -4° -113°F 10-90% RH
  • -40° -60°C 10-90% RH
    -40° -140°F 10-90% RH
  • Indoor
  • CE, ETL, FCC, ROHS
  • BO 3
  • 3.47mm
  • SMD 2020 Black
  • 1500 nits
  • 500 x 500 x 90mm 19.69" x 19.69" x 3.54"
  • 144 x 144
  • 9.35kg; 20.61lbs
  • 160W / 80W
  • 580 / 267
  • Solid
  • Concave 10° ~ Convex 10°
  • 140
  • 140
  • 1920Hz
  • 16bit
  • -20° -45°C 10-90% RH
    -4° -113°F 10-90% RH
  • -40° -60°C 10-90% RH
    -40° -140°F 10-90% RH
  • Indoor
  • CE, ETL, FCC, ROHS
The specifications are for reference, actual values may vary.
