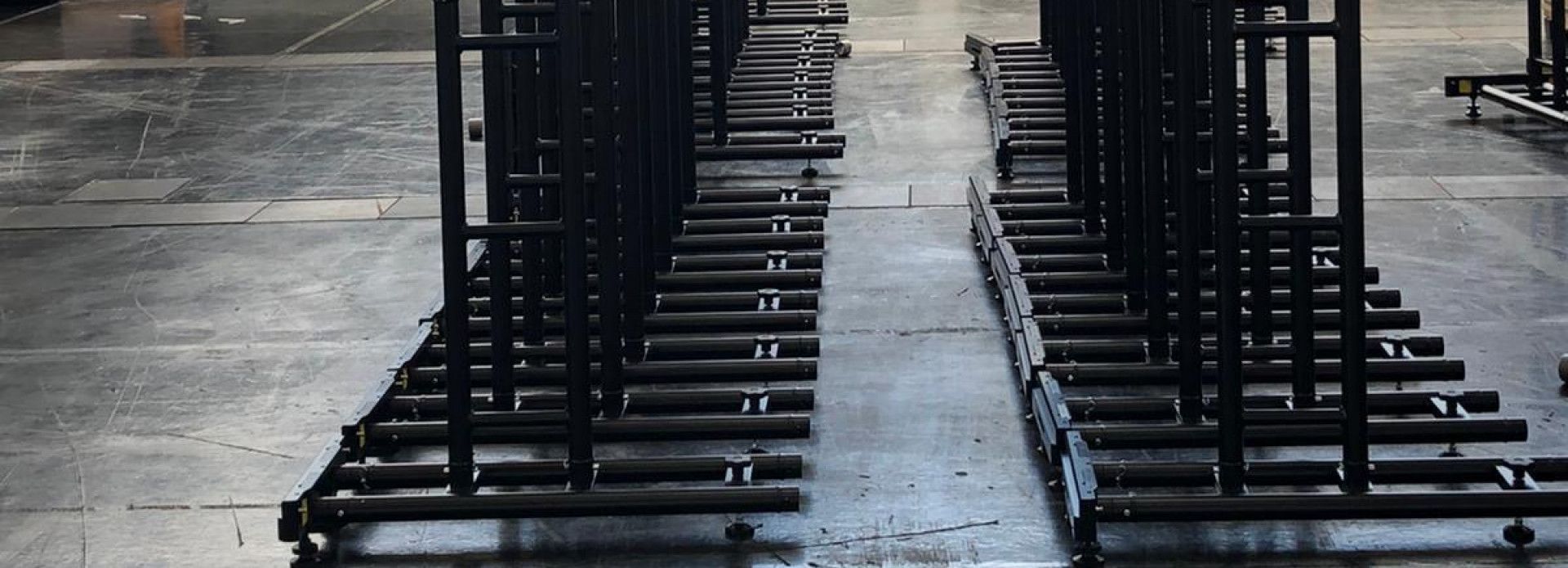

Stacking System

Building safe and stable LED walls

The ROE Visual Stacking System is a stable and safe solution to build a ground supported straight or curved LED wall and is compatible with all ROE Visual LED panels.



Download the ballast calculator

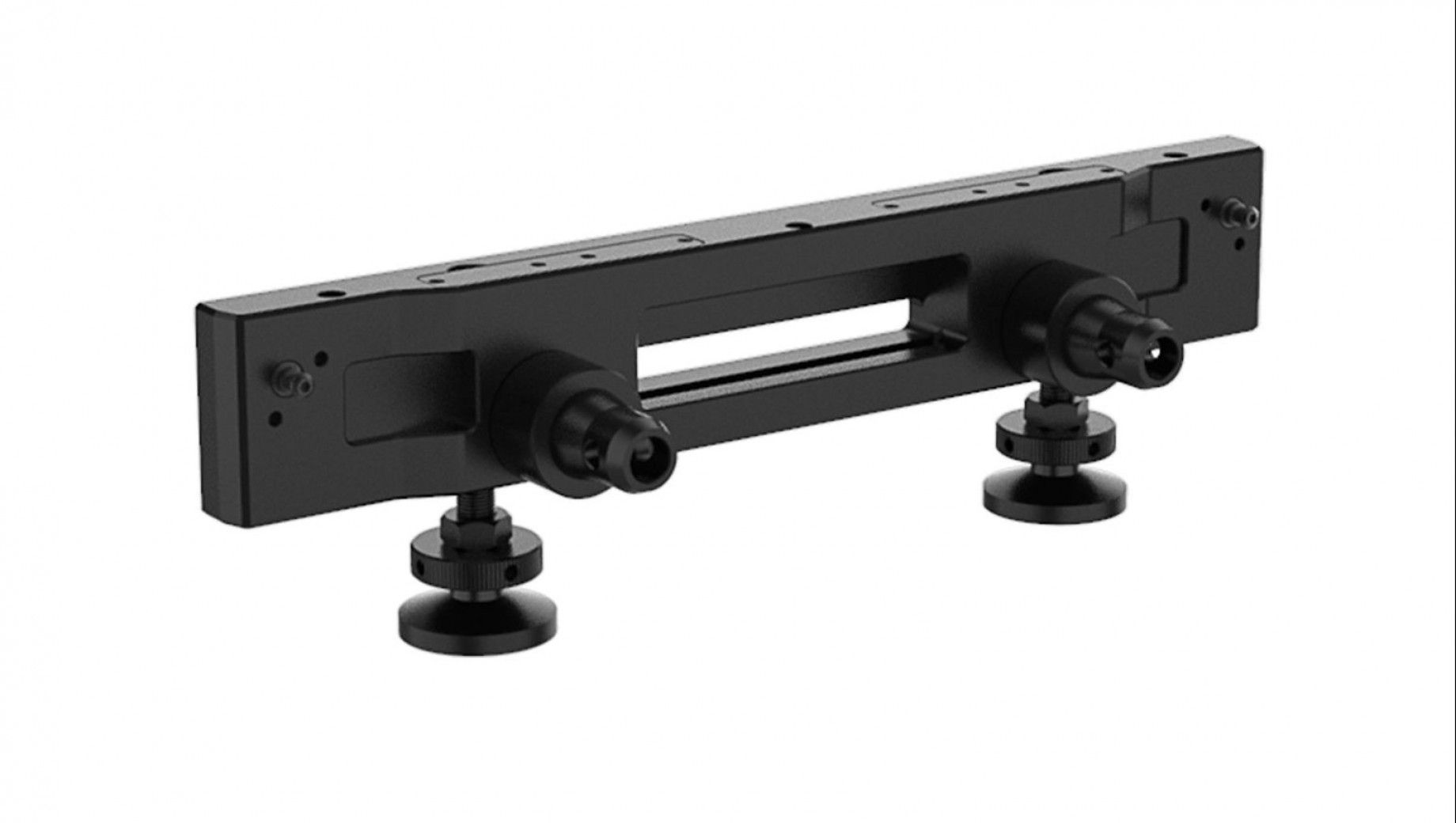

Base BAR

Base BAR

The basic Stacking System elements for each LED panel are the same:

  • Base BAR (differs per panel type)
  • Rear connector
  • Base truss
  • Rear truss

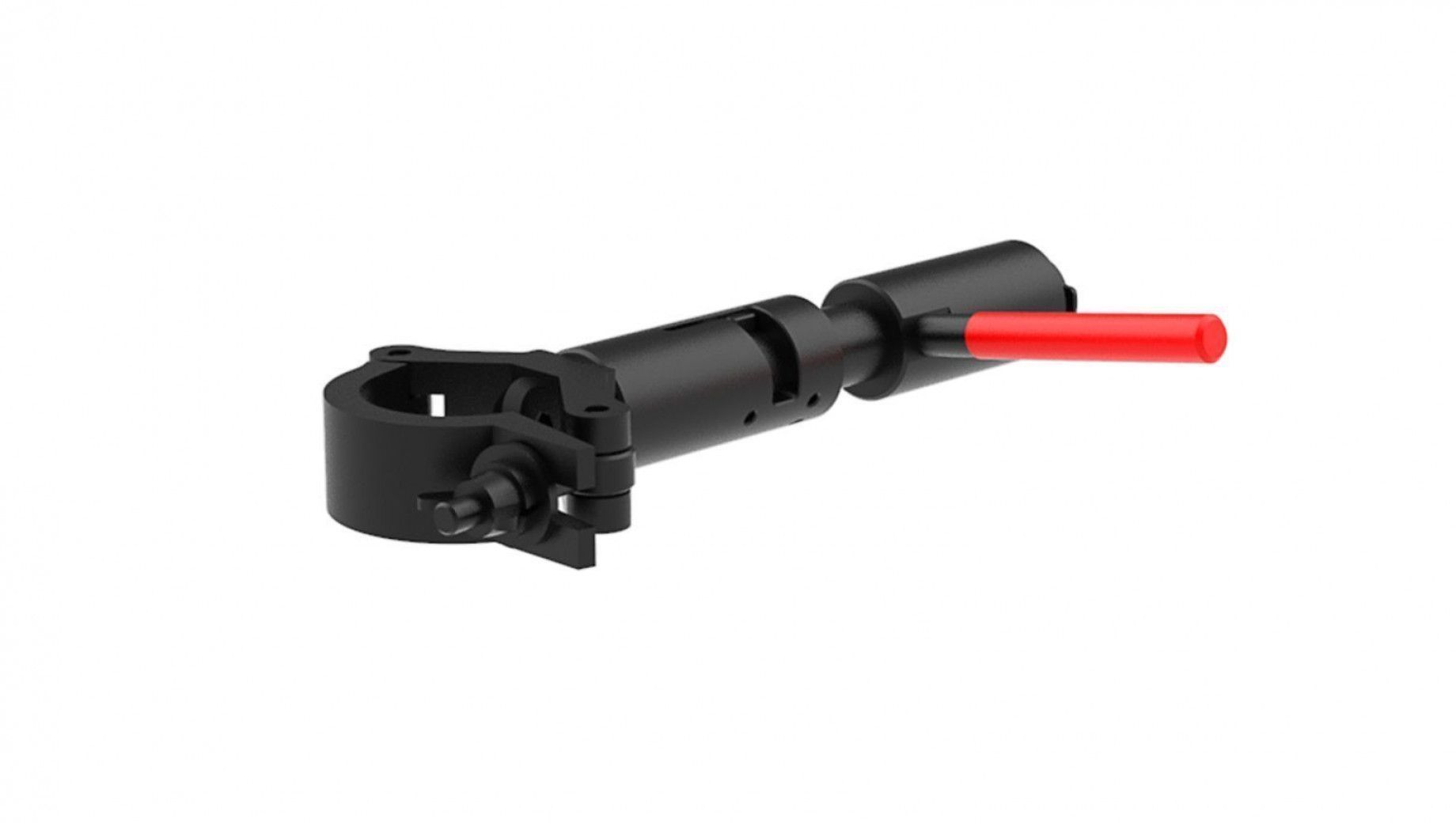

Rear connector

Rear connector

The basic Stacking System elements for each LED panel are the same:

  • Base BAR (differs per panel type)
  • Rear connector
  • Base truss
  • Rear truss

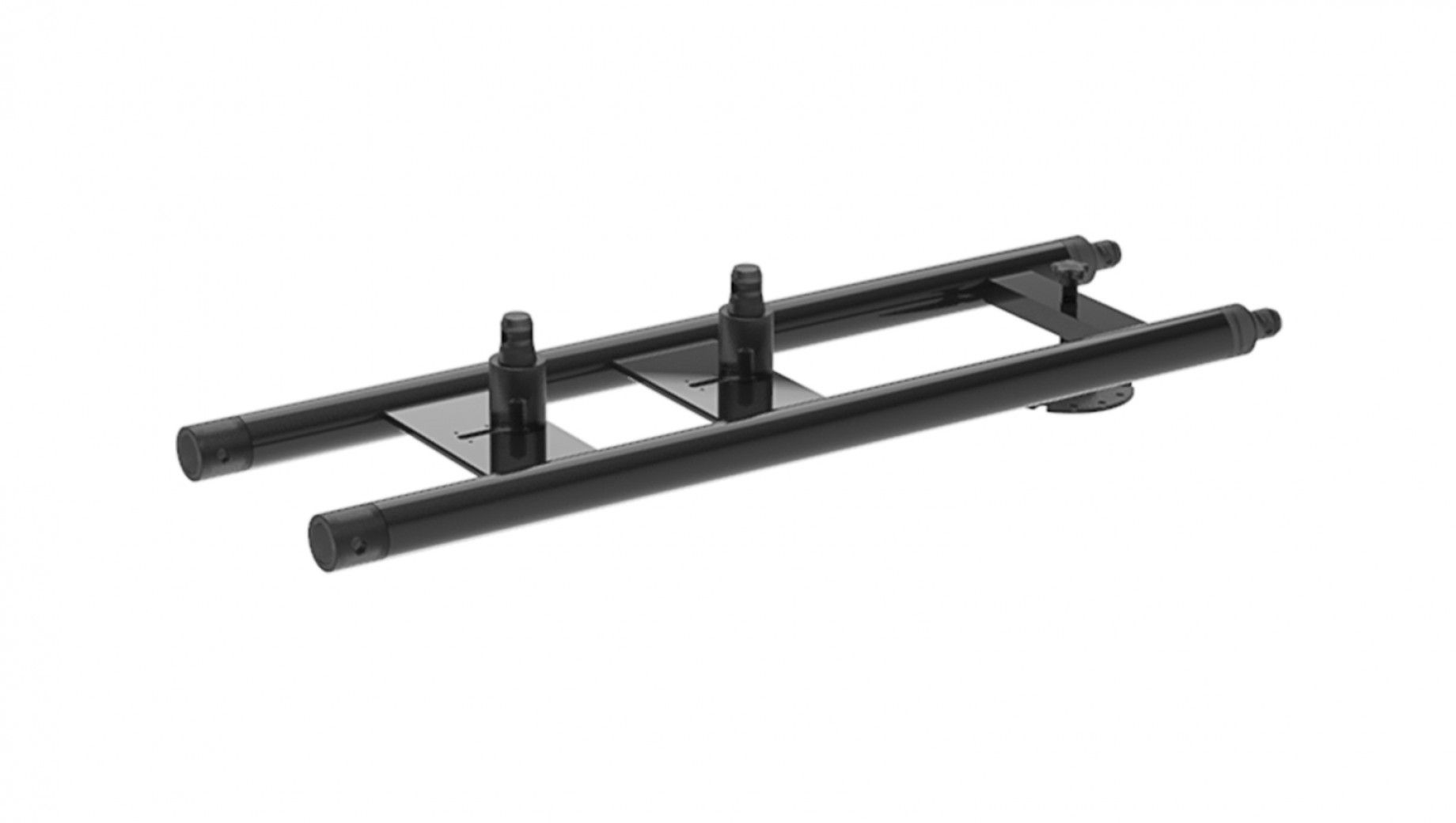

Base truss

The basic Stacking System elements for each LED panel are the same:

  • Base BAR (differs per panel type)
  • Rear connector
  • Base truss
  • Rear truss

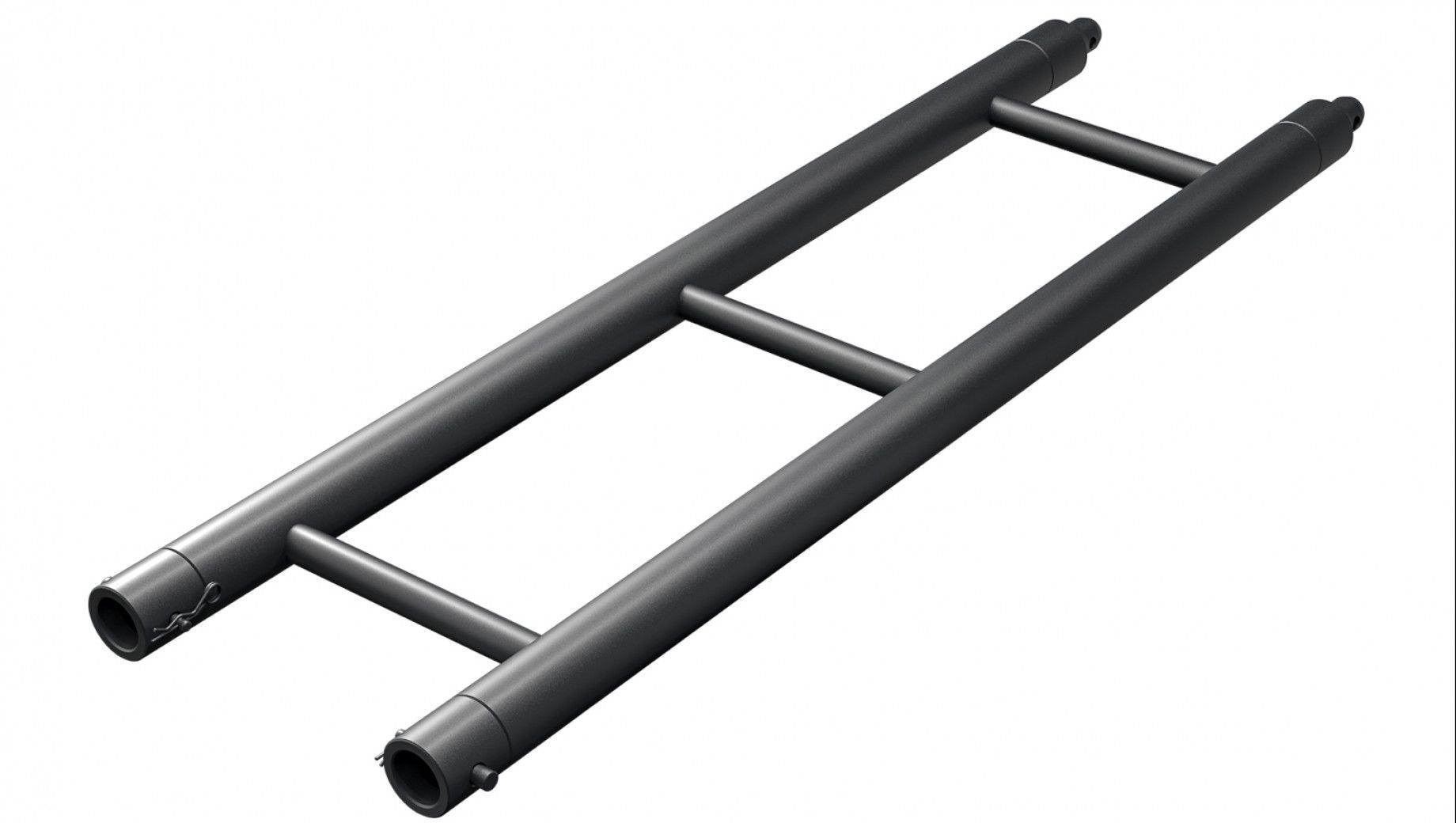

Rear truss

The basic Stacking System elements for each LED panel are the same:

  • Base BAR (differs per panel type)
  • Rear connector
  • Base truss
  • Rear truss

Downloads

Specs

  • Product
  • Dimension of full frame
  • Dimension of half frame
  • Material
  • Maximum hanging height
  • Maximum stacking height
  • Weight with wind bracing and CB8
  • Weight without wind bracing and CB8
  • Weight with wind bracing and CB5
  • Weight without wind bracing and CB5
  • Dimension of Dolly
  • Dolly weight with CB5
  • Dolly weight with CB5
  • Dolly capacity
  • Air Frame
  • 600 x 1200 x 120 mm
  • 600 x 600 x 120 mm
  • Carbon fiber and Aluminun
  • 24m
  • 7.2m
  • 35.9kg/m2
  • 28.7kg/m2
  • 37.6kg/m2
  • 30.4kg/m2
  • 1150 x 1277 x 1537 mm (with stackers)
  • 532kg
  • 513kg
  • 16pcs full CB panels/32pcs half panels
The specifications are for reference, actual values may vary.

Download all specs

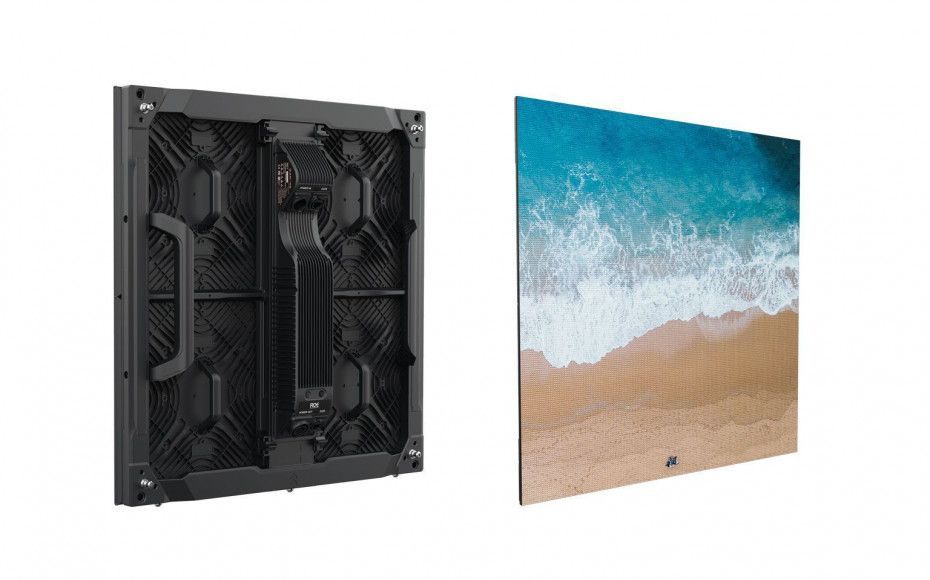

Diamond Series LED Panels

Diamond Series LED Panels

Read More

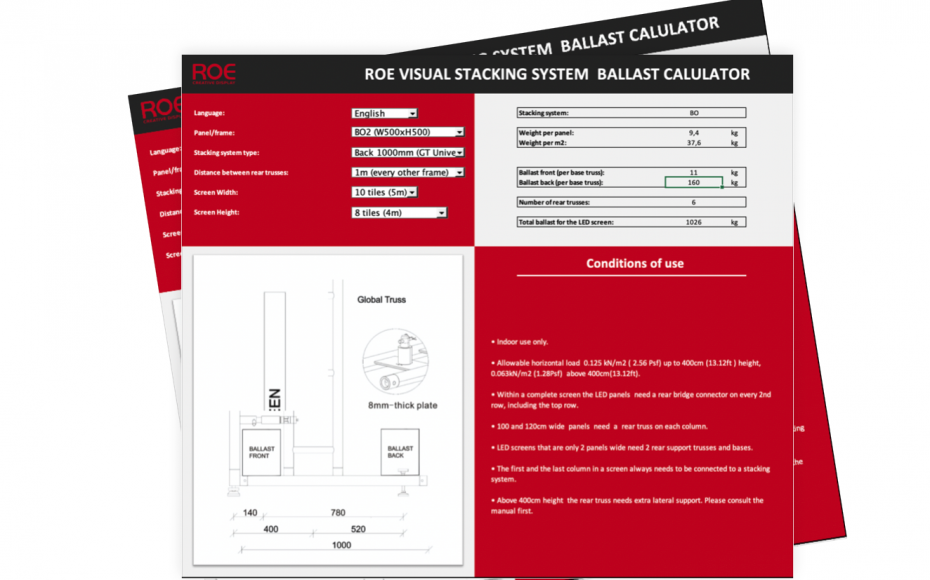

Ballast Calculator

Ballast Calculator

Use the Ballast Calculator

Select your region of preference
