Carbon Full Spectrum LED panels
RGBW LED Panel
The RGBW variant integrates red, green, blue, and warm white subpixels in each LED, delivering a high color rendering index (CRI) and using Brompton’s True Light algorithm to manage the white subpixel. This provides superior spectral quality and accurate color representation for human observers and cameras, making it ideal for studio lighting where natural colors are critical. Although the RGBW panel has higher power consumption compared to RGB and RGBCA, it excels in color accuracy, particularly for warm tones between 2700K and 5000K.

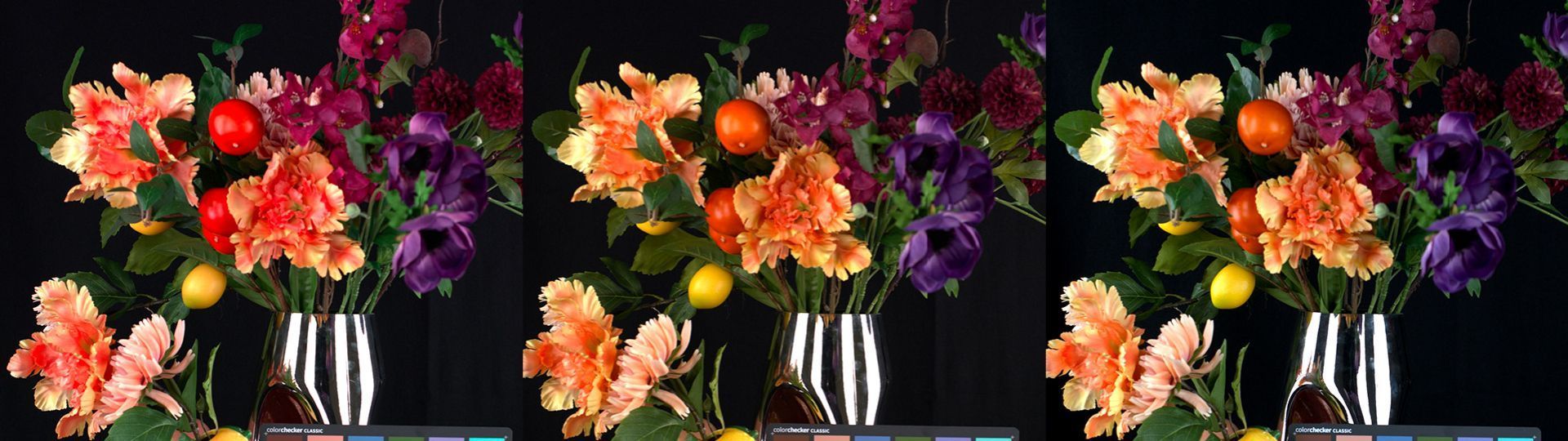

Slide picture to left to uncover RGBW.
RGBCA LED Panel
The RGBCA panel, featuring red, green, blue, cyan, and amber subpixels, takes color accuracy to another level by offering fine-tuned spectral control, tailored to meet studio cameras' needs. The panel excels in maintaining color consistency across a wide range of lighting conditions, from daylight to more complex image-based lighting scenarios. RGBCA’s power efficiency is also a standout, with lower energy consumption than RGBW, making it a cost-effective choice for virtual production environments.
Slide picture to left to uncover RGBCA.
Key Differences Between RGBW and RGBCA
The Carbon MarkII Full Spectrum Key Features
Application Fields
Film
Broadcast
Specs
- Title
- Pixel Pitch
- LED Configuration
- Max Brightness Calibrated
- Panel Dimension
- Panel Resolution (H x V)
- Weight Per Panel
- Power Consumption Max/Average
- BTU Max/Average
- TM-30(Rf)
- SSI
- Viewing Angle Vertical
- Viewing Angle Horizontal
- Refresh Rate
- Gray Scale
- Scan Ratio
- Serviceability
- Curving (Concave & Convex)
- Operational Temp/Humidity
- Storage Temp/Humidity
- IP Rating
- Certifications
- Max. Hanging
- Max. Stacking
- CB5MKII RGBCA
- 5.77mm
- RGB+Cyan+Amber
- 4400nits
- 600mm x 1200mm x 80mm
23.6” x 47.2” x 3.1” - 104 x 208
- 15.5kg | 34.17lbs
- 300W / 150W
- 1025 / 470
- 80
- 68 on 3200K | 62 on 6500K
- 170°
- 170°
- 7680Hz
- 16bit
- 1/4
- Front / Rear
- Concave 15° ~ Convex 10°
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP65
- CE, ETL, FCC, UKCA
- 12 panels
- 5 panels
- CB5MKII RGBW
- 5.77mm
- RGB+White
- 3200nits
- 600mm x 1200mm x 80mm
23.6” x 47.2” x 3.1” - 104 x 208
- 17.5kg | 38.58lbs
- 750W / 375W
- 2560 / 1180
- 80
- 68 on 3200K | 52 on 6500K
- 160°
- 160°
- 7680Hz
- 16bit
- 1/4
- Front / Rear
- Concave 15° ~ Convex 10°
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP40
- CE, ETL, FCC, UKCA
- 12 panels
- 5 panels
