Carbon MarkII

Ultra Light Outdoor LED Platform

Any better solution for outdoor rental stage? CB MarkII LED platform is the answer.

CB MarkII LED platform offers 12% weight reduction compared to CB series and designed on a stronger structure. User friendly designed, the CB Mark II panel is easier and faster to install and maintain, guaranteeing efficient servicing. It's an ideal outdoor solution that suitable for any flexible stage design.

Download CB MKII Brochure

CB MKII Video

The CB MarkII Key Features

Ultra light weight
Light weight
Concave and convex
Curveable
Touring frame compatible
Touring frame compatible

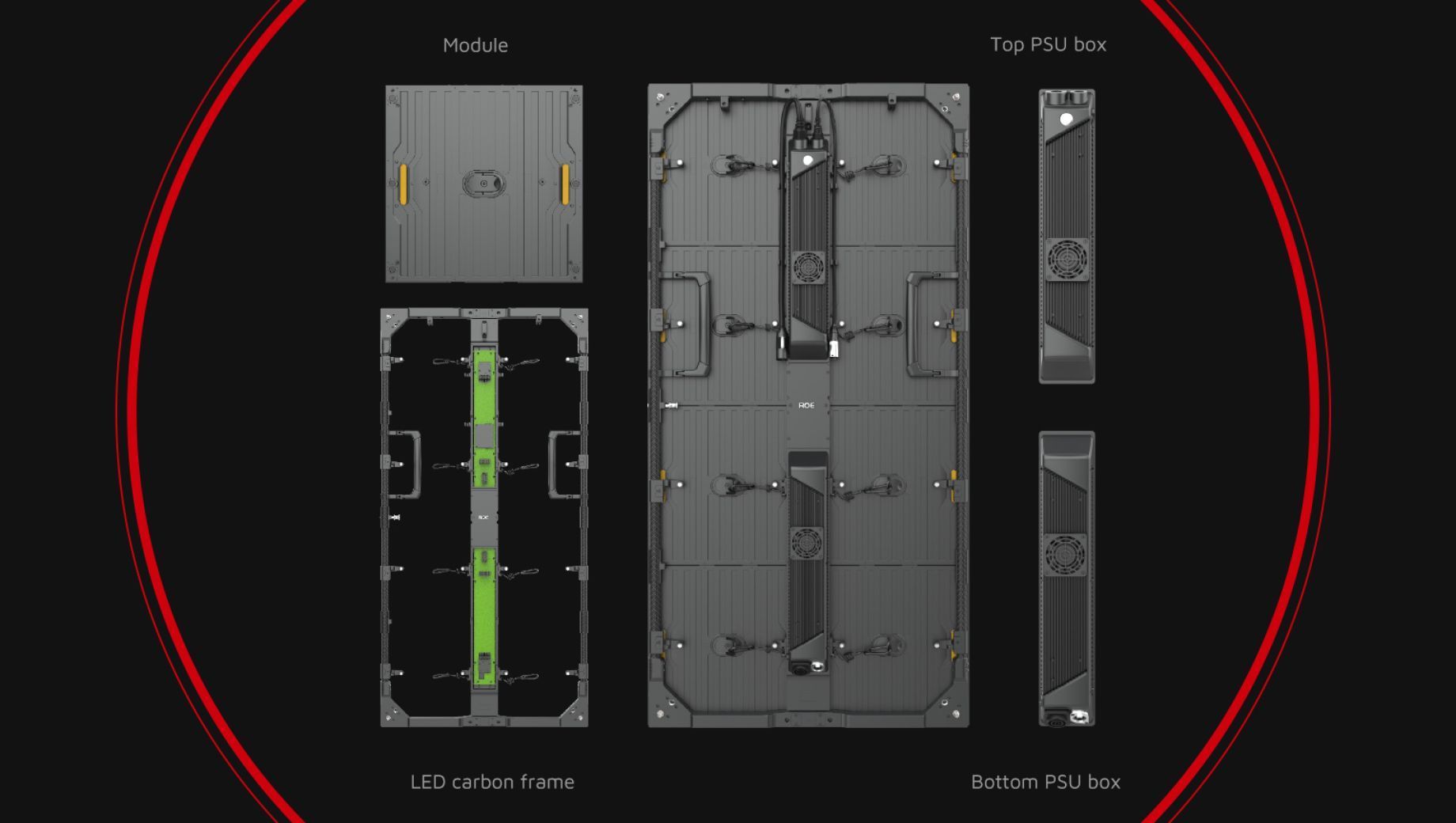

Fast installation
Fast installation
Heat dissipation
Heat dissipation

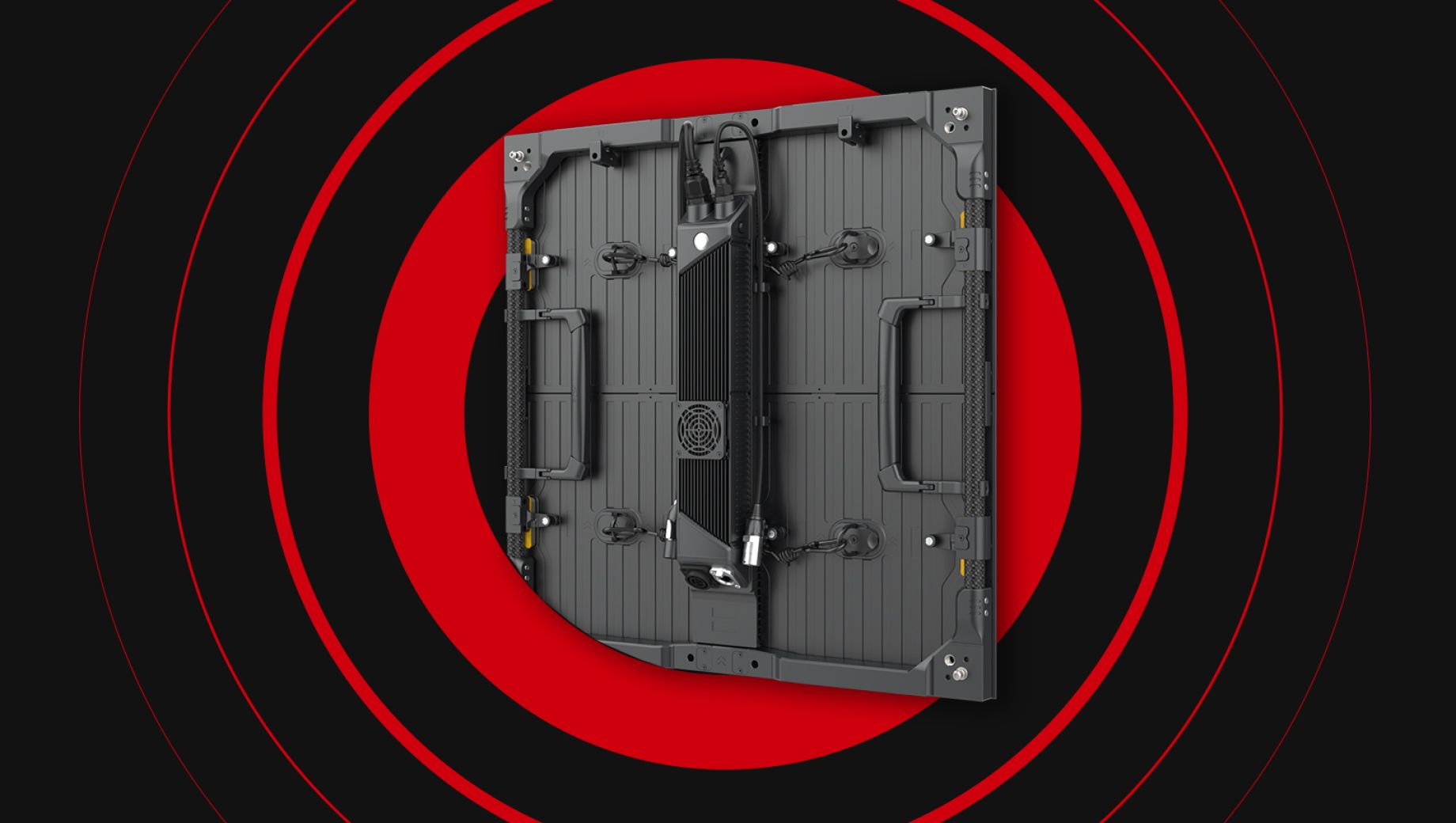

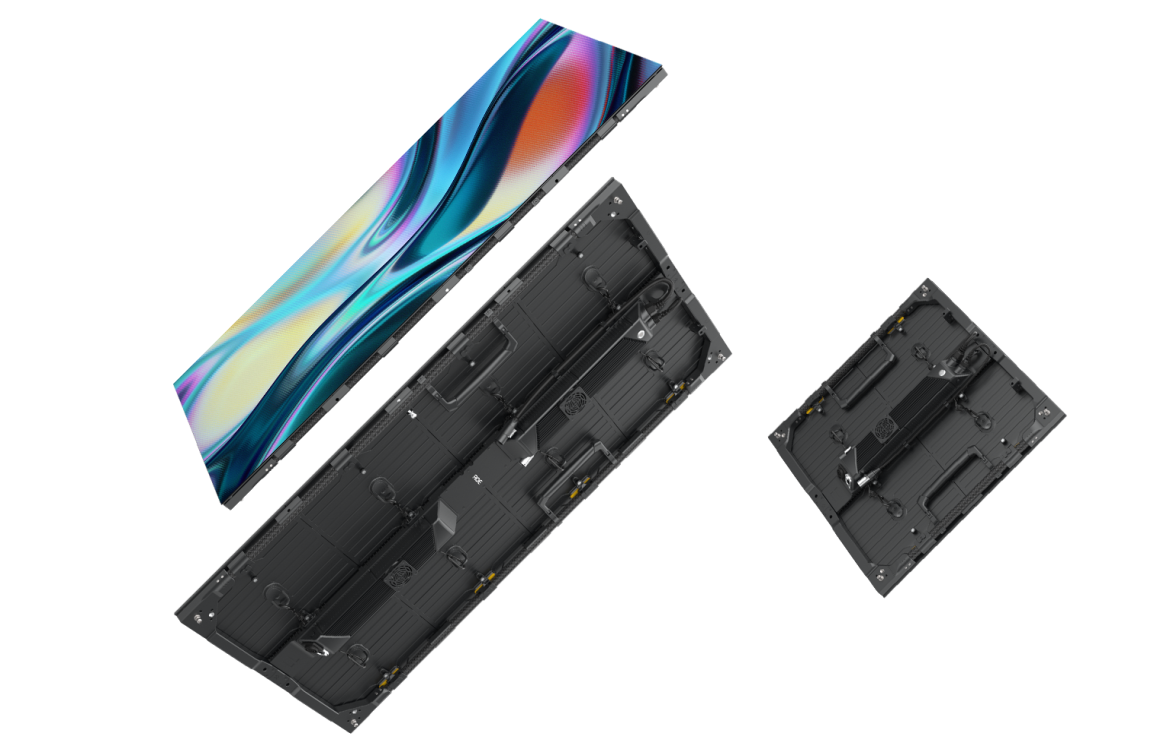

Half panel
Half panel

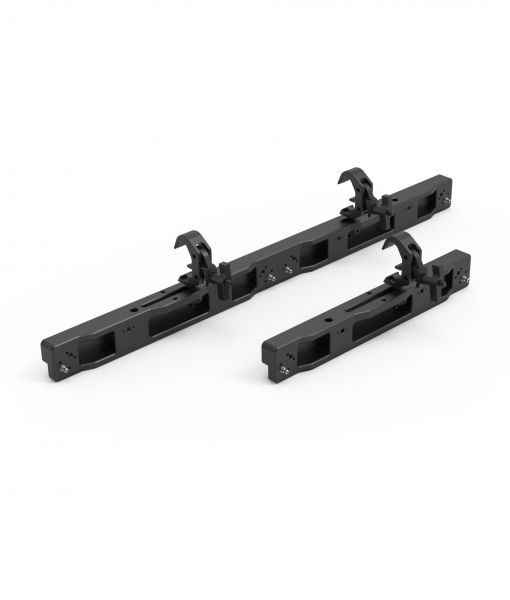

Hanging system
Hanging system

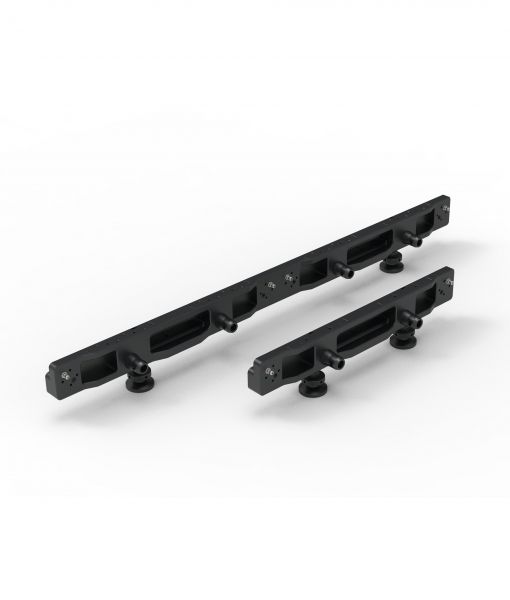

Stacking system
Stacking system
LED ceiling
LED Ceiling
CB3MKⅡ
CB3MKⅡ Half
CB5MKⅡ
CB5MKⅡ Half
CB8MKⅡ
CB8MKⅡ Half
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • Max. Hanging
  • Max. Stacking
  • CB3MKⅡ
  • 3.75mm
  • SMD 1515 Black
  • 4500nits
  • 600mm x 1200mm x 79mm
    23.6” x 47.2” x 3.1”
  • 160 x 320
  • 14kg | 31lbs
  • 600W / 300W
  • 2050 / 945
  • Solid
  • Front / Rear
  • Concave 15° ~ Convex 10°
  • 110°
  • 140°
  • 3840Hz
  • 16bit
  • 1/10
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • IP65
  • CE, ETL, FCC, UKCA, WEEE
  • 12 panels
  • 5 panels
  • CB3MKⅡ Half
  • 3.75mm
  • SMD 1515 Black
  • 4500nits
  • 600mm x 600mm x 79mm
    23.6” x 23.6” x 3.1”
  • 160 x 160
  • 7.5kg | 16.53lbs
  • 290W / 145W
  • 990 / 455
  • Solid
  • Front / Rear
  • Concave 15° ~ Convex 10°
  • 110°
  • 140°
  • 3840Hz
  • 16bit
  • 1/10
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • IP65
  • CE, ETL, FCC, UKCA, SAA, WEEE
  • 24 panels
  • 10 panels
  • CB5MKⅡ
  • 5.77mm
  • SMD 1921 White
  • 6000nits
  • 600mm x 1200mm x 79mm
    23.6” x 47.2” x 3.1”
  • 104 x 208
  • 12.2kg | 26.8lbs
  • 480W / 240W
  • 1640 / 755
  • Solid
  • Front / Rear
  • Concave 15° ~ Convex 10°
  • 110°
  • 140°
  • 7680Hz
  • 16bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • IP65
  • CE, ETL, FCC, UKCA, WEEE
  • 12 panels
  • 5 panels
  • CB5MKⅡ Half
  • 5.77mm
  • SMD 1921 White
  • 6000nits
  • 600mm x 600mm x 79mm
    23.6” x 23.6” x 3.1”
  • 104 x 104
  • 6.5kg | 14.3lbs
  • 250W / 125W
  • 850 / 395
  • Solid
  • Front / Rear
  • Concave 15° ~ Convex 10°
  • 110°
  • 140°
  • 7680Hz
  • 16bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • IP65
  • CE, ETL, FCC, UKCA
  • 24 panels
  • 10 panels
  • CB8MKⅡ
  • 8.33mm
  • SMD 1921 White
  • 6000nits
  • 600mm x 1200mm x 79mm
    23.6” x 47.2” x 3.1”
  • 72 x 144
  • 11kg | 24.3lbs
  • 530W / 260W
  • 1810 / 835
  • 23%
  • Front / Rear
  • Concave 15° ~ Convex 10°
  • 110°
  • 140°
  • 7680Hz
  • 14bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • IP65
  • CE, ETL, FCC, UKCA, WEEE
  • 12 panels
  • 5 panels
  • CB8MKⅡ Half
  • 8.33mm
  • SMD 1921 White
  • 6000nits
  • 600mm x 600mm x 79mm
    23.6” x 23.6” x 3.1”
  • 72 x 72
  • 6kg | 13.2lbs
  • 260W / 130W
  • 890 / 410
  • 23%
  • Front / Rear
  • Concave 15° ~ Convex 10°
  • 110°
  • 140°
  • 7680Hz
  • 14bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • IP65
  • CE, ETL, FCC, UKCA, SAA, WEEE
  • 24 panels
  • 10 panels
Comparison
<< product.title >>
  • Title

Application Fields

  • Touring and Festivals
  • Outdoor events
  • Sports Events
  • Virtual Production Ceiling

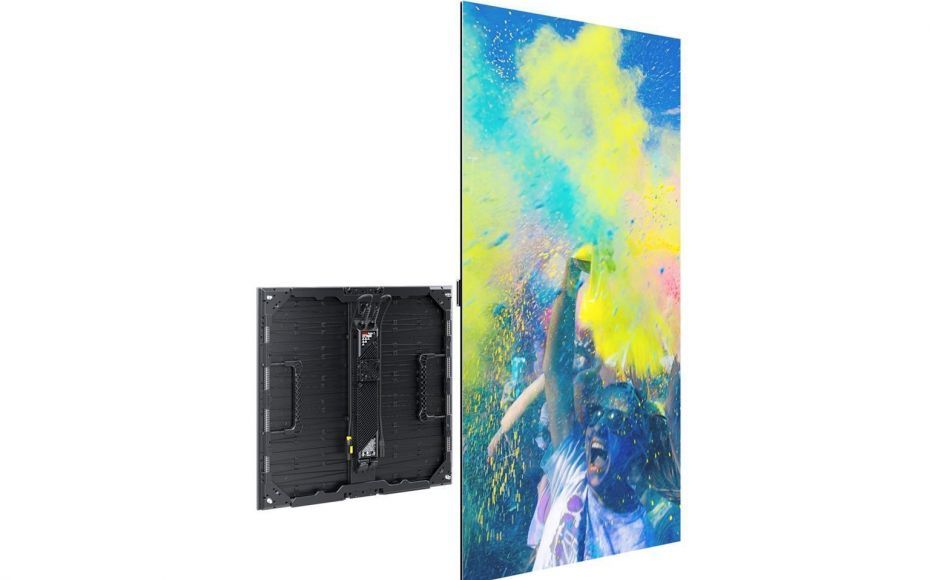

Carbon LED panel

Explore

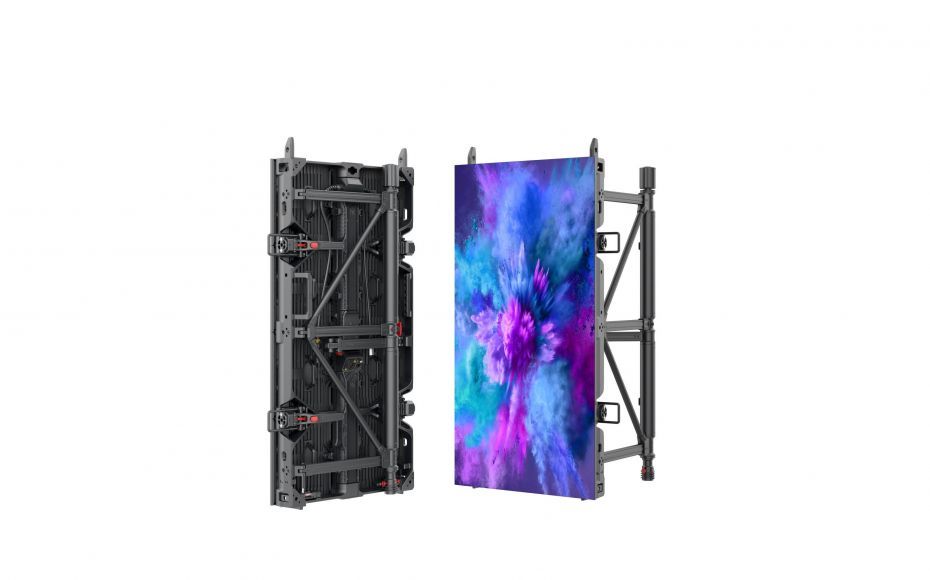

Black Pearl
