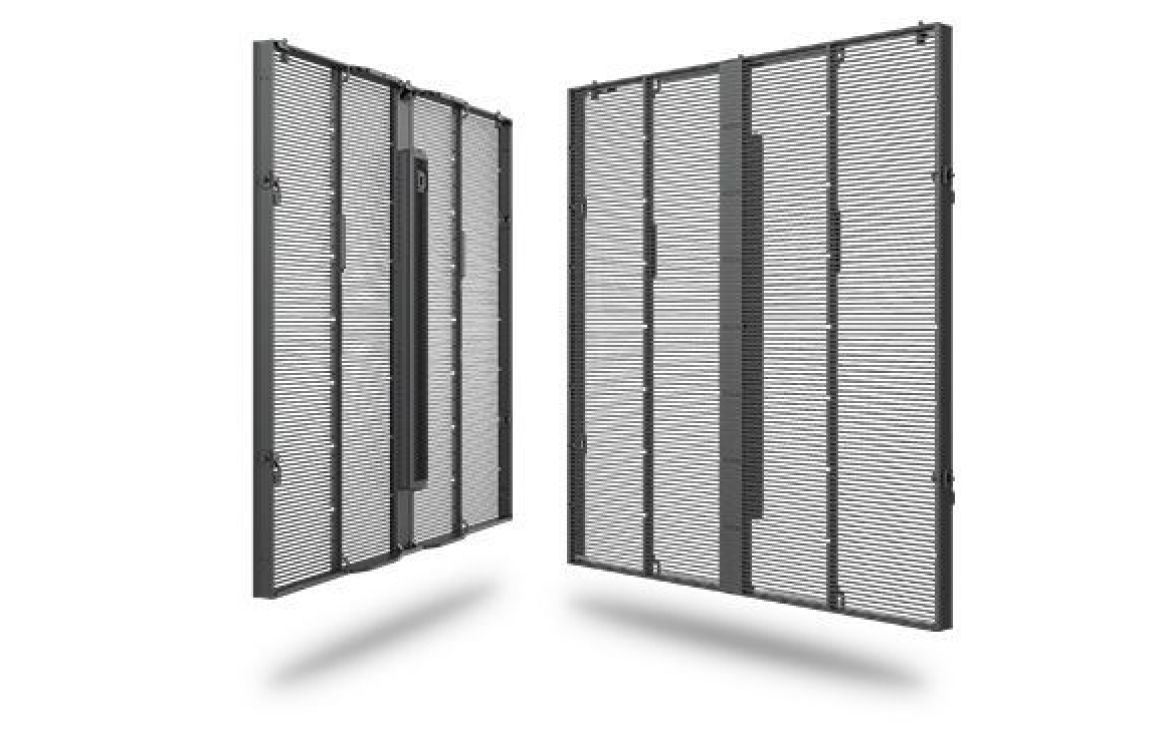

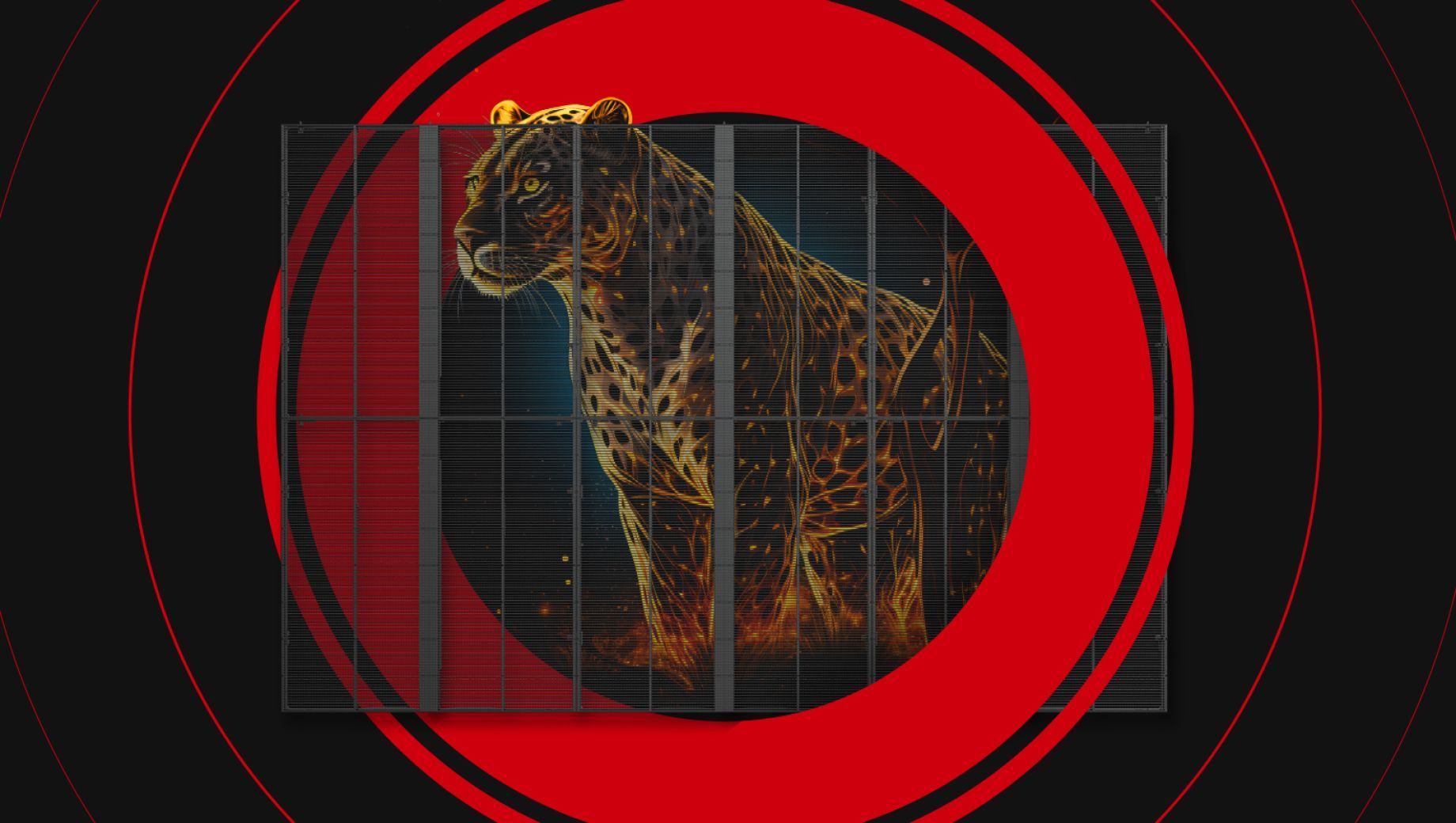

Transparent LED in a large panel design

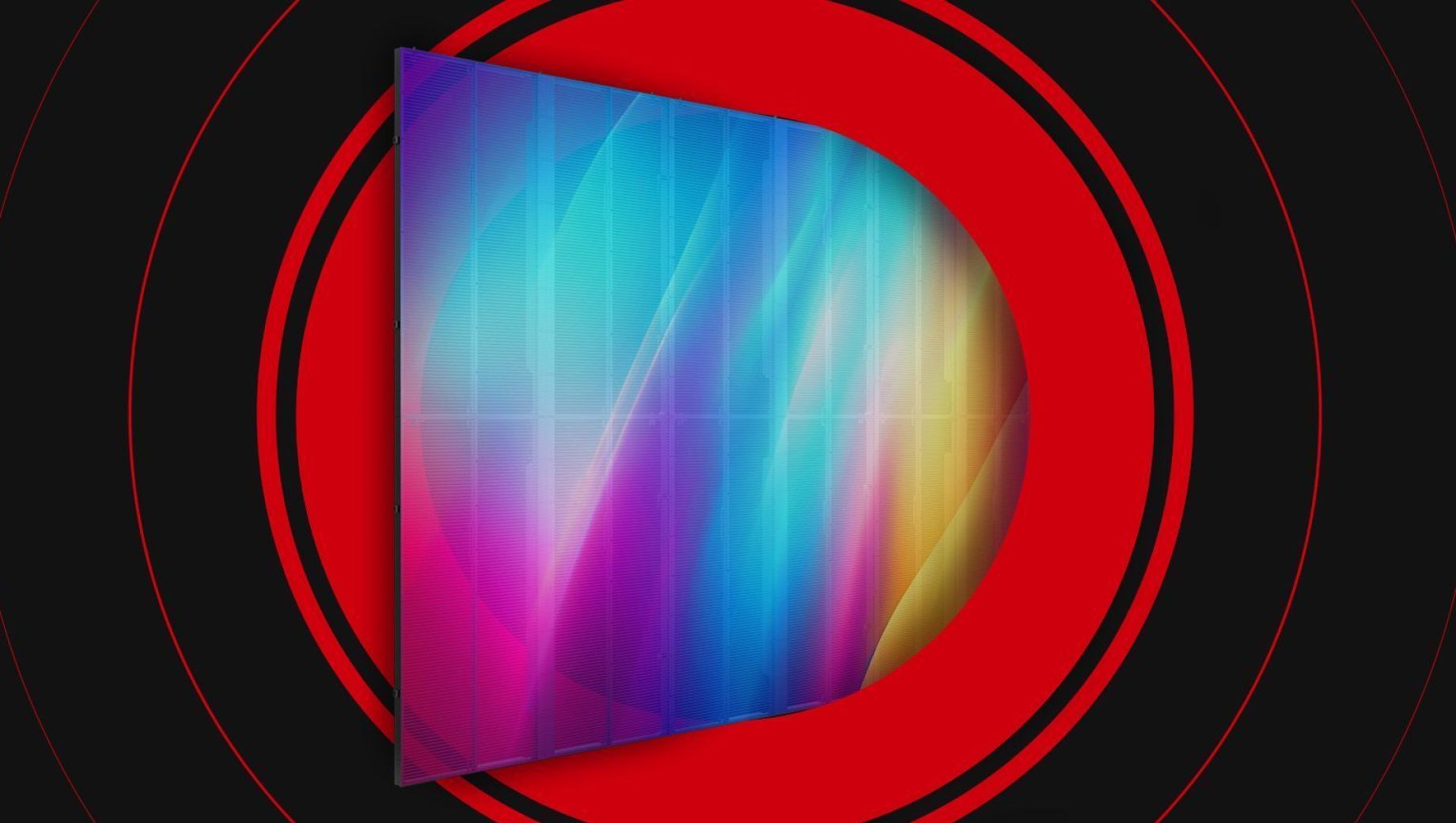

The Vanish LED panel is a large frame, indoor transparent LED panel. With a transparency from 35% to 62%, this LED panel offers outstanding performance in indoor environments through its high brightness and excellent viewing angles. Smaller LED and PCB design add improved transparency.

Request a demo

Vanish Key Features

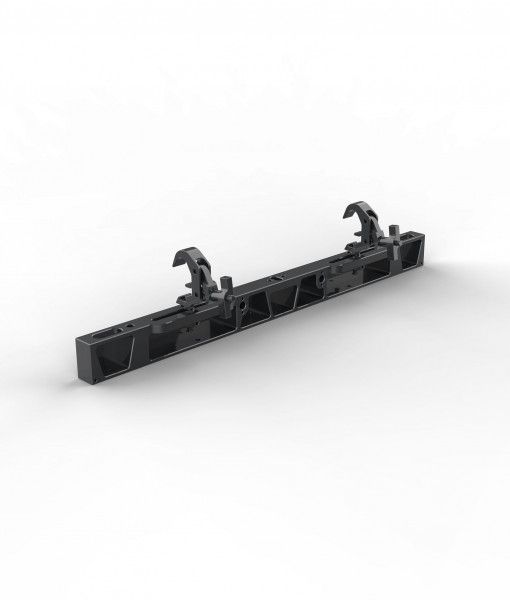

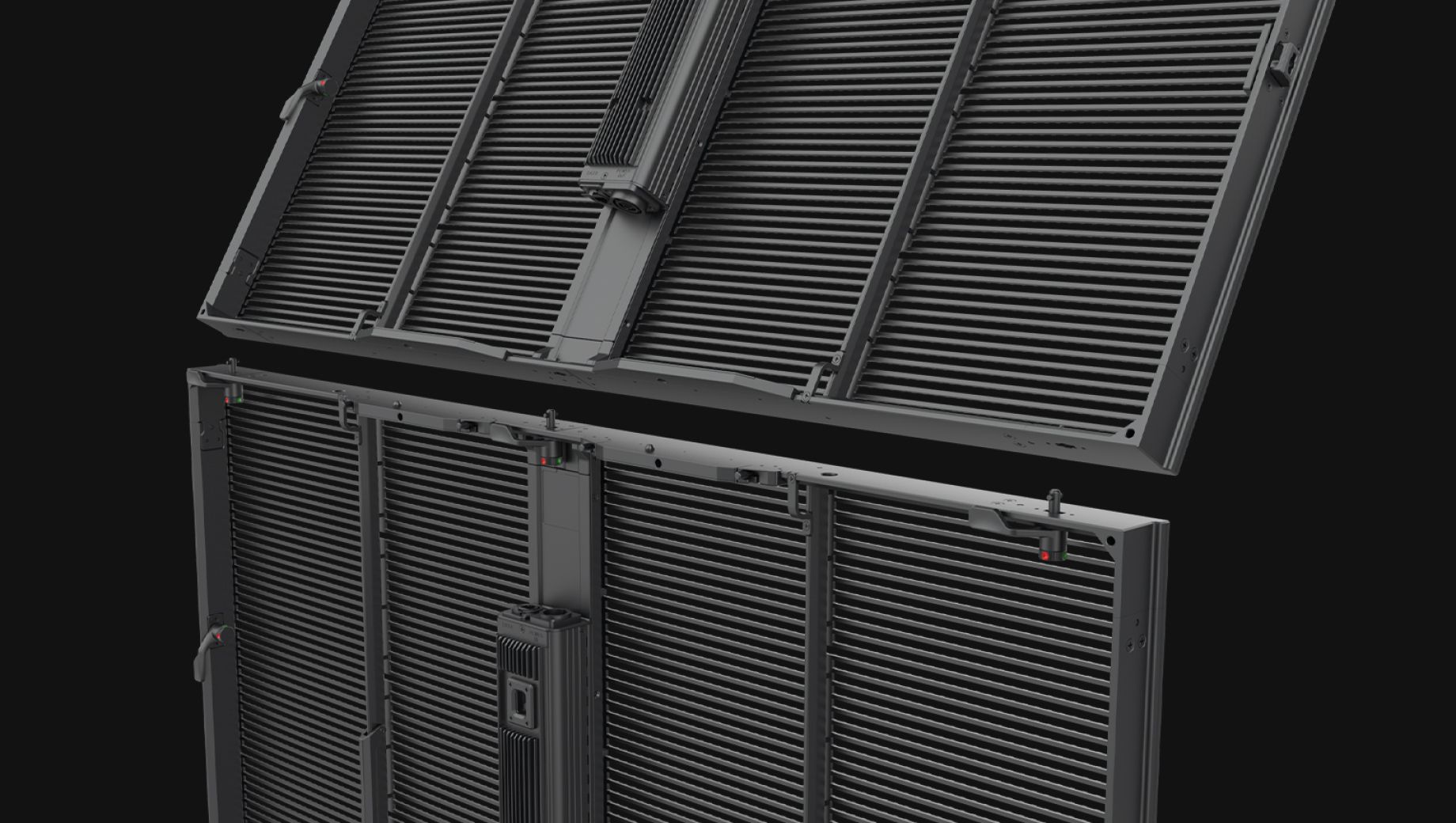

Hanging and Stacking
Curving Options
V5S MKⅡ
V8S MKⅡ (White LED)
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • Max. Hanging
  • Max. Stacking
  • V5S MKⅡ
  • 5.6mm
  • SMD 1515 Black
  • 2000nits
  • 1000mm x 1000mm x 67mm
    39.4” x 39.4” x 2.6”
  • 176 x 176
  • 10.9kg | 24.03lbs
  • 420W / 210W
  • 1430 / 655
  • 35%
  • Front
  • Concave 10° ~ Convex 10°
  • 140°
  • 160°
  • 3840Hz
  • 14bit
  • 1/11
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, ETL, FCC, SAA
  • 15 panels
  • 6 panels
  • V8S MKⅡ (White LED)
  • 8.9mm
  • SMD 1515 White
  • 3500nits
  • 1000mm x 1000mm x 67mm
    39.4” x 39.4” x 2.6”
  • 112 x 112
  • 9.6kg | 21.16lbs
  • 460W / 230W
  • 1570 / 720
  • 62%
  • Front
  • Concave 10° ~ Convex 10°
  • 140°
  • 160°
  • 3840Hz
  • 14bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, ETL, FCC, SAA
  • 15 panels
  • 6 panels
Comparison
<< product.title >>
  • Title
Vanish V8S

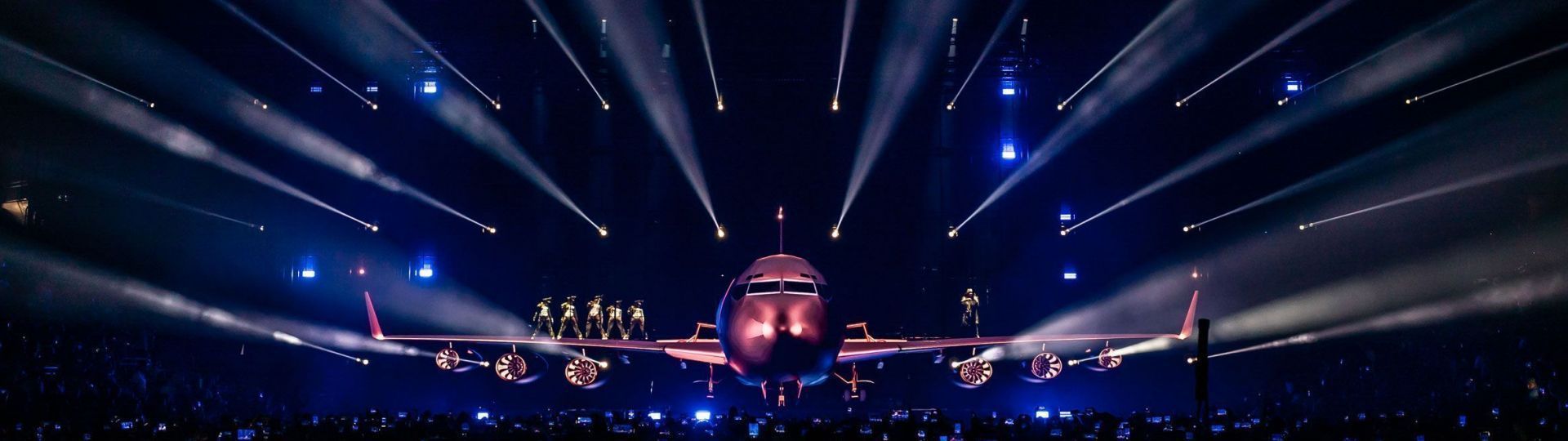

Application Fields

  • Touring
  • Concert
  • Events
Rodrigo Proal

“They share our passion for creatively pushing state-of-the-art technology, and they always understand our needs when it comes to designing a product that would fit our inventory of gear.”

Rodrigo Proal Darmah

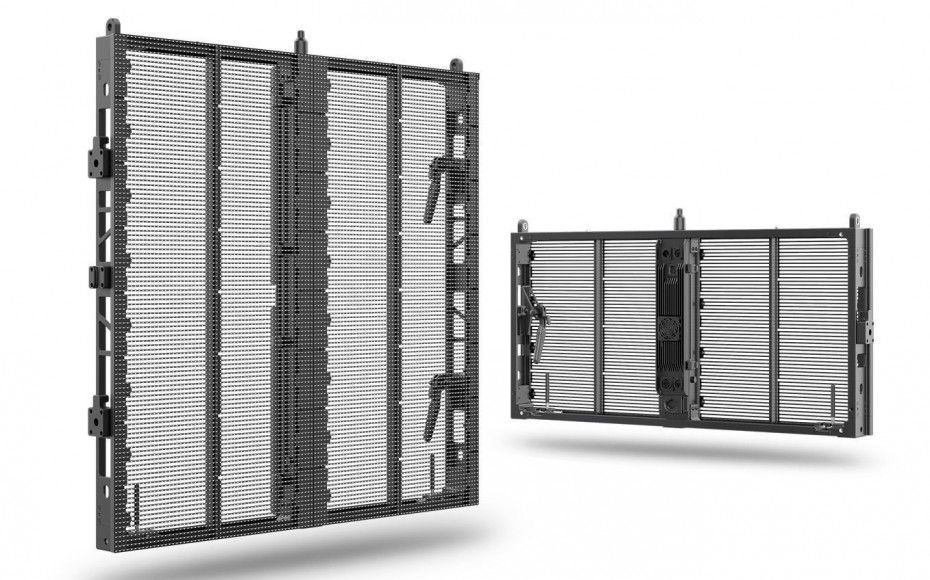

Vanish V8T LED panel
