ROE Strip

Spark Your Creativity

The ROE Strip is a linear LED element suited for all sorts of creative applications. The multiple cover options and variable lengths make it an ideal LED element to accentuate set designs, structures or interior elements. The LEDs are freely mappable, so any video content can be played on them. The ROE Strip is delivered in standard lengths of 30, 60, 90 or 120cm, and can be coupled to any desired length or configuration.



Request a Demo

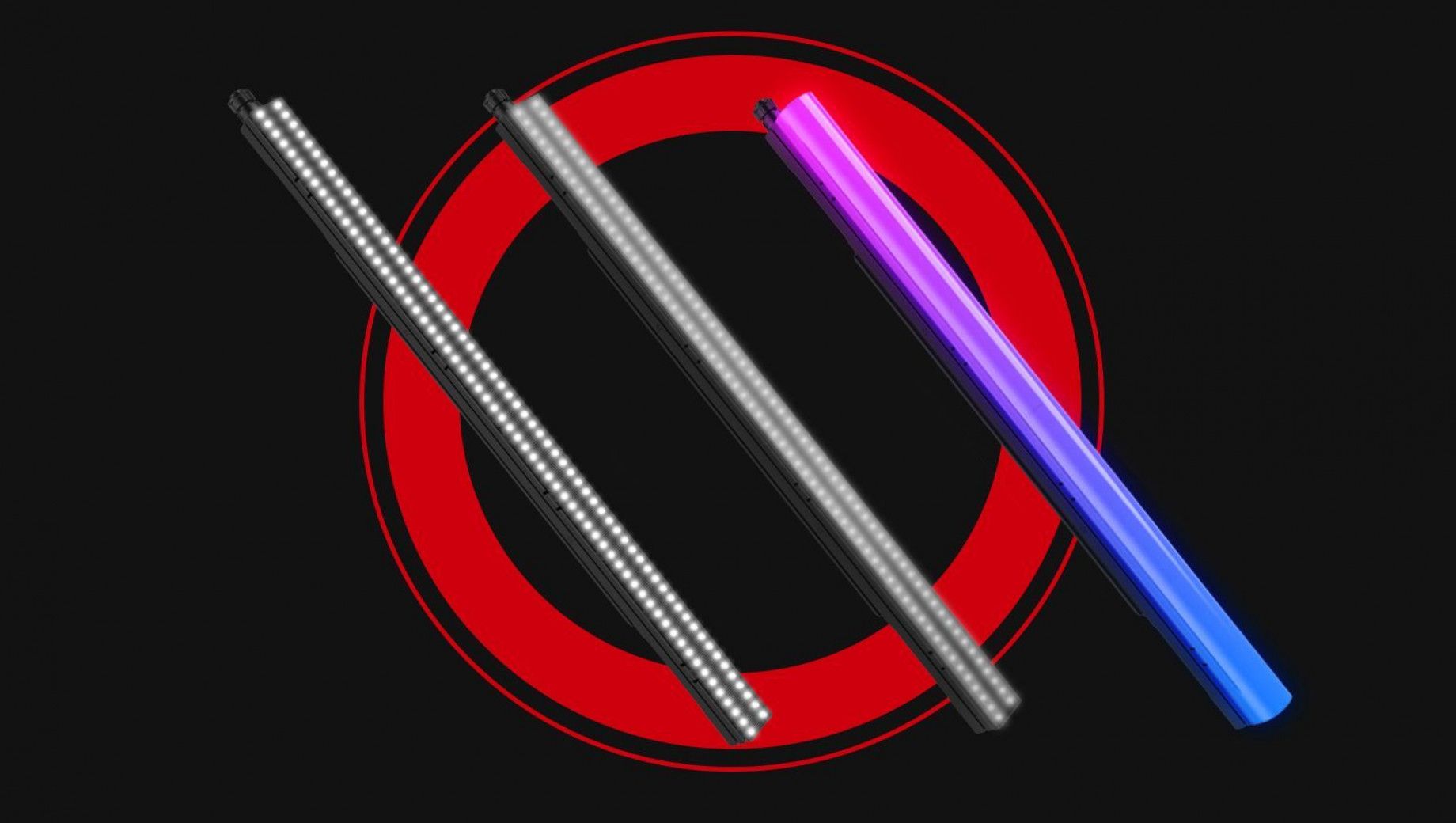

ROE Strip covers

One Element - Multiple Effects

The ROE Strip Elelment can be used with or without a cover. The covers are available in 3 versions, black, white and flat. They all make variations in light with impressive effects.

ROE Strip

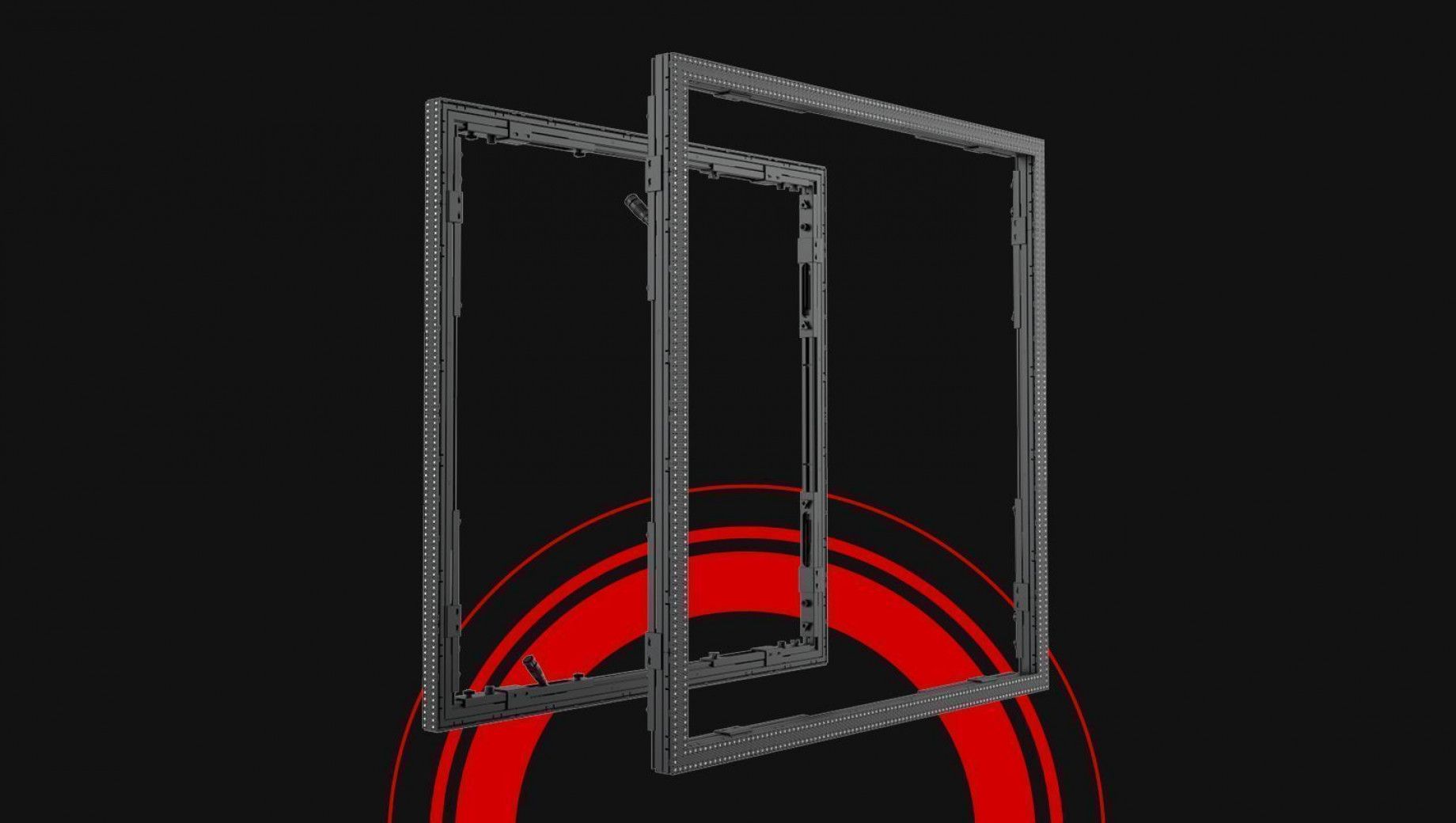

Flat, inward or outward mounting possible

The ROE Strip elements can be configured in several ways. The additional corner elements have both in- and outward versions. The individual elements can be connected, allowing multiple installation options.

ROE Strip

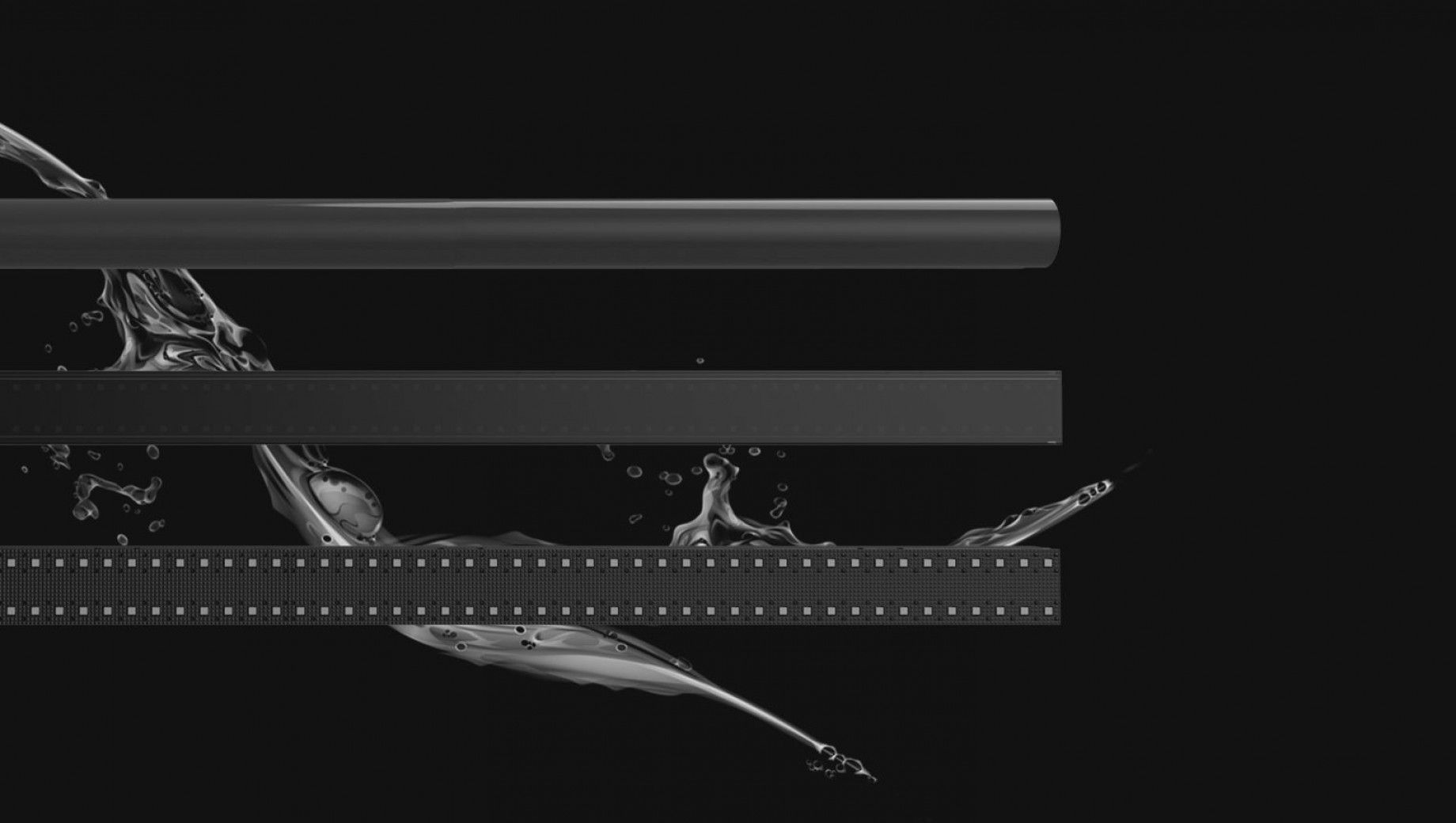

Suited for in- and outdoor use

The ROE Strip Elements are suited for in- and outdoor use, although installation in very wet environments is not advised.

ROE Strip

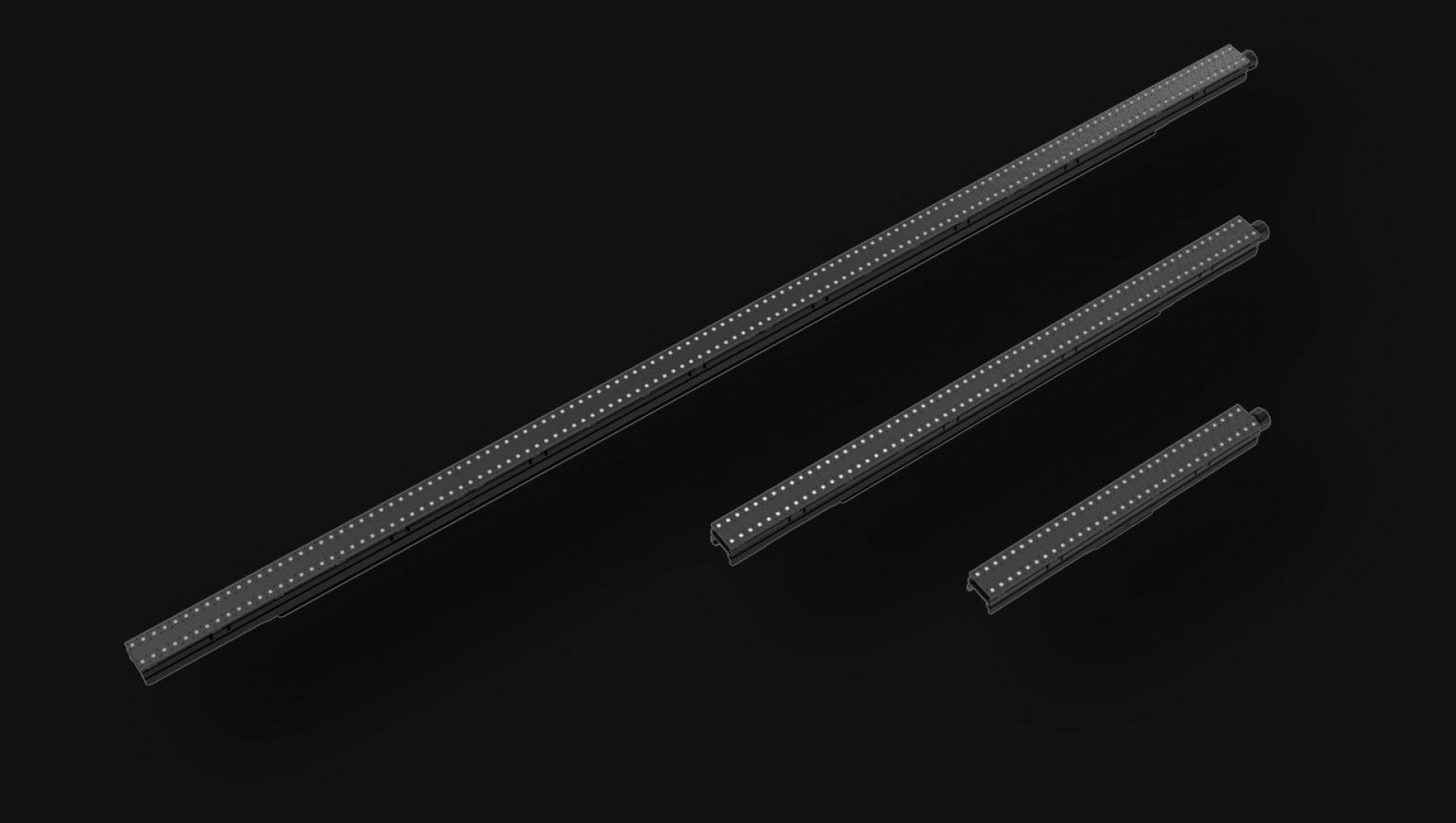

Several Standard Elements

ROE Strips are available in standard length of 300mm, 600mm and 1200mm lengths, all based on 300mm modules.

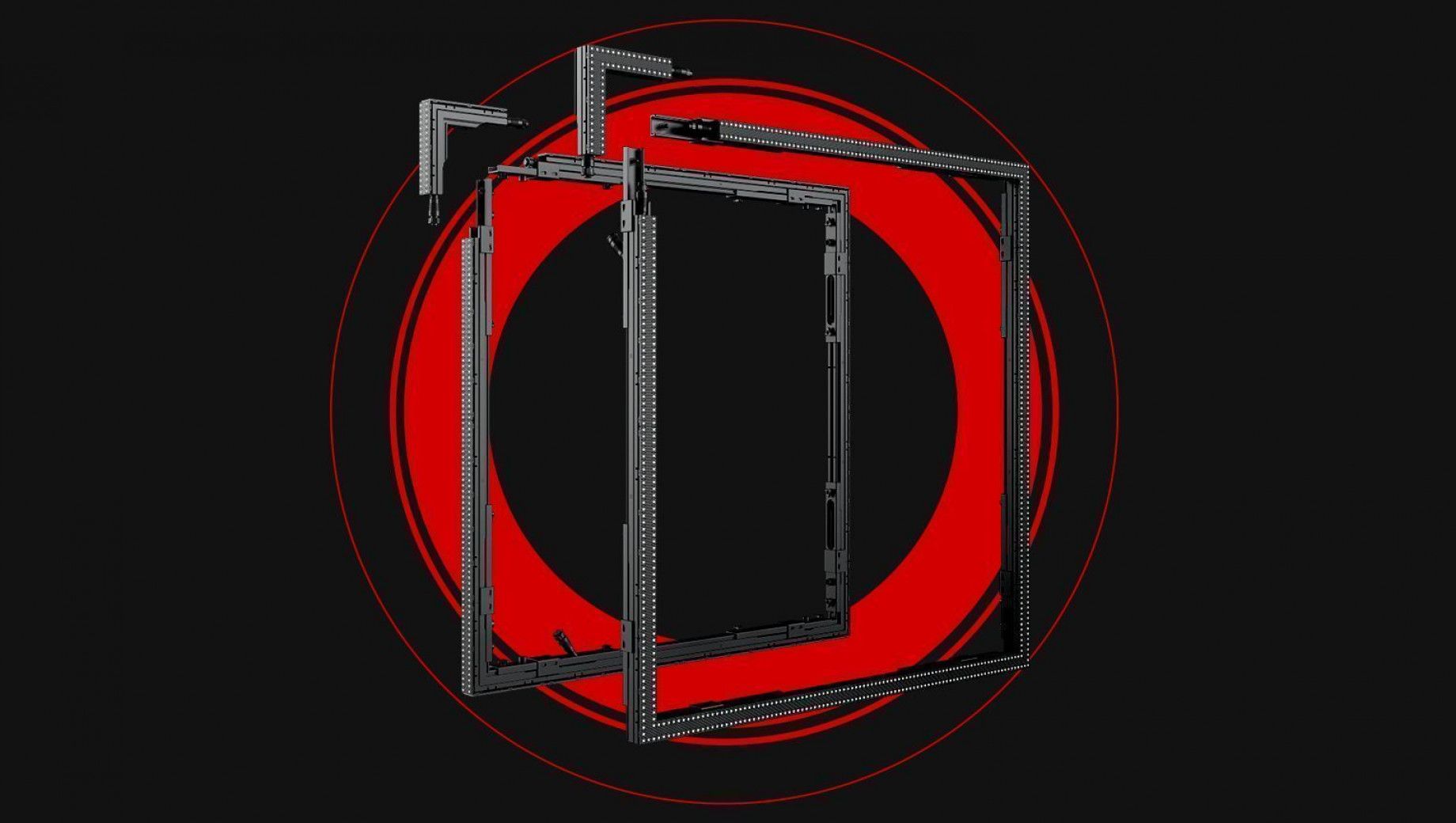

ROE Strip corner ROE Strip corner

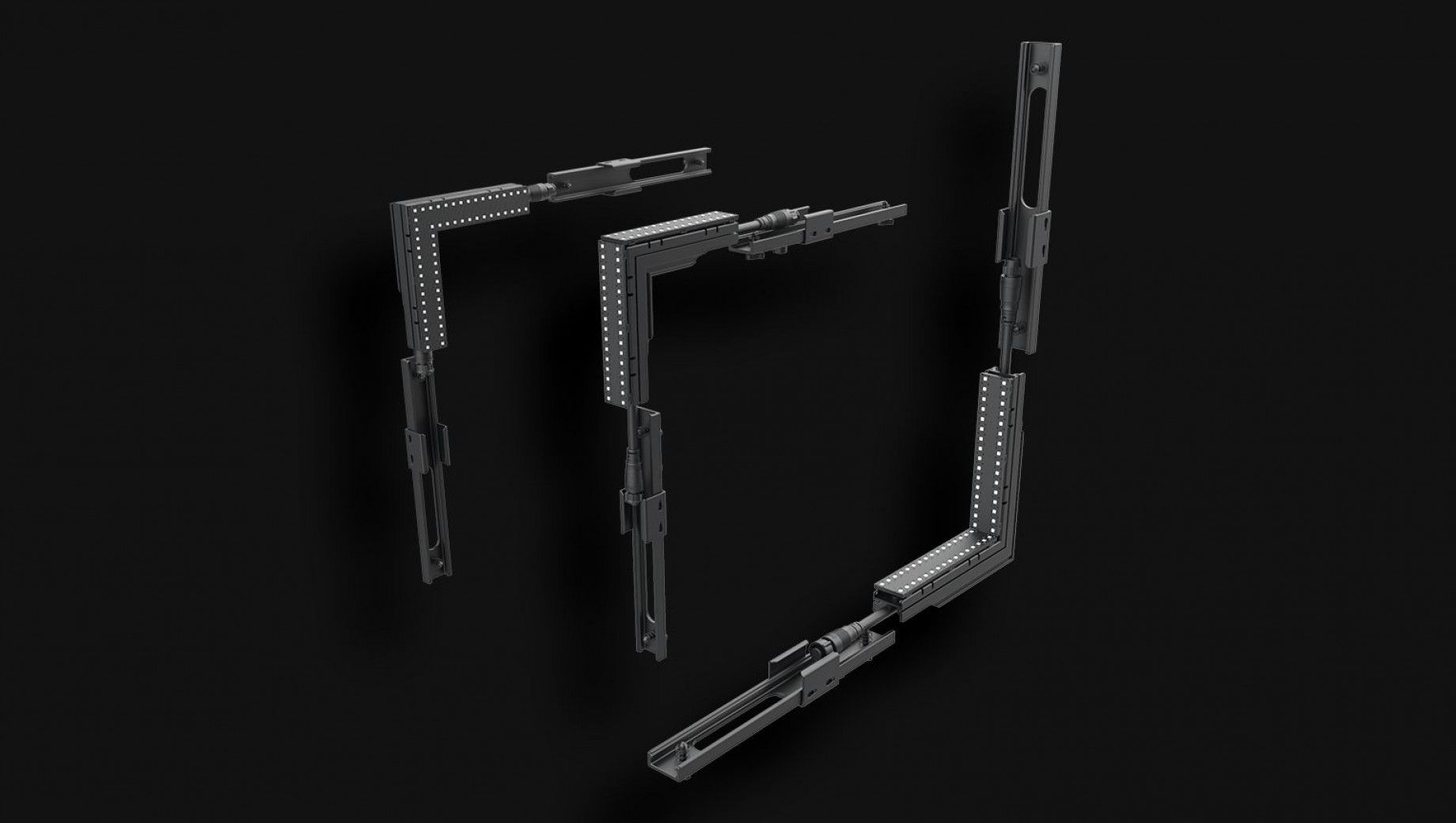

Create the perfect corner

ROE Strip has additional corner elements that create a clean flush corner and are available in front, inward and outward versions.

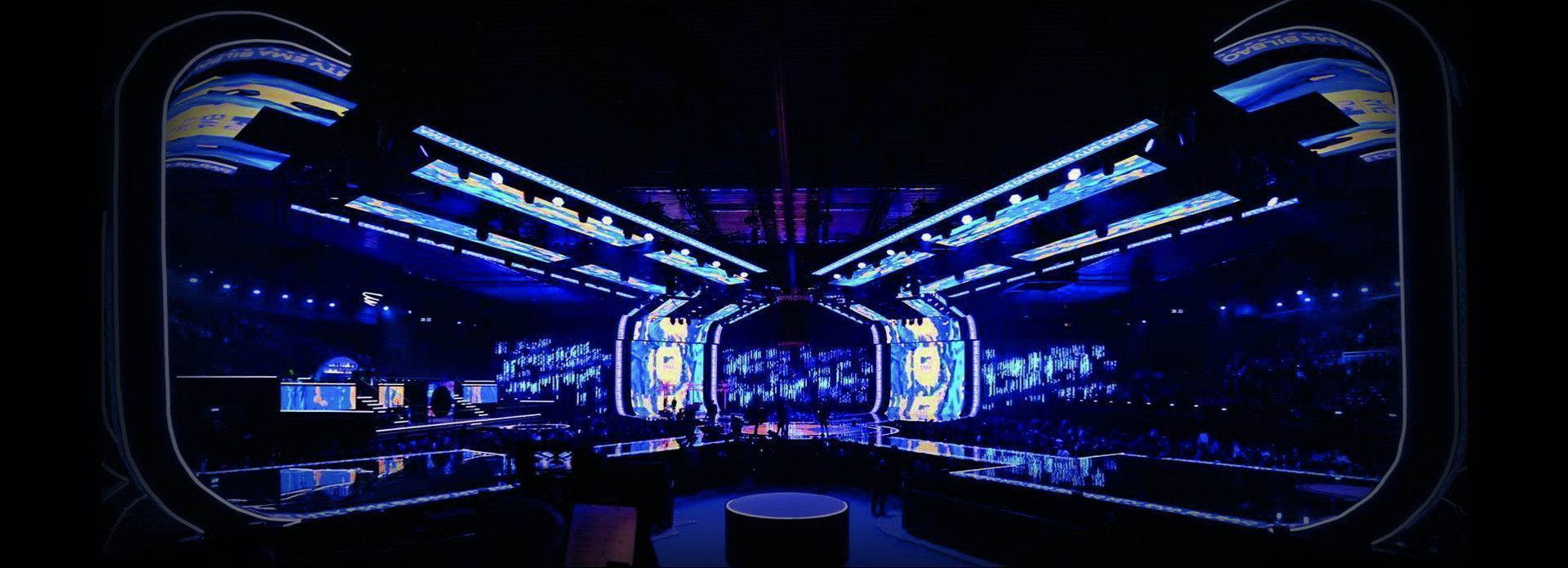

MTV EMA 2018
View Case

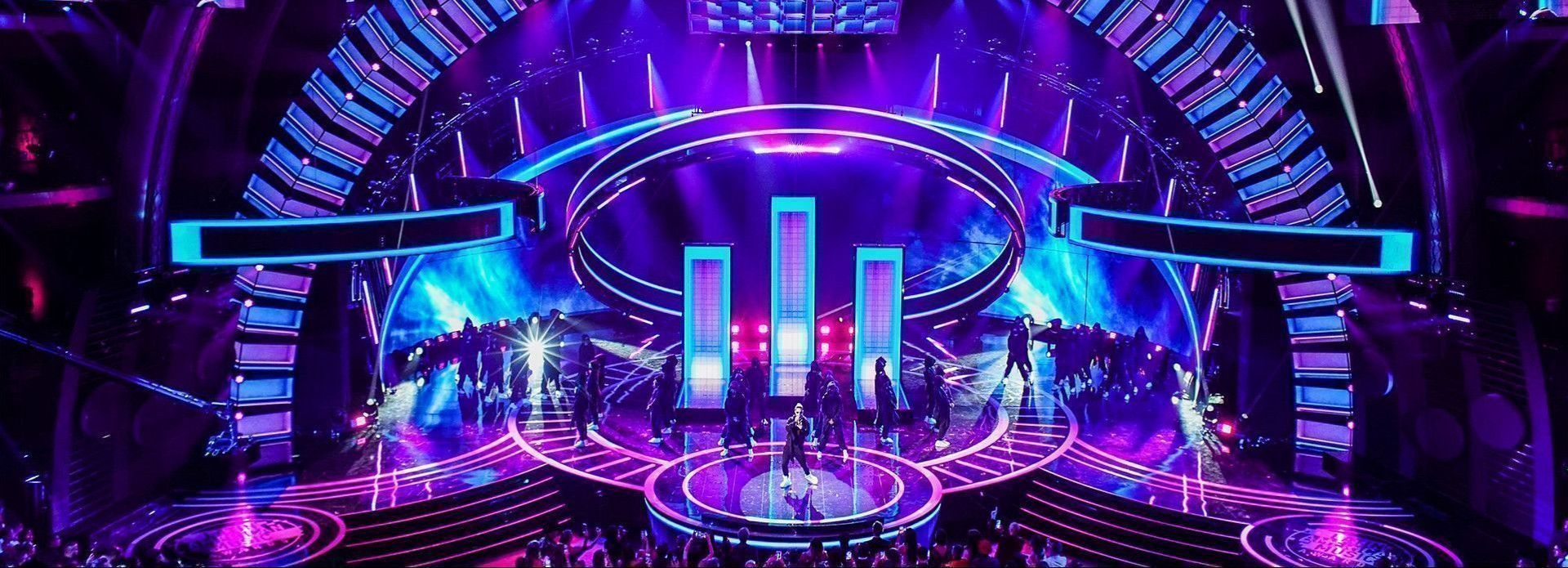

Latin American Music Awards 2018
View Case

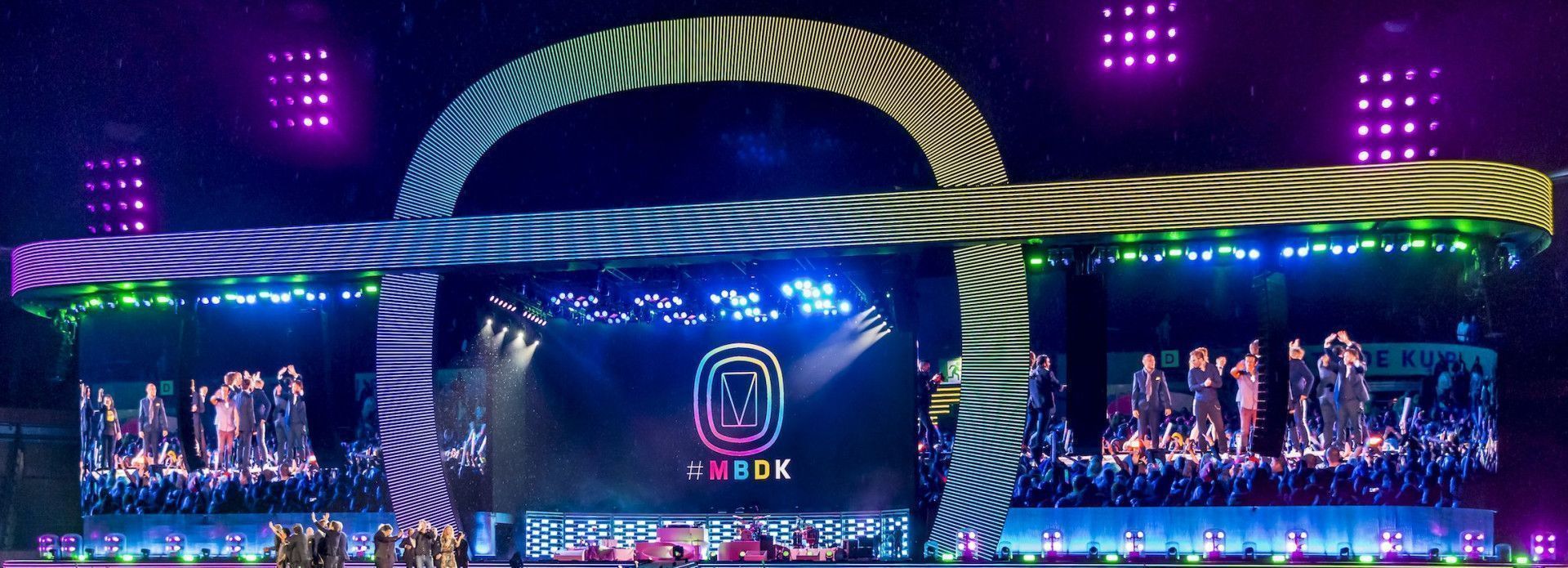

Marco Borsato de Kuip
View Case

Downloads

Specs

  • Tile
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel（without diffuser)
  • Power Consumption Max/Average
  • BTU Max/Average
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • 30cm Strip
  • SMD 2727 White
  • 7,000 nits
  • 300 x 30 x 39 mm 11.8" x 1.2" x 1.5"
  • 2 x 32
  • 0.99kg; 2.18lbs
  • 10W / 5W
  • 34 / 16
  • 140
  • 140
  • 6000Hz
  • 10bit
  • -20° -45°C 10-90% RH
    -4° -113°F 10-90% RH
  • -40° -60°C 10-90% RH
    -40° -140°F 10-90% RH
  • Outdoor
  • CE, ETL, RMC, IEC
  • 60cm Strip
  • SMD 2727 White
  • 2,100 nits
  • 600 x 30 x 39 mm 23.6" x 1.2" x 1.5"
  • 2 x 64
  • 1.12kg; 2.47lbs
  • 20W / 10W
  • 68 / 31
  • 140
  • 140
  • 6000Hz
  • 10bit
  • -20° -45°C 10-90% RH
    -4° -113°F 10-90% RH
  • -40° -60°C 10-90% RH
    -40° -140°F 10-90% RH
  • Outdoor
  • CE, ETL, RCM, IEC
  • 90cm Strip
  • SMD 2727 White
  • 800 nits
  • 900 x 30 x 39 mm 35.4" x 1.2" x 1.5"
  • 2 x 96
  • 1.19kg; 2.62lbs
  • 30W / 15W
  • 102 / 47
  • 140
  • 140
  • 6000Hz
  • 10bit
  • -20° -45°C 10-90% RH
    -4° -113°F 10-90% RH
  • -40° -60°C 10-90% RH
    -40° -140°F 10-90% RH
  • Outdoor
  • CE, ETL, RCM, IEC
  • 120cm Strip
  • SMD 2727 White
  • 2,800 nits
  • 1200 x 30 x 39 mm 47.2" x 1.2" x 1.5"
  • 2 x 128
  • 1.20kg; 2.65lbs
  • 40W / 20W
  • 136 / 63
  • 140
  • 140
  • 6000Hz
  • 10bit
  • -20° -45°C 10-90% RH
    -4° -113°F 10-90% RH
  • -40° -60°C 10-90% RH
    -40° -140°F 10-90% RH
  • Outdoor
  • CE, ETL, RCM, IEC
The specifications are for reference, actual values may vary.

Download all specs

ROE Strip

Application Fields

  • Installations
  • Architecture
  • Events
  • Stage sets

Accessories

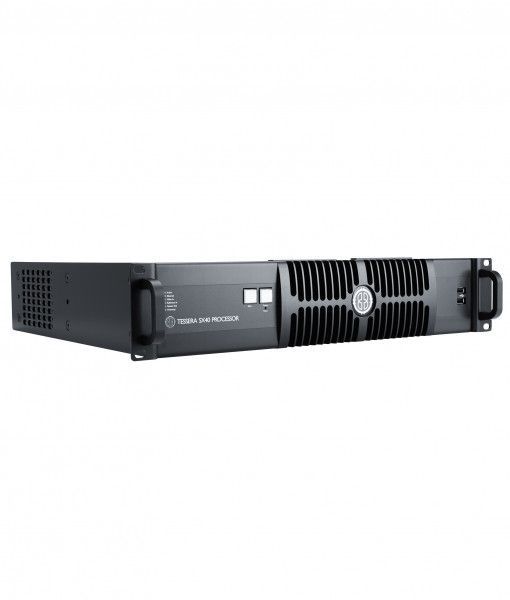

RS Brompton

Brompton

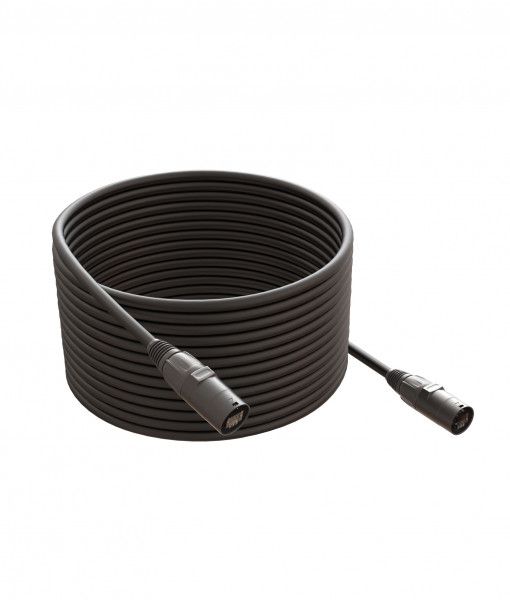

RS Data Cable

Data Cable

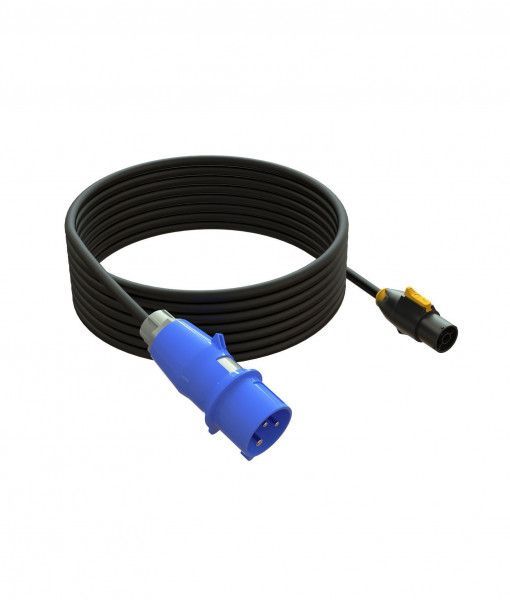

RS Power Cable

Power Cable

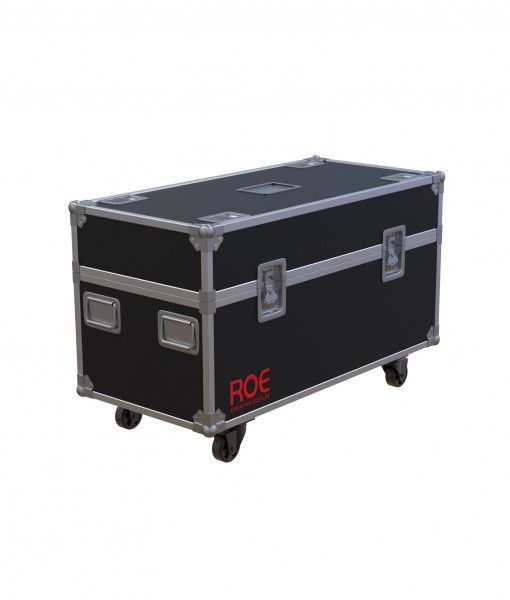

RS Flightcase

Flightcase
Jeroen Boere

“The ROE Strip offered the ideal LED element for this job. Its clean appearance creates just that chic, neat look we wanted to achieve. The elements are very easy to install and use. Furthermore, the high IP rating of the Strip elements make it also suitable for outdoor use, a must have in our climate conditions”.

Jeroen Boere Sales Manager Live Events for Faber Audiovisuals

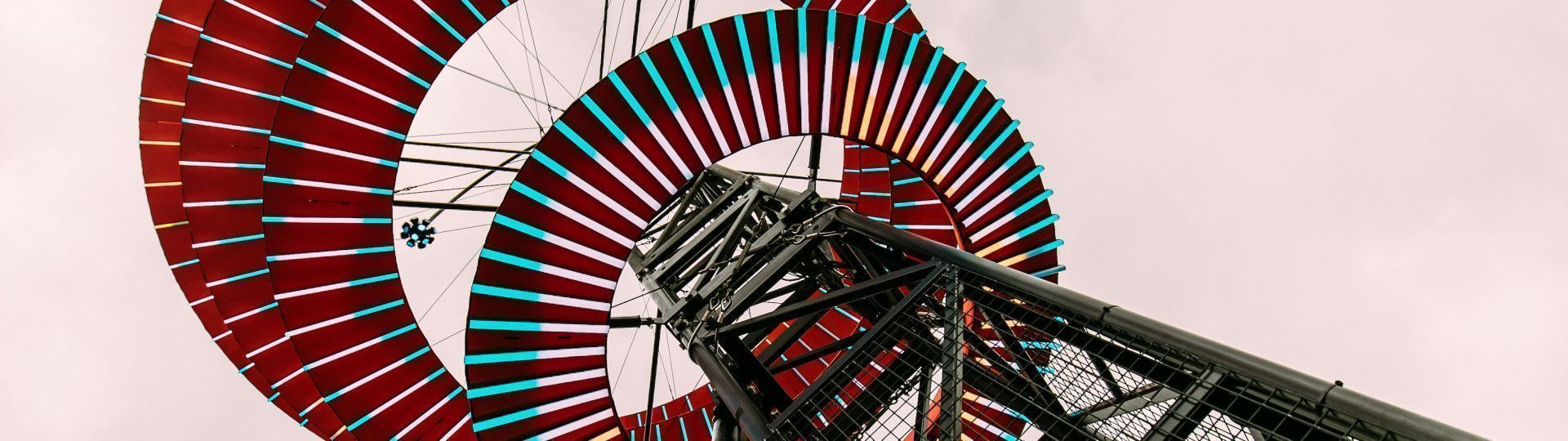

Landmark structure highlights Lowlands

ROE Strip

High above the festival grounds of Lowlands, two enormous towers shed their light on the audience at night. The towers are part Planet Paradise and feature each 4 rings fitted with ROE LED Strip. With approx. 240 ROE Strips per tower, building the rings offered quite a job, but no real challenge. Faber Audiovisuals choose to equip each Strip with a white diffusor, to create a nice soft dispersion of the light.  Using a Brompton processor, mapping the video content on the rings was fairly easy.

Read More

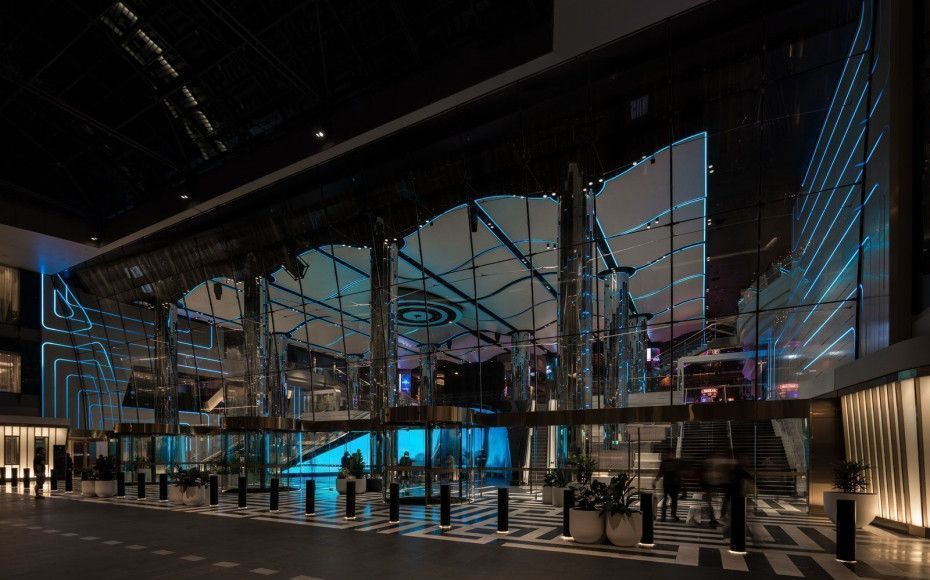

More Creative Installations with ROE Strip

Read More

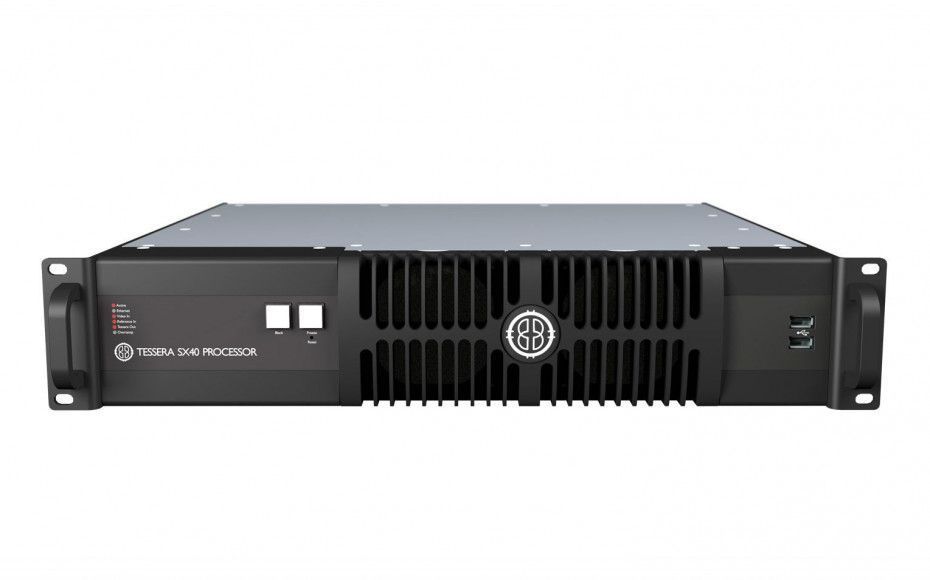

LED Processors ROE Visual
