Vanish V8T - Touring

Now you see it, now you don't

The Vanish V8T Transparent LED panel complements the Vanish series of transparent LED panels. With a transparency of 50%, this LED panel offers outstanding performance in outdoor environments through its high-brightness and excellent viewing angles.

Request a Demo

V8T Outdoor Touring Solution

Transparent Outdoor LED panel

The Vanish V8T panels offer an outdoor touring solution in a transparent panel design. With a transparency of 50%, the V8T is fitted with special frames to facilitate easy handling and fast building

Outstanding Display Performance

Perfect Panel Performance

Due to its high-brightness LED and the high contrast of the black panel the Vanish V8T offers a great visual performance.  The wide viewing angles contribute to that, even in challenging outdoor conditions. The minimalistic design of the louvers, PCB and LEDs, guarantee maximum transparency.

V8T curving options

Excellent gray-scales and curving options

The Vanish V8T offers 14-bit gray-scales enhancing the quality of the visual performance. The abiality to curve the LED panels will give you freedom for creative designs.

V8T Modular Design

Facilitating on-site service

The V8T panels are easy to service due to its modular design. The modular powerbox and receiving card module make repair and replacement of spare parts easy and cost-effective. The side locks guarantee the sturdy and road-proof installation of the panels and frames.



Efficient handling and Transport

The V8T has a robust panel frame. The frames can be stored and transported in dedicated dollies, offering protection for the panels while creating efficient transport conditions.

Vanish 8 Touring Key Features

  • 50% Transparency 50% Transparency
  • Easy Maintenance Easy Maintenance
  • Suited for Outdoor use (IP65) Suited for Outdoor use (IP65)
  • Hanging and Stacking Hanging and Stacking
  • Curving Options Curving Options

Downloads

Specs

  • Tile
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Multiplexing
  • Refresh Rate
  • Gray Scale
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • Vanish V8T
  • 8.9mm
  • SMD 1515 White
  • 4000nits
  • 1000 x 1000 x 95mm, 39.4” x 39.4” x 3.74”
  • 112 x 112
  • 16.5kg; 36.37lbs
  • 480W / 240W
  • 1638 / 753
  • 50%
  • Concave 10°~Convex 10° (option)
  • 140°
  • 160°
  • 4
  • 3840Hz
  • 16bit
  • -20° -45°C 10-90% RH
    -4° -113°F 10-90% RH
  • -40° -60°C 10-90% RH
    -4° -140°F 10-90% RH
  • Outdoor
  • CE, ETL, FCC
The specifications are for reference, actual values may vary.

Download all specs

Vanish V8T

Application Fields

  • Touring
  • Concert
  • Outdoor Events

Accessories

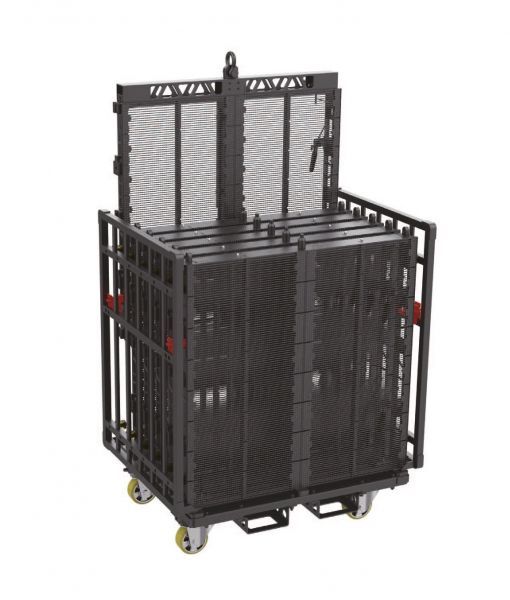

V8T Dolly

Dolly
eV4 LED processor

eV4 LED processor

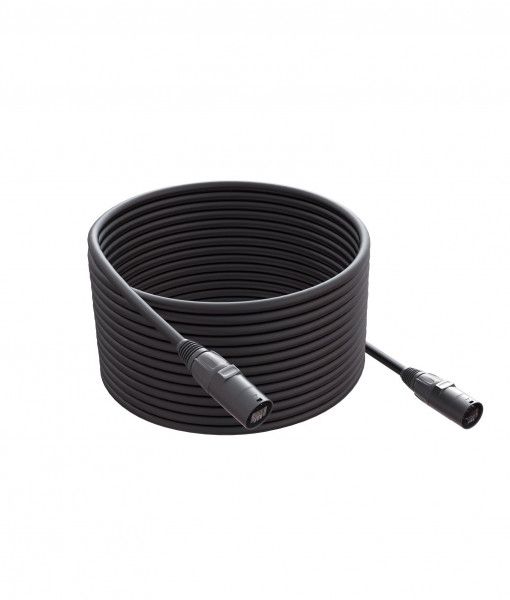

V8T Data Cable

Data Cable

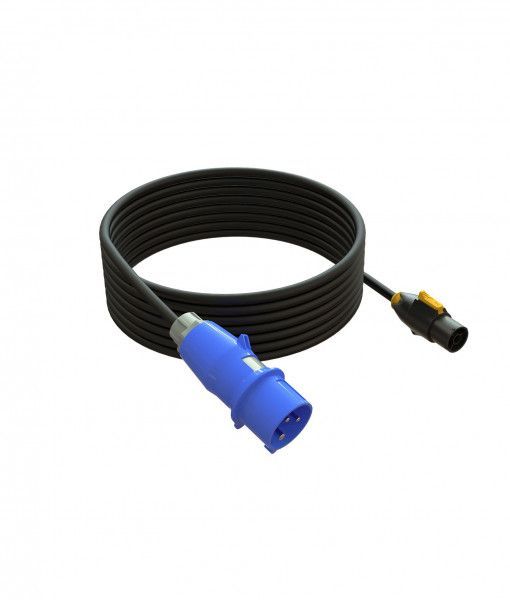

V8T Power Cable

Power Cable

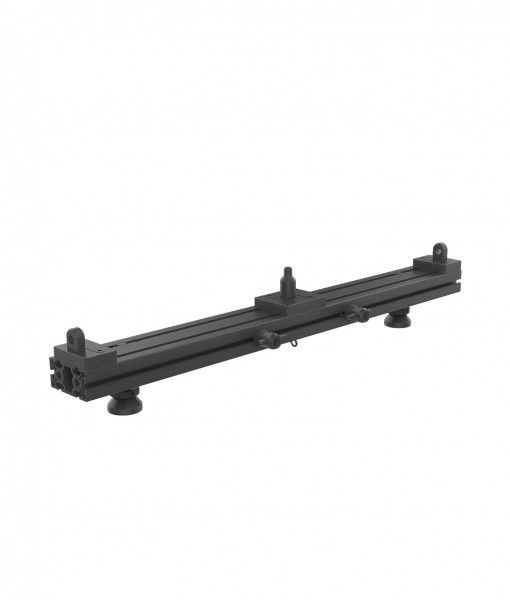

V8T Base Bar

Base Bar

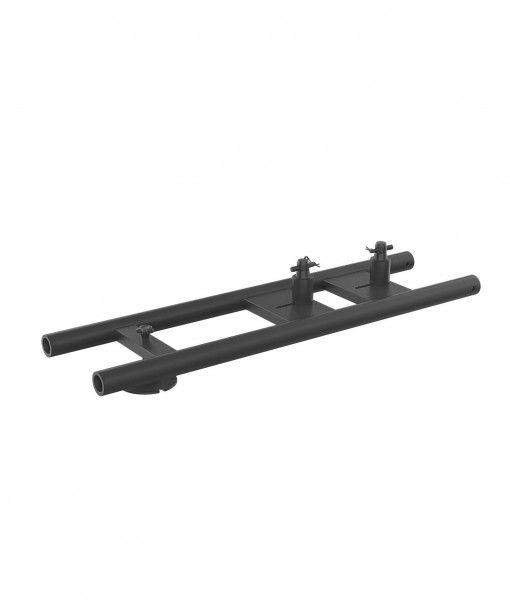

V8T Base Truss

Base Truss

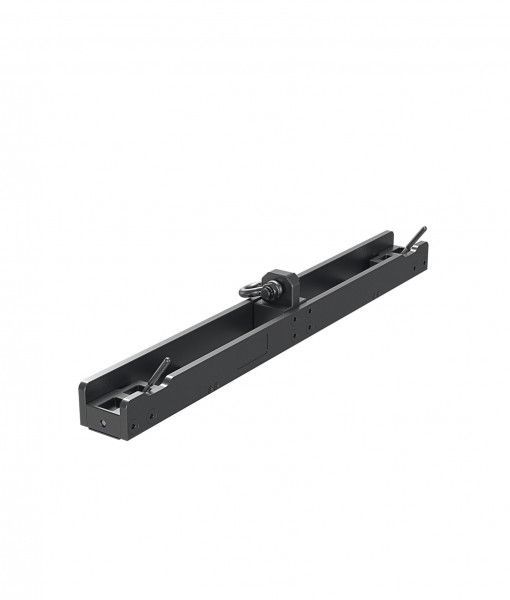

V8T Hanging Bar

Hanging Bar
Rodrigo Proal

“We want to thank the entire ROE Visual team for always trusting and willing to support us in any way.” The ROE Visual LED panels used in the extravagant Daddy Yankee show included the Vanish V8T with a 170-foot-wide canvas as the main stage, which was the first time this has been ever been accomplished.”



Rodrigo Proal Darmah Studios

Daddy Yankee show extravagant in creative use of transparent LED

Vanish V8T

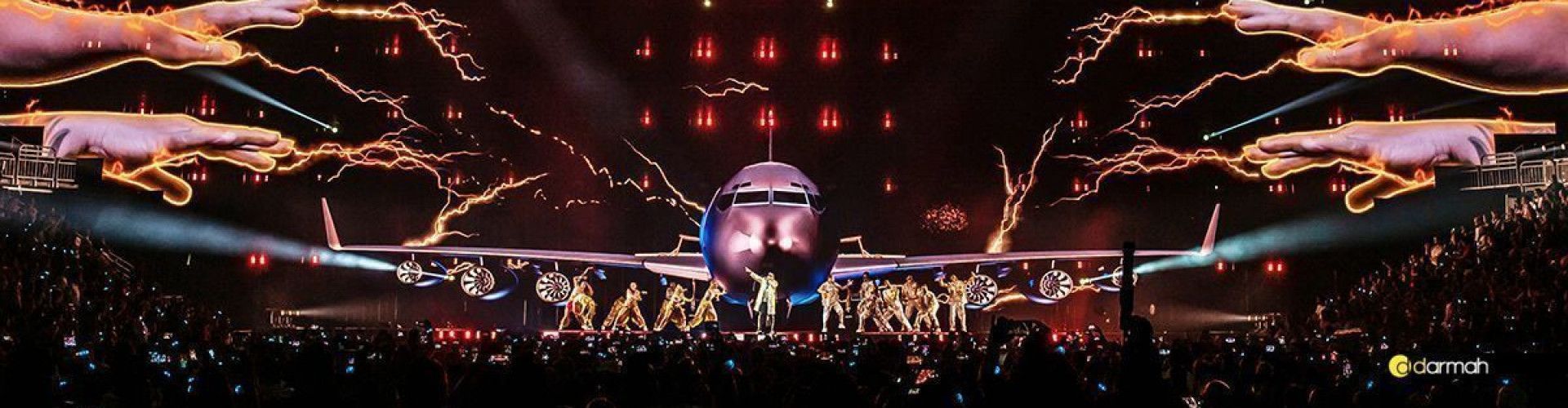

Starting with a stunning 3D image of a real scale-sized golden plane descending and landing on the stage and have the artist come out of it onto the wing with dancers and start performing his songs is a spectacular show opening. Vanish V8T made this jaw-dropping visual trick possible.

Watch here

Vanish V8S indoor

Discover

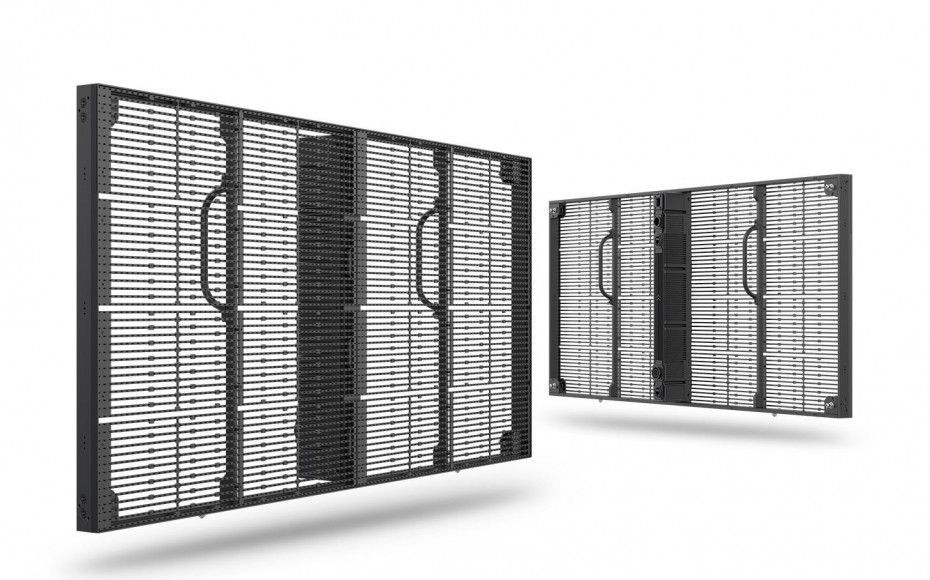

Vanish V8 LED panel
