Air Frame for Carbon
Make outdoor LED screens safe

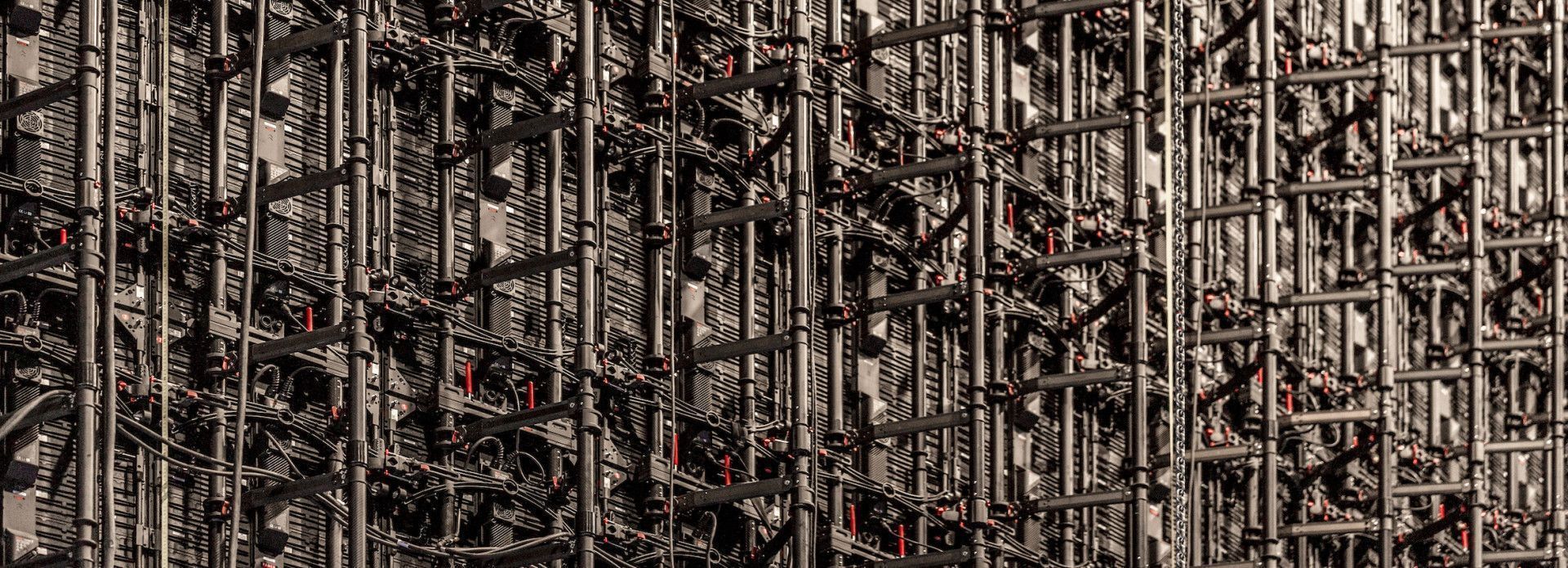

Air Frame is a lightweight and foldable wind-bracing system compatible with the Carbon series CB5 and CB8 LED panels. Make your outdoor LED screen safe and wind-resistant using Air Frame.
The foldable carbon fiber Air Frame is lightweight and easy to transport. The Carbon panel with the frames added fit into the dedicated transport dollies.
Lightweight and Robust

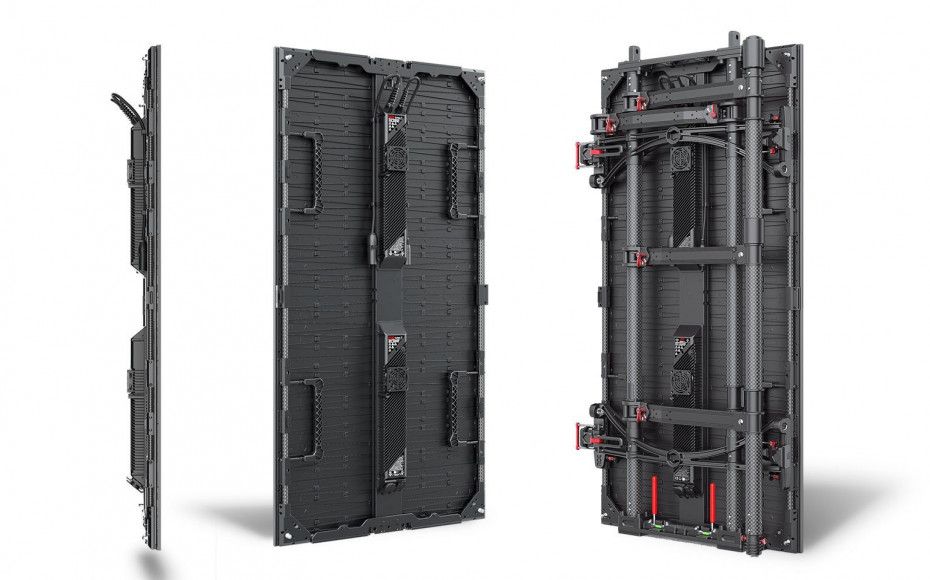

The carbon-based Air Frame system f guarantees optimal reliability as a complete touring system. The folding frames are easily mounted and installed, creating a robust structure to support your LED panels. The frames are created to withstand environmental influences, like wind and are therefore suitable for outdoor situations. (Patented BE2017/5908)
Curving options secured
Air Frame offers concave and convex curving options for creative video wall designs with a horizontal variance of (-10°~10°) allowing for positioning at -10, -5, 0, +5, +10 degrees.
Panel Protection an Servicing
Air Frame allows for convenient front and back module servicing guaranteeing a 100% uptime of your LED screen. The bottom edge pixel protection design helps maintain the panel integrity during installation and transportation.
LED screens are utilized in outdoor as well as indoor environments. When used outdoor, environmental aspects need to be taken into account. Sun, rain and wind can have a large influence on either the performance or the structural integrity of your screen. The Air Frame system makes your outdoor LED screen wind-resistant for windspeeds up to 10 m/sec.
- Dimension of full frame
- Dimension of half frame
- Maximum hanging height
- Maximum stacking height
- Weight with wind bracing and CB8
- Weight without wind bracing and CB8
- Weight with wind bracing and CB5
- Weight without wind bracing and CB5
- Dimension of Dolly
- Dolly weight with CB5
- Dolly weight with CB5
- Dolly capacity
- Air Frame
- 600 x 1200 x 120 mm
- 600 x 600 x 120 mm
- Carbon fiber and Aluminun
- 1150 x 1277 x 1537 mm (with stackers)
- 16pcs full CB panels/32pcs half panels

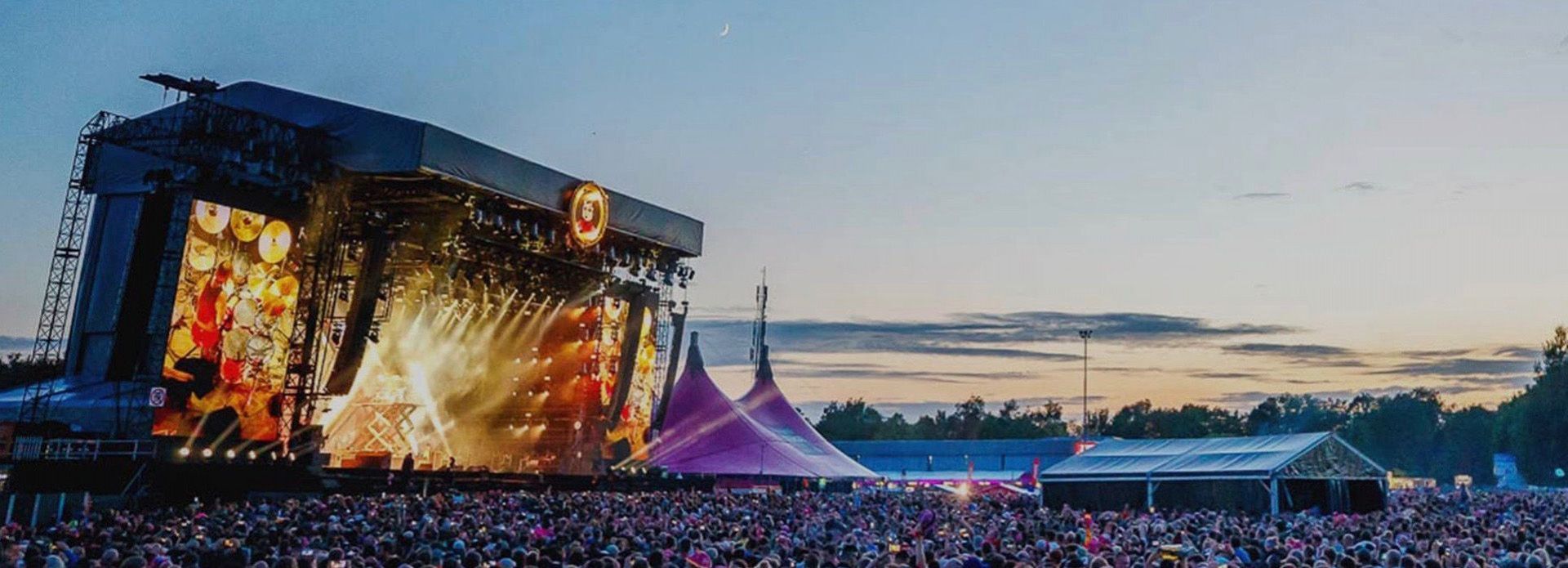

“The LED screens for the main stage are really massive, measuring 13m. high and 8m. wide, we really had some considerations building these screens, building had to be both quick and safe. Structurally calculated to absorb windspeeds up to 20m/sec., the ROE Visual Air Frame offers the ideal solution for us. We’re lucky to have them delivered just in time for this production”.
