GhostFrame

GhostFrame: Revolutionizing On-Set Production and ICVFX Efficiency

Summary: GhostFrame is a patented technology that leverages high-speed LED refresh rates and nanosecond alignment with camera shutters to capture multiple hidden layers in one take. It enables simultaneous chroma keying, invisible tracking markers, and up to four unique video feeds without adding hardware latency. ROE Visual is the exclusive LED partner, providing the high-performance panels required for these complex, multi-frame broadcast and film environments.

Quick Answer: GhostFrame uses nanosecond LED sub-frame alignment to capture hidden tracking, chroma keys, and multiple video feeds in a single take.

Solving the Post-Production Bottleneck

In traditional film and broadcast environments, production teams often face a difficult choice: shoot for the final pixel on set or shoot for post-production flexibility. Creating high-end In-Camera VFX (ICVFX) typically requires separate takes for tracking, chroma keying, and "clean" plates, leading to inflated schedules and rising costs. GhostFrame technology changes this equation by allowing the camera to capture multiple content experiences, all from a single take.

This breakthrough is made possible by the fact that LEDs can refresh significantly faster than a camera, and even faster than the human brain can see images. This physical discrepancy allows the LED wall to capture one or more sets of images while the naked eye only sees one. GhostFrame technology is specifically used to create on-set, real-time in camera VFX (ICVFX) workflows.

GhostFrame logo



Contact us for a Demo



Creative workflows that can be achieved with this cutting-edge technology

GhostFrame: Hidden Chroma Key for ICVFX

Hidden Chroma Key

GhostFrame adds a full chroma frame within your video feed, which enables real-time matte replacement or safety shots for post. This means you can record the final background and a green screen simultaneously, providing a "safety net" for any complex post-production needs without a second take.

GhostFrame: Embedded Camera Tracking for ICVFX

Embedded Camera Tracking

Markers can be embedded into the LED screen and hidden from the camera’s captured footage. Because these markers are digital and integrated into the sub-frames, they require zero installation time through the absence of physical markers—no more sticking dots on expensive LED panels.

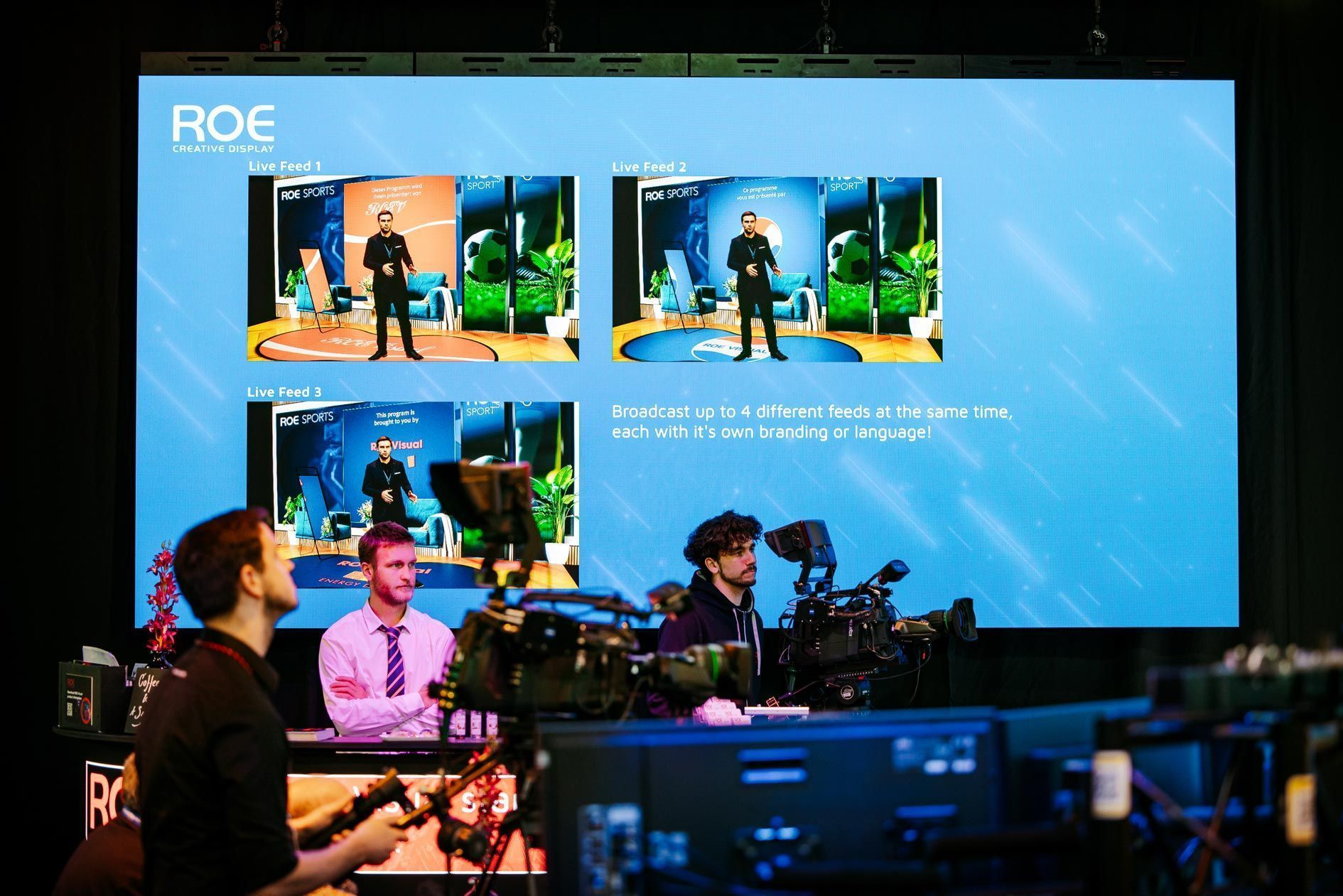

GhostFrame enables MultiSource: multiple video feeds on your ROE Visual LED volume

Multiple Video Feeds

Up to four* unique video feeds can be captured simultaneously. This allows for multiple camera perspectives, varying backgrounds, or different lighting setups to be recorded in one go, drastically reducing the time needed for complex multi-cam scenes.

*The number of sub-frame slices is dependent on the panel type used. Please contact us for more information.

Comparing Workflows: Traditional vs. GhostFrame

Feature Traditional ICVFX Workflow GhostFrame Enabled Workflow
Tracking Markers Physical stickers (visible to eye) Digital markers (hidden from camera)
Chroma Key Requires separate "Green Screen" take Simultaneous capture with final pixels
Camera Angles One perspective per take Up to 4 unique feeds/perspectives
Setup Time High (physical rigging needed) Minimal (software-controlled)

Multiple sources. One video feed. Multiple outputs.

GhostFrame works by displaying more than just the video feed on the LED panel. This magic makes it possible for professional cameras to capture one or more sets of images while the naked eye only sees one. Due to the fact that the LED panels have extreme processing power no work-arounds are needed. You can have all GhostFrame features while sending normal frame rates in 4K and 8K formats.



The Science of Multiple Hidden Sources

The magic of GhostFrame’s patented process makes it possible to show several sets of full dynamic images on an LED screen simultaneously within a camera’s production frame. One or multiple cameras can now capture more sets of images while the naked eye only sees one. The GhostFrame™ technology is based on advanced nanosecond alignment of video subframes and the camera shutter. By controlling the LED panels subframe output, cameras can align the shutter angle and capture the desired moment in time within a frame.

Show the talent where the AR object is located. Have hidden autocue or director cues on your LED wall, only visible in the studio. Nothing is impossible. Creating multiple hidden sources with GhostFrame in one video feed gives production teams the freedom to operate without restrictions and improves interaction between actors and digital assets.

GhostFrame Enhances Your Workflow

What if you could reduce both set-up and production time? Save time in post-production. Make your crew comfortable with high-end workflows without the need for additional hardware or losing processing and pixel capacity? What if you could work in a zero-latency environment? ROE Visual is the exclusive LED solution provider for GhostFrame, it does all that with LED enhancement. And More.

Contact

Request a demo View Whitepaper

Technology Partners: ROE Visual and Megapixel

ROE Visual's premium LED panels and Megapixel's HELIOS Processing Platform with exclusive features like GhostFrame have gained popularity in the XR broadcast market, especially for immersive and interactive sports, news- and election formats. Using GhostFrame technology, it's possible to demonstrate the added value of high-end LED performance and processing.

High-Stakes Broadcast

From the BBC’s UEFA project to national election programs, GhostFrame has proven its reliability in live environments where "second takes" do not exist. Hidden frames and AR implementation for live XR broadcasts are only the beginning of this journey, as it's now possible to blend seamlessly between a range of virtual sets and data-driven graphics. No other solution in the industry can manage this challenge. GhostFrame software offers essential tools for producers to attract a new generation of viewers through engines like Unreal Engine and Disguise.

Case Study: Veles Productions: Elevating Live Broadcast with ROE Visual and GhostFrame

Veles Productions transformed the 2023 Polish Election Night into a 10-hour virtual production masterpiece using ROE Visual Ruby RB1.9BV2 panels. These high-performance LEDs created a seamless virtual environment for national broadcaster TVP. By leveraging GhostFrame technology, the production team enabled multiple cameras to capture dedicated perspectives from a single LED wall simultaneously. The RB1.9BV2’s exceptional refresh rates and support for up to 450fps ensured a flicker-free, real-time broadcast. This integration replaced traditional sets with dynamic visuals, demonstrating how ROE Visual and GhostFrame provide the stability and creative flexibility required for high-stakes live television.


Read the full Veles Productions Case Study

Fox NFL Sunday: Redefining Broadcast with ROE Visual and GhostFrame

Fox Sports has revolutionized its NFL coverage with the launch of Studio A, a cutting-edge 5,000-square-foot virtual production space in Los Angeles. Developed in collaboration with NEP Sweetwater, the studio features a massive LED volume constructed from ROE Visual Black Pearl 2V2 (BP2V2) panels. These industry-leading displays provide the high-contrast, hyper-realistic backdrops necessary for immersive, real-time sports broadcasting.

A standout feature of this setup is the integration of GhostFrame technology. This revolutionary frame-remapping solution allows the BP2V2 displays to output multiple hidden feeds simultaneously. As a result, different cameras can capture unique backgrounds or tracking data from the same LED wall at the same time. By combining ROE Visual’s robust hardware with GhostFrame’s multi-feed capabilities, Fox Sports has eliminated the need for traditional green screens, offering unparalleled creative flexibility and a dynamic, high-tech viewing experience for millions of football fans.

Read the full NFL Sunday case study

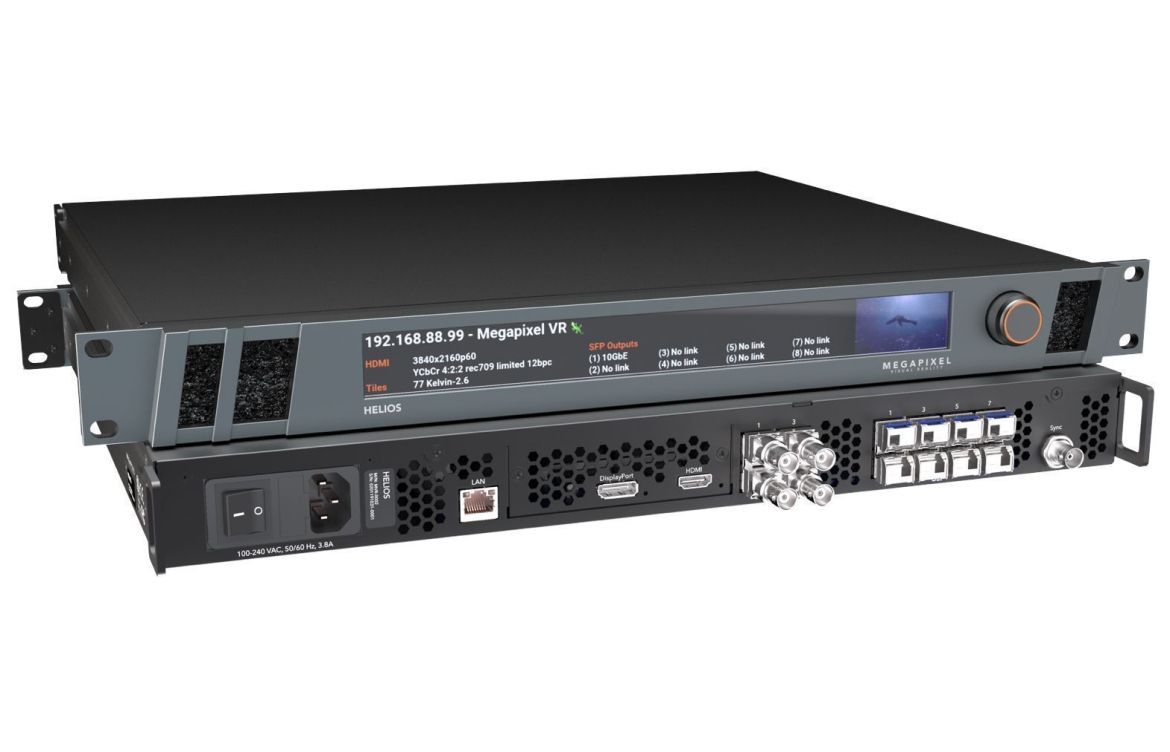

Megapixel HELIOS Processing Platform

GhostFrame works with Megapixels HELIOS LED processing platform. GhostFrame technology is enabled by a license key to a software tool set within Megapixel’s HELIOS LED Processing Platform, ensuring a seamless interface with professional camera systems from ARRI, Sony, and Red.

Megapixel

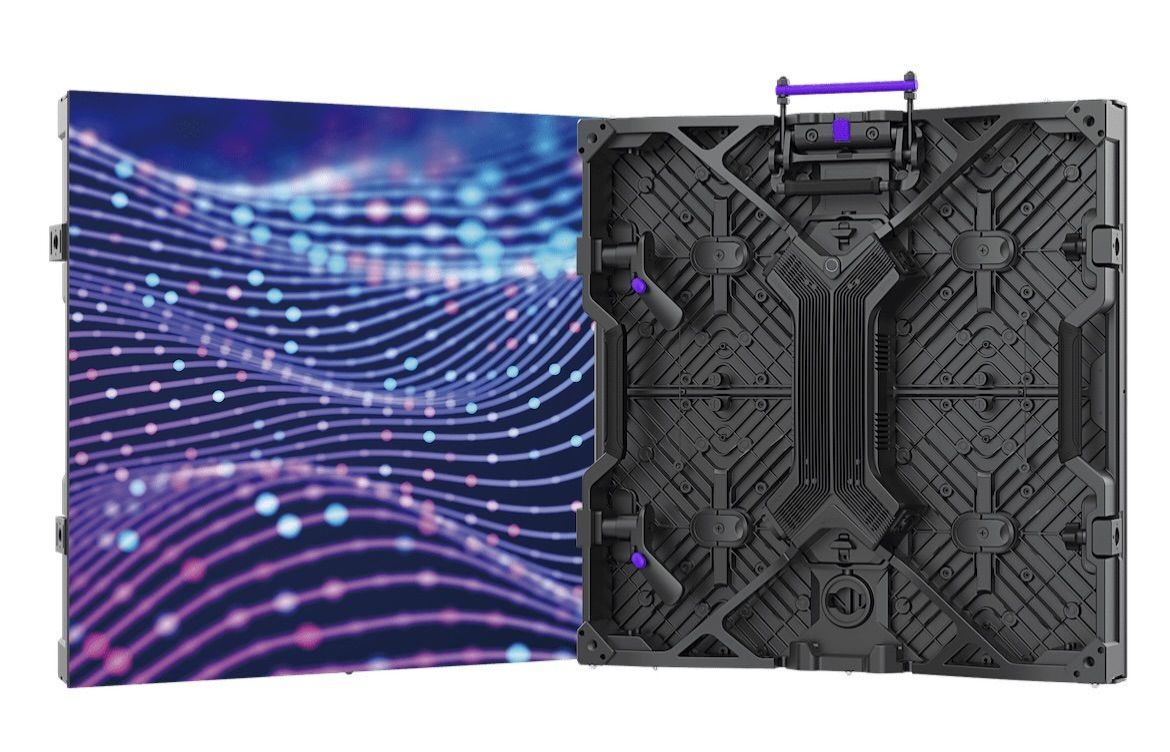

ROE Visual LED Panels

GhostFrame works with ROE Visual's LED panels. The performance of the LED panels is crucial; selecting the appropriate panel driver configuration and ensuring precise PCB (Printed Circuit Board) design is essential. This allows the panels to handle high data rates and maintain accurate timing, which is critical for sub-framing to function smoothly.

ROE Visual is the exclusive selling partner of GhostFrame for LED panel-based applications.

Discover Ruby

Olaf Sperwer

"The seamless interaction between the LED panel, media engines, LED processing, media play-out system, and camera tracking perfectly meets high-end broadcast requirements for today's immersive studio sets, fast graphics changes, AR implementation, and multi-frame use, as demonstrated by the BBC's UEFA project and this year's National Election program."

Olaf Sperwer ROE Visual's EMEA Head of XR Broadcast and Virtual Production

Key Benefits of GhostFrame Technology

  • Live Broadcast Safety: Allows Safe Camera Switch in Live Broadcast Productions.
  • Realistic Environment: True Real-Time Reflections for more convincing ICVFX.
  • Invisible Tracking: Hidden Markers for Camera tracking integrated into the LED wall.
  • Scalable Perspective: Multiple Feeds Possible for multi-camera cinematic productions.

Take the Next Step in Virtual Production

Frequently Asked Questions

Q1: What exactly is GhostFrame technology?

GhostFrame is a patented technology that uses nanosecond alignment between LED sub-frames and camera shutters. It allows a single LED wall to show multiple images simultaneously—some visible only to the camera, others only to the human eye.

Q2: Does GhostFrame work with existing 4K and 8K workflows?

Yes. Unlike other solutions, GhostFrame operates at normal frame rates in 4K and 8K formats without requiring hardware "work-arounds" or sacrificing pixel capacity.

Q3: How does the Hidden Chroma Key benefit production?

It allows you to capture a "clean" final background take and a chroma key (green screen) take at the same time. If a shot needs adjustment in post-production, the green screen data is already there.

Q4: Why is ROE Visual the exclusive partner for GhostFrame?

GhostFrame requires extreme precision in LED timing and PCB design. ROE Visual panels are specifically engineered with the driver configurations necessary to handle the high data rates required for sub-framing.

Q5: Is additional hardware required for GhostFrame?

No additional hardware is needed beyond ROE Visual LED panels and the Megapixel HELIOS processing platform with the appropriate license key.

Marina Prak

Author

Marina Prak

Marketing Manager
