Sapphire NPP LED Platform.

Downloads
Sapphire Key Features
Save Production Time
Indoor Use
Narrow pixel pitch offers outstanding visual brilliance
Pixel Pitch SP1.5 1.55mm

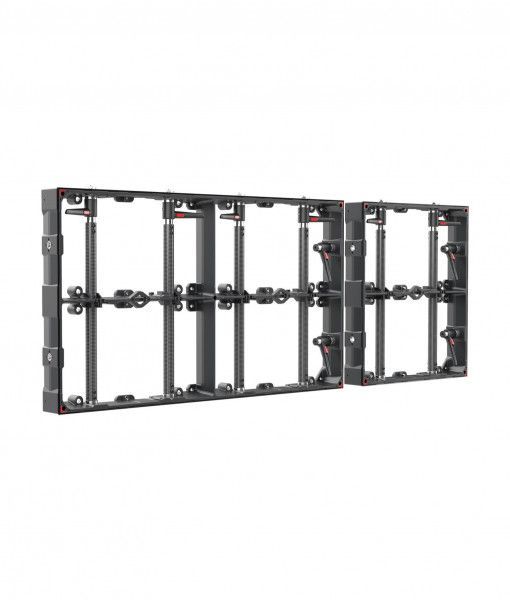

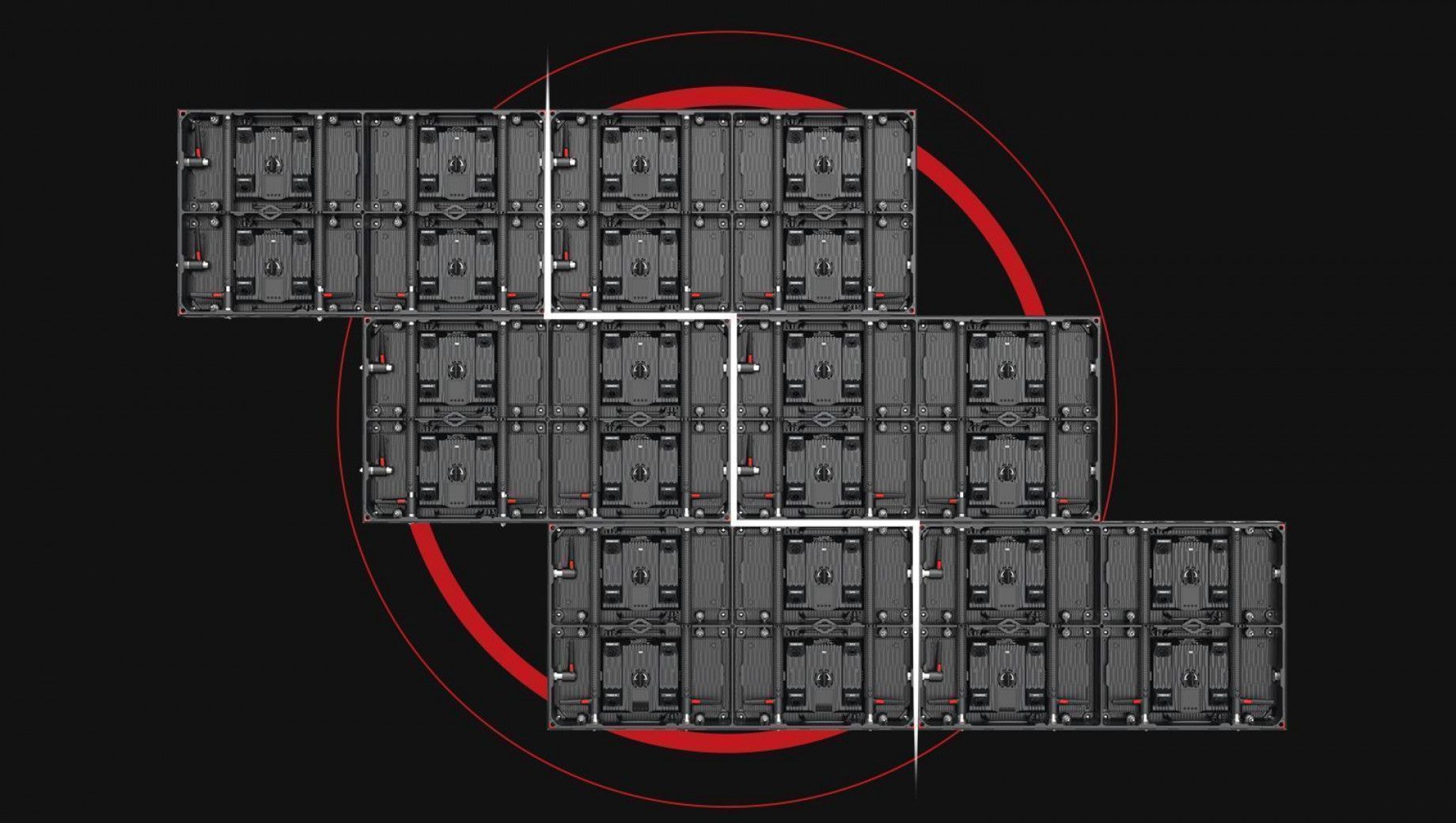

Intersecting Frames
Specs
SP1.5
- Title
- Pixel Pitch
- LED Configuration
- Max Brightness Calibrated
- Panel Dimension
- Panel Resolution (H x V)
- Weight Per Panel
- Power Consumption Max/Average
- BTU Max/Average
- Transparency

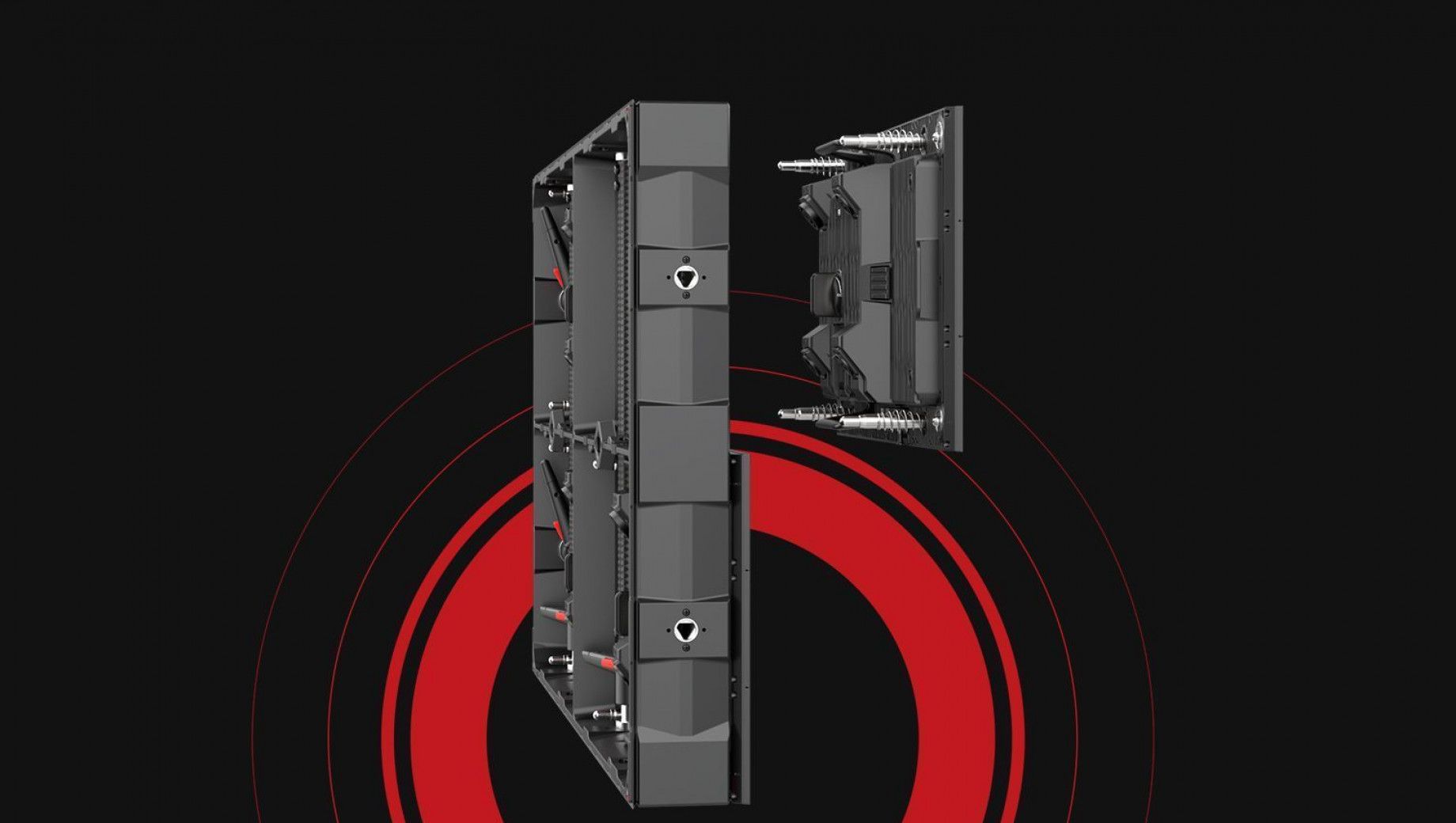

- Serviceability
- Viewing Angle Vertical
- Viewing Angle Horizontal
- Refresh Rate
- Gray Scale
- Scan Ratio
- Operational Temp/Humidity
- Storage Temp/Humidity
- IP Rating
- Certifications
- Max. Hanging
- Max. Stacking
- SP1.5
- 1.54mm
- 4 in 1 Common Cathode
- 800nits
- 494.4mm x 278.1mm x 86mm
19.46” x 10.95” x 3.4” - 320 x 180
- 4.5kg | 9.9lbs
- 100W / 50W
- 341 / 157
- Solid
- Front
- 140°
- 140°
- 3840Hz
- 14bit
- 1/20
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP40
- CE, ETL, FCC Class A, TÜV
- 32 panels
- 24 panels
All specification values given are per panel. The specifications are for reference only, actual values may vary. The max. hanging amount is only valid when official ROE Visual hardware parts are used. The safety factor is 8. Climbing is only allowed if stated in the panel manual and only following the rules given therein. The max. stacking amount is only valid when official ROE Visual hardware parts are used and when sufficient ballast is applied – following the rules as stated in the panel manual and/or structural report.
