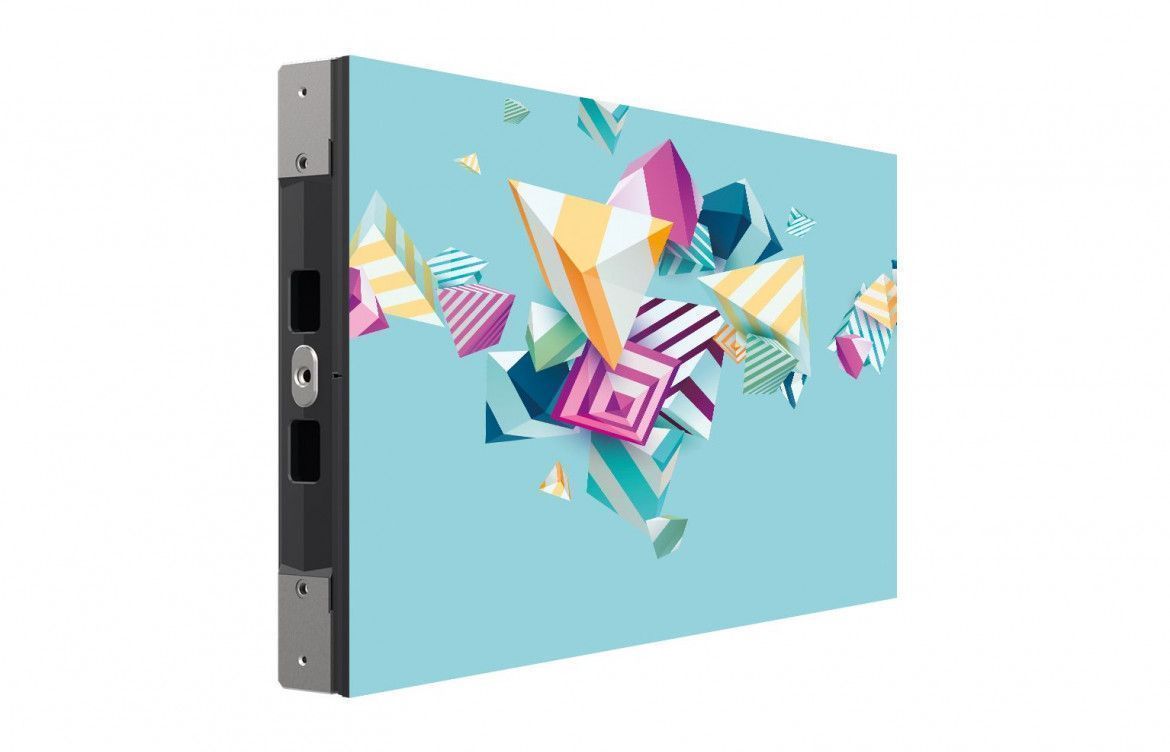

Amber

Fine pitch. Excellent visuals.

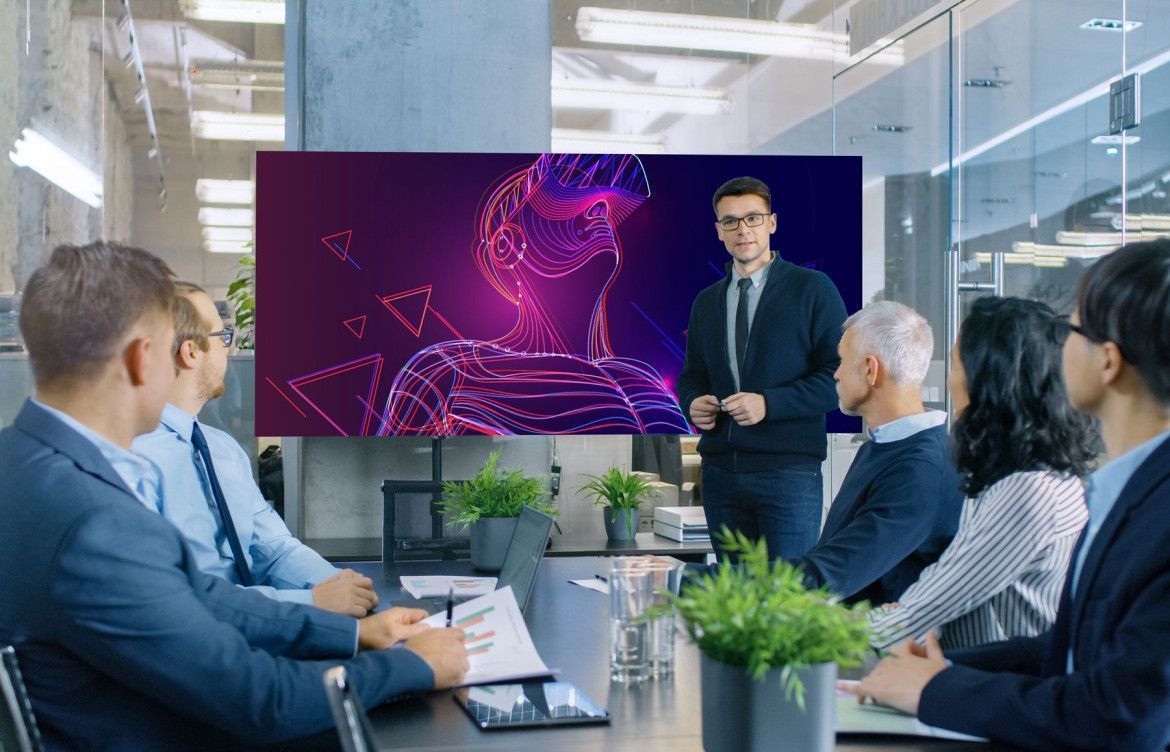

AV integration with fine pitch video displays for demanding applications like corporate boardrooms, broadcast suites or control rooms just got easier. The Amber LED platform offers sophisticated NPP LED screens for environments where excellent visuals count.

Request a demo

Download Brochure

Download Brochure

Amber Key Features

HDR technology
Slim-line panel design
Adjustable mounting frame
Front service
Modular design-saves on spare parts
16:9 ratio in panel design. Native 4K
Fine pixel pitch 0.9, 1.2, 1.5, 1.8
Extended LED lifecycle, energy saving and efficient heat-dissipation
AB1.2
AB1.5
AB1.8
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • AB1.2
  • 1.25mm
  • 4 in 1 LED
  • 800nits
  • 600mm x 337.5mm x 55mm
    23.6” x 13.2” x 2.1”
  • 480 x 270
  • 8.5kg | 18.7lbs
  • 170W / 85W
  • 580 / 270
  • Solid
  • Front
  • 140°
  • 160°
  • 3840Hz
  • 14bit
  • 1/18
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Indoor
  • CE, ETL, FCC
  • AB1.5
  • 1.5625mm
  • 4 in 1 LED
  • 800nits
  • 600mm x 337.5mm x 55mm
    23.6” x 13.2” x 2.1”
  • 384 x 216
  • 8.5kg | 18.7lbs
  • 180W / 90W
  • 615 / 285
  • Solid
  • Front
  • 140°
  • 160°
  • 3840Hz
  • 14bit
  • 1/18
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Indoor
  • CE, ETL, FCC
  • AB1.8
  • 1.875mm
  • SMD 1010
  • 800nits
  • 600mm x 337.5mm x 55mm
    23.6” x 13.2” x 2.1”
  • 320 x 180
  • 8.5kg | 18.7lbs
  • 170W / 85W
  • 580 / 270
  • Solid
  • Front
  • 140°
  • 160°
  • 3840Hz
  • 15bit
  • 1/18
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Indoor
  • CE, ETL, FCC
Comparison
<< product.title >>
  • Title

Application Fields

  • Broadcast
  • Cinema
  • Corporate
  • Controlroom
  • Boardroom
Dave Bateman

"The requirements for our installation were challenging due to extreme sonic vibrations, the angled side-wings and gaps for the audio systems. Meeting our expectations and standards the ROE Visual Amber LED screen provided the perfect solution, resulting in a  spectacular screen."

Dave Bateman Bateman Consulting Ltd

Jasper LED display

Jasper Indoor LED Platform
