Meru

A Must-Have for Captivating Audience

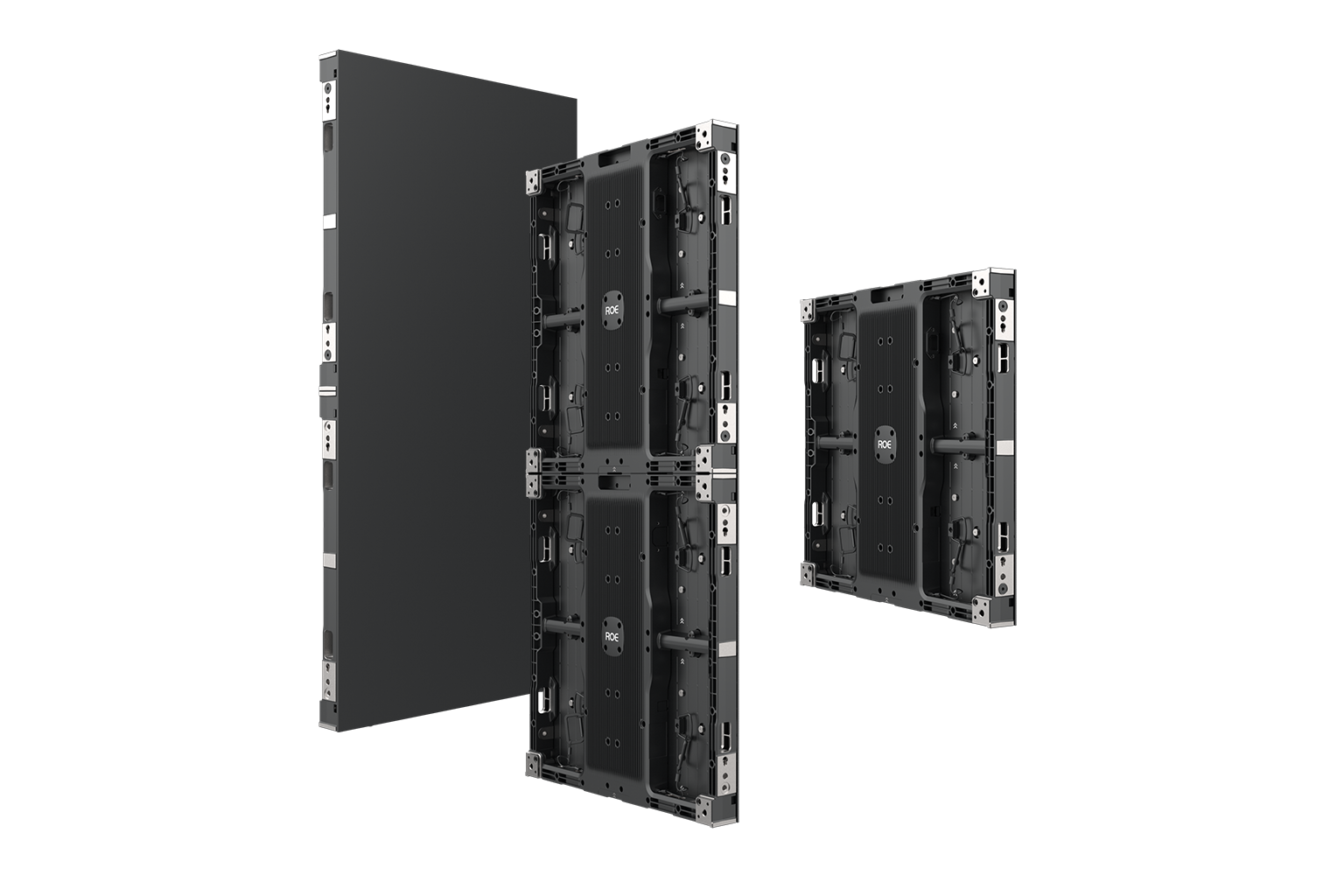

Meet Meru, the cutting-edge solution for fixed indoor LED displays where visual performance is essential. With its ultra-slim profile and seamless precision, Meru supports pixel pitches ranging from P1.5 to P3.9 and is available in versatile cabinet sizes of 500×500 mm and 500×1000 mm. This makes it an ideal choice for high-resolution applications in public spaces, including transportation hubs, shopping malls, broadcast studios, corporate offices, and luxury retail environments.

Meru combines quality with a lower cost of ownership, featuring reduced power consumption and a long lifespan. Elevate your audience's experience and stand out from the competition with Meru—the ultimate display that captivates and engages.

Meru Key Features

EMC CLASS B Certification
Indoor Use
Easy Installation and Maintenance
Sleek Wall-mount Design
High-precision Structure

Ordinary? Overated!

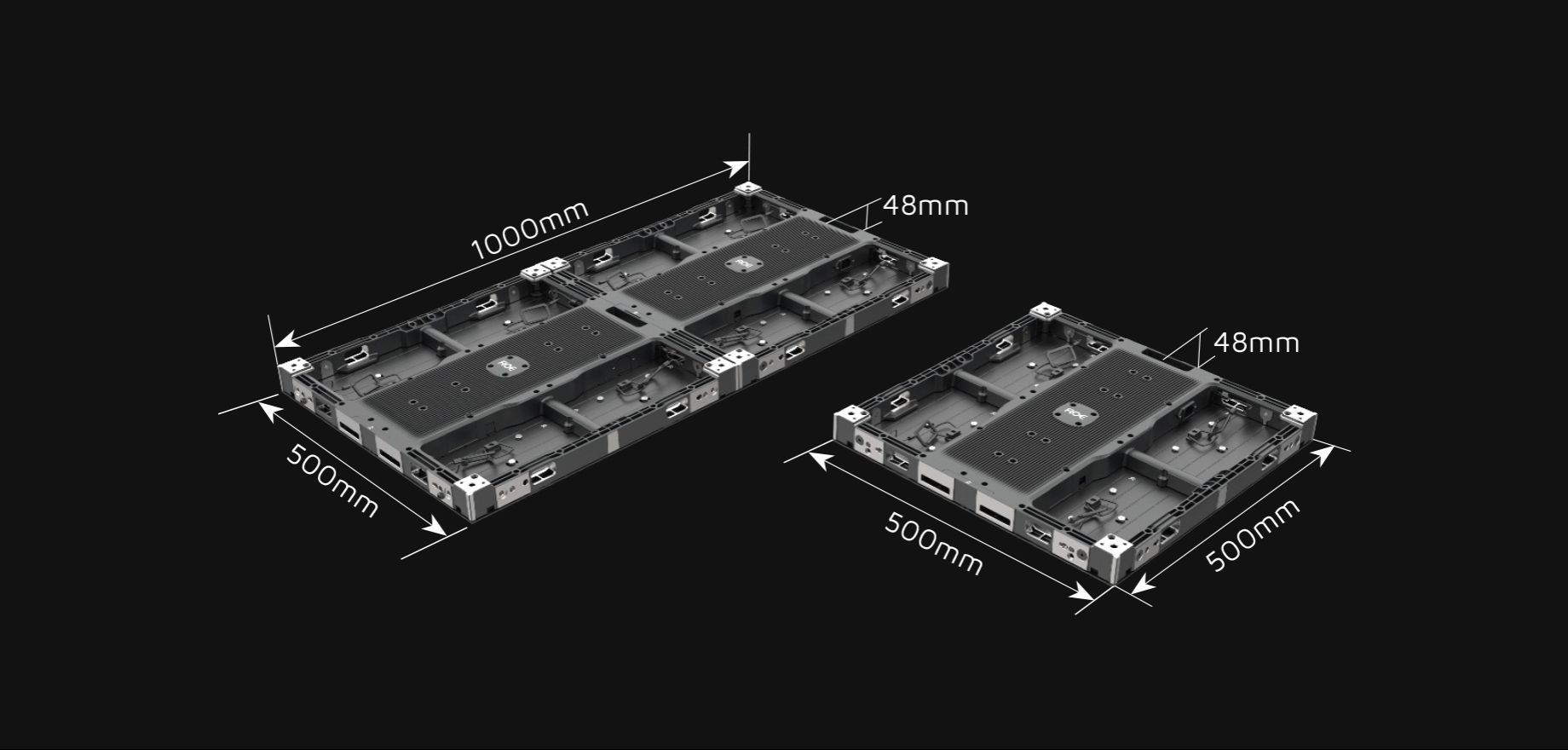

Meru can be easily and quickly installed in public spaces. The 500 x 1000 mm and 500 x 500 mm panels can be effortlessly scaled up to form flat canvases or curved waves. Don't miss any eye-catching opportunities—Meru is designed to stand out for your audience, providing a larger display from any viewing angle.

Suits to All Environment

Meru passes EMC-Class B certification, and thus it  guarantees high electromagnetic immunity, and can adapt to almost all environments with high technical standards, such as airports, control rooms, or medical spaces.

MR1.9
MR1.9 Half
MR2.6
MR2.6 Half
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • MR1.9
  • 1.9mm
  • 1000nits
  • 500mm x 1000mm x 48mm
    19.69” x 39.37” x 1.89”
  • 256 x 512
  • 14.8kg | 32.6lbs
  • 220W / 110W
  • 760 / 380
  • Solid
  • Front
  • 160°
  • 160°
  • 7680Hz
  • 15bit
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, FCC, ETL, UKCA, RoHS, WEEE
  • MR1.9 Half
  • 1.9mm
  • 1000nits
  • 500mm x 500mm x 48mm
    19.69” x 19.69” x 1.89”
  • 256 x 256
  • 7.4kg | 16.3lbs
  • 110W / 55W
  • 380 / 190
  • Solid
  • Front
  • 160°
  • 160°
  • 7680Hz
  • 15bit
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, FCC, ETL, UKCA, RoHS, WEEE
  • MR2.6
  • 2.6mm
  • 1200nits
  • 500mm x 1000mm x 48mm
    19.69” x 39.37” x 1.89”
  • 192 x 384
  • 14.8kg | 32.6lbs
  • 280W / 140W
  • 960 / 480
  • Solid
  • Front
  • 160°
  • 160°
  • 7680Hz
  • 15bit
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, FCC, ETL, UKCA, RoHS, WEEE
  • MR2.6 Half
  • 2.6mm
  • 1200nits
  • 500mm x 500mm x 48mm
    19.69” x 19.69” x 1.89”
  • 192 x 192
  • 7.4kg | 16.3lbs
  • 140W / 70W
  • 480 / 240
  • Solid
  • Front
  • 160°
  • 160°
  • 7680Hz
  • 15bit
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, FCC, ETL, UKCA, RoHS, WEEE
