Amber
Fine pitch. Excellent visuals.
AV integration with fine pitch video displays for demanding applications like corporate boardrooms, broadcast suites or control rooms just got easier. The Amber LED platform offers sophisticated NPP LED screens for environments where excellent visuals count.
Sophisticated fine pitch LED screens
Perfection in visual performance
A Sustainable and Durable Solution

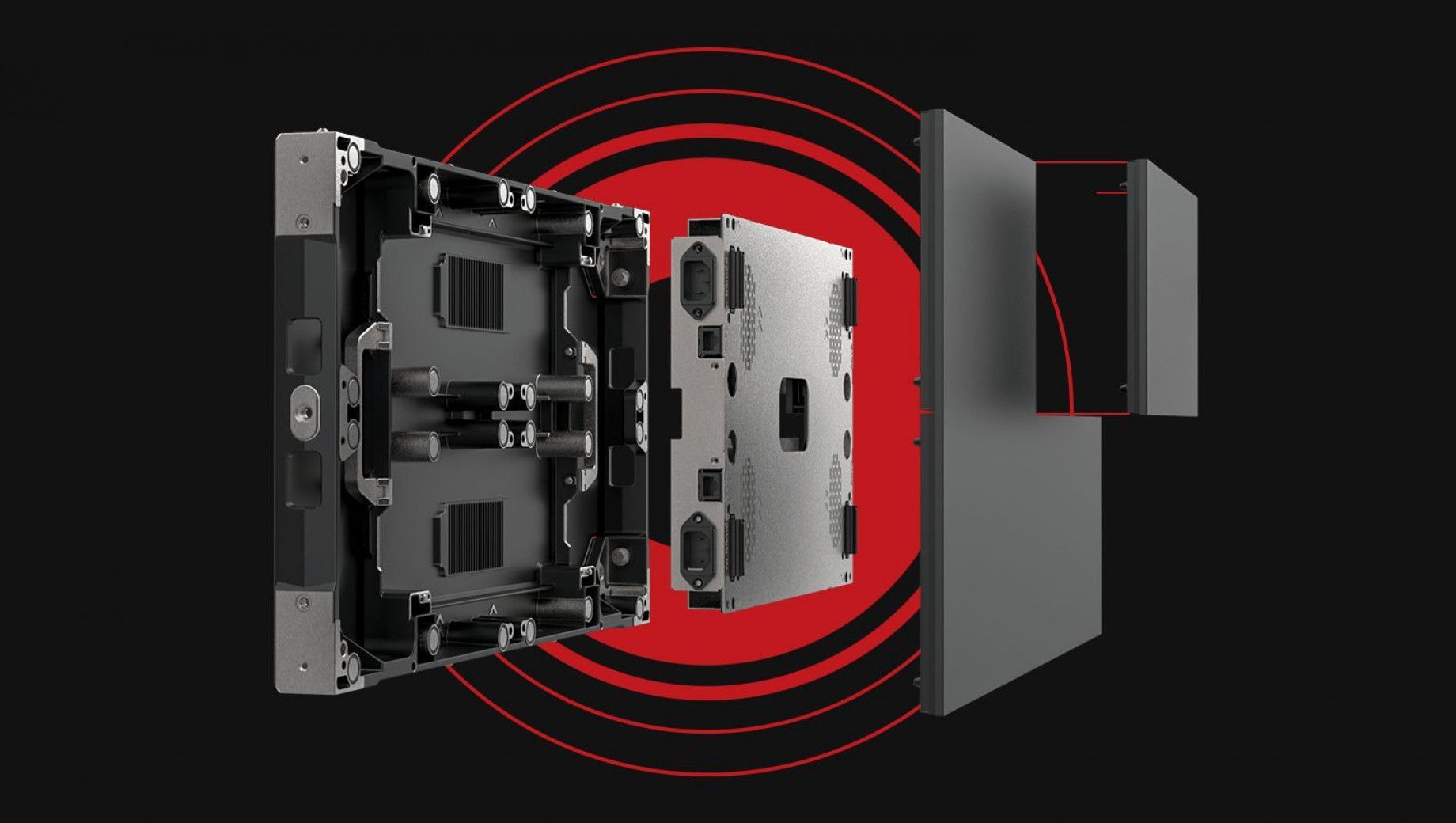

Low cost-of-ownership

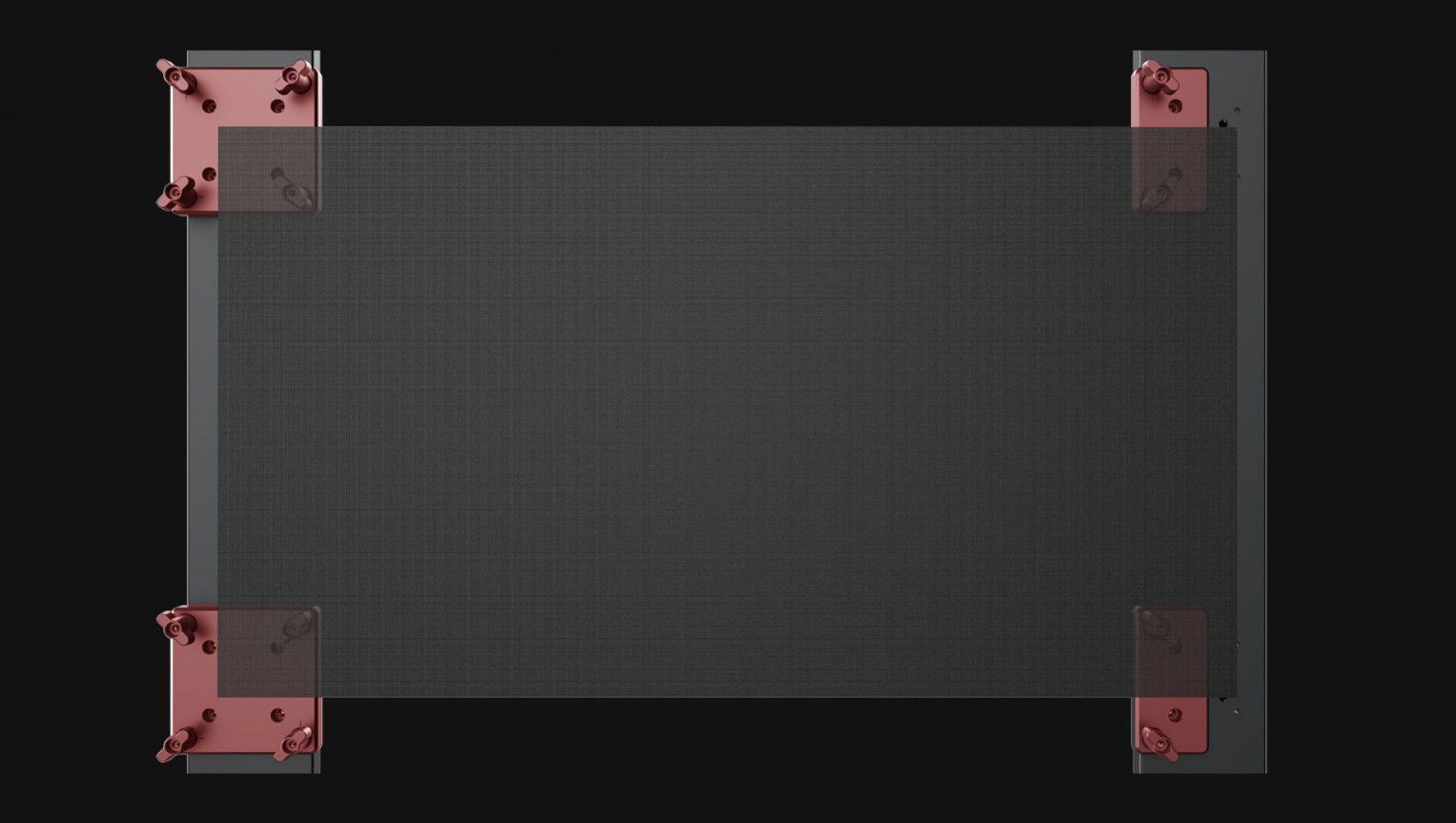

Flexible mounting possibilities
Future-ready HDR LED platform
Download Brochure
Amber Key Features
HDR technology

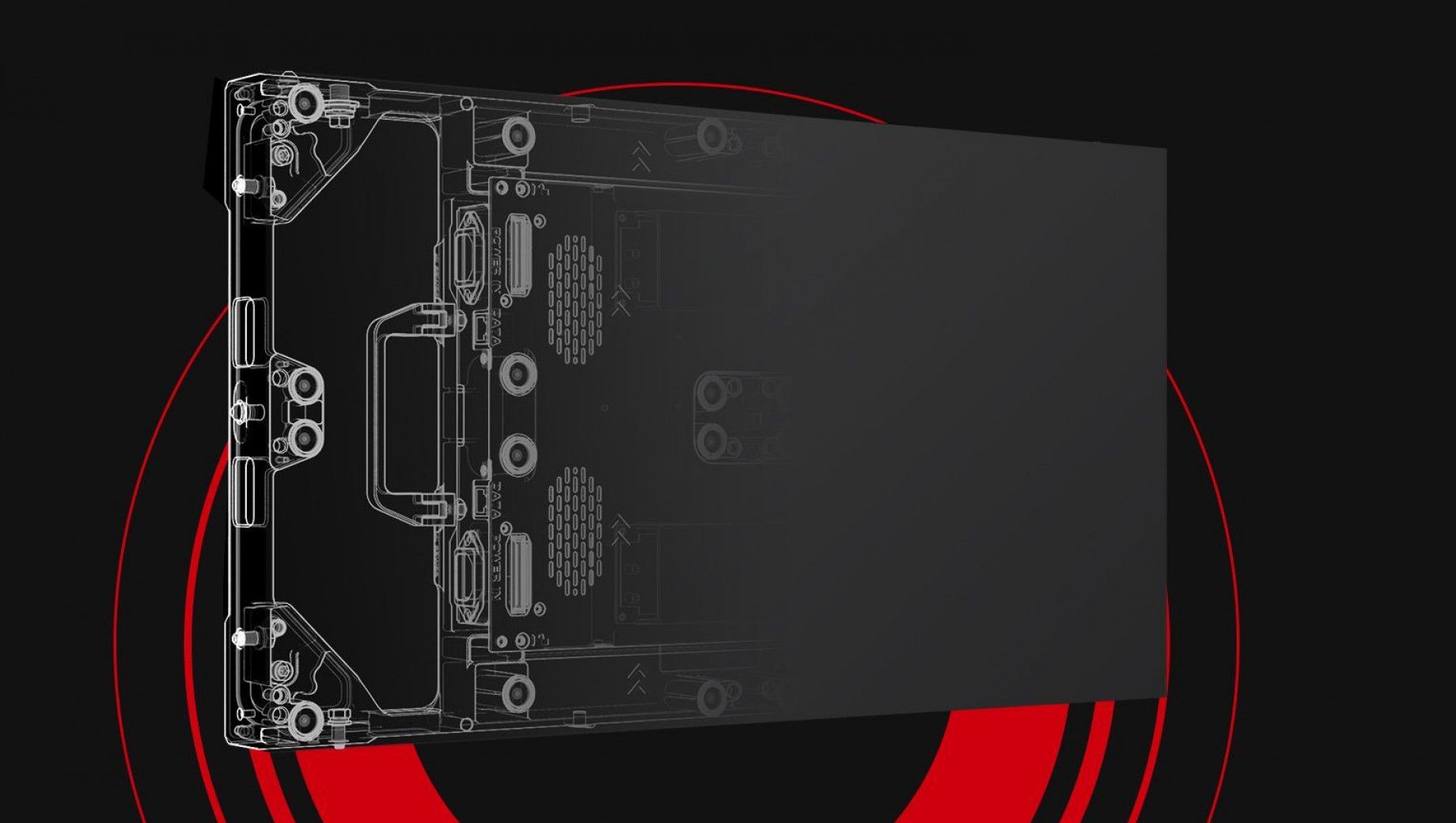

Slim-line panel design
Adjustable mounting frame
Front service
Modular design-saves on spare parts
16:9 ratio in panel design. Native 4K

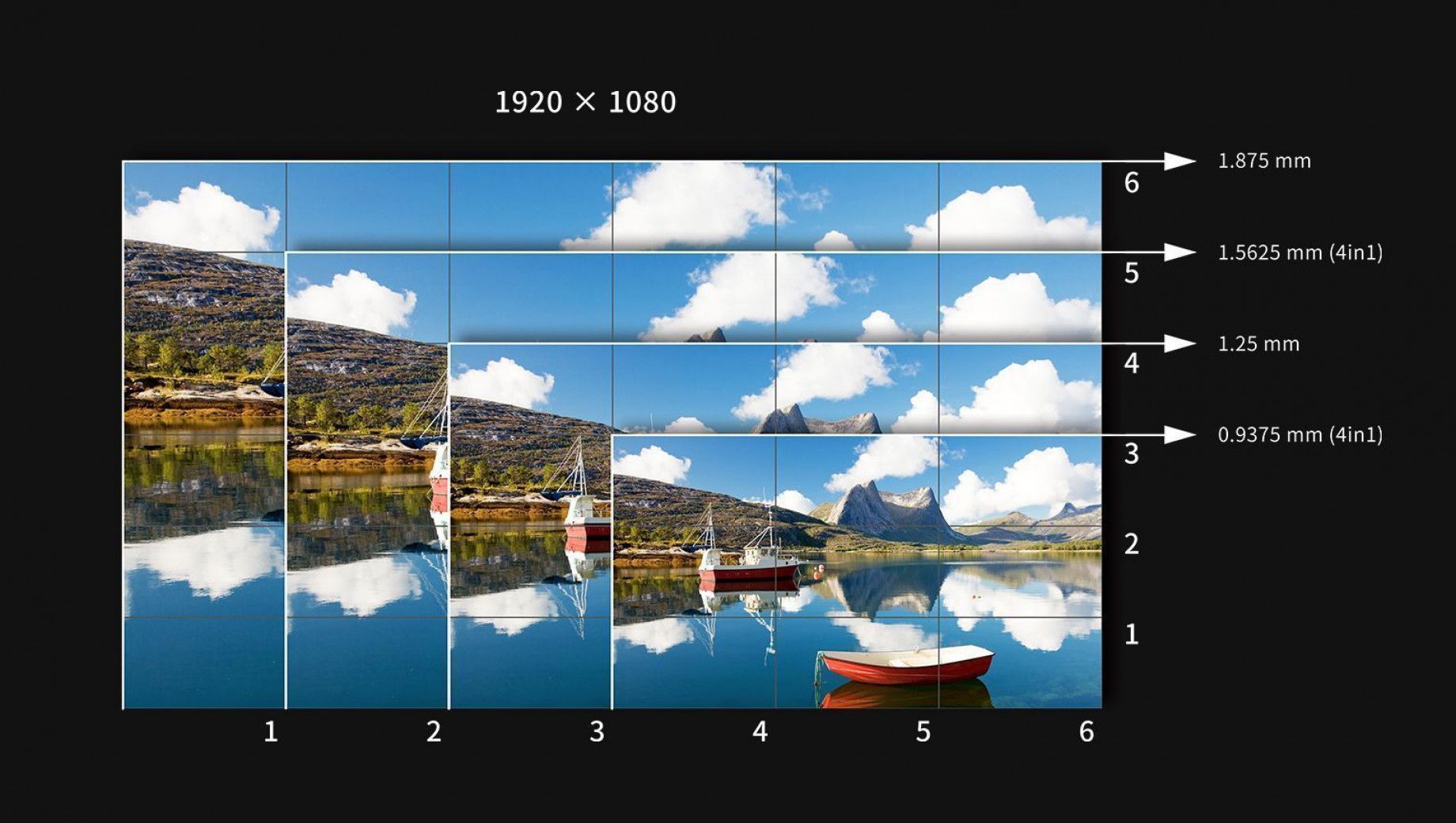

Fine pixel pitch 0.9, 1.2, 1.5, 1.8
Extended LED lifecycle, energy saving and efficient heat-dissipation
Specs
AB1.5
AB1.8
- Title
- Pixel Pitch
- LED Configuration
- Max Brightness Calibrated
- Panel Dimension
- Panel Resolution (H x V)
- Weight Per Panel
- Power Consumption Max/Average
- BTU Max/Average
- Transparency
- Serviceability
- Viewing Angle Vertical
- Viewing Angle Horizontal
- Refresh Rate
- Gray Scale
- Scan Ratio
- Operational Temp/Humidity
- Storage Temp/Humidity
- IP Rating
- Certifications
- AB1.5
- 1.5625mm
- 4 in 1 LED
- 800nits
- 600mm x 337.5mm x 55mm
23.6” x 13.2” x 2.1” - 384 x 216
- 8.5kg | 18.7lbs
- 180W / 90W
- 615 / 285
- Solid
- Front
- 140°
- 160°
- 3840Hz
- 14bit
- 1/18
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP40
- CE, ETL, FCC
- AB1.8
- 1.875mm
- SMD 1010
- 800nits
- 600mm x 337.5mm x 55mm
23.6” x 13.2” x 2.1” - 320 x 180
- 8.5kg | 18.7lbs
- 170W / 85W
- 580 / 270
- Solid
- Front
- 140°
- 160°
- 3840Hz
- 15bit
- 1/18
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP40
- CE, ETL, FCC
All specification values given are per panel. The specifications are for reference only, actual values may vary. The max. hanging amount is only valid when official ROE Visual hardware parts are used. The safety factor is 8. Climbing is only allowed if stated in the panel manual and only following the rules given therein. The max. stacking amount is only valid when official ROE Visual hardware parts are used and when sufficient ballast is applied – following the rules as stated in the panel manual and/or structural report.
Application Fields
- Broadcast
- Cinema
- Corporate
- Controlroom

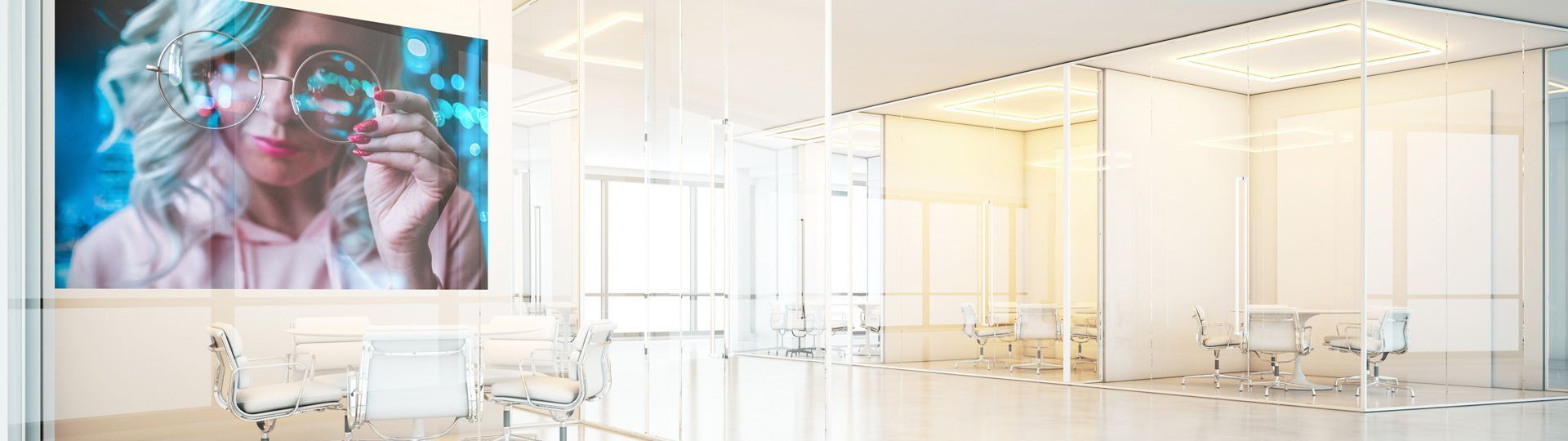

- Boardroom

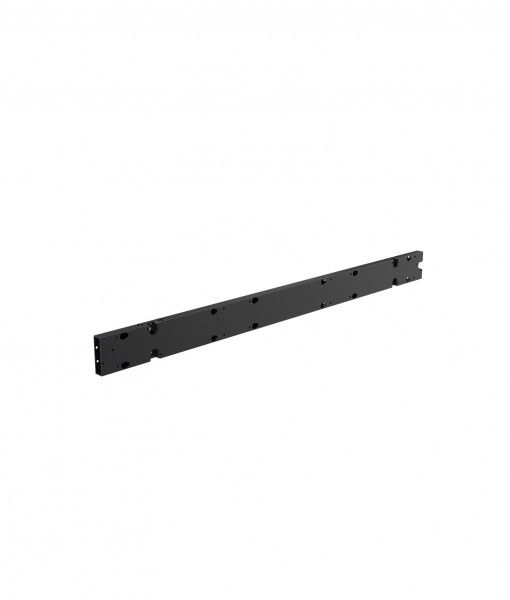

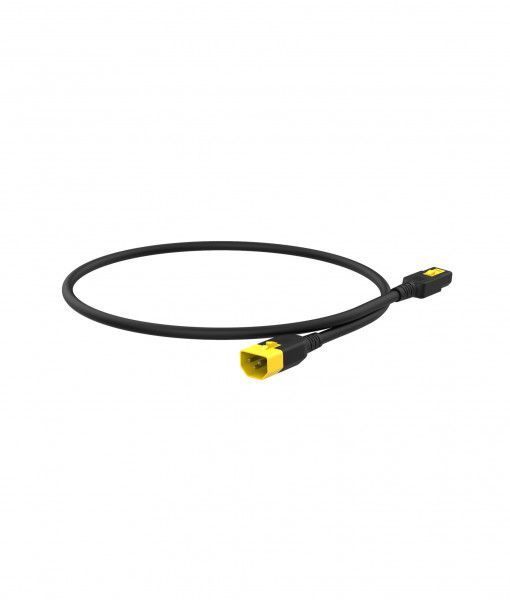

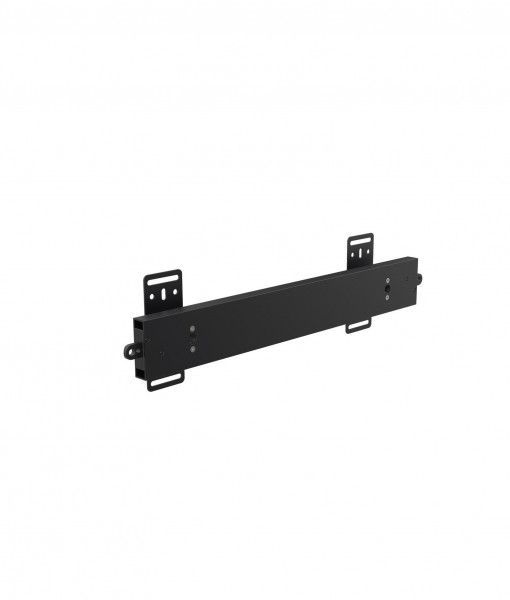

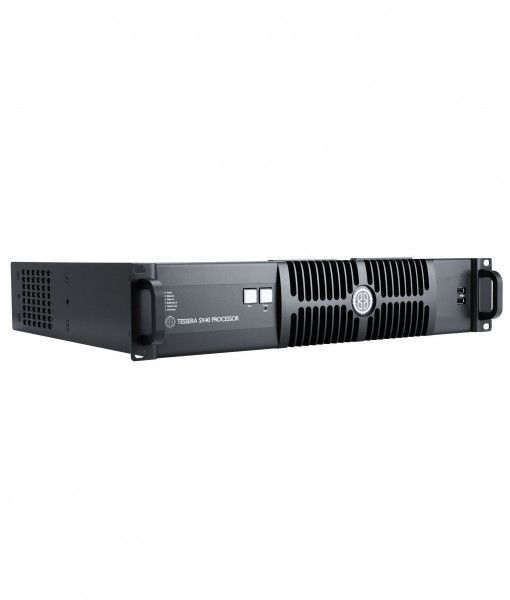

Accessories
"The requirements for our installation were challenging due to extreme sonic vibrations, the angled side-wings and gaps for the audio systems. Meeting our expectations and standards the ROE Visual Amber LED screen provided the perfect solution, resulting in a spectacular screen."
