Vanish ST

The Remarkable Outdoor Live Events Solution

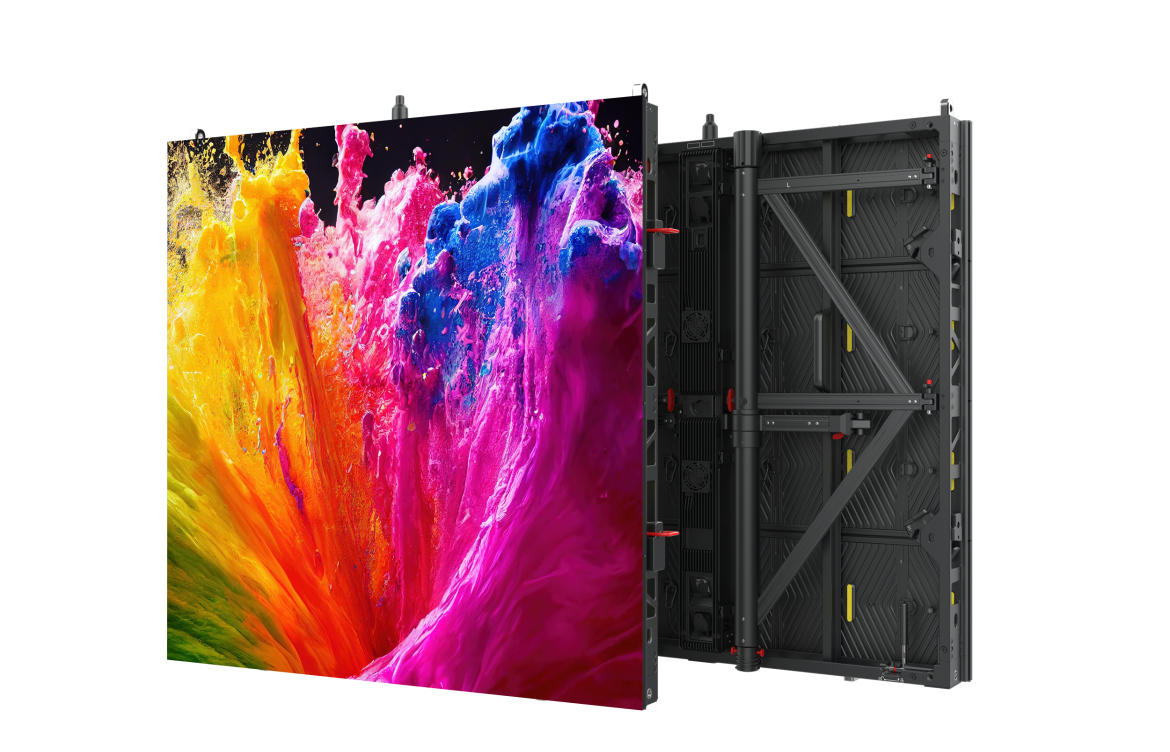

The Vanish ST(Vanish Solid Touring) Series is designed to provide exceptional value for your touring, festival and outdoor live events needs. Its innovative engineering and high efficiency make it an ideal and dependable choice for event organizers, AV rental companies, and production professionals who seek a high-quality LED panel with a great return on investment.

Engineered to excel in a wide range of applications, the Vanish ST LED panel is adaptable and has excellent visual performance. The solid Vanish ST Series is fully interchangeable with the transparent Vanish V8T LED panel. This compatibility allows you to seamlessly integrate the VST with your existing V8T LED panels, maximizing the usability of your rental stock.

Vanish ST

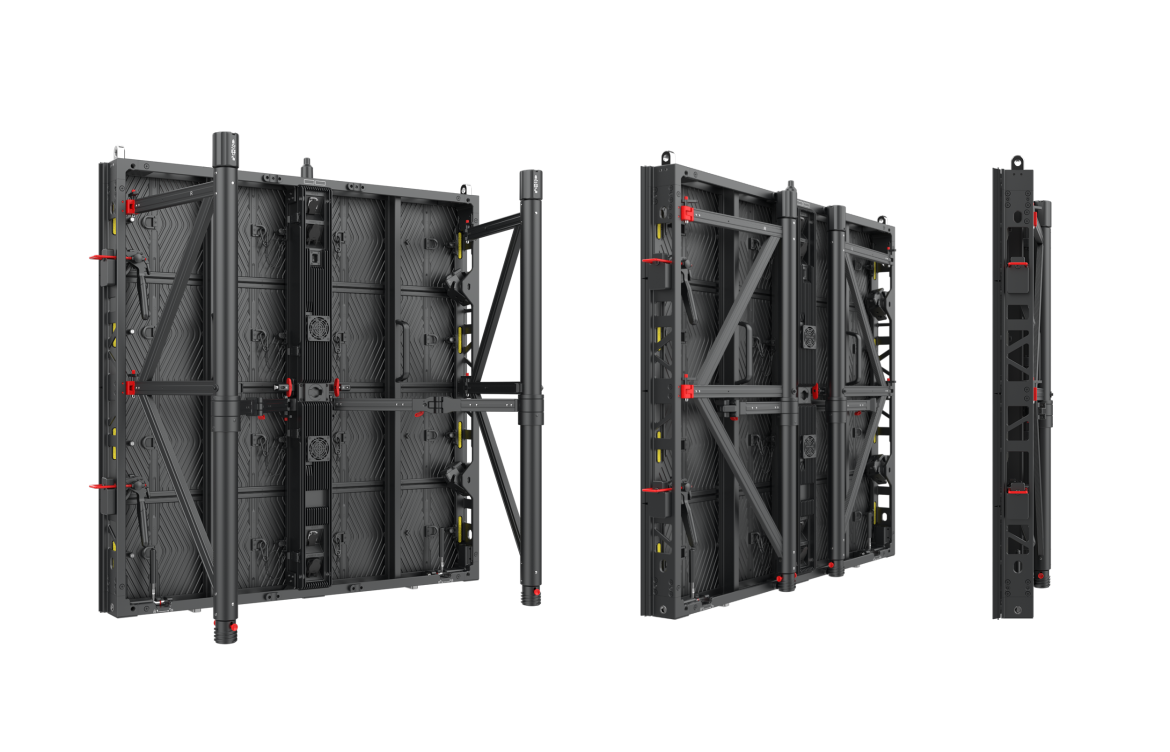

Integrated Wind-bracing Frames

The V4ST and V6ST have integrated folding frames, making them wind-load resistant up to 20m/sec, offering audience safety and structural stability. Whether you're planning a concert tour or a large-scale outdoor event, your Vanish ST LED panel is up to the challenge.

Don’t Sacrifice Quality

There’s no need to balance quality or specs against your return on investment. Vanish ST offers the best of both worlds, remarkable LED panel with a high utilization potential. Vanish ST allows you to lower your initial investment without sacrificing quality.

Vanish ST

Your Daily Workhorse

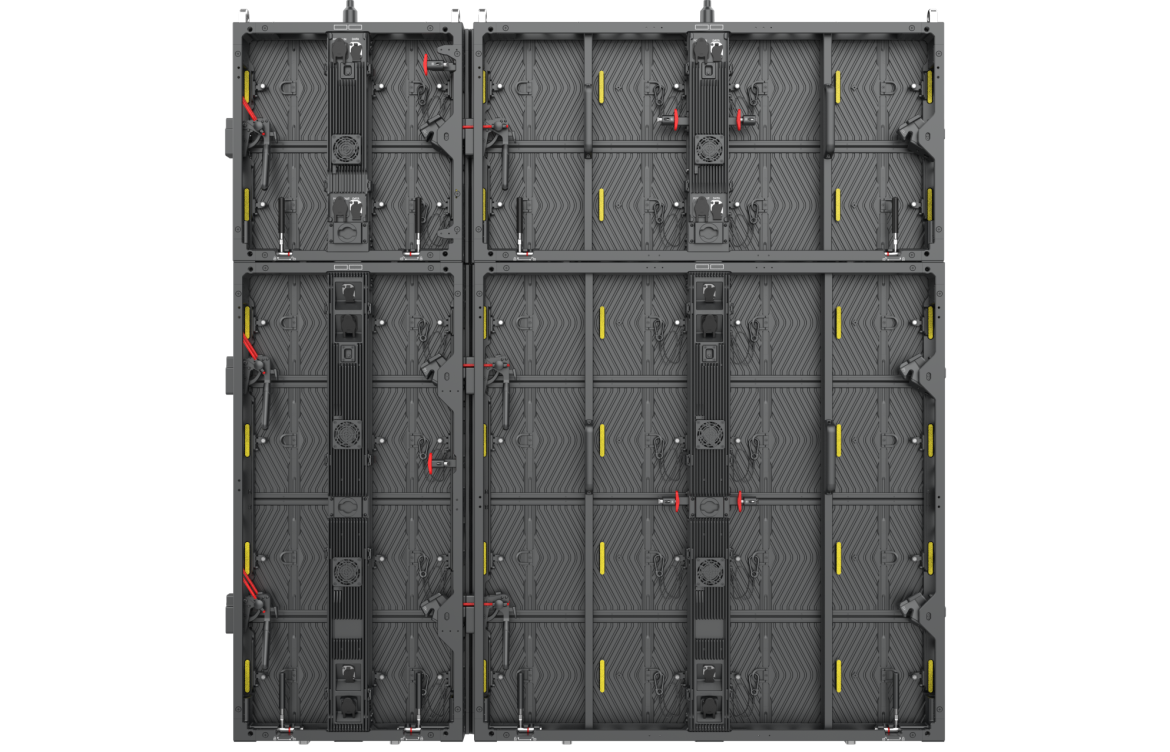

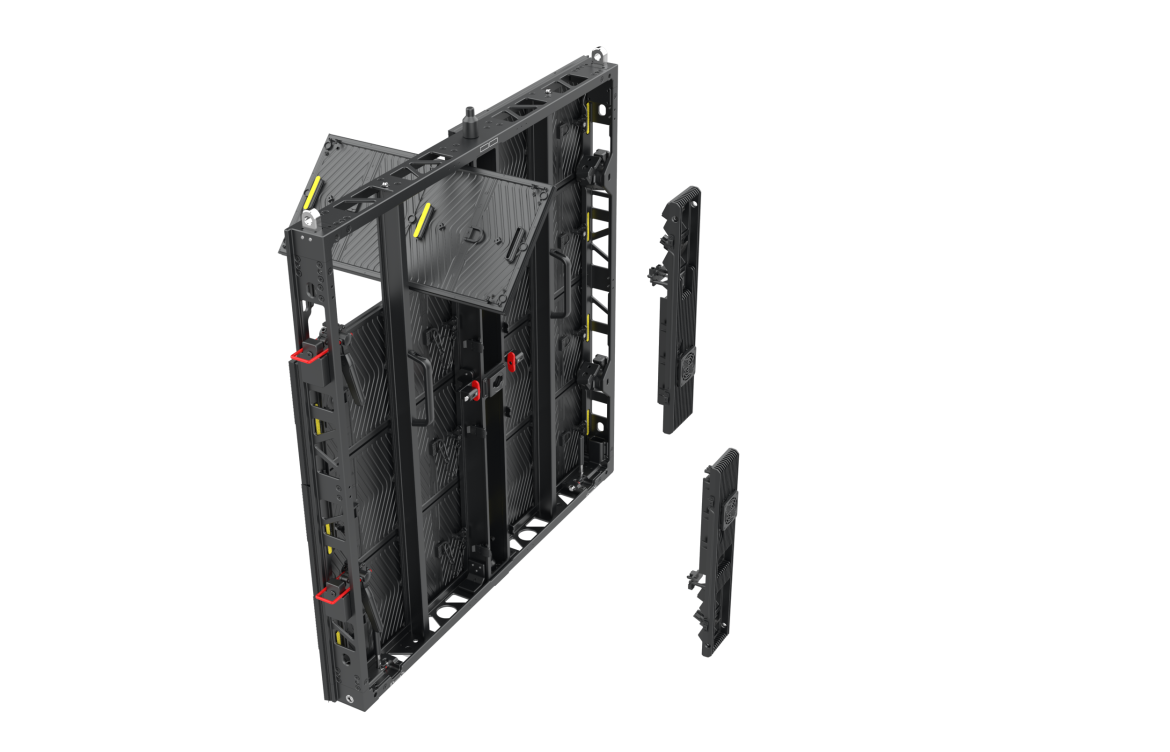

Maintenance is a breeze with the Vanish ST panels, featuring rear module service. The integrated PSU and Hub unit streamline repair and spare part replacement, reducing out-of-service time and making maintenance easy and cost-effective.

Vanish ST

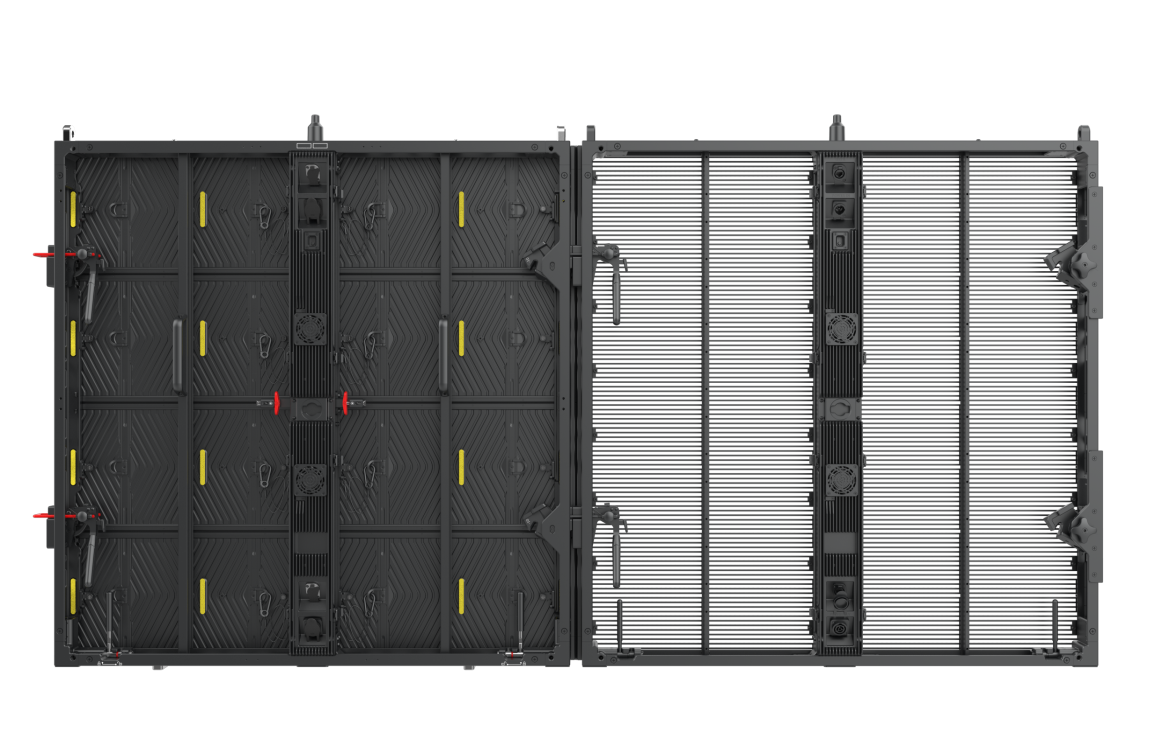

Compatible with the V8T

The solid Vanish ST Series is fully compatible with the transparent Vanish V8T LED panel. This compatibility allows you to seamlessly integrate the VST with your existing V8T LED panels, maximizing the usability of your rental stock.

Half and ¼ panel

The Vanish ST panels present a range of design options:

  • VST-V : Enhance design sense with the vertical half-panel, sized at 500 x 1000mm (w x h).
  • VST-H : Opt for the horizontal half-panel, measuring 1000 x 500mm.
  • VST-Q : Discover the charm of the quarter panel, squared at 500 x 500mm.

Diverse in size, these panels cater to a myriad of design preferences, ensuring a perfect fit for every creative vision.

Vanish ST Key Features

Cost-Efficient
Lightweight LED panel design
5000 nits brightness max
Modular PSU and HUB design
Rear module service
Half and ¼ panel

Application Fields

Touring

Festivals

Sports Events

V4ST
V6ST
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • Max. Hanging
  • Max. Stacking
  • V4ST
  • 4.6mm
  • SMD 1921 Black
  • 5000nits
  • 1000mm x 1000mm x 116mm
    39.4” x 39.4” x 4.57”
  • 216 x 216
  • 27.5kg | 60.63lbs
  • 700W / 350W
  • 2390 / 1100
  • Solid
  • Rear
  • Concave 10° ~ Convex 10°
  • 120°
  • 160°
  • 3840Hz
  • 16bit
  • 1/6
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • Outdoor
  • CE, ETL, FCC, UKCA
  • 12 panels
  • 6 panels
  • V6ST
  • 6.94mm
  • SMD 1921 LED
  • 5000nits
  • 1000mm x 1000mm x 116mm
    39.4” x 39.4” x 4.57”
  • 144 x 144
  • 27.3kg | 60.19lbs
  • 700W / 350W
  • 2390 / 1100
  • Solid
  • Rear
  • Concave 10° ~ Convex 10°
  • 120°
  • 160°
  • 3840Hz
  • 16bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • Outdoor
  • CE, ETL, FCC, UKCA
  • 12 panels
  • 6 panels
