Graphite

Durable Meets Lightweight

Graphite offers a durable yet lightweight LED solution that provides quick installation through its intuitive smart-lock system. Graphite is ideal for building large LED walls and ceilings fast and efficiently.

Download Graphite Brochure

Your Lightweight LED Solution

Graphite is designed to offer a lightweight LED solution for those circumstances where reducing weight can be a decisive factor. Weighing just under 17 kg/m2, Graphite is durable yet lightweight. No compromises have been made to either the panel design or the visual performance, so expect brilliant visual performance and high-grade LED quality.

Quick Installation with an Intuitive Smart-lock System

Achieve fast and effortless installation through Graphite’s clever panel design. Large, light panels are combined with integrated magnet-assisted assembly and a smart-lock system. The smart-lock system saves up to 40% compared to the assembly time for regular LED panels.

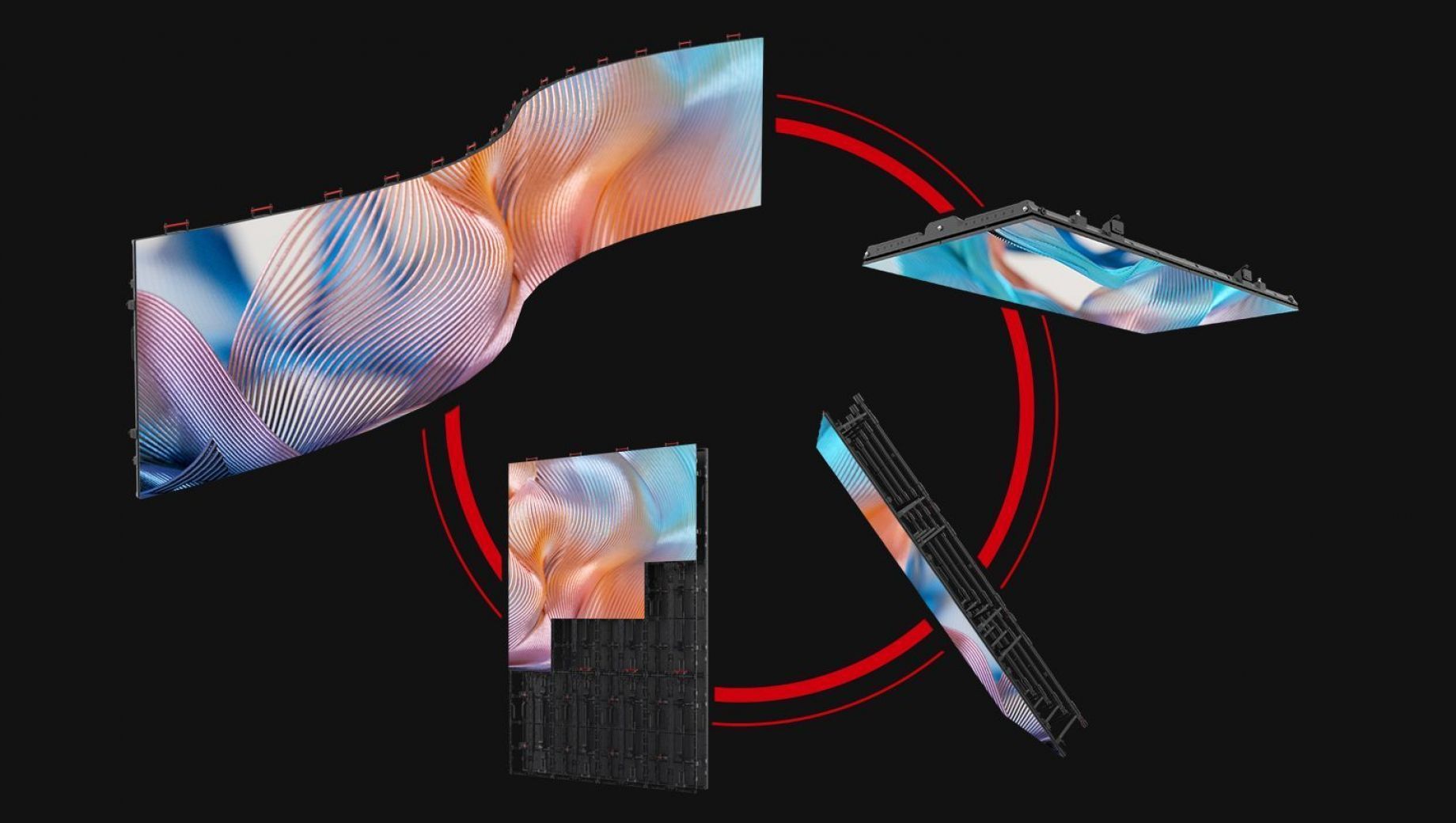

The Ideal LED Solution for Indoor Events

Graphite allows for various installation options and is deliverable in full and half panels. You have the choice to build an LED wall, ceiling, or curved LED displays. Furthermore, Graphite offers easy solutions for building your LED display at raked angles or double-sided.

Easy Maintenance

Graphite offers easy, in-service maintenance. Both the PSU and the LED modules can be swapped while in use. The LED modules are interchangeable and can be replaced from the front as well as from the back of the LED panel.

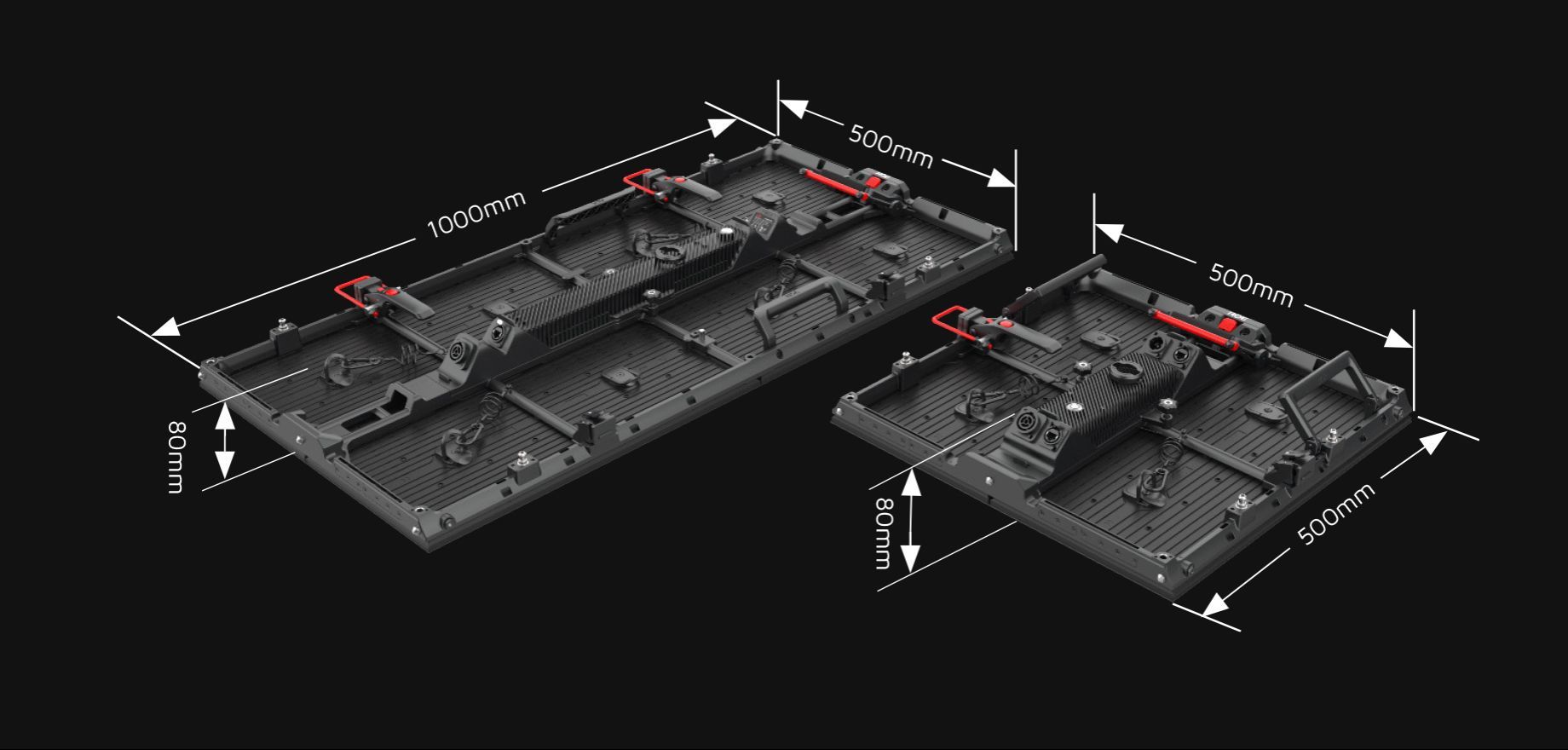

Half Panel

Graphite LED panels are available in two sizes, the standard 500 x 1000mm (w x h) panel and a half-panel measuring 500 x 500mm. Graphite also offers various solutions for corners and edges - ask for our options!

Graphite Key Features

Light weight
Light weight
Curveable
Curveable
Smart lock system
Smart lock system
Quick install
Quick install
Double slides hanging
Double slides hanging
Easy maintenance
Easy maintenance
Air Truss choice
Air Truss choice
High brightness
High brightness
Half panel
Half panel

Specs

  • Tile
  • Pixel Pitch
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Curving (Concave & Convex)
  • Max. Hanging(Panels)
  • Max. Stacking(Panels)
  • LED Configuration
  • Viewing Angle Horizontal
  • Viewing Angle Vertical
  • Scan Ratio
  • Refresh Rate
  • Gray Scale
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • GP2.6
  • 2.6mm
  • 1500nits
  • 500 x 1000 x 71.4mm, 19.7” x 39.4” x 2.8”
  • 192 x 384
  • 9kg; 19.84lbs
  • 320W / 160W
  • 1100 / 500
  • Solid
  • Front / Rear
  • Concave 5°/0°/Convex 5°
  • 12
  • 6
  • SMD 1515 Black
  • 160°
  • 140°
  • 1/16
  • 7680Hz
  • 16bit
  • -20° -45°C 10-90% RH
    -4° -113°F 10-90% RH
  • -40° -60°C 10-90% RH
    -40° -140°F 10-90% RH
  • Indoor
  • CE, ETL, FCC, UKCA
  • GP3.1
  • 3.125mm
  • 1500nits
  • 500 x 1000 x 71.4mm, 19.7” x 39.4” x 2.8”
  • 160 x 320
  • 9kg; 19.84lbs
  • 320W / 160W
  • 1100 / 500
  • Solid
  • Front / Rear
  • Concave 5°/0°/Convex 5°
  • 12
  • 6
  • SMD 1515 Black
  • 160°
  • 140°
  • 1/16
  • 7680Hz
  • 16bit
  • -20° -45°C 10-90% RH
    -4° -113°F 10-90% RH
  • -40° -60°C 10-90% RH
    -40° -140°F 10-90% RH
  • Indoor
  • CE, ETL, FCC, UKCA
  • GP3.9
  • 3.91mm
  • 1500nits
  • 500 x 1000 x 71.4mm, 19.7” x 39.4” x 2.8”
  • 128 x 256
  • 9kg; 19.84lbs
  • 320W / 160W
  • 1100 / 500
  • Solid
  • Front / Rear
  • Concave 5°/0°/Convex 5°
  • 12
  • 6
  • SMD 1515 Black
  • 160°
  • 140°
  • 1/16
  • 7680Hz
  • 16bit
  • -20° -45°C 10-90% RH
    -4° -113°F 10-90% RH
  • -40° -60°C 10-90% RH
    -40° -140°F 10-90% RH
  • Indoor
  • CE, ETL, FCC, UKCA
The specifications are for reference, actual values may vary.

Graphite specs

Downloads

Application Fields

  • Touring productions
  • Festivals
  • Corporate events
  • Indoor Sports Events

Accessories

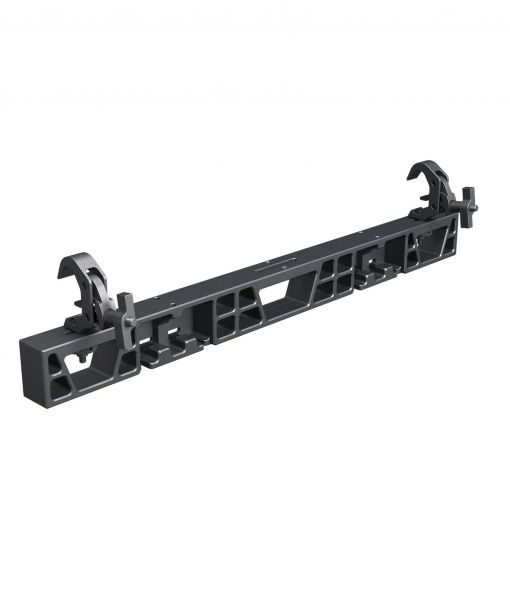

Hanging Bar

Base Truss

Power Cable

Cable

Rear Bridge

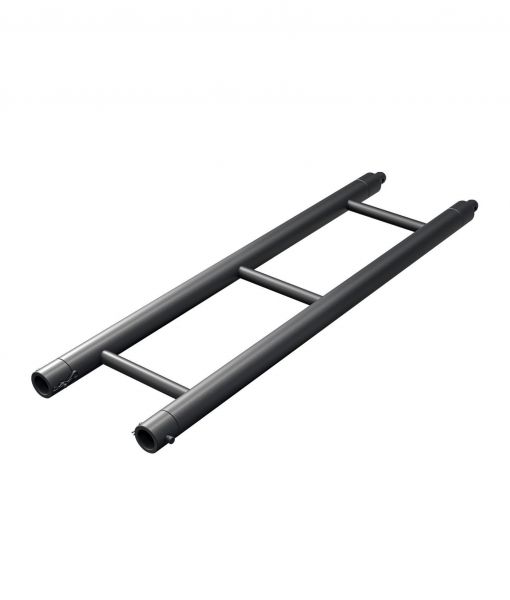

Rear Truss
