Coral
ROE Visual's solution for an impeccable visual experience
Introducing Coral, an exceptional LED panel platform designed for permanent installations. With remarkable visual performance, Coral’s Chip on Board technology delivers high contrast, wide color gamut, and exceptional color accuracy, providing an unparalleled high-definition viewing experience. Its energy-efficient common cathode design saves costs and extends the panel’s service life, making it a sustainable choice.
Designed to revolutionize the world of AV integration, the ROE Visual R&D team engineered Coral with demanding applications such as broadcasting and corporate settings where precision is paramount in mind. With a brightness of 1000 nits, a refresh rate of 7680Hz, and an 8:9 aspect ratio for native 4K or 8K resolutions, Coral delivers impeccable visuals that meet the highest standards.
Low Energy Consumption - Reduce Costs of Ownership
Coral's innovative flip-chip common cathode LED design, combined with carefully selected components, reduces energy consumption by 20% and minimizes heat generation. The customized Power Supply Unit (PSU) features a standby/power-off feature, enhancing energy efficiency by automatically shutting down when unused. The standby mode not only reduces operational costs but also extends the life cycle of the panels, aligning with a sustainable approach.
Flip Chip COB Technology
The Coral series uses COB technology, creating an LED panel with an anti-static and water-resistant surface. Due to the COB technology, the LED pixels are protected by a protective surface, even the smallest pixel pitches will have a minimal failure rate. The Coral LED panel has a stable and reliable performance, and minimal maintenance requirements.
Coral – Easy Does It

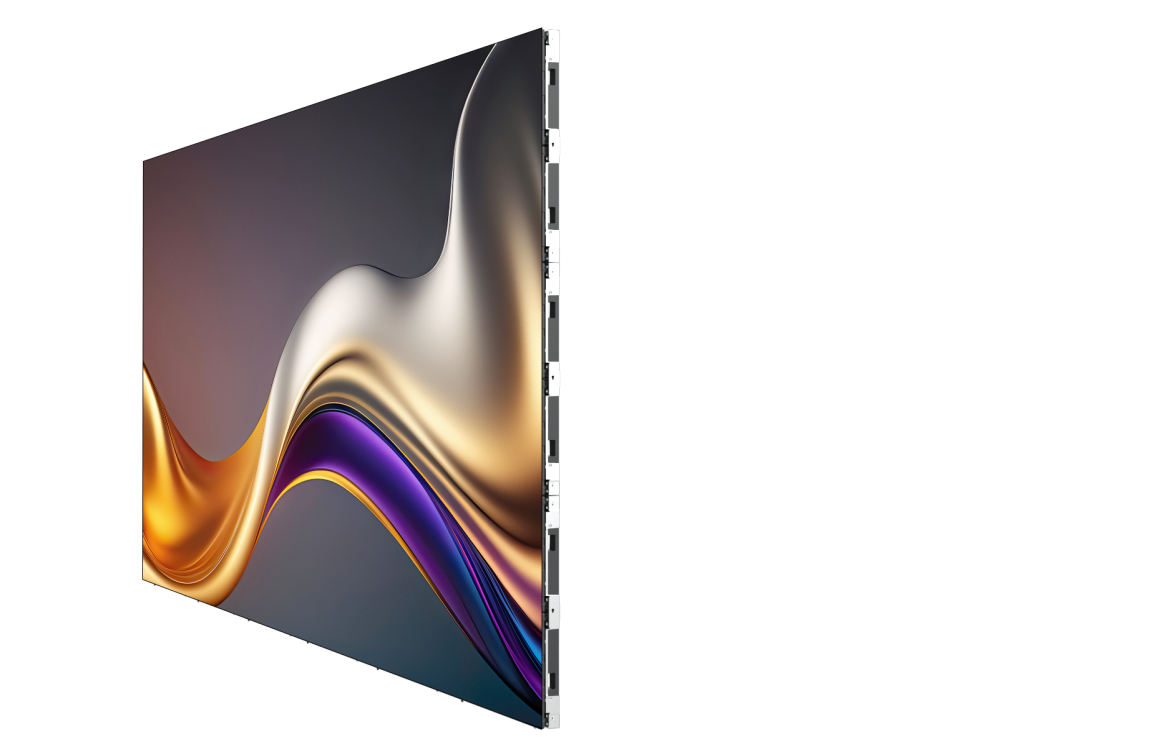

The Coral LED panel is deliverable in pixel pitches of 0.9 and 1.2 mm, offering stunning image quality and incredible detail. Measuring 600 x 675mm, the modular Coral LED panels fit any size or shape required. The Coral LED panels provide easy and efficient mounting, saving precious installation time.
Coral – An Impeccable Visual Experience

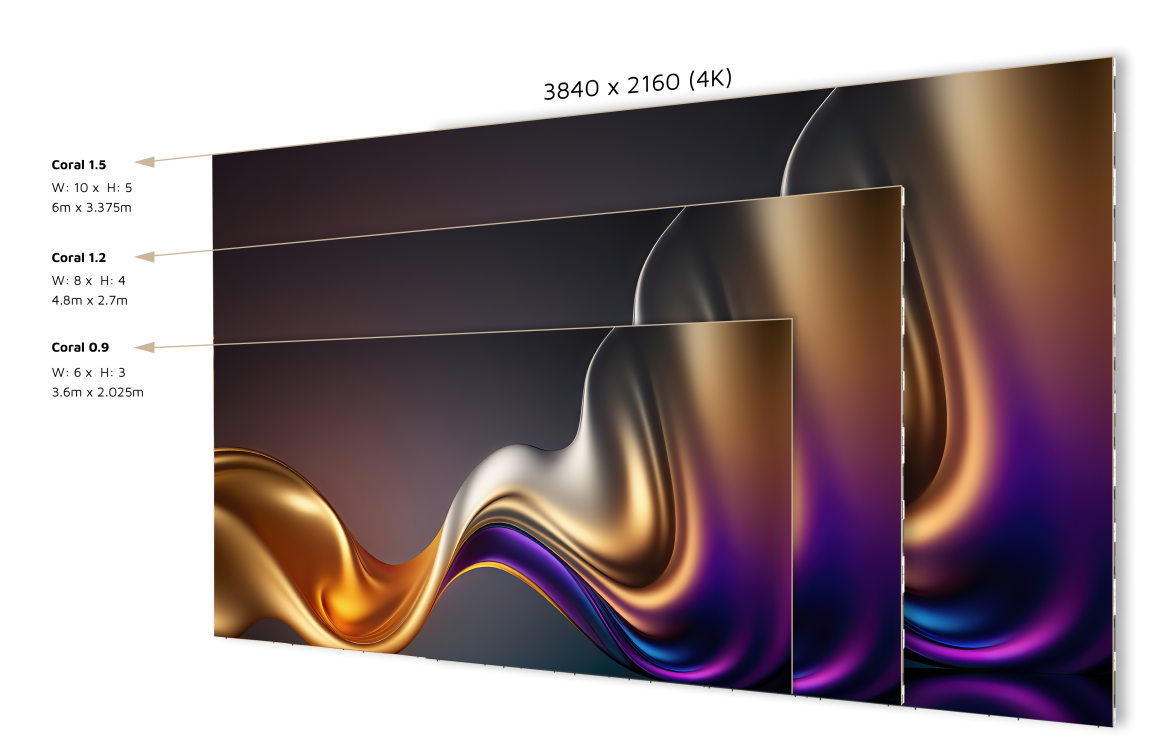

Coral provides a superb visual performance, making it a perfect choice for demanding circumstances, like broadcasting or corporate applications, where every detail matters. Coral boasts excellent product specifications, with a remarkable brightness of 1000 nits and a refresh rate of 7680Hz. Its 8:9 aspect ratio makes it a perfect fit for native 4K or 8K resolutions, guaranteeing impeccable visuals.
Coral Key Features
Specs
- Title
- Pixel Pitch
- LED Configuration
- Max Brightness Calibrated
- Panel Dimension
- Panel Resolution (H x V)
- Weight Per Panel
- Power Consumption Max/Average
- BTU Max/Average
- Transparency
- Serviceability
- Curving (Concave & Convex)
- Viewing Angle Vertical
- Viewing Angle Horizontal
- Refresh Rate
- Gray Scale
- Operational Temp/Humidity
- Storage Temp/Humidity
- IP Rating
- Certifications
- CR0.9
- 0.9375mm
- COB
- 1000nits
- 600mm x 675mm x 63mm
23.62” x 26.57” x 2.48” - 640 x 720
- 14kg | 30.86lbs
- 160W / 80W
- 545 / 250
- Solid
- Front
- Concave 0° ~ Convex 0°
- 140°
- 160°
- 3840Hz
- 15bit
- -20°C ~ 45°C, 10% ~ 90% HR
-4°F ~ 113°F, 10% ~ 90% HR - -40°C ~ 60°C, 10% ~ 90% HR
-40°F ~ 140°F, 10% ~ 90% HR - IP40
- CE, ETL, FCC
- CR1.2
- 1.25mm
- COB
- 1000nits
- 600mm x 675mm x 63mm
23.62” x 26.57” x 2.48” - 480 x 540
- 14kg | 30.86lbs
- 160W / 80W
- 545 / 250
- Solid
- Front
- Concave 0° ~ Convex 0°
- 140°
- 160°
- 7680Hz
- 15bit
- -20°C ~ 45°C, 10% ~ 90% HR
-4°F ~ 113°F, 10% ~ 90% HR - -40°C ~ 60°C, 10% ~ 90% HR
-40°F ~ 140°F, 10% ~ 90% HR - IP40
- CE, ETL, FCC
- Title
Application Fields
- Corporate settings
- Hospitality venues
- Control rooms
- Broadcast facilities
- Boardrooms
