Ruby R2.3 LED

Next generation of LED panels including 4in1 LED

How to comprise the latest technology into an advanced LED panel and translate that into an outstanding viewing experience? ROE Visual has done just that.
The Ruby LED panels are a new generation of LED panels equipped with features that are beneficial from build to performance.

Request a demo Download spec sheet

Simply Stunning

Only the best is good enough. Surpassing existing technology, ROE Visual has developed its existing LED, the 2.3 4in1 LED, exclusively available for Ruby. Stronger, less reflection and more contrast due to an optimized black body, the resulting colors are striking.

HDR. True Colors

Sporting advanced driver ICs and LEDs with large color space, Ruby is fully HDR adaptive. Adding excellent color depth and great grayscales to your visuals.

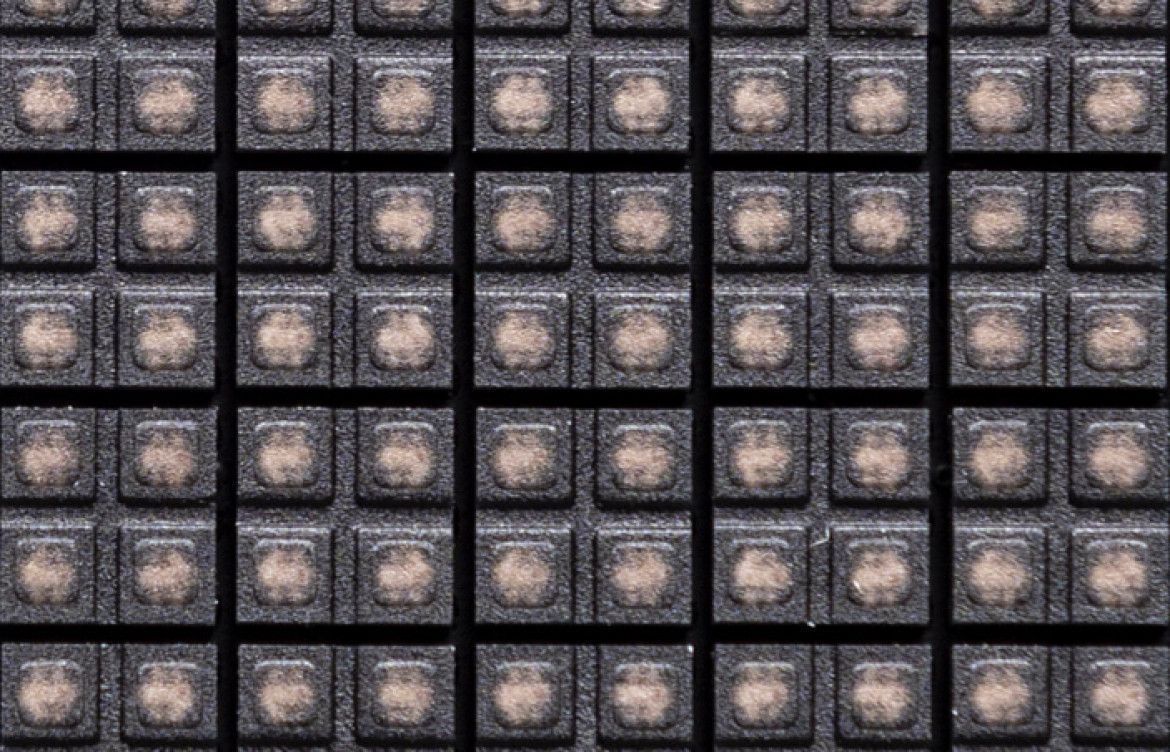

Ruby LED panels are fitted with exclusive 4in1 LEDs

Exclusive 4in1LED

The Ruby LED panels are fitted with exclusive 4in1 LEDs. Each 4in1 LED has 4 individual lenses, resulting in a remarkable LED performance. The enhanced black body between the lens packages creates better contrast and guarantees optimum brightness.

Ruby LED panel incorporates automatic edge-protection

Automatic Edge Protection

The Ruby LED panel incorporates automatic edge-protection on each corner of the panel, reducing pixel damage drastically. The magnet assisted assembly and vertically operated side locks make assembly quick, accurate and safe.

Grayscales for Ruby LED panel by ROE Visual

Shades of black coming alive

With its improved grayscales, Ruby offers precision imagery, showing black in endless scales and fluent gradients.

Cutting-Edge common cathode technology

Common Cathode technology significantly reduces panel temperature, resulting in efficient heat-dissipation, reduced color differences and higher brightness. Power consumption is reduced by 20-25%.

Unprecedented viewing angle

The absence of any mask enables an unprecedented wide viewing angle. With its high-brightness LED performance, the Ruby panels give an excellent visual performance for both direct viewing and on-camera visuals.

Easy does it.

Easy maintenance with front and rear module service. Integrated PSU and Hub units make repair and replacement of spare parts easy and cost-effective.

Advantages of the ROE Visual Ruby 2.3 LED screen
Star Casino
View case
ESC 2019
View case
Ruby LED panel by ROE Visual
Downloads
4in1 LED

Details that matter

Only the best is good enough. Surpassing excisting technology, ROE Visual has developed its own LED, the 2.3 4in1 LED, exclusively available for Ruby. Stronger, less reflection and more contrast due to an optimized black body, the resulting colors are striking.

Ruby Key Features

  • Energy saving Common Cathode technology Energy saving Common Cathode technology
  • Unique strong 4in1 LEDS Unique strong 4in1 LEDS
  • High-brightness - 1500 nits High-brightness - 1500 nits
  • Easy maintenance - front and rear module service Easy maintenance - front and rear module service
  • Automatic Edge-protection - reducing LED damage Automatic Edge-protection - reducing LED damage
  • HDR supported LED technology HDR supported LED technology

Specs

  • Tile
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • Transparency
  • Serviceability
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Multiplexing
  • Refresh Rate
  • Gray Scale
  • Operational Temp/Humidity
  • IP Rating
  • Certifications
  • Ruby 1.5
  • 1.56mm
  • 4 in 1 common cathode
  • 800nits
  • 500 x 500 x 73mm, 19.7” x 19.7” x 2.87”
  • 320 x 320
  • 8.16kg; 17.99lbs
  • 204W / 102W
  • Solid
  • Front / Rear
  • Concave 5°~Convex 3°
  • 140°
  • 140°
  • 16
  • 3840Hz
  • 14bit
  • -20°~ 45°C, 10~90% RH / -4°~113°F, 10~90% RH
  • Indoor
  • CE, ETL, FCC, RoHS
  • Ruby 1.5F
  • 1.56mm
  • 1010 flip chip
  • 1000nits
  • 500 x 500 x 71mm, 19.7” x 19.7” x 2.8”
  • 320 x 320
  • 8.46kg; 18.65lbs
  • 243W / 121W
  • Solid
  • Front / Rear
  • Concave 5°~Convex 3°
  • 140°
  • 140°
  • 10
  • 7680Hz
  • 16bit
  • -20°~ 45°C, 10~90% RH / -4°~113°F, 10~90% RH
  • Indoor
  • CE, ETL, FCC, RoHS
  • Ruby 2.3
  • 2.31mm
  • 4 in 1 common cathode
  • 1500nits
  • 500 x 500 x 68mm, 19.7” x 19.7” x 2.68”
  • 216 x 216
  • 8.16kg; 17.99lbs
  • 180W / 90W
  • Solid
  • Front / Rear
  • Concave 5°~Convex 5°
  • 140°
  • 140°
  • 12
  • 3840Hz
  • 14bit
  • -20°~ 45°C, 10~90% RH / -4°~113°F, 10~90% RH
  • Indoor
  • CE, ETL, FCC
The specifications are for reference, actual values may vary.

Ruby LED Specs

Download all specs

Accessories

Ruby rear connector

Ruby Rear Connector

Use the rear connector to connect your panels to the Stacking system.
Ruby Stacking System

Ruby Stacking System

Use the Stacking System to support your LED screen.

Ruby Hanging Bar

Use the Ruby Hanging Bar for a safe supporting your screen from a truss or other structures.

Processing Platform

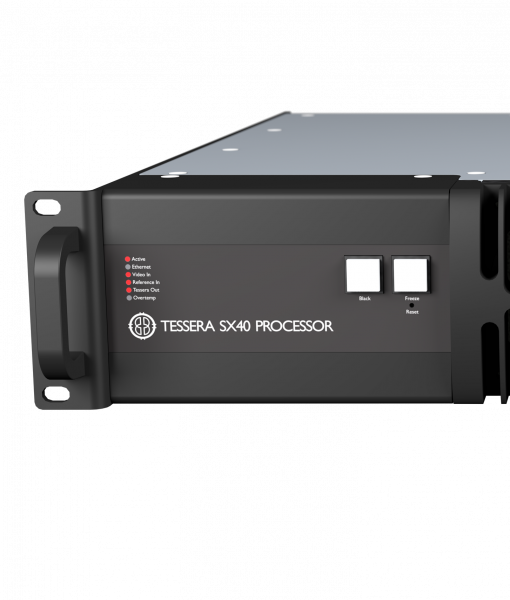

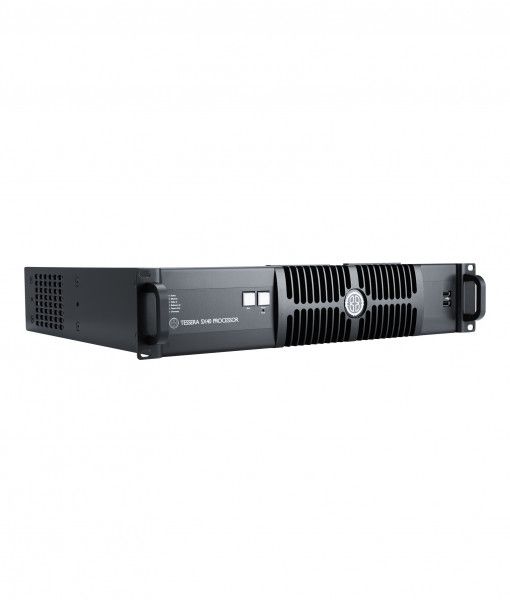

Ruby works on Brompton and Helios processing platforms

Brompton

Rear Base Truss

Base Bar

Hanging Bar

Data Cable

Power Cable
