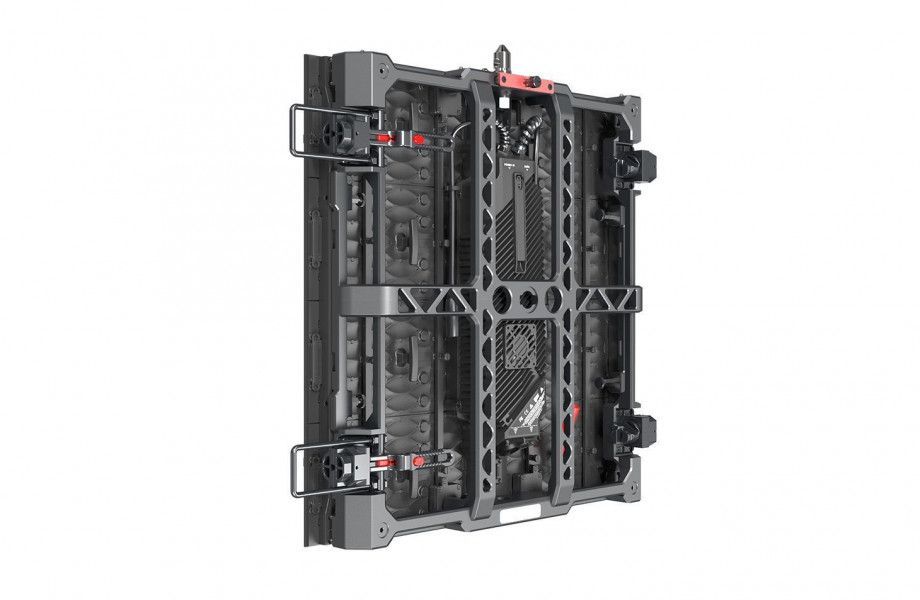

Magic Cube
End-of-Life
Downloads
Specs
MC5H-T2
MC7H-T2
MC9H-T2
MC12H-T2
MC18H-T2
MC5H
MC7H
MC9H
MC12H
MC18H
- Title
- Pixel Pitch
- LED Configuration
- Max Brightness Calibrated
- Panel Dimension
- Panel Resolution (H x V)
- Weight Per Panel
- Power Consumption Max/Average
- BTU Max/Average
- Transparency
- Serviceability
- Curving (Concave & Convex)
- Viewing Angle Vertical
- Viewing Angle Horizontal
- Refresh Rate
- Gray Scale
- Scan Ratio
- Operational Temp/Humidity
- Storage Temp/Humidity
- IP Rating
- Certifications
- Max. Hanging
- Max. Stacking
- MC5H-T2
- 5.77mm
- SMD 2727 Black HB / SMD 2727 White
- 5000nits
- 600mm x 600mm x 95mm
23.62” x 23.62” x 3.74” - 104 x 104
- 17kg | 37.48lbs
- 400W / 200W
- 1365 / 628
- Solid
- No
- Concave 10° ~ Convex 10°
- 120°
- 140°
- 3840Hz
- 16bit
- 1/4
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - Outdoor
- CE, FCC, ROHS, ETL
- 20 panels
- 8 panels
- MC7H-T2
- 7.5mm
- SMD 2727 White / SMD 3535 Black HB
- 5000nits
- 600mm x 600mm x 95mm
23.62” x 23.62” x 3.74” - 80 x 80
- 15.67kg | 34.55lbs
- 420W / 210W
- 1433 / 659
- Solid
- No
- Concave 10° ~ Convex 10°
- 120°
- 140°
- 2000Hz
- 16bit
- 1/5
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - Outdoor
- CE, ETL
- 20 panels
- 8 panels
- MC9H-T2
- 9.38mm
- SMD 3535 White
- 5500nits
- 600mm x 600mm x 95mm
23.62” x 23.62” x 3.74” - 64 x 64
- 13.3kg | 29.32lbs
- 320W / 160W
- 1092 / 502
- 17%
- No
- Concave 10° ~ Convex 10°
- 120°
- 140°
- 3500Hz
- 16bit
- 1/4
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - Outdoor
- CE, ETL
- 20 panels
- 8 panels
- MC12H-T2
- 12.5mm
- SMD 3535 White
- 6000nits
- 600mm x 600mm x 95mm
23.62” x 23.62” x 3.74” - 48 x 48
- 12.8kg | 28.22lbs
- 320W / 160W
- 1092 / 502
- 21%
- No
- Concave 10° ~ Convex 10°
- 120°
- 140°
- 4000Hz
- 16bit
- Static
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - Outdoor
- CE, ETL
- 20 panels
- 8 panels
- MC18H-T2
- 18.75mm
- SMD 3535 White
- 4800nits
- 600mm x 600mm x 95mm
23.62” x 23.62” x 3.74” - 32 x 32
- 12.15kg | 26.79lbs
- 250W / 125W
- 853 / 392
- 37%
- No
- Concave 10° ~ Convex 10°
- 120°
- 140°
- 4000Hz
- 16bit
- Static
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - Outdoor
- CE, ETL
- 20 panels
- 8 panels
- MC5H
- 5.77mm
- SMD 2727 Black HB / SMD 2727 White
- 5000nits
- 600mm x 600mm x 89mm
23.62” x 23.62” x 3.5” - 104 x 104
- 400W / 200W
- 1365 / 628
- Solid
- No
- Concave 10° ~ Convex 10°
- 120°
- 140°
- 3840Hz
- 16bit
- 1/4
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - Outdoor
- CE, FCC, ROHS, ETL
- 20 panels
- 8 panels
- MC7H
- 7.5mm
- SMD 2727 White / SMD 3535 Black HB
- 5000nits
- 600mm x 600mm x 85mm
23.62” x 23.62” x 3.35” - 80 x 80
- 10.39kg | 22.91lbs
- 420W / 210W
- 1433 / 659
- Solid
- No
- Concave 10° ~ Convex 10°
- 120°
- 140°
- 2000Hz
- 16bit
- 1/5
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - Outdoor
- CE, ETL
- 20 panels
- 8 panels
- MC9H
- 9.38mm
- SMD 3535 White
- 5500nits
- 600mm x 600mm x 85mm
23.62” x 23.62” x 3.35” - 64 x 64
- 7.99kg | 17.62lbs
- 320W / 160W
- 1092 / 502
- 17%
- No
- Concave 10° ~ Convex 10°
- 130°
- 140°
- 3500Hz
- 16bit
- 1/4
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - Outdoor
- CE, ETL
- 20 panels
- 8 panels
- MC12H
- 12.5mm
- SMD 3535 White
- 6000nits
- 600mm x 600mm x 85mm
23.62” x 23.62” x 3.35” - 48 x 48
- 7.49kg | 16.51lbs
- 320W / 160W
- 1092 / 502
- 21%
- No
- Concave 10° ~ Convex 10°
- 120°
- 140°
- 4000Hz
- 16bit
- Static
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - Outdoor
- CE, ETL
- 20 panels
- 8 panels
- MC18H
- 18.75mm
- SMD 3535 White
- 4800nits
- 600mm x 600mm x 85mm
23.62” x 23.62” x 3.35” - 32 x 32
- 6.99kg | 15.41lbs
- 250W / 125W
- 853 / 392
- 37%
- No
- Concave 10° ~ Convex 10°
- 120°
- 140°
- 4000Hz
- 16bit
- Static
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - Outdoor
- CE, ETL
- 20 panels
- 8 panels
