Black Pearl BP2

Black Pearl

LED with perfect on-camera performance

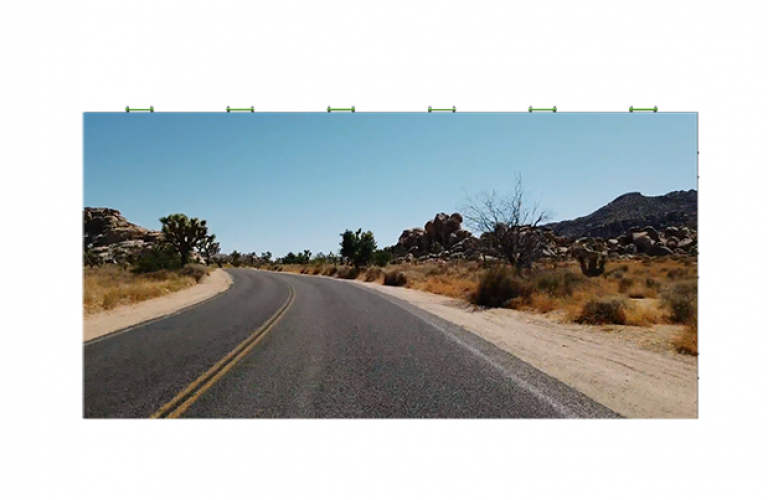

Black Pearl is a high-performance, broadcast grade, HD-LED display for indoor applications. Winner of the prestigious IDEA Gold Award and the Red Dot Award, Black Pearl offers a user-friendly and innovative design. It's available in a 2.8mm (BP2) and 3.9mm (BP3) pixel pitch. With its high frame rate, high refresh rate and low scan lines it is perfect for on-camera jobs as well as live events.

Black Pearl

Fast and Easy Set-up

The integrated magnet-assisted assembly and the smart-lock system allow for easy positioning and efficient installation. The narrow tolerances on the panels will result in a flawless LED canvas.

BP Intelligent Module and Easy Maintenance

Intelligent Module and Easy Maintenance

Each individual module stores its calibration and operating parameters. Equipped with identical push-out modules, maintenance is a breeze.

BP Superb Visuals

Superb Visuals

True-to-content effects are created with high refresh rates, outstanding color processing and great contrast ratios.

BP High Power Supply Efficiency

High Power Supply Efficiency

Built-in heat dissipation and a power supply efficiency of 90% guarantee minimum waste heat.

BP Flexible Installation Options

Flexible Installation Options

Due to its stacking, hanging and curved installation options, the Black Pearl LED panels to offer flexible solutions for both rental and fixed installation applications. Through concave or convex curving a large field of view and a more immersive experience can be created.

mmc-virtual studio

Black Pearl BP2V2

The Film-Centric LED Panel

The BP2V2 offers the trusted performance of the Black Pearl BP2 in an updated version with high-speed components and true-to-content color representation.  It results in an identical, perfect on-camera performance as the BP2, adding quicker and easier camera set up and handling. Its on-camera performance is unrivaled, ideal for film applications.

Download the Brochure

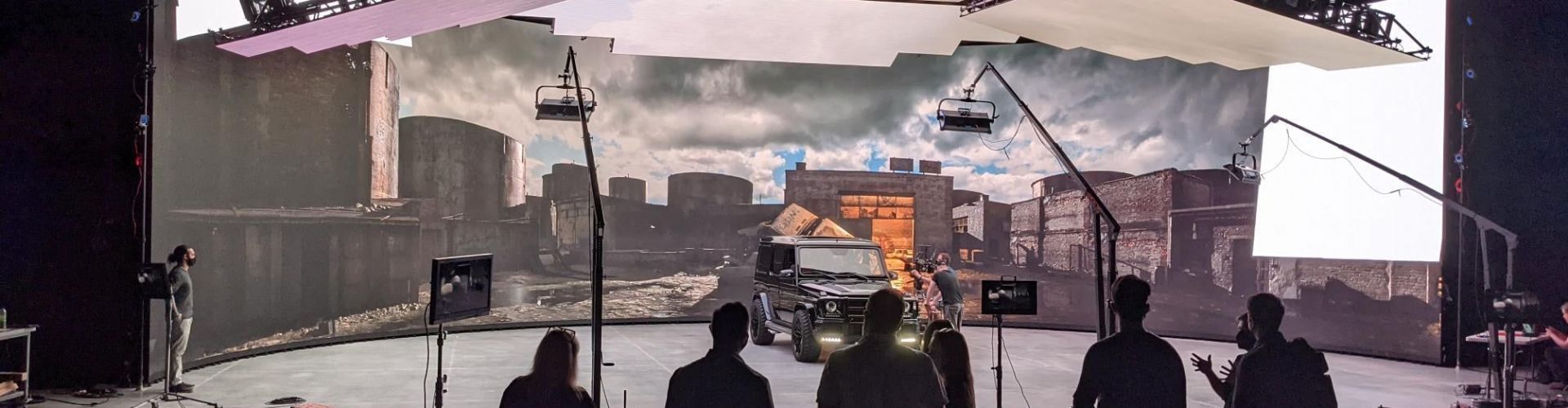

Black Pearl for virtual production

Perfect for Virtual Production in Film and Broadcast

Black Pearl

LED panels prove to be the ideal solution and canvas to portray sets and backgrounds created in virtual reality. Thereby creating maximum flexibility for the production teams to make last-minute set changes or slight alterations and comforting actors in a setting that is both real and immersive, enhancing their performance in comparison to performing against a green screen.

Read more on Virtual Production

ROE Visual partners with Disguise

Virtual Production

"disguise and ROE Visual's shared history and commitment to producing cutting-edge technology that empowers users to bring unforgettable experiences to life means that this partnership will further expand the global reach of extended reality. ROE Visual's dedication to providing the best LED display platforms and outstanding LED solutions drives mutual innovation in virtual production. The teams' professional attitude and enthusiasm are very motivational to serve our shared clientele with even better solutions and techniques," says Fernando Kufer, CEO of disguise.

Read More

Downloads

Black Pearl Key Features

Durable magnesium frame
Magnet assisted assembly
LED protection through special edge design
Creative modules
Intelligent module stores calibration
Highly efficient power supply
Indoor use
BP2 - 2.84, BP3 - 3.91mm

Specs

  • Tile
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Multiplexing
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • BP 2
  • 2.84mm
  • SMD 1515 Black
  • 1500 nits
  • 500 x 500 x 90mm 19.69" x 19.69" x 3.54"
  • 176 x 176
  • 9.35kg; 20.61lbs
  • 160W / 80W
  • 550 / 250
  • Solid
  • Concave 10°
  • 140°
  • 140°
  • 3840Hz
  • 14bit
  • 11
  • -20° ~45°C 10~90% RH
    -4° ~113°F 10~90% RH
  • -40° ~60°C 10~90% RH
    -40° ~140°F 10~90% RH
  • Indoor
  • CE, ETL, FCC
  • BP 2V2
  • 2.84mm
  • SMD 1515 Black
  • 1500 nits
  • 500 x 500 x 90mm 19.69" x 19.69" x 3.54"
  • 176 x 176
  • 9.35kg; 20.61lbs
  • 190W / 95W
  • 630 / 300
  • Solid
  • Concave 10°
  • 140°
  • 140°
  • 7680Hz
  • 16bit
  • 8
  • -20° ~45°C 10~90% RH
    -4° ~113°F 10~90% RH
  • -40° ~60°C 10~90% RH
    -40° ~140°F 10~90% RH
  • Indoor
  • CE, ETL, FCC
  • BP 3
  • 3.91mm
  • SMD 2020 Black
  • 1500 nits
  • 500 x 500 x 90mm 19.69" x 19.69" x 3.54"
  • 128 x 128
  • 8.7kg; 19.18bs
  • 170W / 85W
  • 580 / 270
  • Solid
  • Concave 10°
  • 140°
  • 140°
  • 1920Hz
  • 14bit
  • 16
  • -20° ~45°C 10~90% RH
    -4° ~113°F 10~90% RH
  • -40° ~60°C 10~90% RH
    -40° ~140°F 10~90% RH
  • Indoor
  • CE, ETL, FCC
The specifications are for reference, actual values may vary.

Download specs BP2 Download specs BP2V2

Black Pearl for Virtual Events

Application Fields

  • Indoor Events
  • Broadcast
  • Film Production
  • Virtual Event Stages
  • Theatre

Black Pearl BP2 V2 for PXO

Pixomondo Studio

The company is an emerging specialist in “in-camera VFX” and currently has two VP stages in Toronto and one under construction in Vancouver, all of which are equipped with a ROE Visual LED volume. The LED walls are specified with Black Pearl BP2V2 LED panels with the LED ceilings composed of Carbon Series CB5 LED panels. All three PXO stages are built in partnership with equipment rental specialist William F. White International.

Read More

Accessories

Base Bar

Base Truss

Brompton

Data Cable

Hanging Bar

Power Cable

Rear Bridge

Rear Truss
Pixomondo

"Ushering an iconic series like Star Trek into a new era of virtual production has been a thrilling experience. We are so grateful to have technical partners like ROE Visual onboard for this adventure. ROE Visual’s LED products set the quality benchmark for the whole industry and perform exquisitely and reliably, delivering outstanding vivid colors and market-leading brightness."

Pixomondo Mahmoud Rahnama
