Carbon Series

Build large LED walls fast & easy

Excellent brightness, high quality black or white LED and a low selfweight make the Carbon series LED panels the perfect solution for touring, sports or events applications, where large videowalls need to be built quickly. The series comprises of the CB8 (outdoor/indoor), CB5 (outdoor/indoor) and CB3 (indoor). Clever accessories, like hanging and stacking options, touring frames and transport dollies complete the Carbon series.

Carbon Key Features

Half Panel

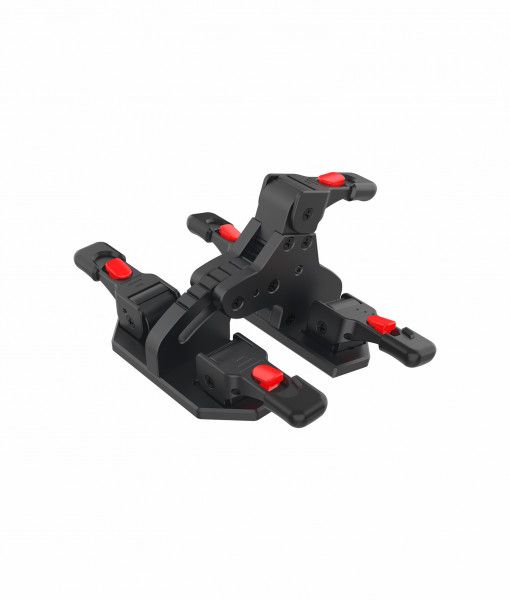

Curveable
90° Corner

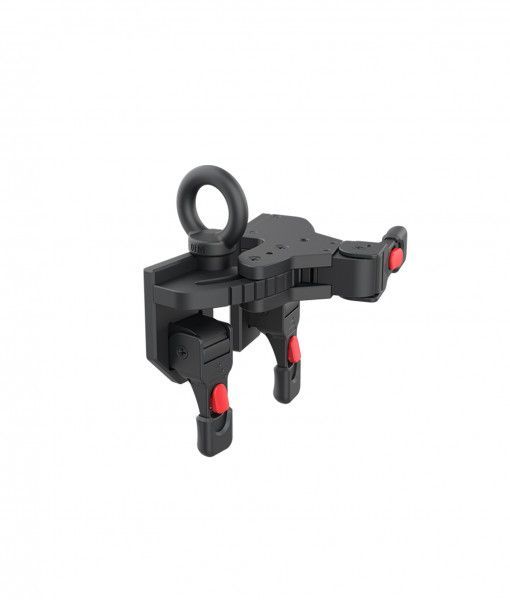

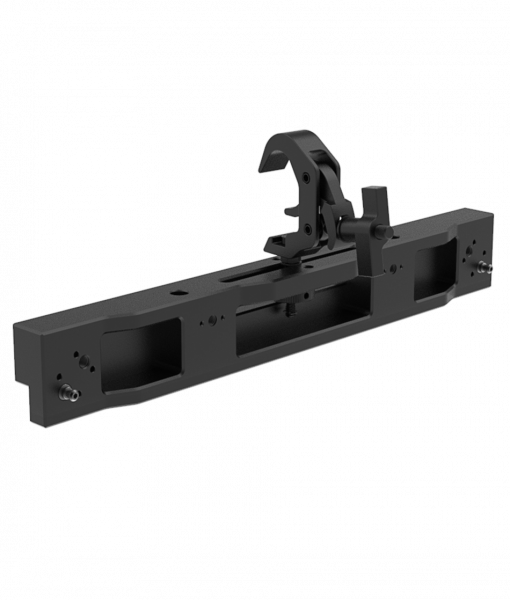

Hanging System

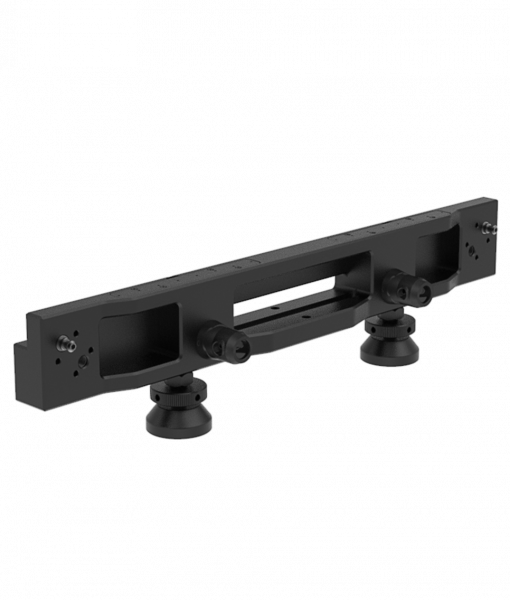

Stacking System
LED Ceiling
Pixel Pitch
Dummy Panel
CB3
CB3 Half
CB5
CB5 Half
CB8
CB8 Half
CB8-Transparent
CB8-Transparent Half
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • Max. Hanging
  • Max. Stacking
  • CB3
  • 3.75mm
  • SMD 2020 Black
  • 1500nits
  • 600mm x 1200mm x 77mm
    23.6” x 47.2” x 3”
  • 160 x 320
  • 13.2kg | 29.1lbs
  • 540W / 270W
  • 1840 / 850
  • Solid
  • Rear
  • Concave 15° ~ Convex 10°
  • 140°
  • 140°
  • 3840Hz
  • 14bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, ETL, FCC, ROHS
  • 12 panels
  • 5 panels
  • CB3 Half
  • 3.75mm
  • SMD 2020 Black
  • 1500nits
  • 600mm x 600mm x 77mm
    23.6” x 23.6” x 3”
  • 160 x 160
  • 7.5kg | 15.87lbs
  • 260W / 130W
  • 890 / 410
  • Solid
  • Rear
  • Concave 15° ~ Convex 10°
  • 140°
  • 140°
  • 3840Hz
  • 14bit
  • 1/16
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, ETL, FCC
  • 24 panels
  • 10 panels
  • CB5
  • 5.77mm
  • SMD 1921 White
  • 6000nits
  • 600mm x 1200mm x 77mm
    23.6” x 47.2” x 3”
  • 104 x 208
  • 13.85kg | 30.53lbs
  • 500W / 250W
  • 1710 / 785
  • Solid
  • Front
  • Concave 15° ~ Convex 10°
  • 110°
  • 140°
  • 7680Hz
  • 16bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC
  • 12 panels
  • 5 panels
  • CB5 Half
  • 5.77mm
  • SMD 1921 White
  • 6000nits
  • 600mm x 600mm x 77mm
    23.6” x 23.6” x 3”
  • 104 x 104
  • 7.95kg | 17.5lbs
  • 250W / 130W
  • 850 / 290
  • Solid
  • Front
  • Concave 15° ~ Convex 10°
  • 110°
  • 140°
  • 7680Hz
  • 16bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, UKCA, SAA, WEEE
  • 24 panels
  • 10 panels
  • CB8
  • 8.33mm
  • SMD 2727 White
  • 5000nits
  • 600mm x 1200mm x 72mm
    23.6” x 47.2” x 2.8”
  • 72 x 144
  • 12.68kg | 27.96lbs
  • 430W / 220W
  • 1470 / 675
  • Solid
  • Front
  • Concave 15° ~ Convex 10°
  • 110°
  • 140°
  • 3840Hz
  • 16bit
  • 1/6
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, ROHS
  • 12 panels
  • 5 panels
  • CB8 Half
  • 8.33mm
  • SMD 2727 White
  • 5000nits
  • 600mm x 600mm x 72mm
    23.6” x 23.6” x 2.8”
  • 72 x 72
  • 7.05kg | 15.54lbs
  • 220W / 110W
  • 750 / 345
  • Solid
  • Front
  • Concave 15° ~ Convex 10°
  • 110°
  • 140°
  • 3840Hz
  • 16bit
  • 1/6
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC
  • 24 panels
  • 10 panels
  • CB8-Transparent
  • 8.33mm
  • SMD 2727 White
  • 5000nits
  • 600mm x 1200mm x 70mm
    23.6” x 47.2” x 2.8”
  • 72 x 144
  • 10.9kg | 24.03lbs
  • 430W / 220W
  • 1470 / 675
  • 23%
  • Front
  • Concave 15° ~ Convex 10°
  • 110°
  • 140°
  • 3840Hz
  • 16bit
  • 1/6
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, ROHS
  • 12 panels
  • 5 panels
  • CB8-Transparent Half
  • 8.33mm
  • SMD 2727 White
  • 5000nits
  • 600mm x 600mm x 70mm
    23.6” x 23.6” x 2.8”
  • 72 x 72
  • 6kg | 13.23lbs
  • 220W / 110W
  • 750 / 345
  • 23%
  • Front
  • Concave 15° ~ Convex 10°
  • 110°
  • 140°
  • 3840Hz
  • 16bit
  • 1/6
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC
  • 24 panels
  • 10 panels
Comparison
<< product.title >>
  • Title
Carbon LED Panels

Application Fields

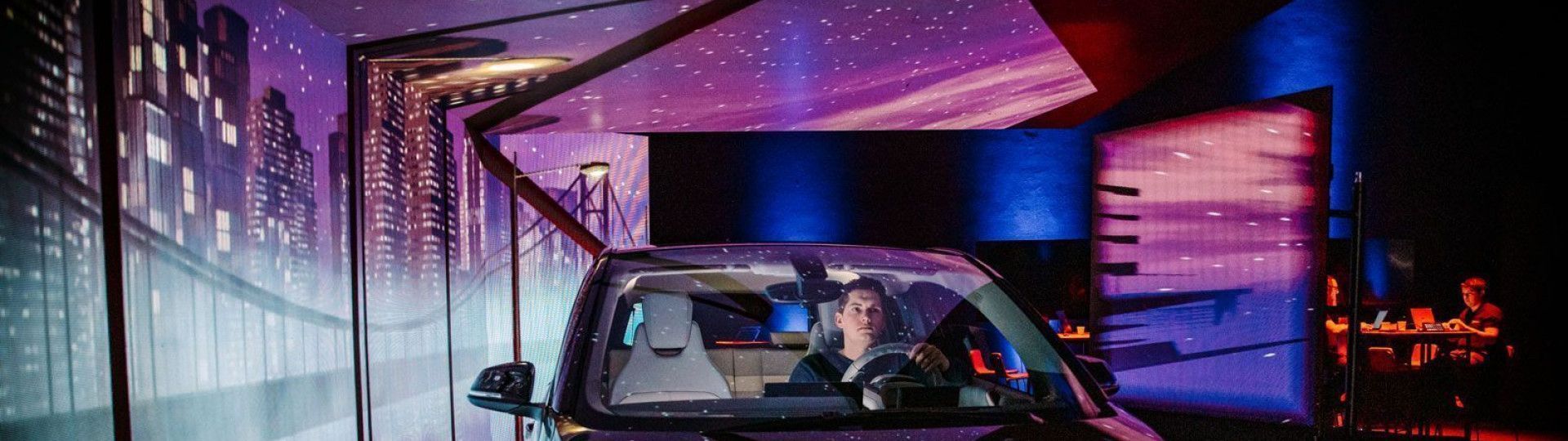

  • Virtual Productions

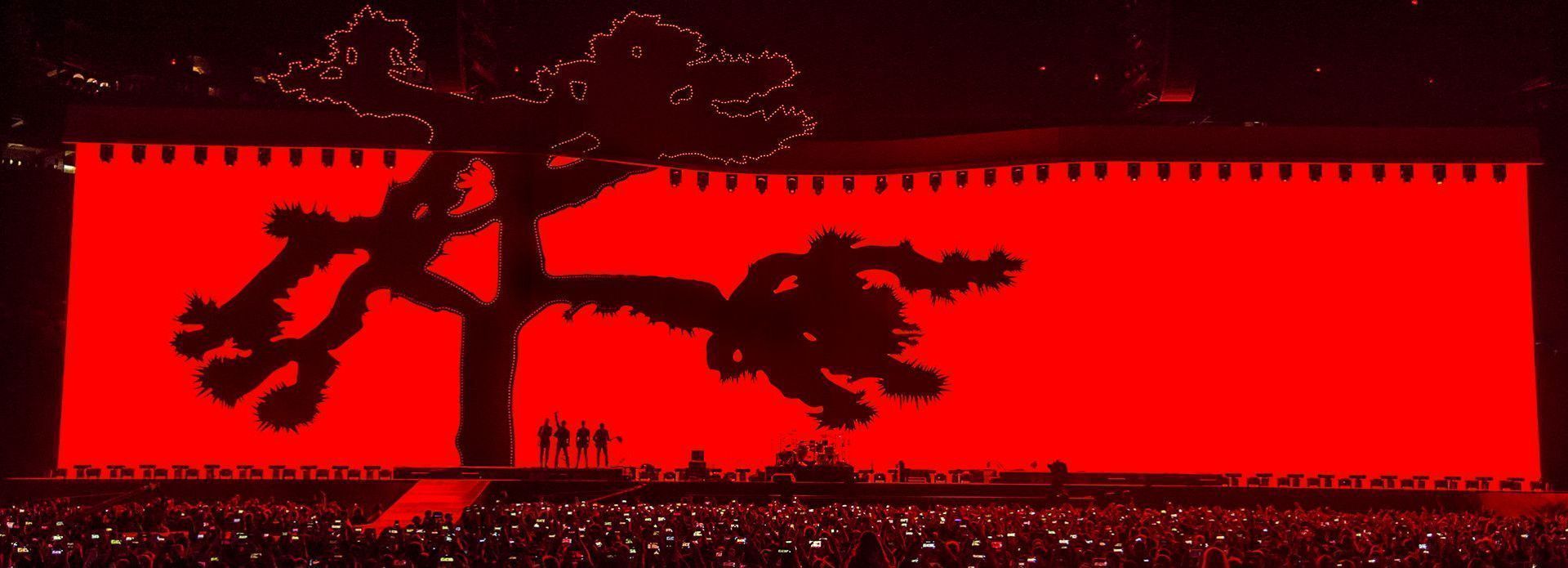

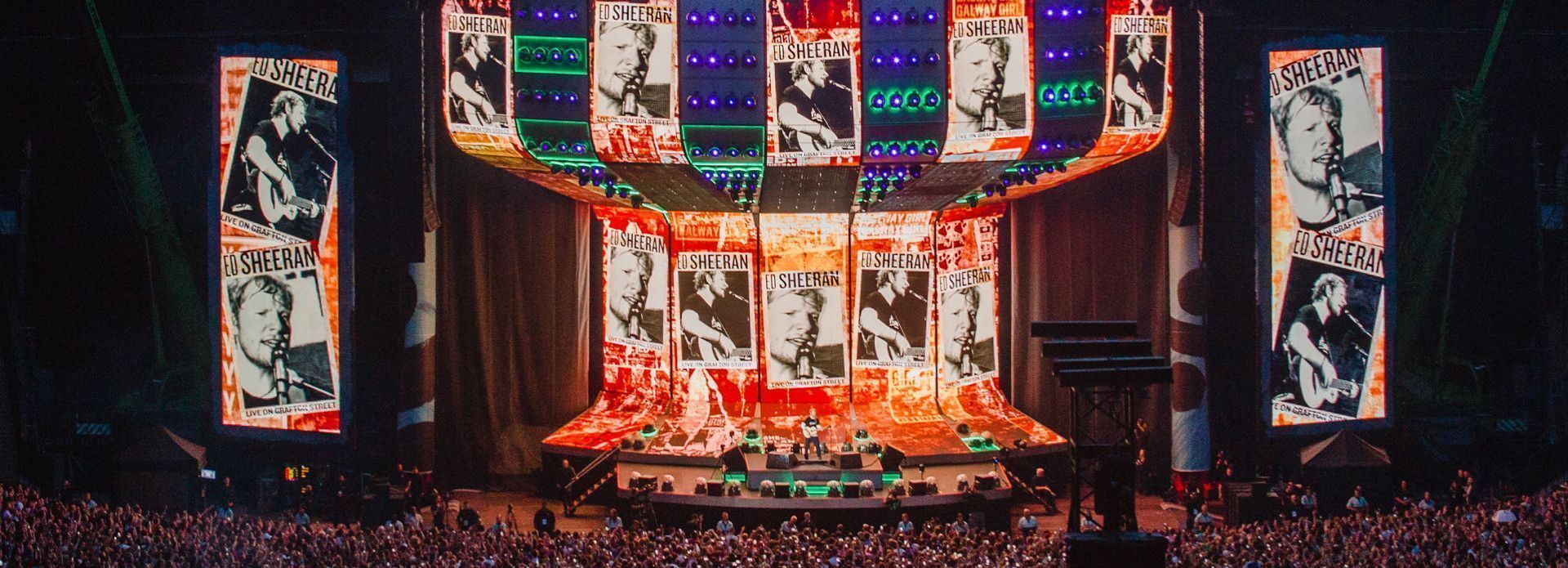

  • Touring productions
  • Festivals
  • In- and Outdoor Events
  • Sports Events
  • In- and Outdoor Advertising
Andrew Reardon

The ROE CB5 is just wonderful, by far the best LED product ever placed in region. It's been a good universal product for CT in the middle east completing a wide range of projects from outdoor touring to indoor corporate. The crews and engineers absolutely rave about it and client feedback has been fantastic.

Andrew Reardon CT Middle East

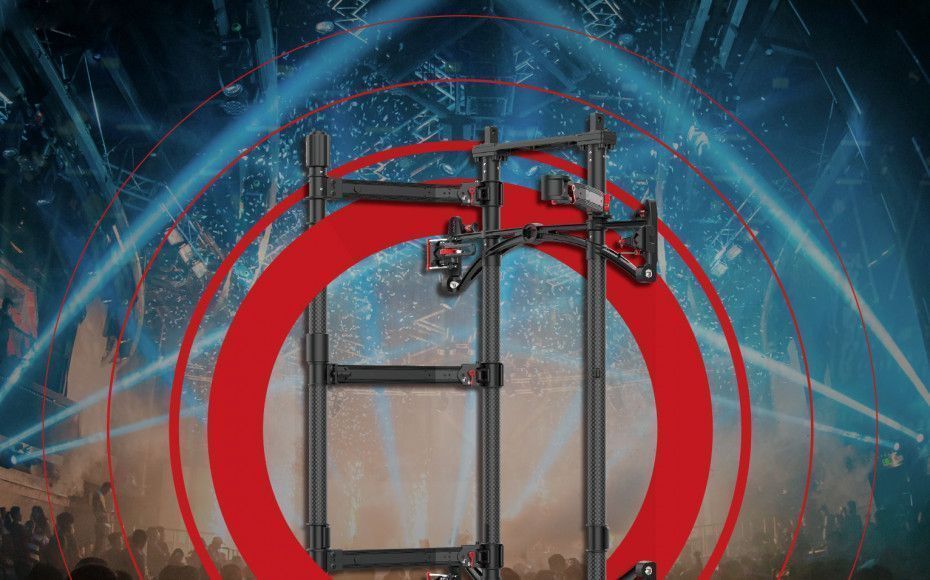

Air Frame by ROE Visual

Use Carbon panels with Air Frame for added safety

Read More

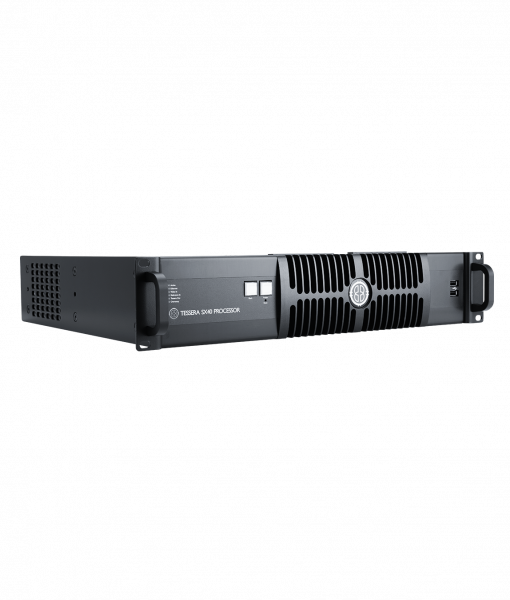

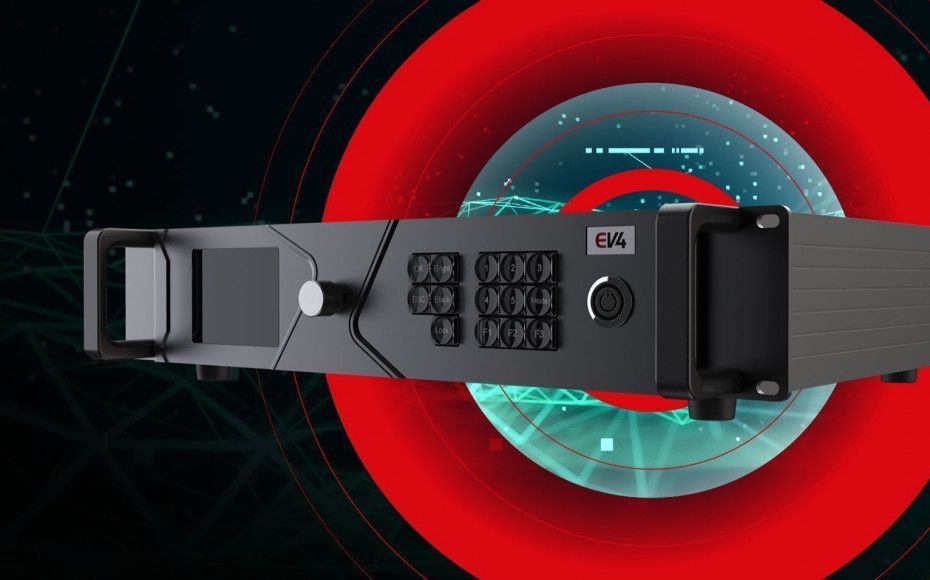

LED Processors ROE Visual
