Vanish V8T巡回演出解决方案
见与不见，虚实之间
Vanish V8T系列通透显示屏，透通透率达到50%。V8T具有高亮度和宽视角，在室外环境下有着出色的显示效果。
室外透明显示屏
完美的显示效果
出色的灰度，弧形拼接可供选择
现场维修更方便
操作方便易于运输 V8T主要特点
50%透明度
易于维护
可供室外使用
吊装和座装
弧形拼接
V8T
V8T-H
V8T-V
- Title
- Pixel Pitch
- LED Configuration
- Max Brightness Calibrated
- Panel Dimension
- Panel Resolution (H x V)
- Weight Per Panel
- Power Consumption Max/Average
- BTU Max/Average
- Transparency
- Serviceability
- Curving (Concave & Convex)
- Viewing Angle Vertical
- Viewing Angle Horizontal
- Refresh Rate
- Gray Scale
- Scan Ratio
- Operational Temp/Humidity
- Storage Temp/Humidity
- IP Rating
- Certifications
- Max. Hanging
- Max. Stacking
- V8T
- 8.9mm
- SMD 1515 White
- 4000nits
- 1000mm x 1000mm x 95mm
39.4” x 39.4” x 3.74” - 112 x 112
- 18.2kg | 40.13lbs
- 480W / 240W
- 1635 / 750
- 50%
- Rear
- Concave 10° ~ Convex 10°
- 160°
- 160°
- 3840Hz
- 14bit
- 1/4
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP65
- CE, ETL, FCC, UKCA
- 22 panels
- 6 panels
- V8T-H
- 8.9mm
- SMD 1515 White
- 4000nits
- 1000mm x 500mm x 95mm
39.4” x 19.7” x 3.74” - 112 x 56
- 11.22kg | 24.74lbs
- 260W / 130W
- 890 / 445
- 41%
- Rear
- Concave 10° ~ Convex 10°
- 160°
- 160°
- 3840Hz
- 14bit
- 1/4
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP65
- CE, ETL, FCC, UKCA
- 40 panels
- 12 panels
- V8T-V
- 8.9mm
- SMD 1515 White
- 4000nits
- 500mm x 1000mm x 95mm
19.7” x 39.4” x 3.74” - 56 x 112
- 14.56kg | 32.1lbs
- 260W / 130W
- 890 / 445
- 35%
- Rear
- Concave 10° ~ Convex 10°
- 160°
- 160°
- 3840Hz
- 14bit
- 1/4
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP65
- CE, ETL, FCC, UKCA
- 22 panels
- 6 panels
All specification values given are per panel. The specifications are for reference only, actual values may vary. The max. hanging amount is only valid when official ROE Visual hardware parts are used. The safety factor is 8. Climbing is only allowed if stated in the panel manual and only following the rules given therein. The max. stacking amount is only valid when official ROE Visual hardware parts are used and when sufficient ballast is applied – following the rules as stated in the panel manual and/or structural report.
应用领域
- 巡回演出
- 音乐会
- 室外活动
配件

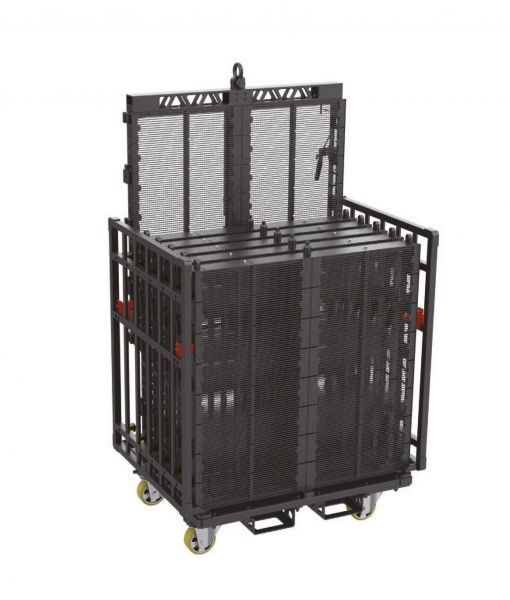

航车
数据线
电源线
座装横梁组件
座装支撑架组件
吊装横梁组件

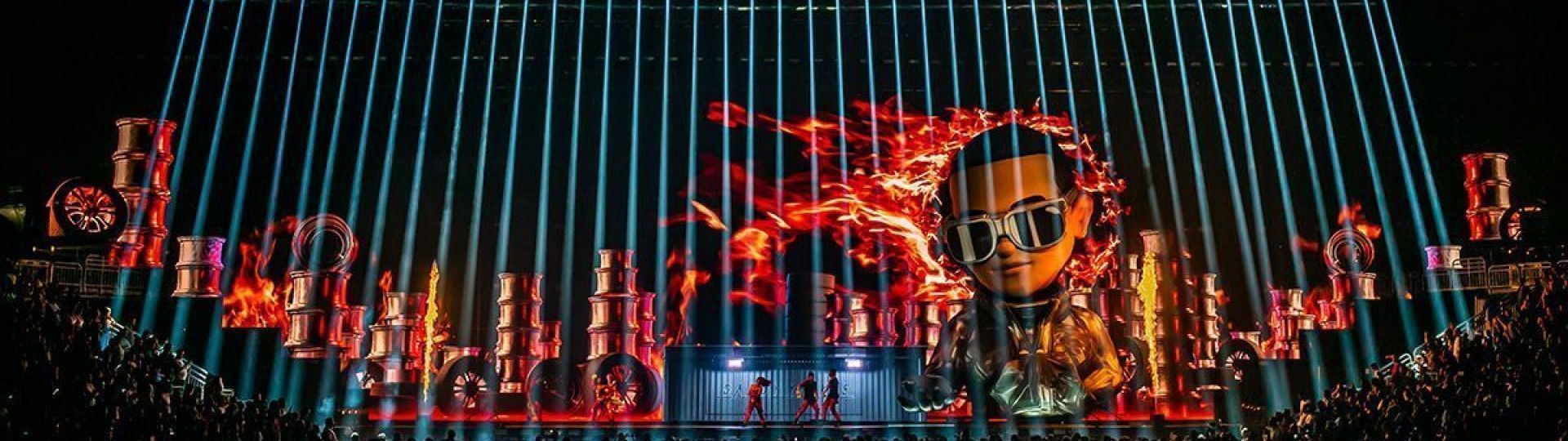

“我们想要向整个雷迪奥的团队致谢，他们总是非常信任并坚定的支持我们。”“在Daddy Yankee演唱会上使用了雷迪奥V8T面板，整个舞台宽度达到170英尺，这是史无前例的。
Rodrigo Proal Darmah Studios
