Ruby-C Series

The Next-Generation LED Panel now comes in Curves

Ruby-C

The highly-acclaimed Ruby Series LED panels are complemented with a completely compatible series of curving LED panels. The Ruby-C series is a line of smoothly curving LED panels, that look great in either flat or curved configurations.

The Ruby-C LED panel can be curved in both convex and concave curves. The panel can reach a maximum curving degree of 30-degrees, in a smooth, flawless curve, without flat sections. The precise positioning of the curving-degree allows for precise curving, up to a 1-degree curve.

Contact Us

Matching Pixel Pitches

The Ruby-C series is available in several pixel pitches that match the regular Ruby LED panels.

Ruby RB-C1.9B V2
Ruby RB-C2.3
Ruby RB-C2.6

perfect curves

Create Smooth and Perfect Curve

You can create smooth and perfect curved or flat displays using the Ruby-C LED panels. Various curve applications include cylinders with diameters less than 2 meters, archways, tunnels, or perfect waves.

RB-C1.9BV2
RB-C2.3
RB-C2.6
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • Max. Hanging
  • Max. Stacking
  • RB-C1.9BV2
  • 1.95mm
  • SMD1212 Black
  • 1500nits
  • 500mm x 500mm x 108mm
    19.7” x 19.7” x 4.25”
  • 256 x 256
  • 8.4kg | 18.52lbs
  • 160W / 80W
  • 545 / 250
  • Solid
  • Rear
  • Concave 20° ~ Convex 20°
  • 140°
  • 140°
  • 7680Hz
  • 16bit
  • 1/8
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Indoor
  • CE, ETL, FCC, UKCA
  • 20 panels
  • 12 panels
  • RB-C2.3
  • 2.31mm
  • 4 in 1 common cathode
  • 1500nits
  • 500mm x 500mm x 100mm
    19.7” x 19.7” x 3.94”
  • 216 x 216
  • 7.4kg | 16.31lbs
  • 180W / 90W
  • 615 / 280
  • Solid
  • Rear
  • Concave 30° ~ Convex 30°
  • 140°
  • 140°
  • 3840Hz
  • 15bit
  • 1/12
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Indoor
  • CE, ETL, FCC, UKCA
  • 20 panels
  • 12 panels
  • RB-C2.6
  • 2.604mm
  • SMD 1515 Black
  • 1500nits

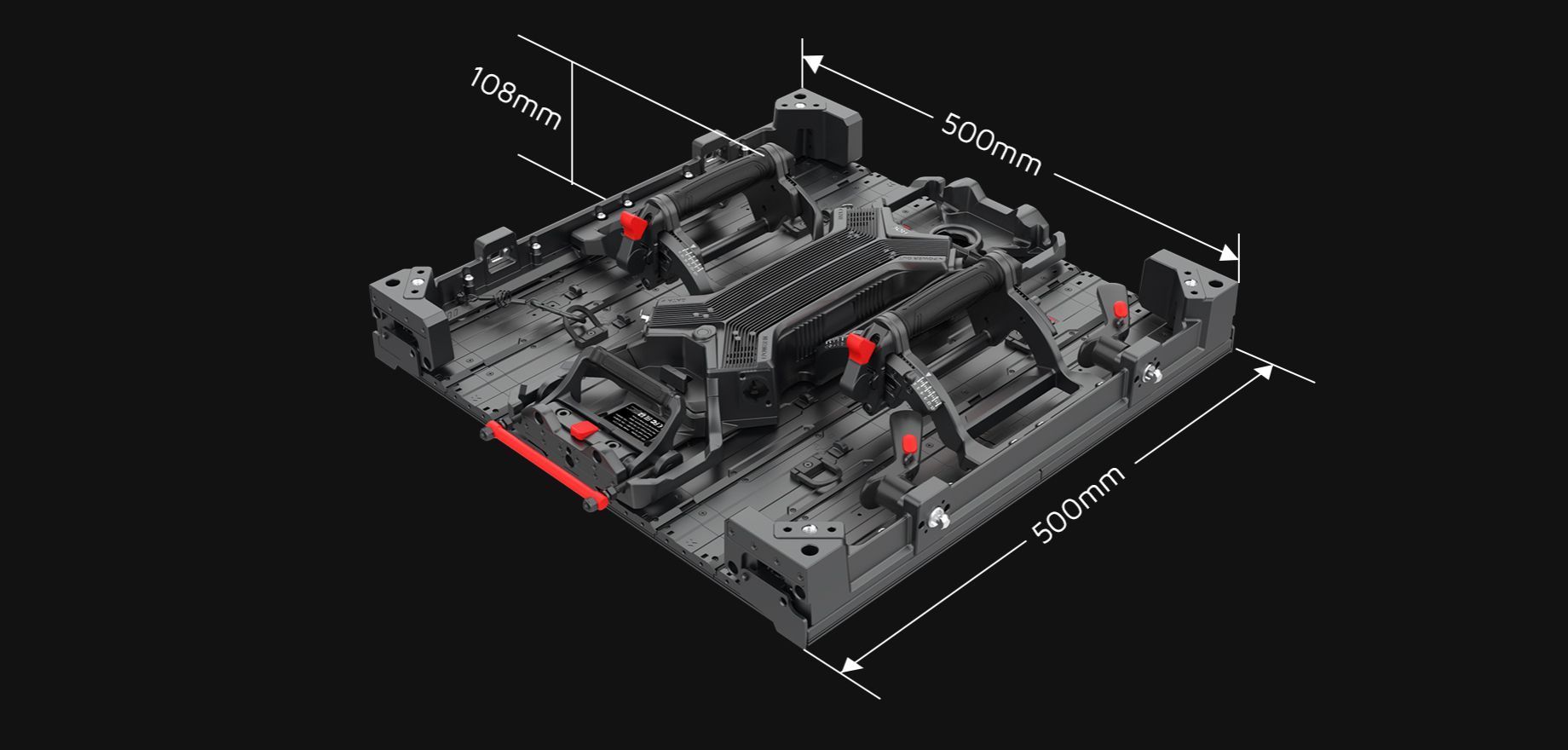

  • 500mm x 500mm x 108mm
    19.7” x 19.7” x 4.25”
  • 192 x 192
  • 8.3kg | 18.31lbs
  • 160W / 80W
  • 545 / 250
  • Solid
  • Rear
  • Concave 30° ~ Convex 30°
  • 140°
  • 140°
  • 7680Hz
  • 16bit
  • 1/12
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Indoor
  • CE, ETL, FCC, UKCA
  • 20 panels
  • 12 panels
Comparison
<< product.title >>
  • Title

Ruby C Key Features

Easy Maintenance
Easy Maintenance
HDR Support
HDR Support
Modular Design
Modular Design
High Brightness
High Brightness
Tunnel/Archway/Wave/Cylinder
Tunnel/Archway/Wave/Cylinder
Automatic Edge Protection
Automatic Edge Protection
Ruby-C LED Panels

Application Fields

  • Broadcasting studios
  • Virtual production studios
  • House of worship
  • Theater

Combine Ruby-C with Ruby
