Jade

Featherlight Brilliance

Meet Jade, LED display technology made featherlight. Jade is an ultra-lightweight LED panel that delivers outstanding visual impact for any event. This versatile LED panel is easy to handle and assemble, transforming event spaces into vibrant and immersive environments, for indoor and outdoor use.

Download the brochure

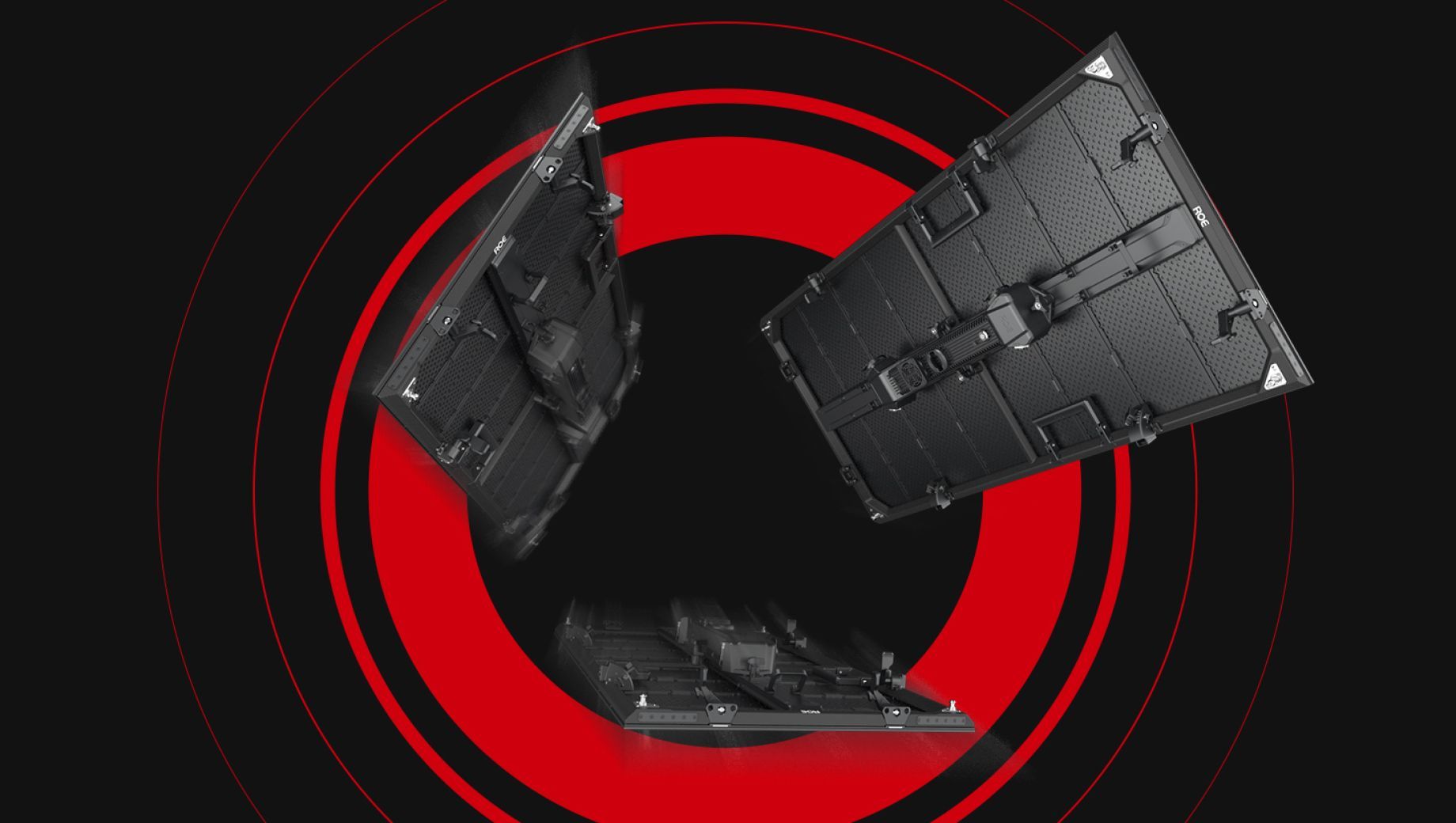

ROE Visual Jade LED Platform

Extreme Light Weight Design

Each Jade LED panel tips the scales at just 6.6 kg, making it about 20% lighter than traditional options, which simplifies both installation and transport, while the carbon fiber frame is engineered for exceptional durability and strength, setting a new standard for lightweight performance without sacrificing quality.

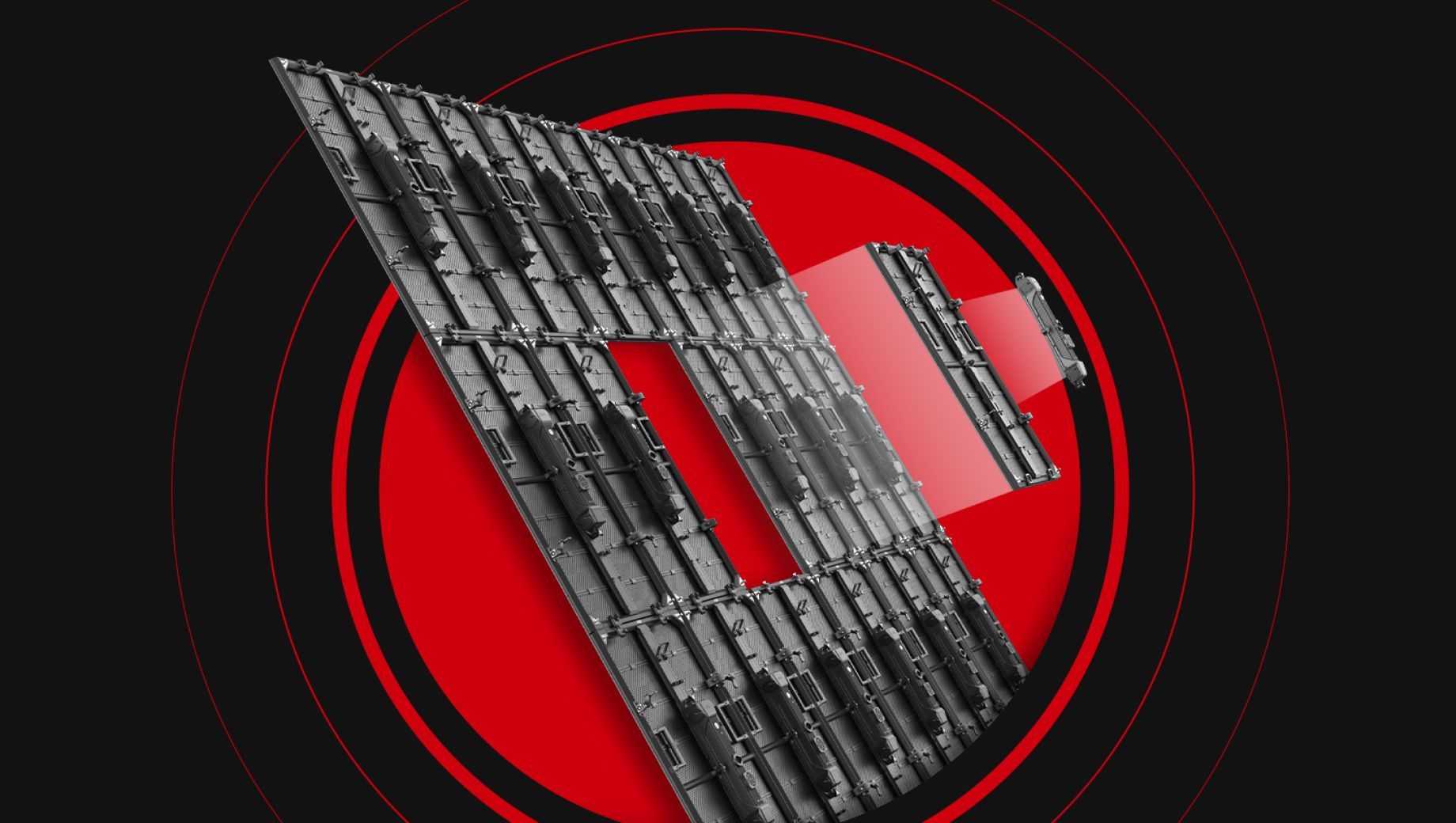

Easy Maintenance

Easy Maintenance

The quick-release PSU box facilitates easy replacement, minimizing downtime. Additionally, the quick-release retractable pin enables swift and effortless removal of any panel from the canvas.

curving

Curve Possibility

Jade's unique locking system allows for smooth curving, accommodating angles from 10 degrees concave to 10 degrees convex, with adjustments in 2.5-degree increments.

corner connection

Corners Option

Create flawless 90-degree corners with the special corners panels, enabling you to wrap your message around any space.

Brightness and Contrast

Brightness and Contrast

Experience stunning clarity and vivid colors with Jade's high brightness and high contrast, ensuring every image is displayed with exceptional detail. With its superior brightness and contrast, Jade delivers imagery in breathtaking clarity and vibrant hues, making every visual stand out.

viewing performance

Friendly Featherlight

Effortless Easy Hands On

The innovative housing-free module and unique cellular design significantly reduces weight. The Jade series is designed with a super lightweight structure and advanced materials, making it easy for anyone to lift and install an LED wall effortlessly.

Downloads

Jade Key Features

Lightweight
Super Lightweight
Modular Design
Modular Design
High Britness
High Brightness
Curving Possibility
Curving Possibility
Easy Maintenance
Easy Maintenance
Hanging and Stacking
Hanging and Stacking

Specs

Download All Specs
JDO3.9
JDO3.9 Half
JDI4.8
JDI4.8 Half
JDO5.9
JDO5.9 Half
JDI5.9
JDI5.9 Half
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • Max. Hanging
  • Max. Stacking
  • JDO3.9
  • 3.9mm
  • SMD 1415 Black
  • 3500nits
  • 500mm x 1000mm x 90mm
    19.69” x 39.71” x 3.54”
  • 128 x 256
  • 6.8kg | 14.99lbs
  • 300W / 150W
  • 1025 / 470
  • Solid
  • Rear
  • Concave 10° ~ Convex 10°
  • 130°
  • 160°
  • 7680Hz
  • 16bit
  • 1/8
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, PSE, ROHS
  • 15 panels
  • 6 panels
  • JDO3.9 Half
  • 3.9mm
  • SMD 1415 Black
  • 3500nits
  • 500mm x 500mm x 86mm
    19.69” x 19.69” x 3.39”
  • 128 x 128
  • 4.1kg | 9.04lbs
  • 160W / 80W
  • 545 / 250
  • Solid
  • Rear
  • Concave 10° ~ Convex 10°
  • 130°
  • 160°
  • 7680Hz
  • 16bit
  • 1/8
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, PSE, ROHS
  • 24 panels
  • 12 panels
  • JDI4.8
  • 4.8mm
  • SMD 1921 Black
  • 2000nits
  • 500mm x 1000mm x 84mm
    19.69” x 39.37” x 3.31”
  • 104 x 208
  • 6.1kg | 13.45lbs
  • 200W / 100W
  • 682 / 315
  • Solid
  • Rear
  • Concave 10° ~ Convex 10°
  • To be defined°
  • 160°
  • 7680Hz
  • 16bit
  • 1/13
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, PSE, ROHS
  • 15 panels
  • 6 panels
  • JDI4.8 Half
  • 4.8mm
  • SMD 1921 Black
  • 2000nits
  • 500mm x 500mm x 84mm
    19.69” x 16.69” x 3.31”
  • 104 x 104
  • 3.7kg | 8.16lbs
  • 120W / 60W
  • 410 / 190
  • Solid
  • Rear
  • Concave 10° ~ Convex 10°
  • To be defined°
  • 160°
  • 7680Hz
  • 16bit
  • 1/13
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, PSE, ROHS
  • 24 panels
  • 12 panels
  • JDO5.9
  • 5.95mm
  • SMD 1921 Black
  • 4500nits
  • 500mm x 1000mm x 91mm
    19.69” x 39.37” x 3.58”
  • 84 x 168
  • 6.6kg | 14.55lbs
  • 300W / 150W
  • 1025 / 430
  • Solid / 14%
  • Rear
  • Concave 10° ~ Convex 10°
  • 140°
  • 160°
  • 7680Hz
  • 16bit
  • 1/7
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, PSE, ROHS
  • 15 panels
  • 6 panels
  • JDO5.9 Half
  • 5.95mm
  • SMD 1921 Black
  • 4500nits
  • 500mm x 500mm x 86mm
    19.96” x 19.96” x 3.39”
  • 84 x 84
  • 4kg | 8.82lbs
  • 160W / 80W
  • 545 / 250
  • Solid / 14%
  • Rear
  • Concave 10° ~ Convex 10°
  • 140°
  • 160°
  • 7680Hz
  • 16bit
  • 1/7
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL, FCC, PSE, ROHS
  • 24 panels
  • 12 panels
  • JDI5.9
  • 5.95mm
  • SMD 1921 Black
  • 3500nits
  • 500mm x 1000mm x 84mm
    19.96” x 39.37” x 3.31”
  • 84 x 168
  • 5.9kg | 13lbs
  • 300W / 150W
  • 1025 / 430
  • Solid / 14%
  • Rear
  • Concave 10° ~ Convex 10°
  • 160°
  • 160°
  • 7680Hz
  • 16bit
  • 1/7
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, ETL, FCC, PSE, ROHS
  • 15 panels
  • 6 panels
  • JDI5.9 Half
  • 5.95mm
  • SMD 1921 Black
  • 3500nits
  • 500mm x 500mm x 84mm
    19.96” x 19.96” x 3.31”
  • 84 x 84
  • 3.6kg | 7.94lbs
  • 160W / 80W
  • 545 / 250
  • Solid / 14%
  • Rear
  • Concave 10° ~ Convex 10°
  • 160°
  • 160°
  • 7680Hz
  • 16bit
  • 1/7
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP40
  • CE, ETL, FCC, PSE, ROHS
  • 24 panels
  • 12 panels
Compare products
Comparison
<< product.title >>
  • Title

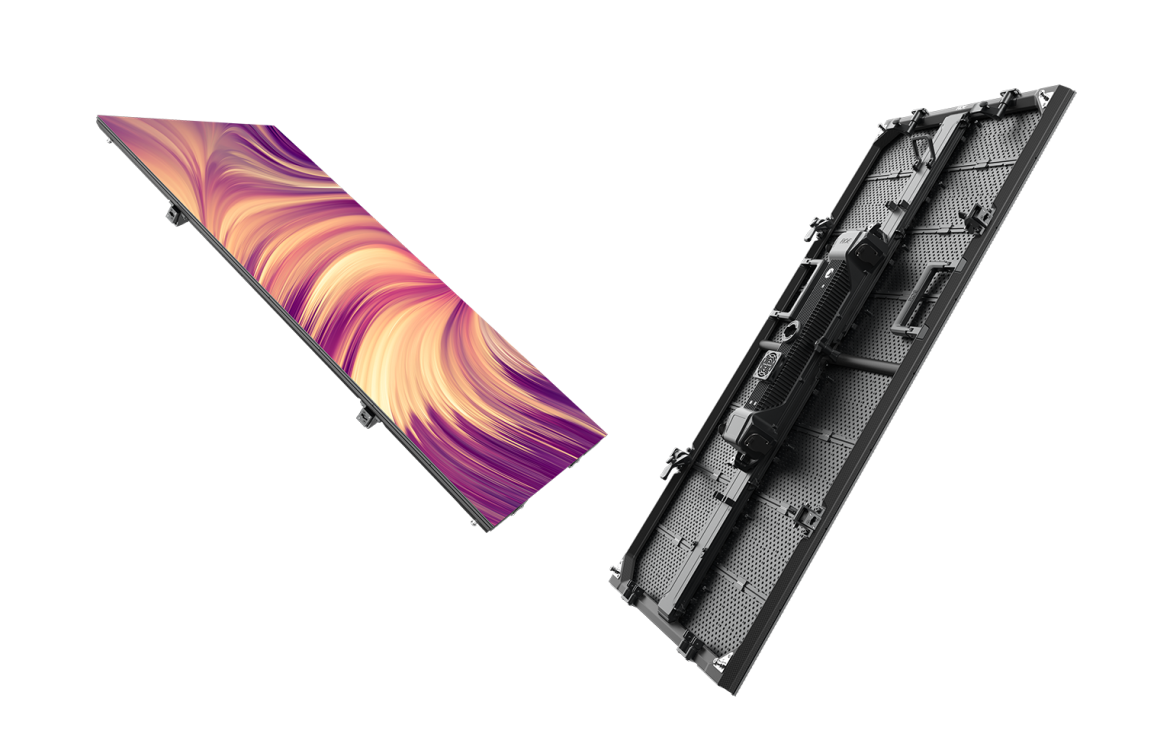

applications

Application Fields

  • Corporate Events
  • Touring
  • Festival
  • Concert

Accessories

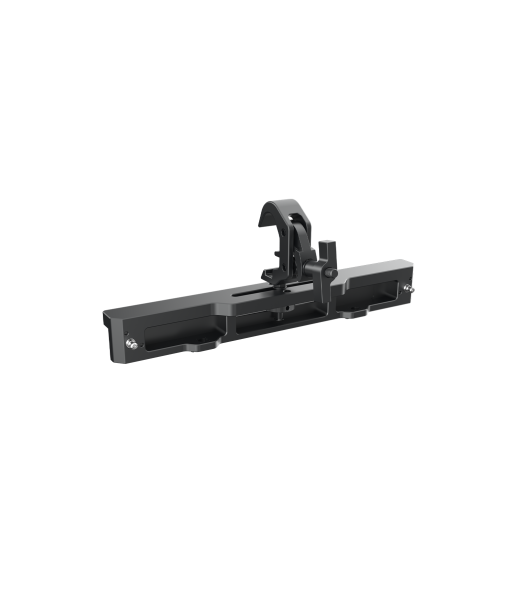

Hanging Bar

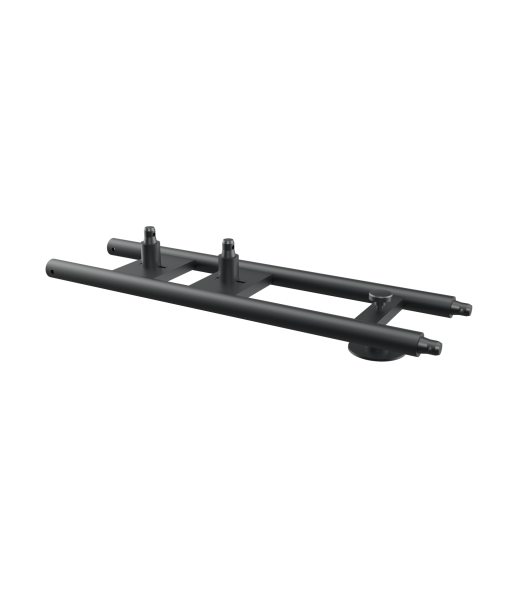

Base Truss

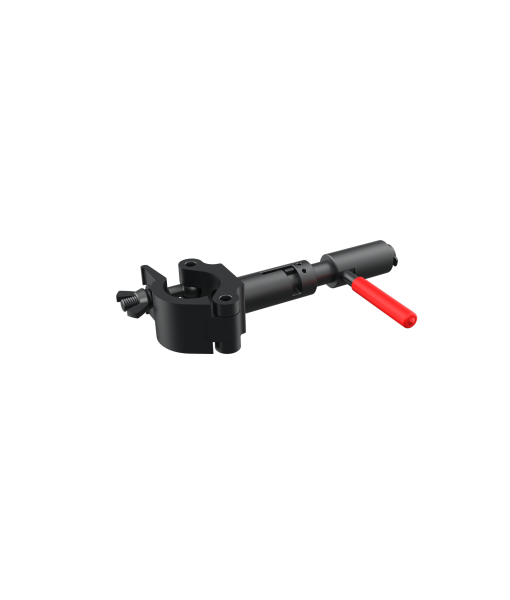

Rear Bridge

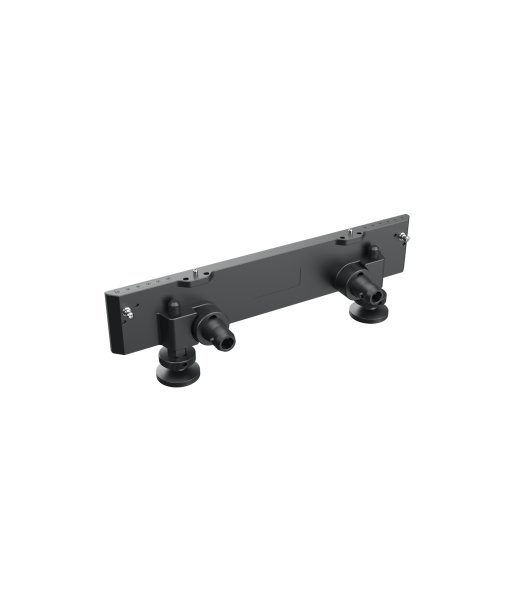

Stacking Bar
