Black Marble

Brilliant LED at your feet

ROE Visual’s Red Dot award-winning Black Marble LED floor panel brings creativity to your feet. Available with a high-contrast glass or matte or mirror finish, these floor panels are suited for a wide range of creative uses, such as events, broadcast, hospitality and xR stages.

Request a Demo

black marble animation

Key Features

Top access for easy module maintenance
IP65 rating, outdoor use and wet cleaning to keep your floor in pristine condition, is easy.
Great loading capacity, max. loading 2000kg/m2

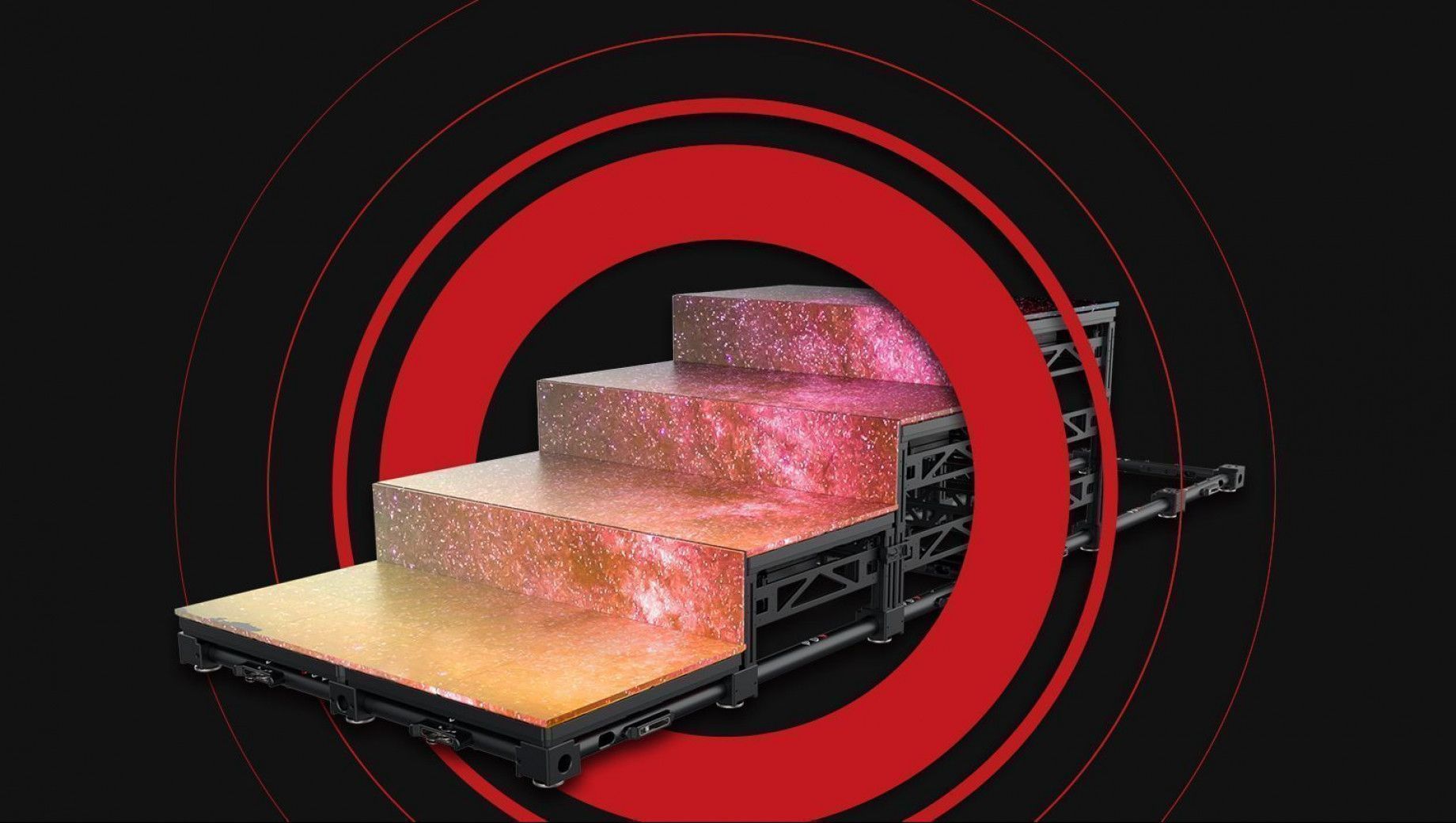

Stairs and multilevel stages - standard step height is 208mm
Safe access - anti-skidding surface on all LED panels
Magnetic Modules, easy module swapping

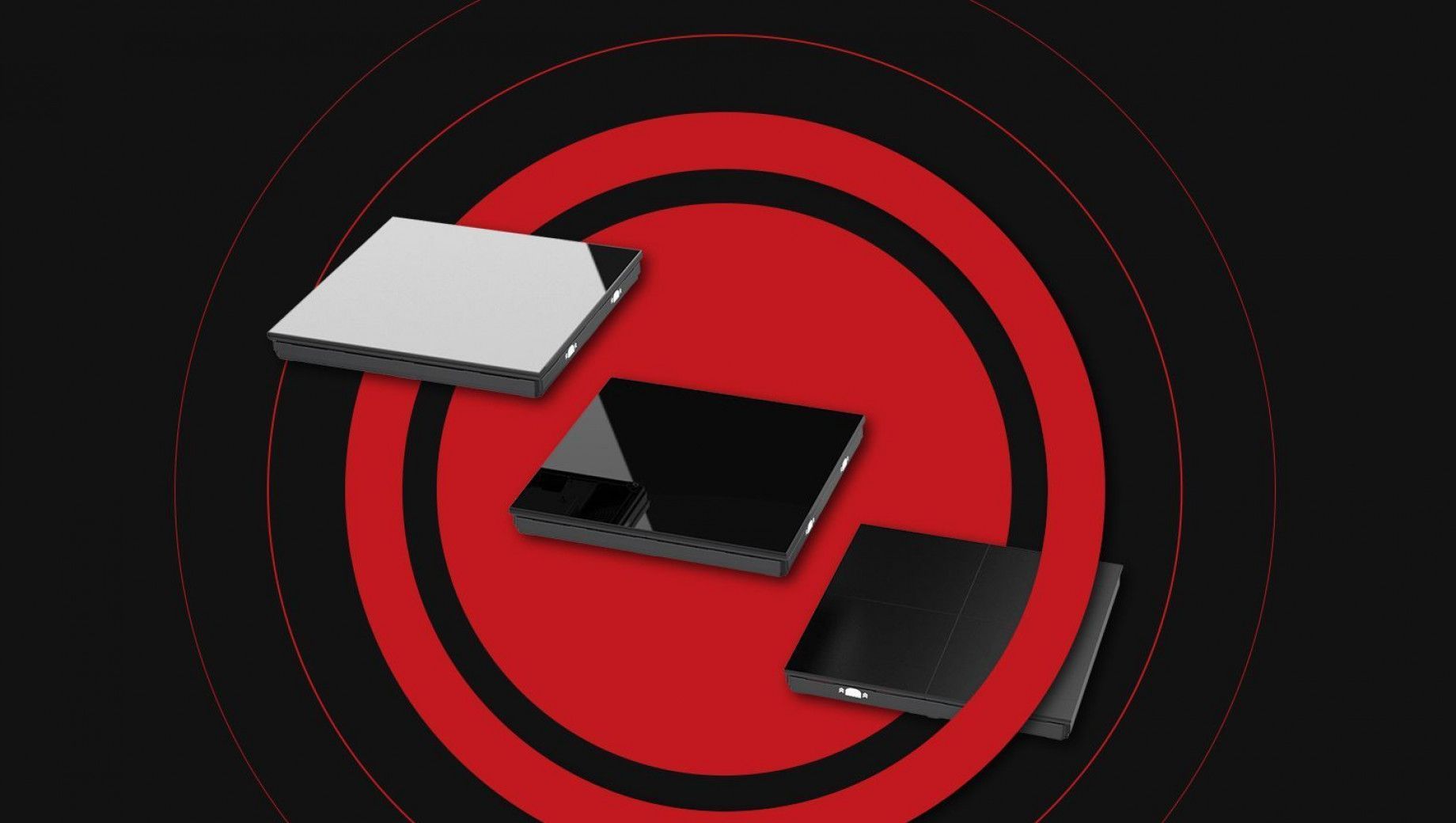

BM2-Matte
BM4-Glass
BM4-Matte
BM4-Mirror
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • BM2-Matte
  • 2.82mm
  • SMD 1515 Black
  • 800nits
  • 609.6mm x 609.6mm x 133mm
    24” x 24” x 5.2”
  • 216 x 216
  • 18.6kg | 41lbs
  • 310W / 155W
  • 1060 / 490
  • Solid
  • Front
  • n.a.
  • 140°
  • 7680Hz
  • 16bit
  • 1/12
  • -20°C ~ 45°C, 10% ~ 90% HR
    -4°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Outdoor
  • CE, ETL, FCC, WEEE
  • BM4-Glass
  • 4.76mm
  • SMD 1921 White
  • 800nits
  • 609.6mm x 609.6mm x 142mm
    24” x 24” x 5.6”
  • 128 x 128
  • 23.4kg | 51.59lbs
  • 290W / 145W
  • 990 / 460
  • Solid
  • Front
  • n.a.
  • 140°
  • 3840Hz
  • 14bit
  • 1/8
  • 0°C ~ 45°C, 10% ~ 90% HR
    32°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Outdoor
  • CE, ETL, FCC, WEEE
  • BM4-Matte
  • 4.76mm
  • SMD 1921 White
  • 2000nits
  • 609.6mm x 609.6mm x 135mm
    24” x 24” x 5.3”
  • 128 x 128
  • 17.5kg | 38.58lbs
  • 290W / 145W
  • 990 / 460
  • Solid
  • Front
  • n.a.
  • 140°
  • 3840Hz
  • 14bit
  • 1/8
  • 0°C ~ 45°C, 10% ~ 90% HR
    32°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Outdoor
  • CE, ETL, FCC, WEEE
  • BM4-Mirror
  • 4.76mm
  • SMD 1921 White
  • 1200nits
  • 609.6mm x 609.6mm x 142mm
    24” x 24” x 5.6”
  • 128 x 128
  • 23.4kg | 51.59lbs
  • 290W / 145W
  • 990 / 460
  • Solid
  • Front
  • n.a.
  • 140°
  • 3840Hz
  • 14bit
  • 1/8
  • 0°C ~ 45°C, 10% ~ 90% HR
    32°F ~ 113°F, 10% ~ 90% HR
  • -40°C ~ 60°C, 10% ~ 90% HR
    -40°F ~ 140°F, 10% ~ 90% HR
  • Outdoor
  • CE, ETL, FCC, WEEE
Comparison
<< product.title >>
  • Title
Black Marble LED Panels

Application Fields

  • Events
  • Broadcast
  • Concerts
  • Carshows
  • Hospitality

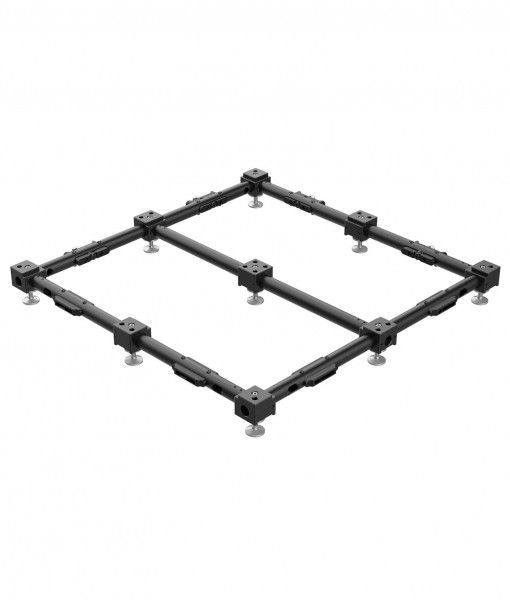

Accessories

Jo Pauly

Our technical crew was amazed by the easy installation qualities of the Black Marble floor and the resulting high-quality visuals.

Jo Pauly Visual Solutions

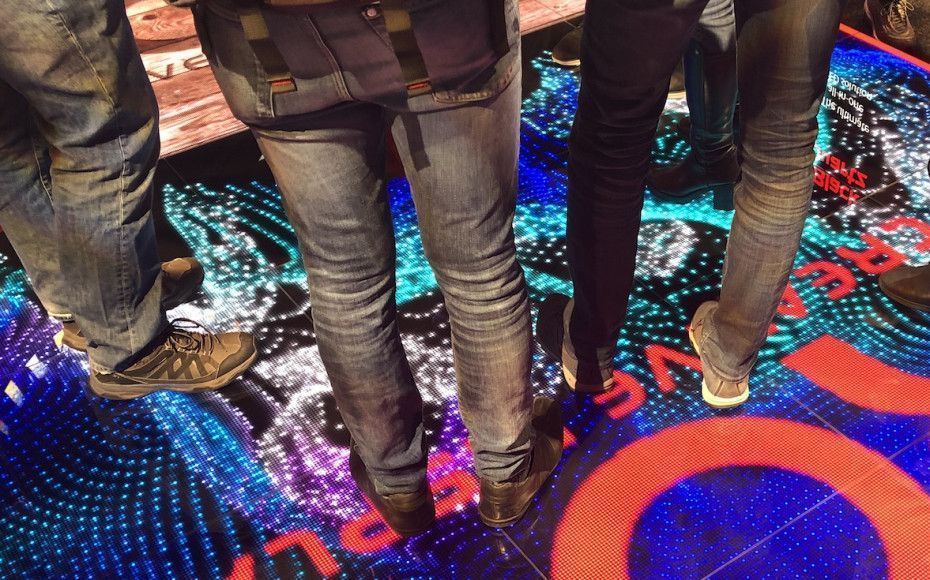

Black Marble Interactive LED Floor

Engage your audience? Use a Black Marble Interactive LED floor

Read More

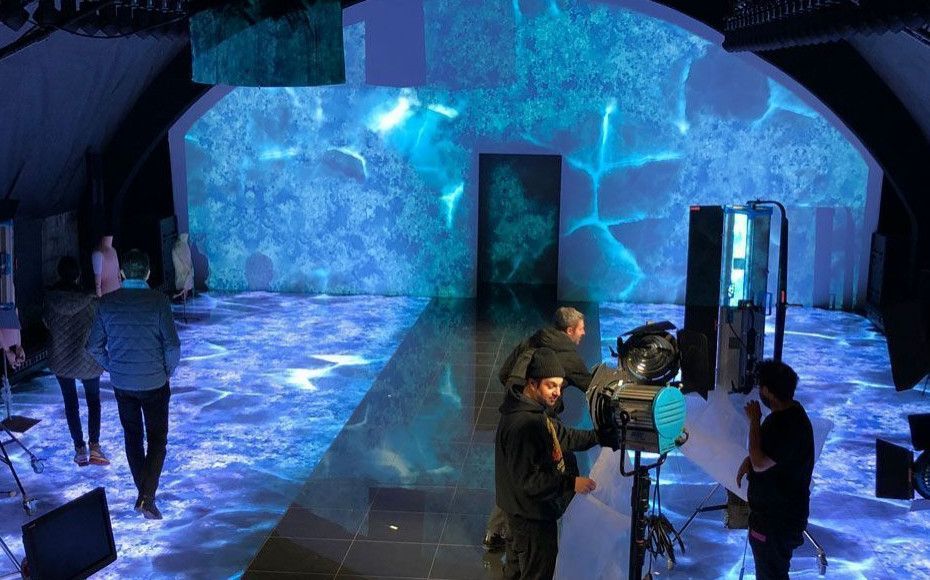

Black Marble for Montcler
