Carbon系列

巨幕搭建从此变得轻松简单

出色的亮度、黑白灯质量以及轻量的自重使得Carbon系列LED面板成为巡回演出、体育及活动现场等需要快速搭建巨幕场景的理想选择。系列有CB8（户外）CB5（户外）和CB3(户内)选择。同时，CB系列有吊装架、座装架、框架、航车等智能配件可供选择。

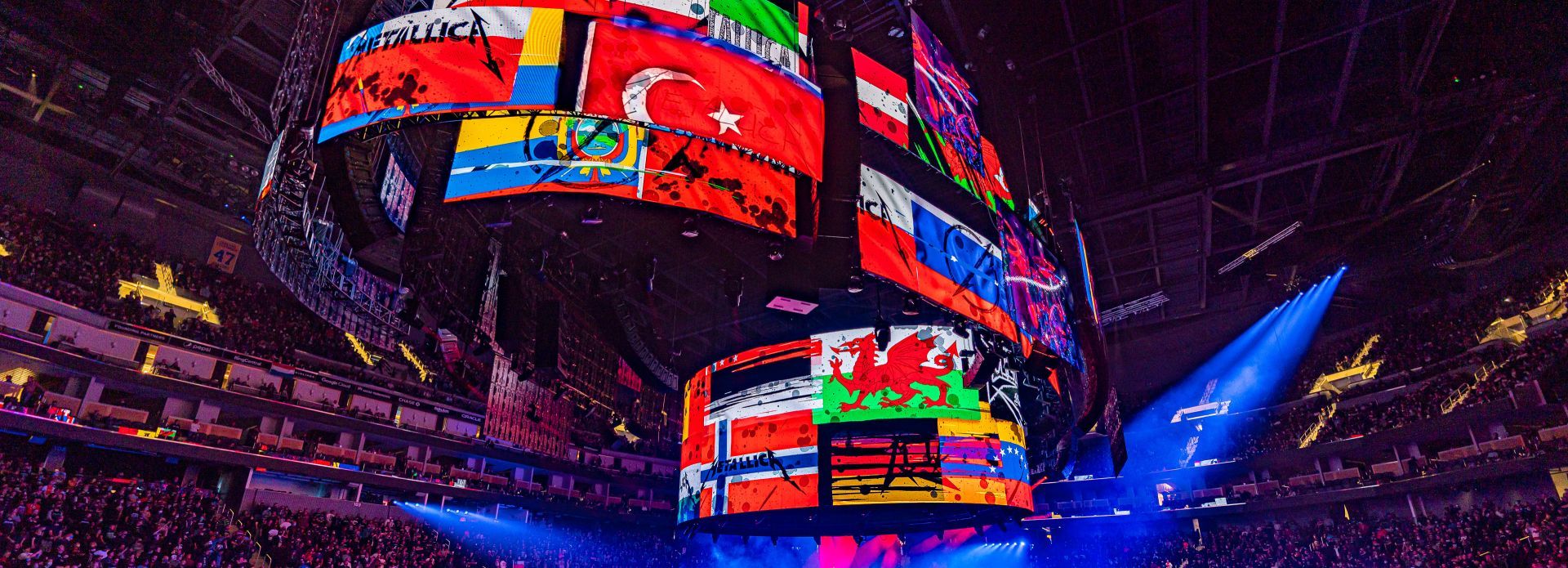

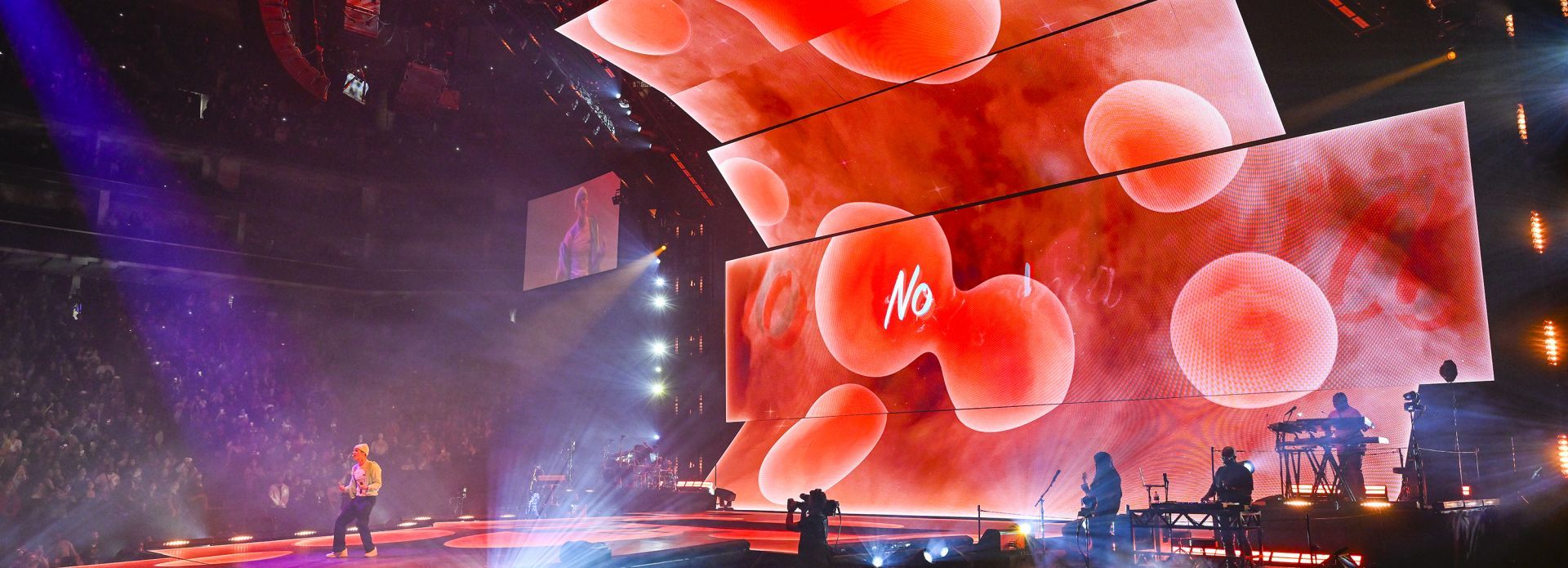

案例

Carbon主要特点

半屏

可拼弧形

90°直角

吊装系统

座装系统

LED天幕

点间距

虚拟面板

参数

Download All Specs

CB3

CB3 Half

CB5

CB5 Half

CB8

CB8 Half

CB8-Transparent

CB8-Transparent Half

Title
Pixel Pitch
LED Configuration
Max Brightness Calibrated
Panel Dimension
Panel Resolution (H x V)
Weight Per Panel
Power Consumption Max/Average
BTU Max/Average
Transparency
Serviceability
Curving (Concave & Convex)
Viewing Angle Vertical
Viewing Angle Horizontal
Refresh Rate
Gray Scale
Scan Ratio
Operational Temp/Humidity
Storage Temp/Humidity
IP Rating
Certifications
Max. Hanging
Max. Stacking

CB3
3.75mm
SMD 2020 Black
1500nits
600mm x 1200mm x 77mm
23.6” x 47.2” x 3”
160 x 320
13.2kg | 29.1lbs
540W / 270W
1840 / 850
Solid
Rear
Concave 15° ~ Convex 10°
140°
140°
3840Hz
14bit
1/16
-20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH
-40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH
IP40
CE, ETL, FCC, ROHS
12 panels
5 panels

CB3 Half
3.75mm
SMD 2020 Black
1500nits
600mm x 600mm x 77mm
23.6” x 23.6” x 3”
160 x 160
7.5kg | 15.87lbs
260W / 130W
890 / 410
Solid
Rear
Concave 15° ~ Convex 10°
140°
140°
3840Hz
14bit
1/16
-20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH
-40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH
IP40
CE, ETL, FCC
24 panels
10 panels

CB5
5.77mm
SMD 1921 White
6000nits
600mm x 1200mm x 77mm
23.6” x 47.2” x 3”
104 x 208
13.85kg | 30.53lbs
500W / 250W
1710 / 785
Solid
Front
Concave 15° ~ Convex 10°
110°
140°
7680Hz
16bit
1/4
-20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH
-40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH
IP65
CE, ETL, FCC
12 panels
5 panels

CB5 Half
5.77mm
SMD 1921 White
6000nits
600mm x 600mm x 77mm
23.6” x 23.6” x 3”
104 x 104
7.95kg | 17.5lbs
250W / 130W
850 / 290
Solid
Front
Concave 15° ~ Convex 10°
110°
140°
7680Hz
16bit
1/4
-20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH
-40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH
IP65
CE, ETL, FCC, UKCA, SAA, WEEE
24 panels
10 panels

CB8
8.33mm
SMD 2727 White
5000nits
600mm x 1200mm x 72mm
23.6” x 47.2” x 2.8”
72 x 144
12.68kg | 27.96lbs
430W / 220W
1470 / 675
Solid
Front
Concave 15° ~ Convex 10°
110°
140°
3840Hz
16bit
1/6
-20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH
-40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH
IP65
CE, ETL, FCC, ROHS
12 panels
5 panels

CB8 Half
8.33mm
SMD 2727 White
5000nits
600mm x 600mm x 72mm
23.6” x 23.6” x 2.8”
72 x 72
7.05kg | 15.54lbs
220W / 110W
750 / 345
Solid
Front
Concave 15° ~ Convex 10°
110°
140°
3840Hz
16bit
1/6
-20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH
-40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH
IP65
CE, ETL, FCC
24 panels
10 panels

CB8-Transparent
8.33mm
SMD 2727 White
5000nits
600mm x 1200mm x 70mm
23.6” x 47.2” x 2.8”
72 x 144
10.9kg | 24.03lbs
430W / 220W
1470 / 675
23%
Front
Concave 15° ~ Convex 10°
110°
140°
3840Hz
16bit
1/6
-20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH
-40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH
IP65
CE, ETL, FCC, ROHS
12 panels
5 panels

CB8-Transparent Half
8.33mm
SMD 2727 White
5000nits
600mm x 600mm x 70mm
23.6” x 23.6” x 2.8”
72 x 72
6kg | 13.23lbs
220W / 110W
750 / 345
23%
Front
Concave 15° ~ Convex 10°
110°
140°
3840Hz
16bit
1/6
-20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH
-40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH
IP65
CE, ETL, FCC
24 panels
10 panels

All specification values given are per panel. The specifications are for reference only, actual values may vary. The max. hanging amount is only valid when official ROE Visual hardware parts are used. The safety factor is 8. Climbing is only allowed if stated in the panel manual and only following the rules given therein. The max. stacking amount is only valid when official ROE Visual hardware parts are used and when sufficient ballast is applied – following the rules as stated in the panel manual and/or structural report.
