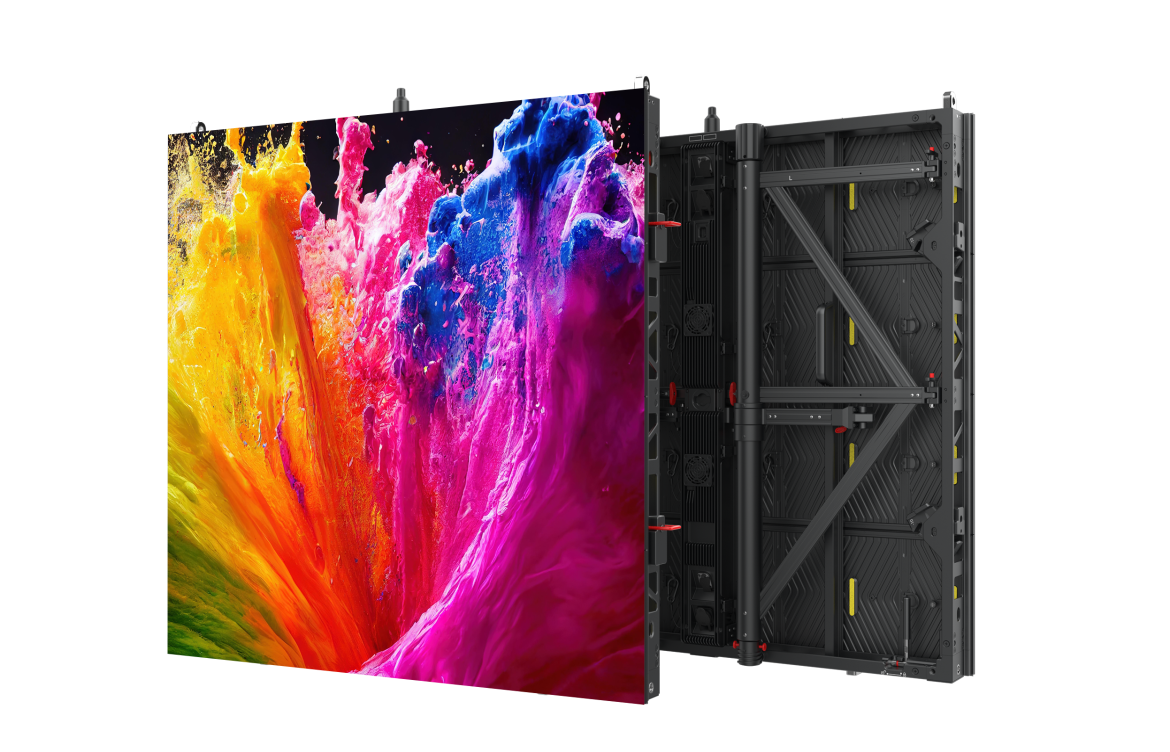

Vanish ST
高效且卓越，无惧户外挑战
Vanish ST(Vanish Solid Touring)系列旨在为巡演、节日等多种户外现场活动，提供卓越的解决方案，其创新性设计，让其成为寻求高品质LED面板的需求方的理想之选
Vanish ST户外LED系列，专为高利用率场景设计，表现力优秀。凭借出色的性能，和经济高效、用途广泛的 LED 解决方案，Vanish ST系列时刻准备好征服户外租赁市场。不透明Vanish ST系列可与透明Vanish V8T LED面板无缝互拼，这种兼容性让您能够最大限度地利用租赁库存。

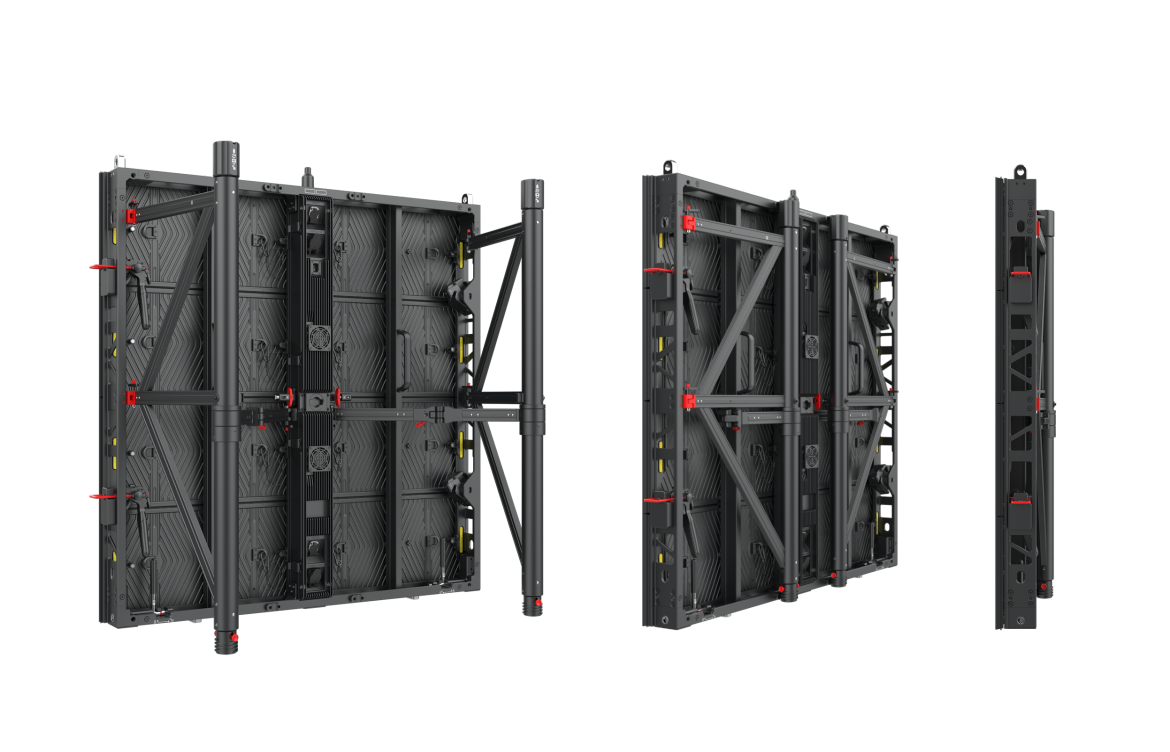

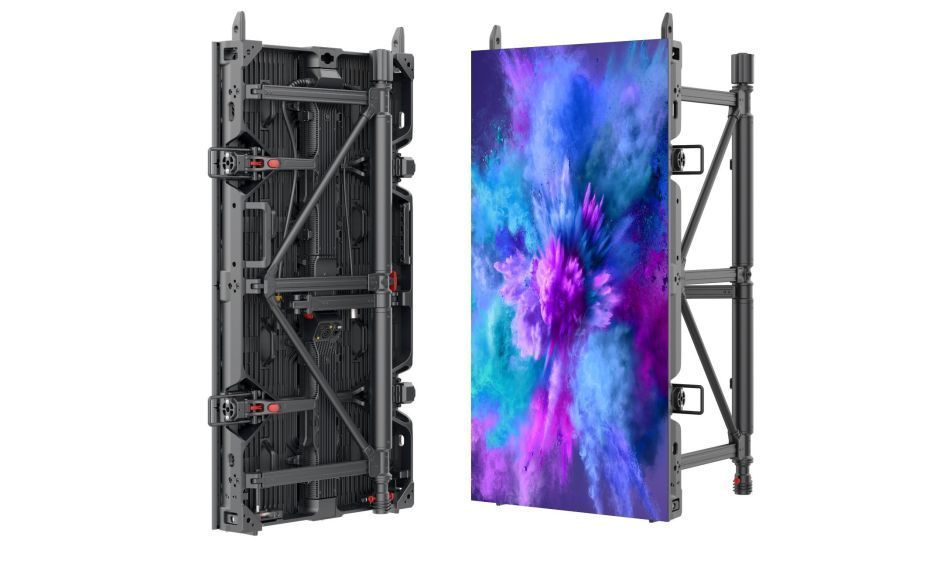

集成式风阻架
集成式风阻架让V4ST和V6ST的抗风能力高达20m/s，确保安全和结构稳定性。无论是音乐会、巡演还是大型户外活动，Vanish ST都无惧挑战。
质量与效益，两全其美
何需在质量与效益之间进行权衡？质量出众，高利用率潜力、经济高效，Vanish ST就是两全其美的解决方案。
日常主力地位

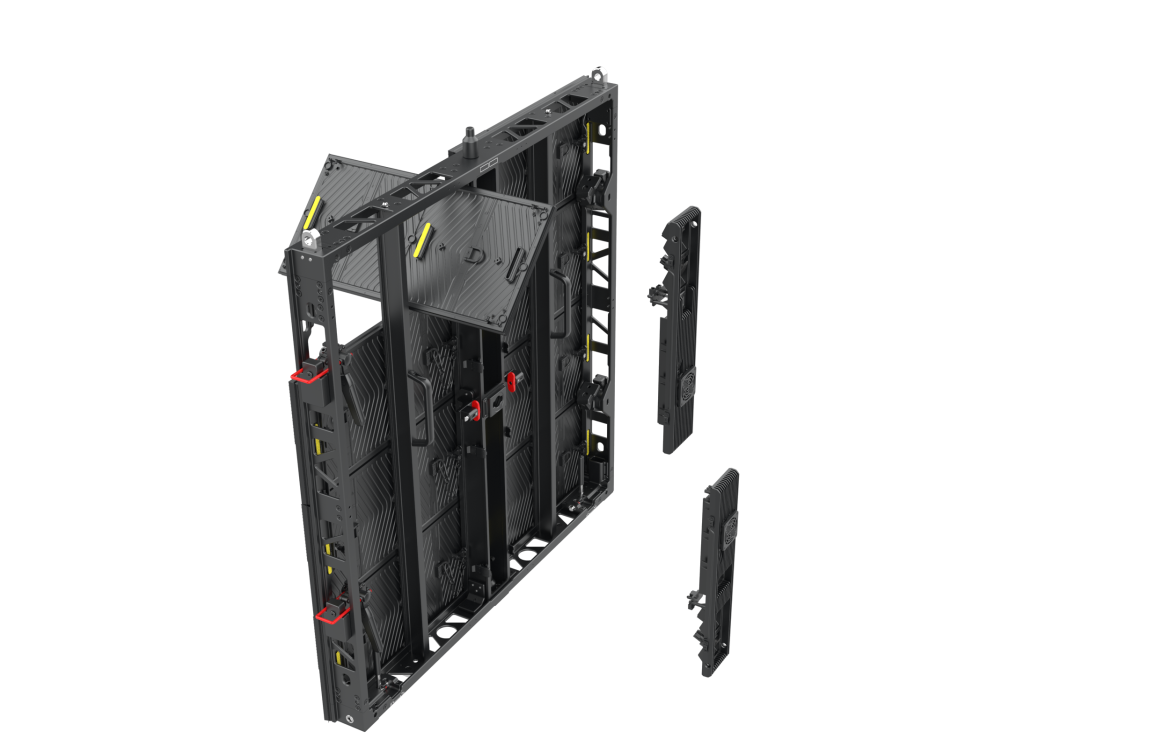

Vanish ST具有后维护服务，集成PSU简化了维修和备件更换，维修轻而易举。

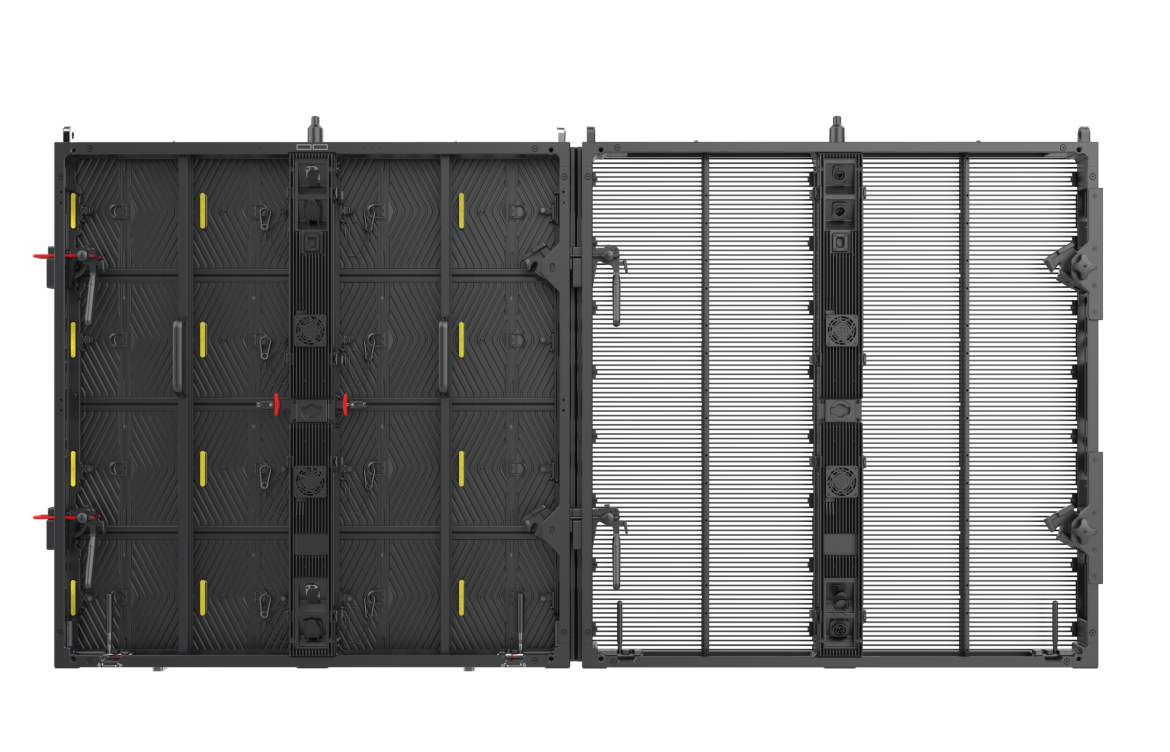

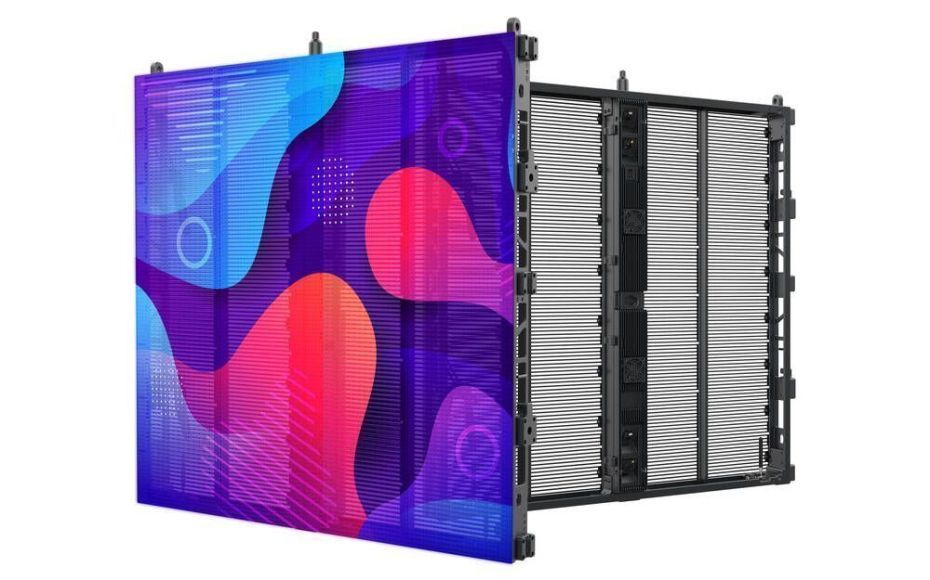

兼容V8T
不透明Vanish ST系列与透明 Vanish V8T能够无缝互拼，这种兼容性能让您最大限度地利用租赁库存。

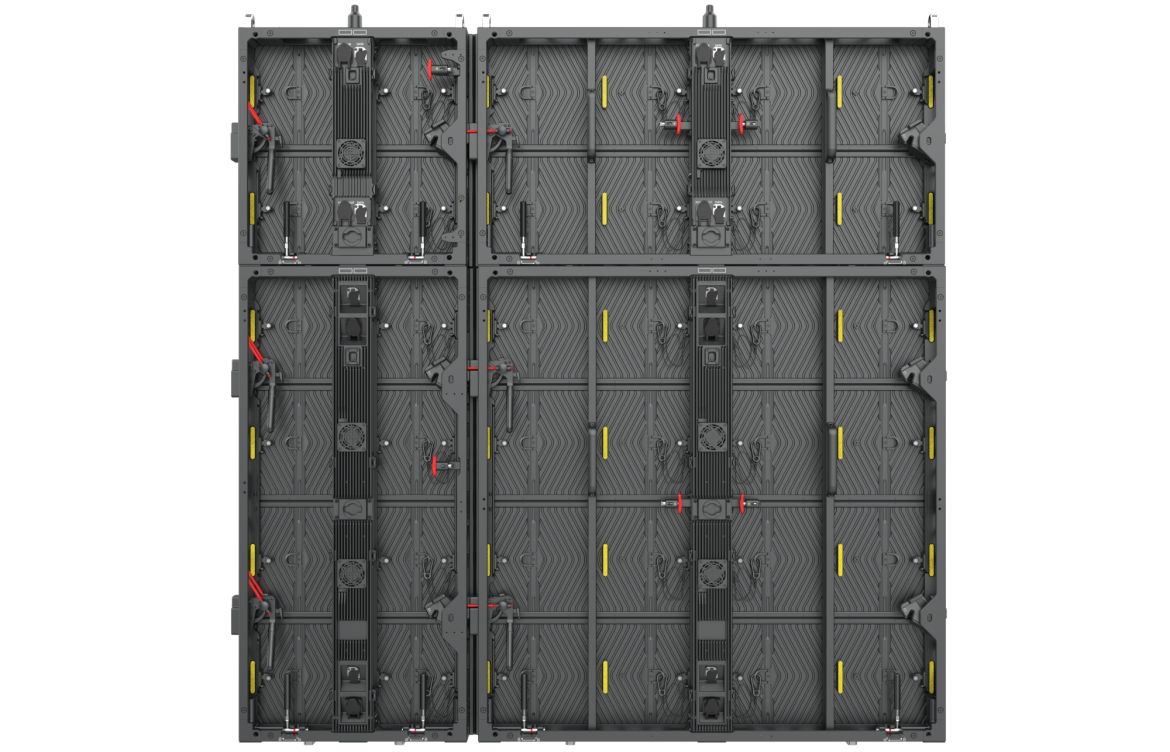

½和¼块尺寸
Vanish ST提供一系列尺寸选择：
- VST-V : 500 x 1000mm（宽 x 高）
- VST-H : 1000 x 500mm
- VST-Q : 500 x 500mm
尺寸多样，能完美契合每一次创意迸发时刻。
Vanish ST主要特点
效益高
轻量化设计
最高5000nits亮度
模块化PSU和HUB设计
后维护
½和¼块尺寸
应用场景
巡演
音乐节
体育赛事
Specs
V4ST
V4ST-H
V4ST-V
V4ST-Q
V6ST
V6ST-H
V6ST-V
V6ST-Q
- Title
- Pixel Pitch
- LED Configuration
- Max Brightness Calibrated
- Panel Dimension
- Panel Resolution (H x V)
- Weight Per Panel
- Power Consumption Max/Average
- BTU Max/Average
- Transparency
- Serviceability
- Curving (Concave & Convex)
- Viewing Angle Vertical
- Viewing Angle Horizontal
- Refresh Rate
- Gray Scale
- Scan Ratio
- Operational Temp/Humidity
- Storage Temp/Humidity
- IP Rating
- Certifications
- Max. Hanging
- Max. Stacking
- V4ST
- 4.6mm
- SMD 1921 Black
- 5000nits
- 1000mm x 1000mm x 116mm
39.4” x 39.4” x 4.57” - 216 x 216
- 34.5kg | 76.06lbs
- 700W / 350W
- 2390 / 1100
- Solid
- Rear
- Concave 10° ~ Convex 10°
- 120°
- 160°
- 7680Hz
- 16bit
- 1/6
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP65
- CE, ETL, FCC, UKCA
- 20 panels
- 6 panels
- V4ST-H
- 4.6mm
- SMD 1921 Black
- 5000nits
- 1000mm x 500mm x 116mm
39.4” x 19.7” x 4.57” - 216 x 108
- 21.5kg | 47.4lbs
- 350W / 175W
- 1195 / 550
- Solid
- Rear
- Concave 10° ~ Convex 10°
- 120°
- 160°
- 7680Hz
- 16bit
- 1/6
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP65
- CE, ETL, FCC, UKCA
- 12 panels
- V4ST-V
- 4.6mm
- SMD 1921 Black
- 5000nits
- 500mm x 1000mm x 103mm
19.7” x 39.4” x 4.06” - 108 x 216
- 22.5kg | 49.61lbs
- 350W / 175W
- 1195 / 550
- Solid
- Rear
- Concave 10° ~ Convex 10°
- 120°
- 160°
- 7680Hz
- 16bit
- 1/6
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP65
- CE, ETL, FCC, UKCA
- 6 panels
- V4ST-Q
- 4.6mm
- SMD 1921 Black
- 5000nits
- 500mm x 500mm x 108mm
19.7” x 19.7” x 4.25” - 108 x 108
- 14.5kg | 31.97lbs
- 180W / 90W
- 615 / 305
- Solid
- Rear
- Concave 10° ~ Convex 10°
- 120°
- 160°
- 7680Hz
- 16bit
- 1/6
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP65
- CE, ETL, FCC, UKCA
- 12 panels
- V6ST
- 6.94mm
- SMD 1921 Black
- 5000nits
- 1000mm x 1000mm x 116mm
39.4” x 39.4” x 4.57” - 144 x 144
- 34.3kg | 75.62lbs
- 700W / 350W
- 2390 / 1100
- Solid
- Rear
- Concave 10° ~ Convex 10°
- 120°
- 160°
- 7680Hz
- 16bit
- 1/4
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP65
- CE, ETL, FCC, UKCA
- 20 panels
- 6 panels
- V6ST-H
- 6.94mm
- SMD 1921 Black
- 5000nits
- 1000mm x 500mm x 116mm
39.4” x 19.7” x 4.57” - 144 x 72
- 21.2kg | 46.75lbs
- 350W / 175W
- 1195 / 550
- Solid
- Rear
- Concave 10° ~ Convex 10°
- 120°
- 160°
- 7680Hz
- 16bit
- 1/4
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP65
- CE, ETL, FCC, UKCA
- 12 panels
- V6ST-V
- 6.94mm
- SMD 1921 Black
- 5000nits
- 500mm x 1000mm x 103mm
19.7” x 39.4” x 4.06” - 72 x 144
- 22.2kg | 48.95lbs
- 350W / 175W
- 1195 / 550
- Solid
- Rear
- Concave 10° ~ Convex 10°
- 120°
- 160°
- 7680Hz
- 16bit
- 1/4
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP65
- CE, ETL, FCC, UKCA
- 6 panels
- V6ST-Q
- 6.94mm
- SMD 1921 Black
- 5000nits
- 500mm x 500mm x 108mm
19.7” x 19.7” x 4.25” - 72 x 72
- 14.3kg | 31.53lbs
- 180W / 90W
- 615 / 305
- Solid
- Rear
- Concave 10° ~ Convex 10°
- 120°
- 160°
- 7680Hz
- 16bit
- 1/4
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP65
- CE, ETL, FCC, UKCA
- 12 panels
All specification values given are per panel. The specifications are for reference only, actual values may vary. The max. hanging amount is only valid when official ROE Visual hardware parts are used. The safety factor is 8. Climbing is only allowed if stated in the panel manual and only following the rules given therein. The max. stacking amount is only valid when official ROE Visual hardware parts are used and when sufficient ballast is applied – following the rules as stated in the panel manual and/or structural report.
