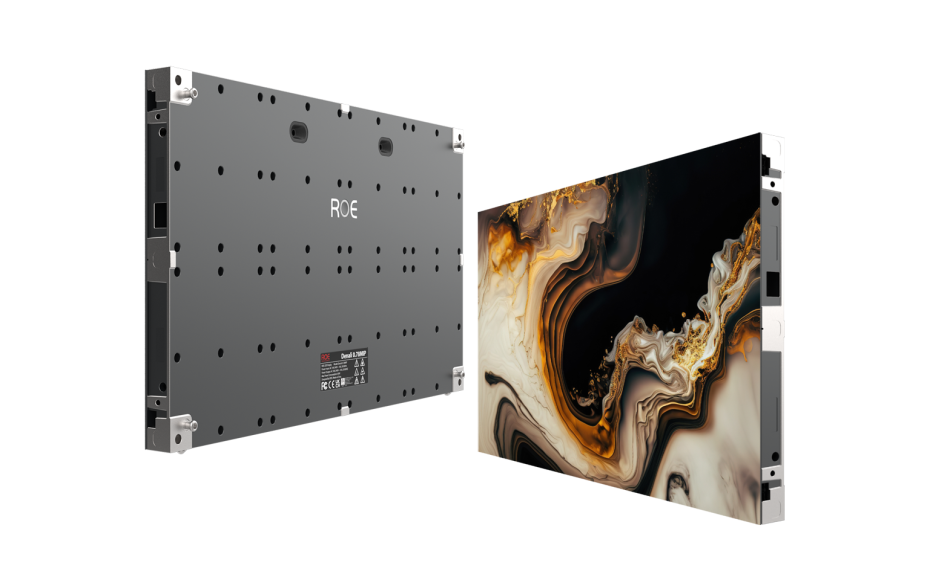

Sierra
高效、高能、高品质

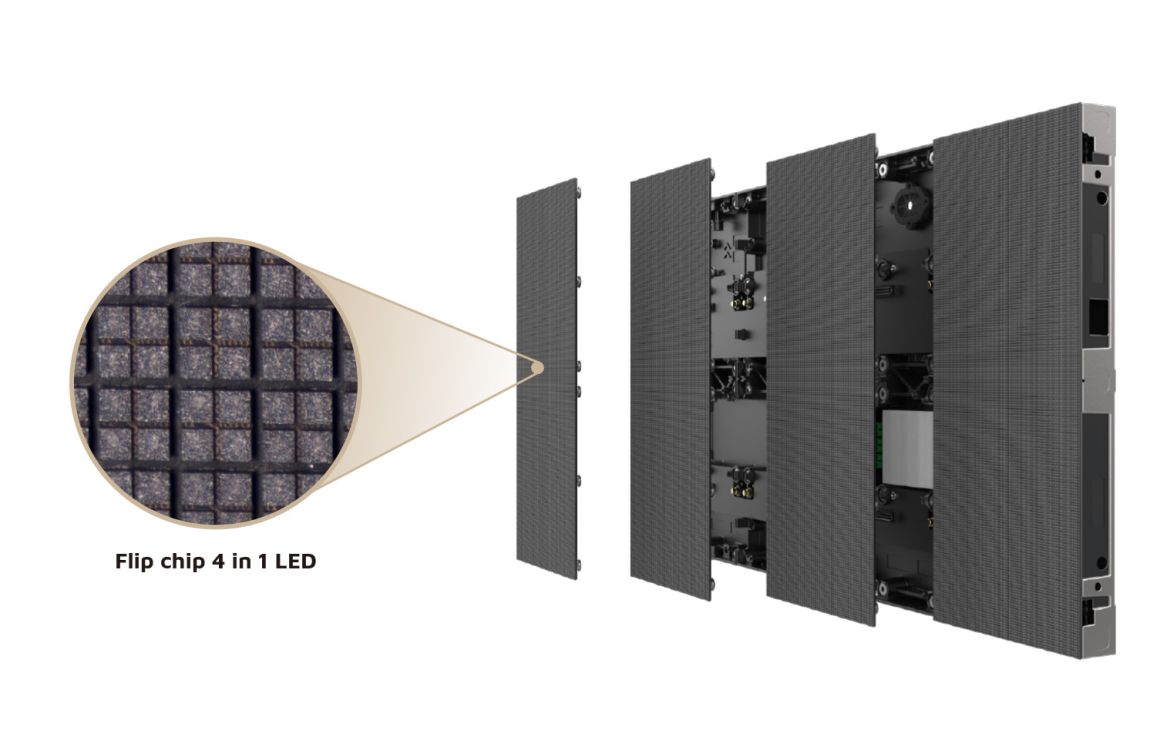

Sierra采用前沿的共阴倒装芯片4合1 LED技术,点间距仅为1.2毫米。标准16:9宽高比,可减少反射,呈现出色的对比度和无可挑剔的均匀黑色表面。相比传统LED面板,高效电源可将Sierra的功耗降低40%,让面板保持稳定且低的工作温度,提高色彩性能,并显著延长使用寿命。

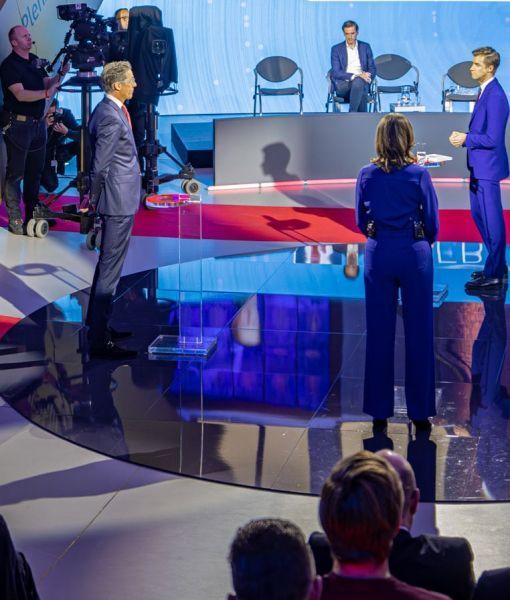

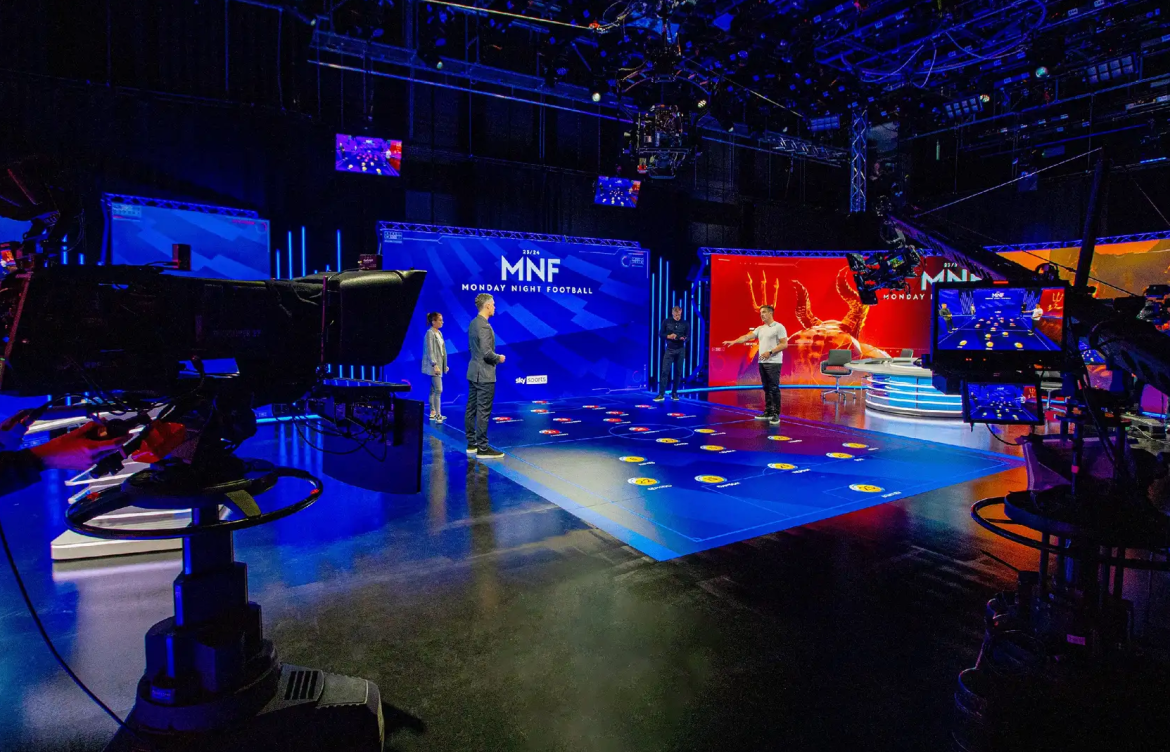

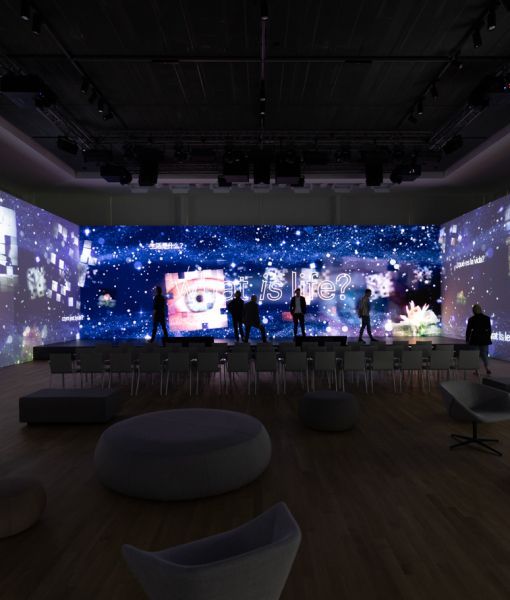

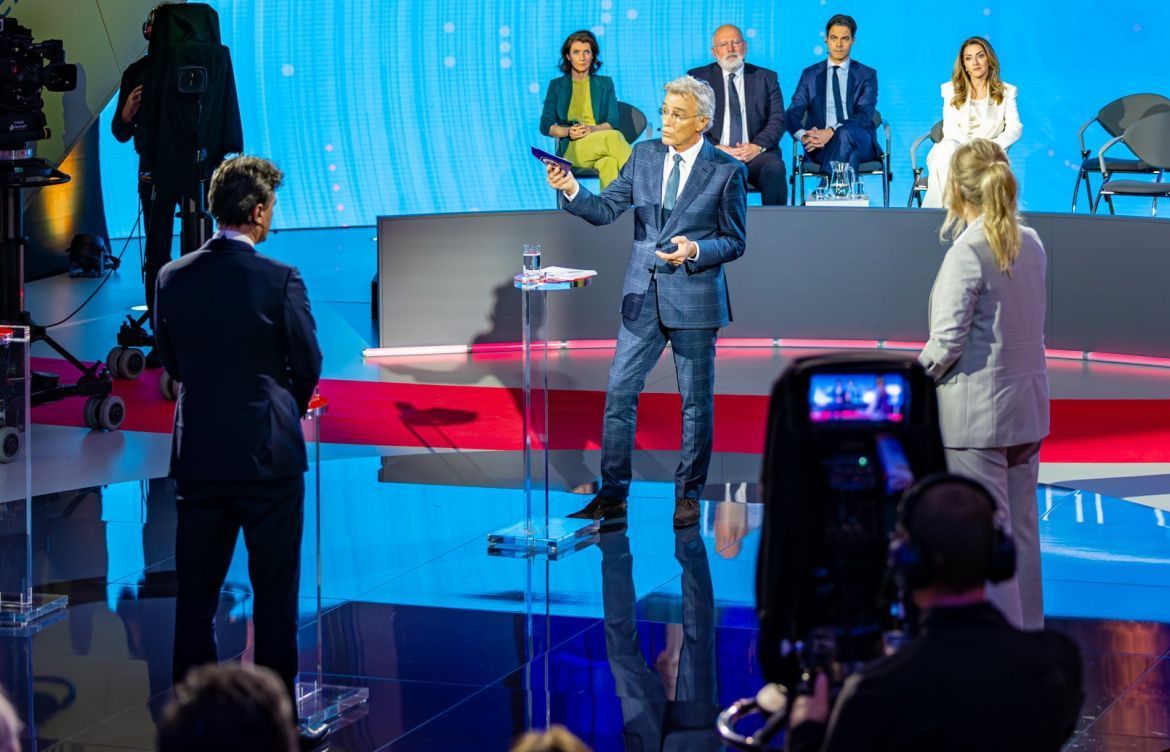

Sierra LED面板是系统集成的理想之选,在例如演播室、礼堂和企业等对于对比度、亮度等性能要求极高的场景中,表现出一流的视觉效果。
下载Sierra彩页
Sierra主要特点
支持HDR
低扫描率
低能耗
前维护

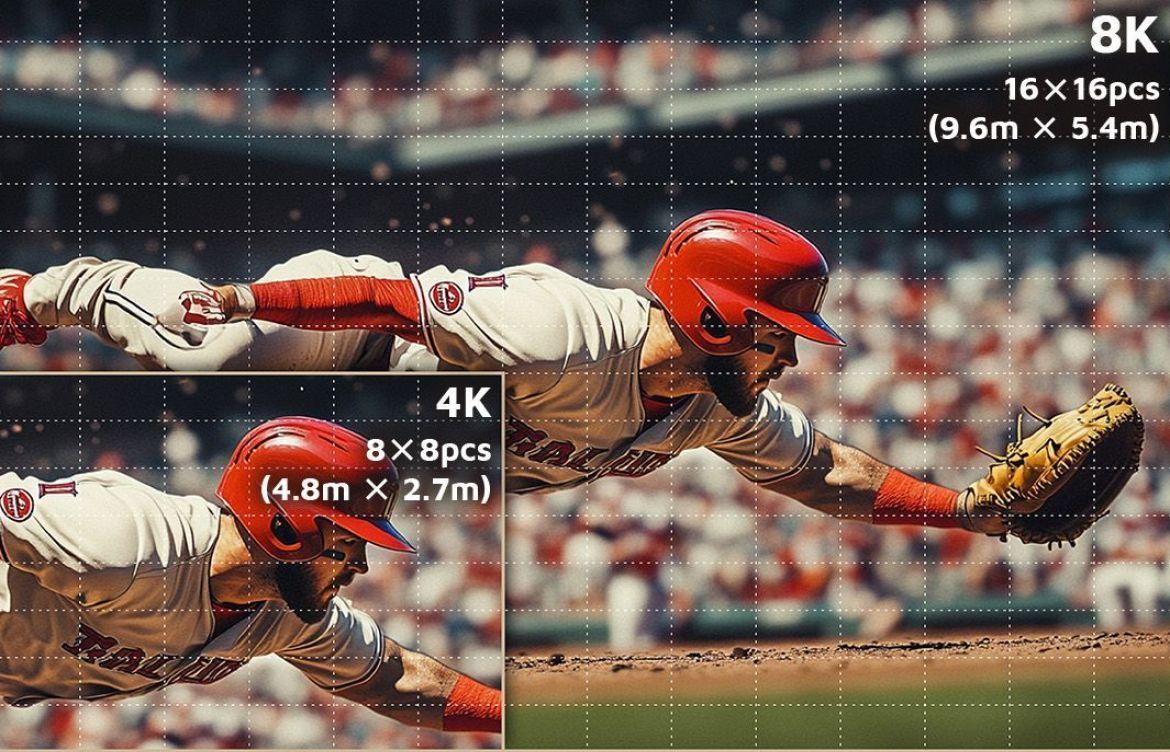

原生16:9分辨率
时尚与高精度兼具
SR1.2
SR1.5
- Title
- Pixel Pitch
- LED Configuration
- Max Brightness Calibrated
- Panel Dimension
- Panel Resolution (H x V)
- Weight Per Panel
- Power Consumption Max/Average
- BTU Max/Average
- Transparency
- Serviceability
- Viewing Angle Vertical
- Viewing Angle Horizontal
- Refresh Rate
- Gray Scale
- Scan Ratio
- Operational Temp/Humidity
- Storage Temp/Humidity
- IP Rating
- Certifications
- SR1.2
- 1.25mm
- Flip-chip 4in1 LED
- 1000nits
- 600mm x 337.5mm x 29.9mm
23.62” x 13.29” x 1.18” - 480 x 270
- 5.7kg | 12.57lbs
- 100W / 50W
- 345 / 160
- Solid
- Front
- 140°
- 160°
- 3840Hz
- 15bit
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP40
- CE, ETL, FCC, UKCA
- SR1.5
- 1.56mm
- Flip-chip 4in1 LED
- 1000nits
- 600mm x 337.5mm x 29.9mm
23.62” x 13.29” x 1.18” - 384 x 216
- 5.7kg | 12.57lbs
- 80W / 40W
- 275 / 130
- Solid
- Front
- 140°
- 160°
- 7680Hz
- 16bit
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP40
- CE, ETL, FCC, UKCA
All specification values given are per panel. The specifications are for reference only, actual values may vary. The max. hanging amount is only valid when official ROE Visual hardware parts are used. The safety factor is 8. Climbing is only allowed if stated in the panel manual and only following the rules given therein. The max. stacking amount is only valid when official ROE Visual hardware parts are used and when sufficient ballast is applied – following the rules as stated in the panel manual and/or structural report.
