Black Pearl 2V2
LED虚拟制作中的卓越代表
售出超100,000块 影院级BLACK PEARL2系列产品 享誉全球
雷迪奥十分荣幸,超过100,000块Black Pearl 2系列产品被应用于全球虚拟制作中。

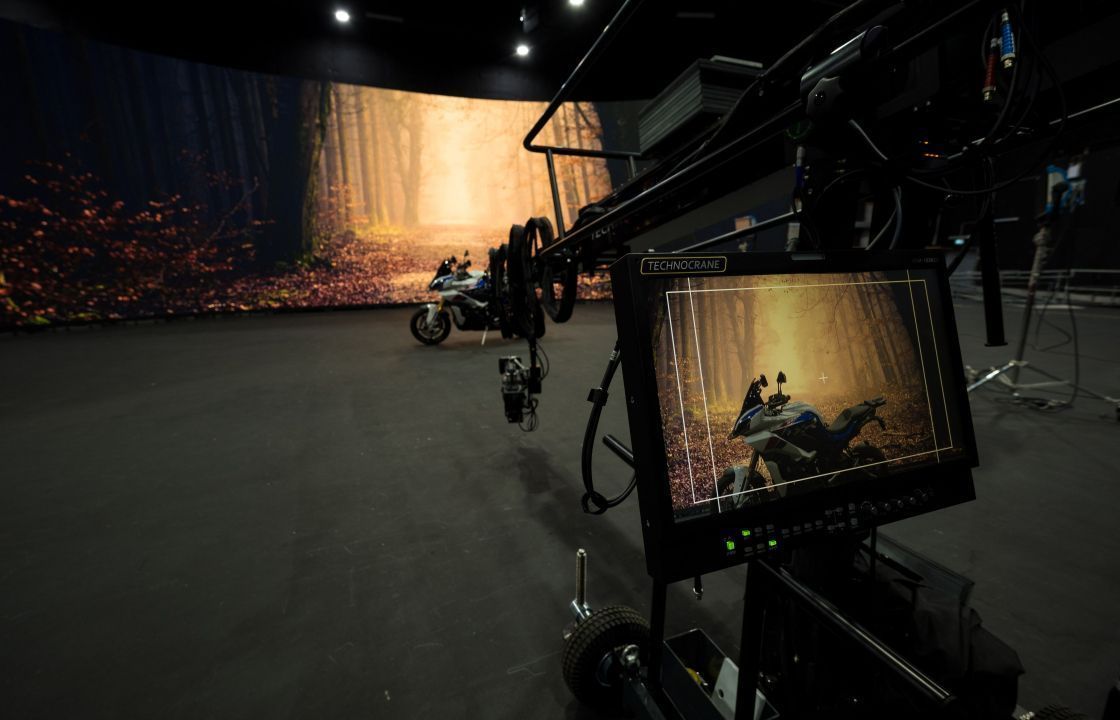

在世界各地的舞台上,影院级LED灿如繁星,熠熠发光。
丰富的色彩显示度和超强的镜头表现力,让BP2和BP2V2成为虚拟拍摄首选LED。
雷迪奥十分感谢客户和合作伙伴对我们的信任和认可。

BP2V2的广泛应用
获奖和证书
Black Pearl 主要特点
坚固的镁合金框架
磁吸组装
边角保护
创意模组
智能模组存储校准
高供电效率
户内应用
BP2 - 2.84
BP2V2 参数
BP2V2
- Title
- Pixel Pitch
- LED Configuration
- Max Brightness Calibrated
- Panel Dimension
- Panel Resolution (H x V)
- Weight Per Panel
- Power Consumption Max/Average
- BTU Max/Average
- Transparency
- Serviceability
- Curving (Concave & Convex)
- Viewing Angle Vertical
- Viewing Angle Horizontal
- Refresh Rate
- Gray Scale
- Scan Ratio
- Operational Temp/Humidity
- Storage Temp/Humidity
- IP Rating
- Certifications
- Max. Hanging
- Max. Stacking
- BP2V2
- 2.84mm
- SMD 1515 Black
- 1500nits
- 500mm x 500mm x 90mm
19.69” x 19.69” x 3.54” - 176 x 176
- 9.35kg | 20.61lbs
- 190W / 95W
- 630 / 300
- Solid
- Front
- Concave 10° ~ Convex 0°
- 140°
- 140°
- 7680Hz
- 16bit
- 1/8
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP40
- CE, ETL, FCC, WEEE
- 20 panels
- 12 panels
All specification values given are per panel. The specifications are for reference only, actual values may vary. The max. hanging amount is only valid when official ROE Visual hardware parts are used. The safety factor is 8. Climbing is only allowed if stated in the panel manual and only following the rules given therein. The max. stacking amount is only valid when official ROE Visual hardware parts are used and when sufficient ballast is applied – following the rules as stated in the panel manual and/or structural report.
