Diamond シリーズ
軽量化の小ピッチの第一選択

Diamondの主な特徴

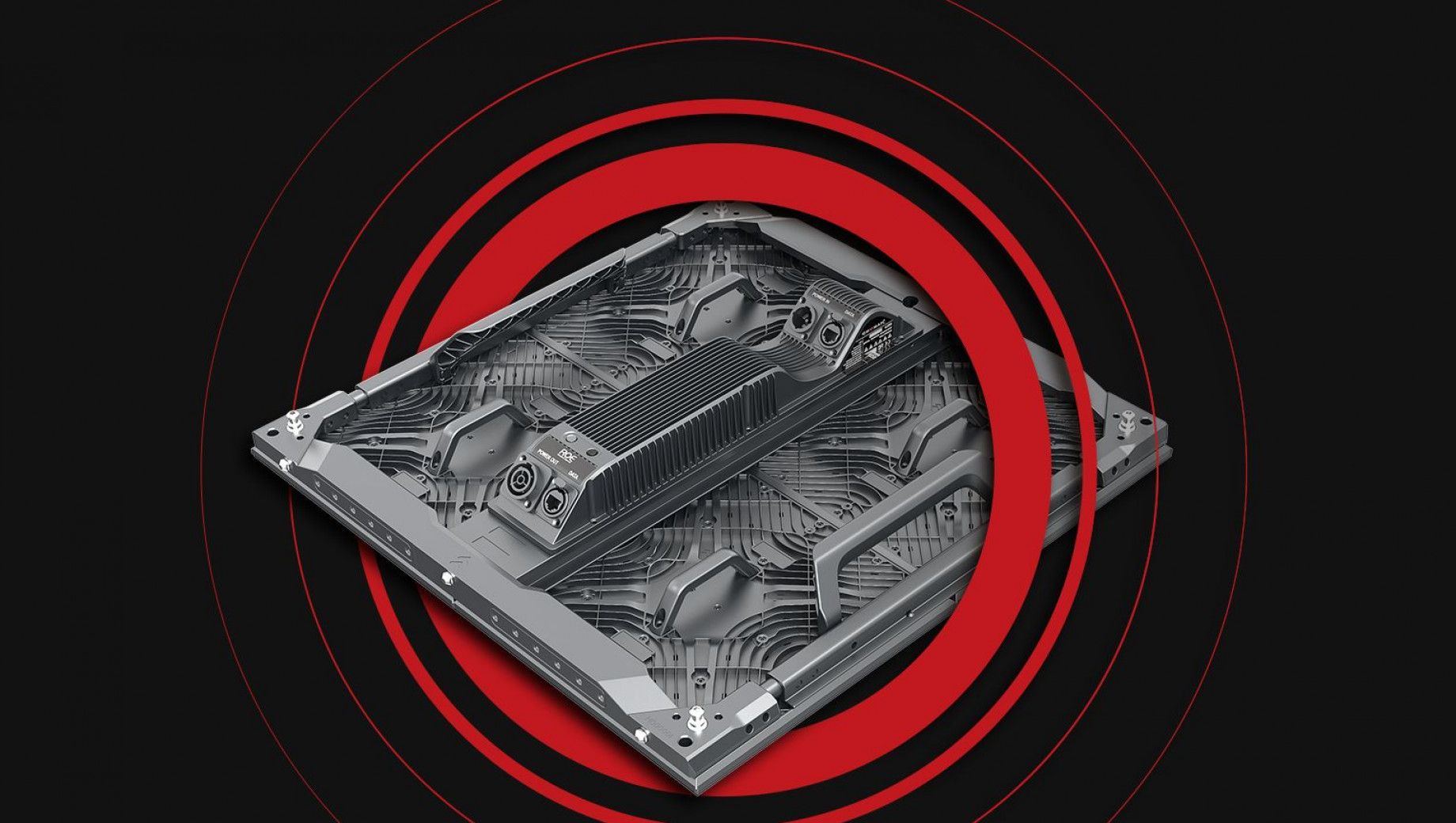

軽量型パネルデザイン
90°直角
ピクセルピッチ2.6-3.9
屋内適用
アーチ形取付対応
ブラックライトは高コントラストと高輝度を実現
輸送コスト削減
コスト効率化
スペック
DM2.6
DM3.9
- Title
- Pixel Pitch
- LED Configuration
- Max Brightness Calibrated
- Panel Dimension
- Panel Resolution (H x V)
- Weight Per Panel
- Power Consumption Max/Average
- BTU Max/Average
- Transparency

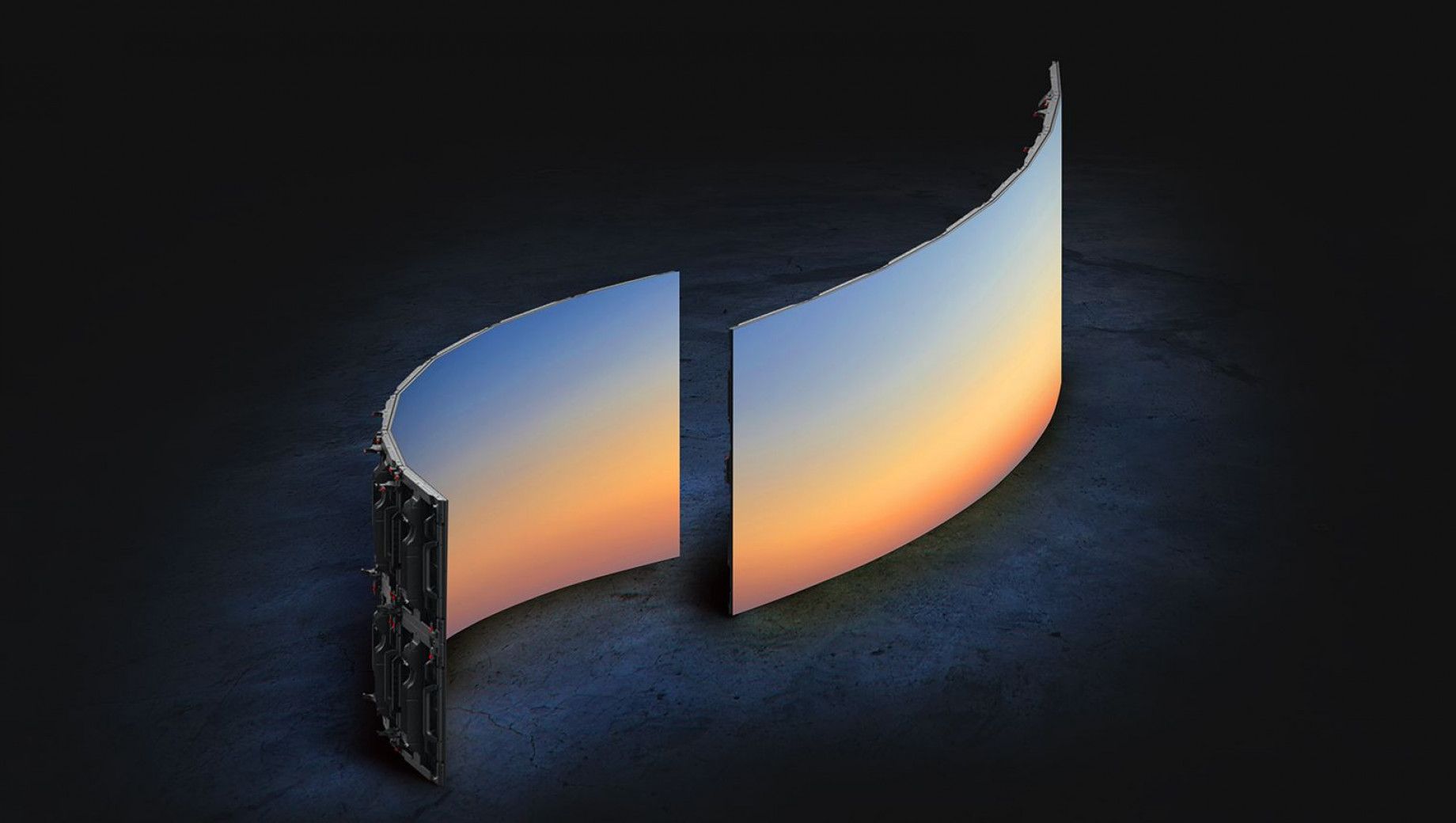

- Curving (Concave & Convex)
- Viewing Angle Vertical
- Viewing Angle Horizontal
- Refresh Rate
- Gray Scale
- Scan Ratio
- Operational Temp/Humidity
- Storage Temp/Humidity
- IP Rating
- Certifications
- Max. Hanging
- Max. Stacking
- DM2.6
- 2.6mm
- SMD 1515 Black
- 1500nits
- 500mm x 500mm x 80mm
19.7” x 19.7” x 3.2” - 192 x 192
- 5.76kg | 12.7lbs
- 180W / 90W
- 610 / 280
- Solid
- Concave 10° ~ Convex 5°
- 140°
- 140°
- 3840Hz
- 14bit
- 1/16
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP40
- CE, ETL, TÜV
- 20 panels
- 12 panels
- DM3.9
- 3.906mm
- SMD 2020
- 1500nits
- 500mm x 500mm x 80mm
19.7” x 19.7” x 3.2” - 128 x 128
- 5.76kg | 12.7lbs
- 150W / 80W
- 510 / 240
- Solid
- Concave 10° ~ Convex 5°
- 140°
- 140°
- 3840Hz
- 14bit
- 1/16
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP40
- CE, ETL, TÜV
- 20 panels
- 12 panels
All specification values given are per panel. The specifications are for reference only, actual values may vary. The max. hanging amount is only valid when official ROE Visual hardware parts are used. The safety factor is 8. Climbing is only allowed if stated in the panel manual and only following the rules given therein. The max. stacking amount is only valid when official ROE Visual hardware parts are used and when sufficient ballast is applied – following the rules as stated in the panel manual and/or structural report.

付属品

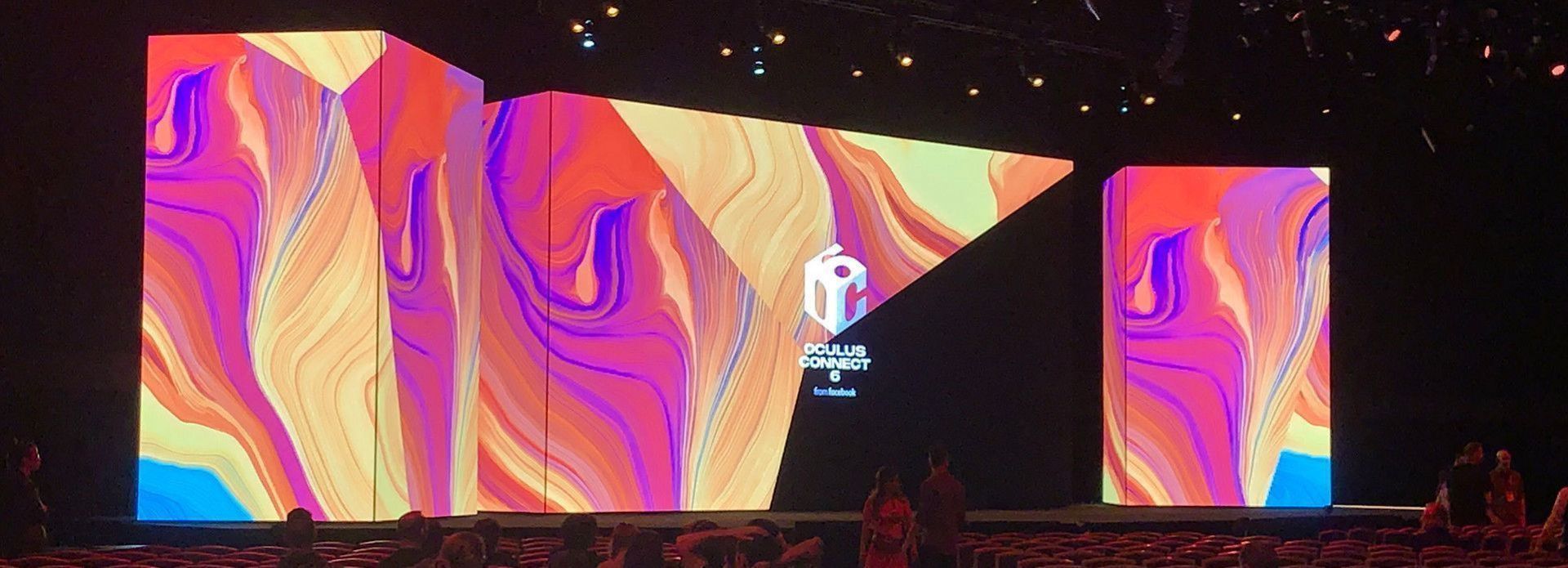

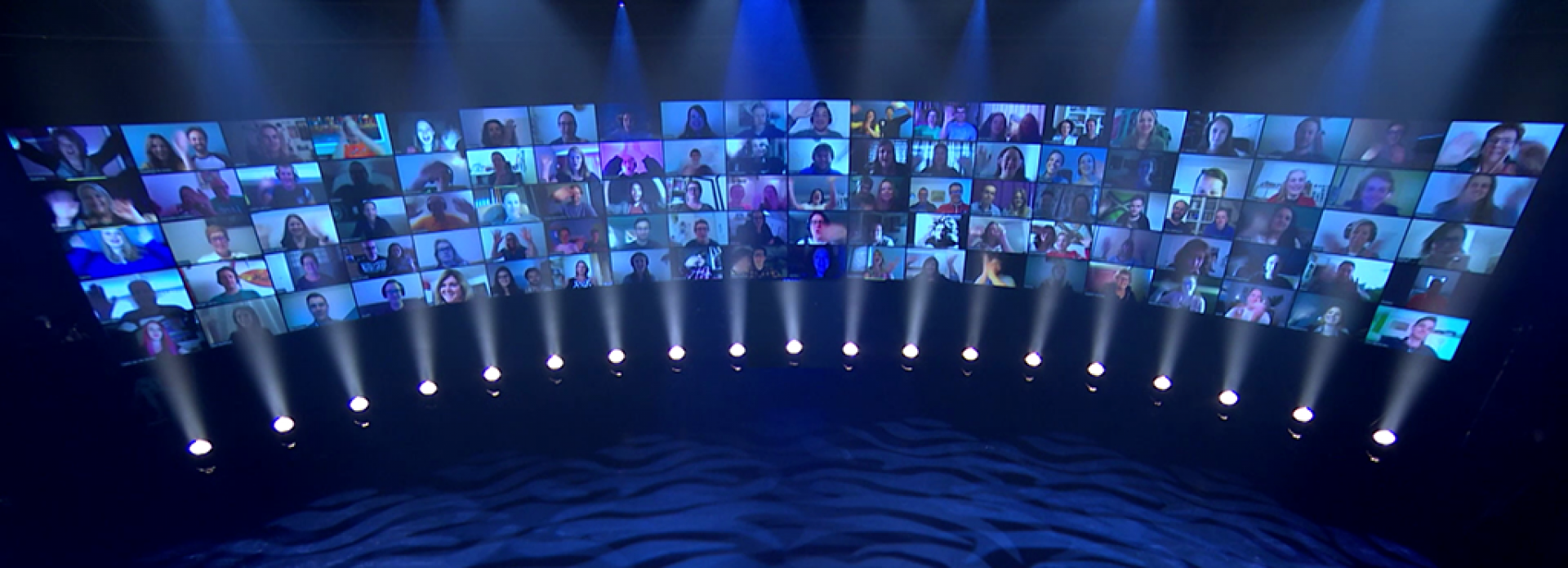

ROE VisualのDiamond製品は、特定のプロジェクトで優れたパフォーマンスを発揮しました。アーチ形繋ぎ合わせは本当に印象的でした。強化された没入型の設定と生き生きとした色表示を実現して、ディスプレイの表示効果が目立ちます。現在、この製品を様々なシーンに適用しており、視覚的品質と使いやすさに非常に満足しています。DMは我々にとって非常に良い投資であることが証明されました。
