CarbonL MarkII
超軽量な屋外ディスプレイプラットフォーム


CB5L MarkIIの主な特徴
超軽量
曲がる
ツアーフレーム対応

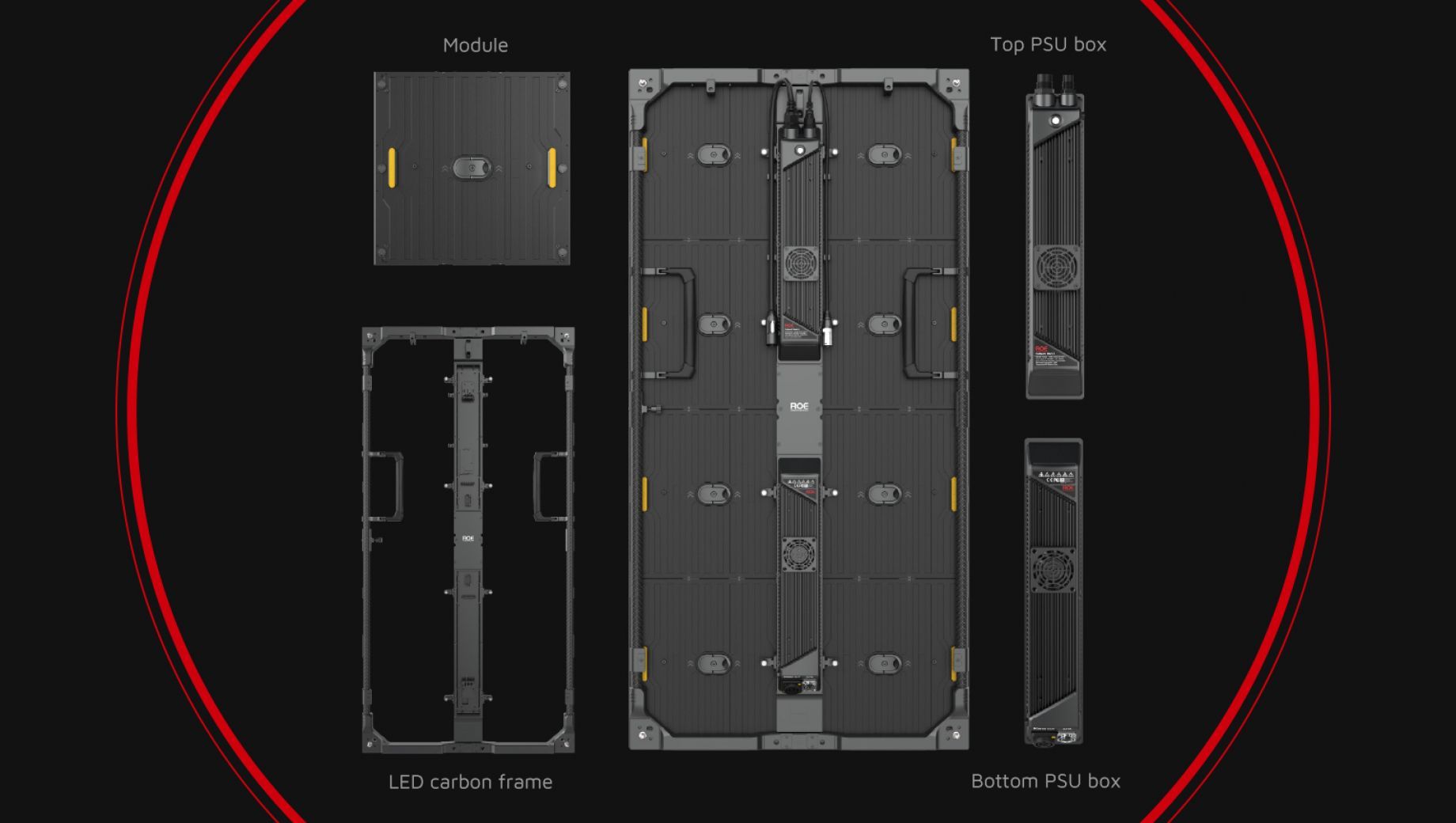

迅速な設置
放熱性
ハーフパネル
ハンギング システム
スタッキングシステム
LED シーリング
Specs
CB5LMKⅡ
CB5LMKⅡ Half
- Title
- Pixel Pitch
- LED Configuration
- Max Brightness Calibrated
- Panel Dimension
- Panel Resolution (H x V)
- Weight Per Panel
- Power Consumption Max/Average
- BTU Max/Average
- Transparency
- Serviceability
- Curving (Concave & Convex)
- Viewing Angle Vertical
- Viewing Angle Horizontal
- Refresh Rate
- Gray Scale
- Scan Ratio
- Operational Temp/Humidity
- Storage Temp/Humidity
- IP Rating
- Certifications
- Max. Hanging
- Max. Stacking
- CB5LMKⅡ
- 5.77mm
- SMD 1921 White
- 5000nits
- 600mm x 1200mm x 72mm
23.6” x 47.2” x 2.8” - 104 x 208
- 11.55kg | 25.46lbs
- 400W / 200W
- 1365 / 630
- Solid
- Front / Rear
- Concave 15° ~ Convex 10°
- 110°
- 140°
- 7680Hz
- 16bit
- 1/4
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 114°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP65
- CE, ETL, FCC
- 12 panels
- 5 panels
- CB5LMKⅡ Half
- 5.77mm
- SMD 1921 White
- 5000nits
- 600mm x 600mm x 72mm
23.6” x 23.6” x 2.8” - 104 x 104
- 6.32kg | 13.93lbs
- 210W / 105W
- 715 / 330
- Solid
- Front / Rear
- Concave 15° ~ Convex 10°
- 110°
- 140°
- 7680Hz
- 16bit
- 1/4
- -20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH - -40°C ~ 60°C, 10% ~ 90% RH
-40°F ~ 140°F, 10% ~ 90% RH - IP65
- CE, ETL, FCC
- 24 panels
- 10 panels
All specification values given are per panel. The specifications are for reference only, actual values may vary. The max. hanging amount is only valid when official ROE Visual hardware parts are used. The safety factor is 8. Climbing is only allowed if stated in the panel manual and only following the rules given therein. The max. stacking amount is only valid when official ROE Visual hardware parts are used and when sufficient ballast is applied – following the rules as stated in the panel manual and/or structural report.
