Magic Cube

End-of-Life

The ROE Magic Cube series is an optimal LED panel for indoor/outdoor use with black waterproof LEDs, making it an exceptional LED solution for outdoor stages.

Contact us

Magic Cube

Magic Cube discontinued

Although still in use as the indestructible and very reliable panel that Magic Cube has proven to be, we have to say goodbye to this unique, iconic and much-loved LED panel. The ROE Visual Magic Cube series will be discontinued, the replacement panel for magic Cube will be Black Quartz.

Replacement panel Black Quartz

Proud Magic Cube Successor

Black Quartz

Black Quartz is the proud successor or the Magic Cube series. The Black Quartz offers a full-fledged LED screen appliance, full of modern LeD techniques, such as common cathod. Combining a small pitch LED panel with an integrated wind-bracing system, the perfect solution for your next tour or outdoor event.

Explore Black Quartz

Downloads

Specs

Download All Specs
MC5H-T2
MC7H-T2
MC9H-T2
MC12H-T2
MC18H-T2
MC5H
MC7H
MC9H
MC12H
MC18H
  • Title
  • Pixel Pitch
  • LED Configuration
  • Max Brightness Calibrated
  • Panel Dimension
  • Panel Resolution (H x V)
  • Weight Per Panel
  • Power Consumption Max/Average
  • BTU Max/Average
  • Transparency
  • Serviceability
  • Curving (Concave & Convex)
  • Viewing Angle Vertical
  • Viewing Angle Horizontal
  • Refresh Rate
  • Gray Scale
  • Scan Ratio
  • Operational Temp/Humidity
  • Storage Temp/Humidity
  • IP Rating
  • Certifications
  • Max. Hanging
  • Max. Stacking
  • MC5H-T2
  • 5.77mm
  • SMD 2727 Black HB / SMD 2727 White
  • 5000nits
  • 600mm x 600mm x 95mm
    23.62” x 23.62” x 3.74”
  • 104 x 104
  • 17kg | 37.48lbs
  • 400W / 200W
  • 1365 / 628
  • Solid
  • No
  • Concave 10° ~ Convex 10°
  • 120°
  • 140°
  • 3840Hz
  • 16bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, FCC, ROHS, ETL
  • 20 panels
  • 8 panels
  • MC7H-T2
  • 7.5mm
  • SMD 2727 White / SMD 3535 Black HB
  • 5000nits
  • 600mm x 600mm x 95mm
    23.62” x 23.62” x 3.74”
  • 80 x 80
  • 15.67kg | 34.55lbs
  • 420W / 210W
  • 1433 / 659
  • Solid
  • No
  • Concave 10° ~ Convex 10°
  • 120°
  • 140°
  • 2000Hz
  • 16bit
  • 1/5
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL
  • 20 panels
  • 8 panels
  • MC9H-T2
  • 9.38mm
  • SMD 3535 White
  • 5500nits
  • 600mm x 600mm x 95mm
    23.62” x 23.62” x 3.74”
  • 64 x 64
  • 13.3kg | 29.32lbs
  • 320W / 160W
  • 1092 / 502
  • 17%
  • No
  • Concave 10° ~ Convex 10°
  • 120°
  • 140°
  • 3500Hz
  • 16bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL
  • 20 panels
  • 8 panels
  • MC12H-T2
  • 12.5mm
  • SMD 3535 White
  • 6000nits
  • 600mm x 600mm x 95mm
    23.62” x 23.62” x 3.74”
  • 48 x 48
  • 12.8kg | 28.22lbs
  • 320W / 160W
  • 1092 / 502
  • 21%
  • No
  • Concave 10° ~ Convex 10°
  • 120°
  • 140°
  • 4000Hz
  • 16bit
  • Static
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL
  • 20 panels
  • 8 panels
  • MC18H-T2
  • 18.75mm
  • SMD 3535 White
  • 4800nits
  • 600mm x 600mm x 95mm
    23.62” x 23.62” x 3.74”
  • 32 x 32
  • 12.15kg | 26.79lbs
  • 250W / 125W
  • 853 / 392
  • 37%
  • No
  • Concave 10° ~ Convex 10°
  • 120°
  • 140°
  • 4000Hz
  • 16bit
  • Static
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL
  • 20 panels
  • 8 panels
  • MC5H
  • 5.77mm
  • SMD 2727 Black HB / SMD 2727 White
  • 5000nits
  • 600mm x 600mm x 89mm
    23.62” x 23.62” x 3.5”
  • 104 x 104
  • 400W / 200W
  • 1365 / 628
  • Solid
  • No
  • Concave 10° ~ Convex 10°
  • 120°
  • 140°
  • 3840Hz
  • 16bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, FCC, ROHS, ETL
  • 20 panels
  • 8 panels
  • MC7H
  • 7.5mm
  • SMD 2727 White / SMD 3535 Black HB
  • 5000nits
  • 600mm x 600mm x 85mm
    23.62” x 23.62” x 3.35”
  • 80 x 80
  • 10.39kg | 22.91lbs
  • 420W / 210W
  • 1433 / 659
  • Solid
  • No
  • Concave 10° ~ Convex 10°
  • 120°
  • 140°
  • 2000Hz
  • 16bit
  • 1/5
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL
  • 20 panels
  • 8 panels
  • MC9H
  • 9.38mm
  • SMD 3535 White
  • 5500nits
  • 600mm x 600mm x 85mm
    23.62” x 23.62” x 3.35”
  • 64 x 64
  • 7.99kg | 17.62lbs
  • 320W / 160W
  • 1092 / 502
  • 17%
  • No
  • Concave 10° ~ Convex 10°
  • 130°
  • 140°
  • 3500Hz
  • 16bit
  • 1/4
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL
  • 20 panels
  • 8 panels
  • MC12H
  • 12.5mm
  • SMD 3535 White
  • 6000nits
  • 600mm x 600mm x 85mm
    23.62” x 23.62” x 3.35”
  • 48 x 48
  • 7.49kg | 16.51lbs
  • 320W / 160W
  • 1092 / 502
  • 21%
  • No
  • Concave 10° ~ Convex 10°
  • 120°
  • 140°
  • 4000Hz
  • 16bit
  • Static
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL
  • 20 panels
  • 8 panels
  • MC18H
  • 18.75mm
  • SMD 3535 White
  • 4800nits
  • 600mm x 600mm x 85mm
    23.62” x 23.62” x 3.35”
  • 32 x 32
  • 6.99kg | 15.41lbs
  • 250W / 125W
  • 853 / 392
  • 37%
  • No
  • Concave 10° ~ Convex 10°
  • 120°
  • 140°
  • 4000Hz
  • 16bit
  • Static
  • -20°C ~ 45°C, 10% ~ 90% RH
    -4°F ~ 113°F, 10% ~ 90% RH
  • -40°C ~ 60°C, 10% ~ 90% RH
    -40°F ~ 140°F, 10% ~ 90% RH
  • IP65
  • CE, ETL
  • 20 panels
  • 8 panels
All specification values given are per panel. The specifications are for reference only, actual values may vary. The max. hanging amount is only valid when official ROE Visual hardware parts are used. The safety factor is 8. Climbing is only allowed if stated in the panel manual and only following the rules given therein. The max. stacking amount is only valid when official ROE Visual hardware parts are used and when sufficient ballast is applied – following the rules as stated in the panel manual and/or structural report.
Compare products
Comparison
<< product.title >>
  • Title
Magic Cube

Application Fields

  • Touring
  • Concert
  • Sport Events

Accessories

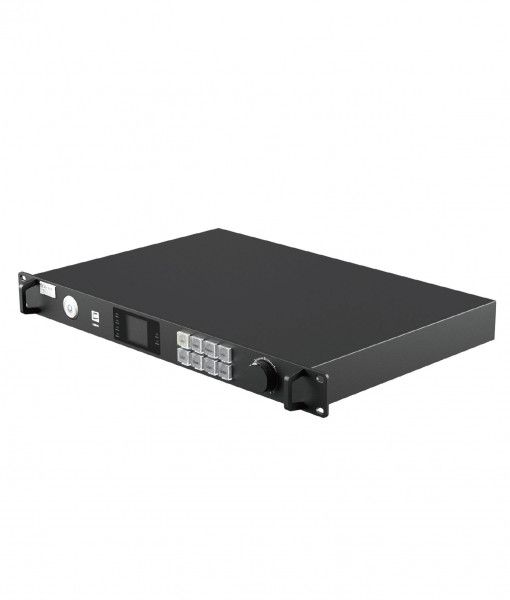

Evision

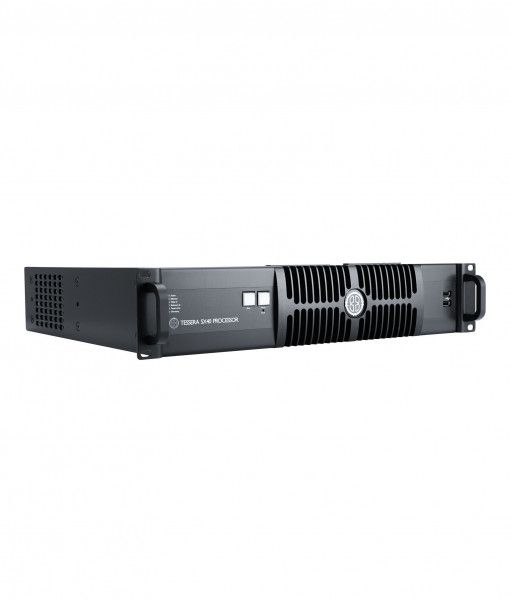

Brompton

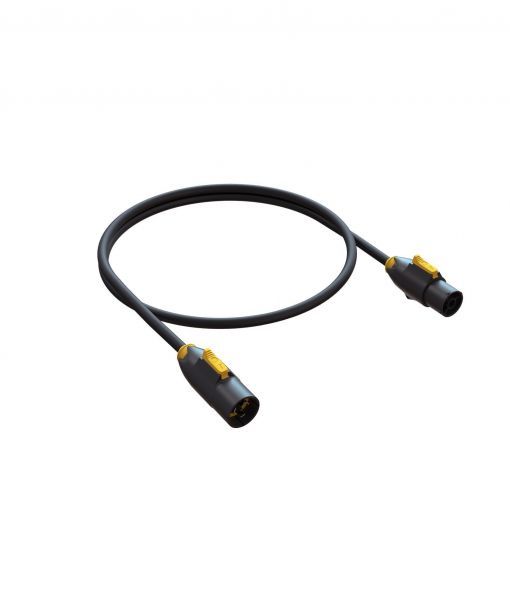

Power Cable

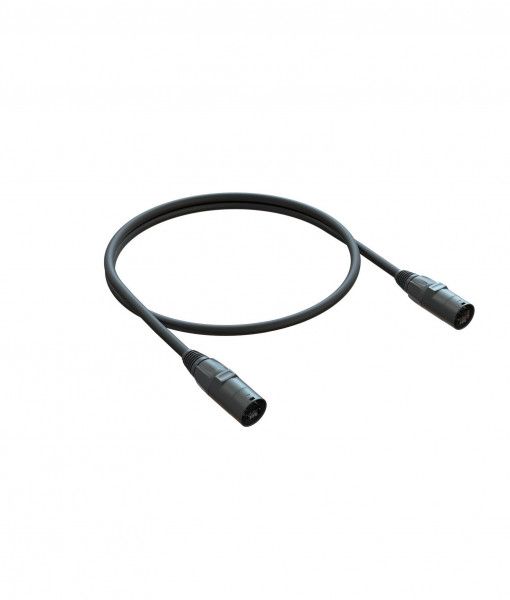

Data Cable

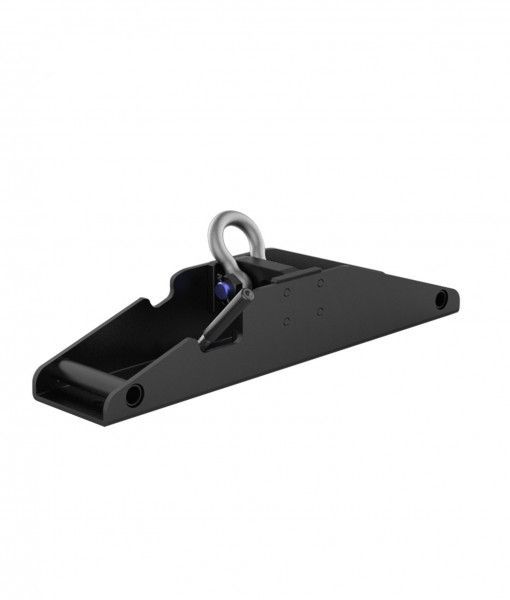

Hanging Bar

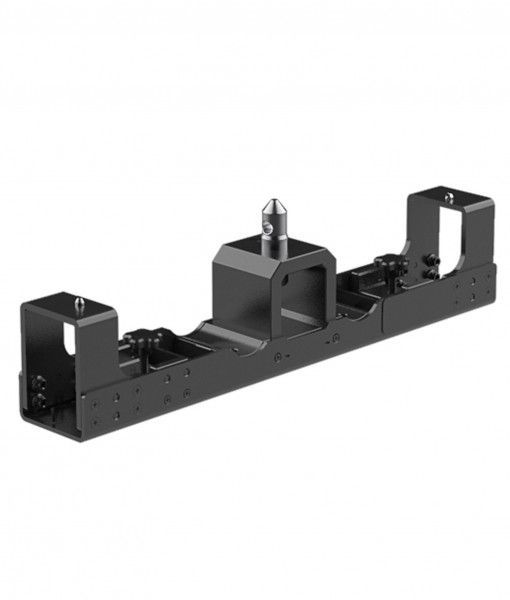

Base Bar

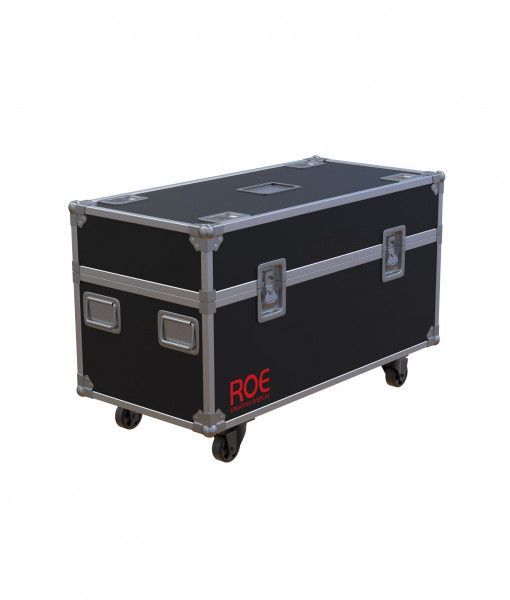

Flightcase

Magic Cube Product Support

No sweat, we do still support repair and maintenance for the Magic Cube series, so you can continue to use this product. Contact our Sales Suport departments for information on how we will continue to support this iconic LED panel.
