Opal Platform
Freedom to Create
What inspires you?
As a designer, the freedom to create without restrictions is paramount. Likewise, as an AV integrator, flexibility and adaptable platforms are essential. ROE Visual was therefore inspired to create the Opal LED platform for permanent installation, enabling exceptional designs without the need of customization. Opal delivers a stunning visual display that feeds the desire to create, facilitating imaginative and extraordinary designs.
Stunning Visual Performance
Don't compromise on your visuals. The Opal LED panel platform stands out with a staggering visual performance. Using black LEDs, the Opal LED canvas offers a high contrast ratio and a wide color gamut, delivering a high-definition viewing experience with unmatched color accuracy.

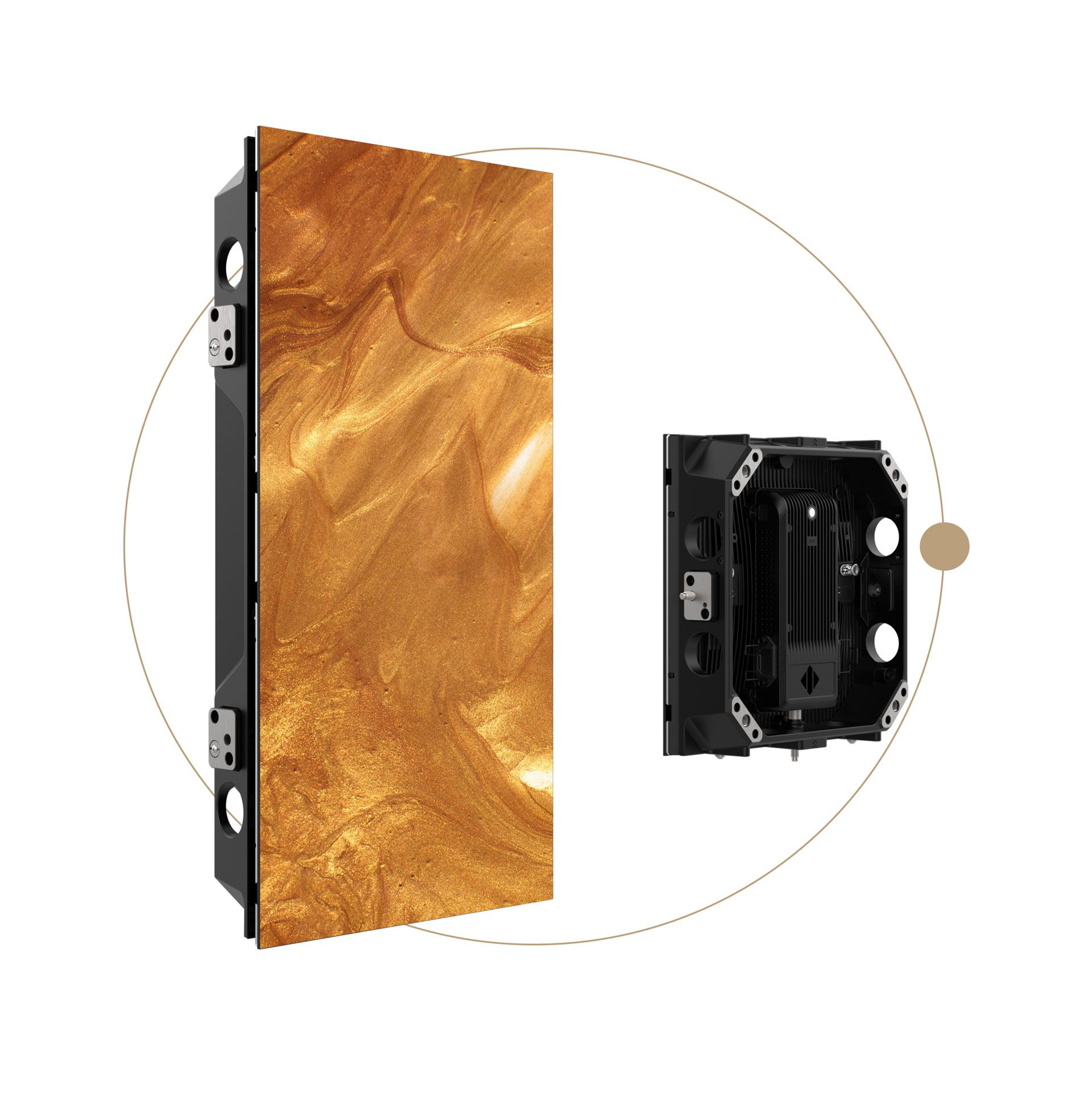

Opal Indoor LED Platform
Opal is a versatile LED platform conceptualized to aid designers in creating inventive displays. Its adaptable design, based on 300x300mm and 600x600mm LED modules, translates into various frame dimensions which can be combined like building blocks, making room for artistic, immersive displays that are out of the ordinary.

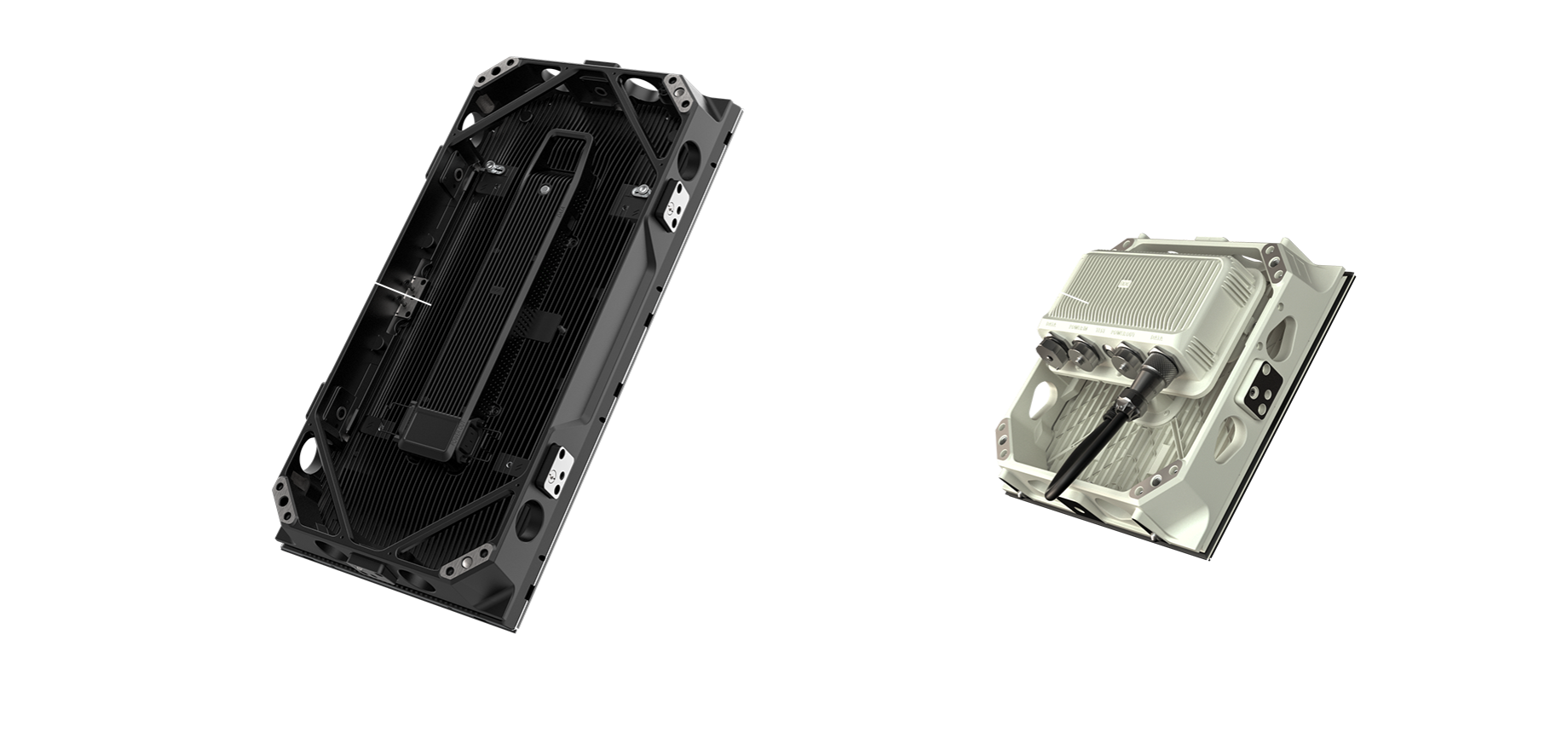

Opal Outdoor LED Platform
Take your creativity where it leads you.The Opal LED modules and panel frames are developed to offer easy installation. The universal OPAL modules and panel frames are designed to accommodate either a flat or curved, zero-bezel LED canvas. With solutions for wall-mounting, stacking, or even hanging, the Opal LED modules can be placed in any environment to create eye-catching and immersive effects.
Opal - AV Integration made easier
Sustainable Displays
The Opal LED platform is designed with our next generation in mind. The innovative use of new technologies, like common cathode, translates into LED displays that use up to 25% less energy while generating less heat.
Perfect LED Canvas
Looking for perfectly aligned, seamless, and flat LED walls? Look no further as the Opal LED platform stands out with a flawless LED canvas. Due to high-precision engineering and manufacturing, the tolerances of the mounting frame are very low, giving perfect results.
EMC Class B Certified
The Opal LED panels are EMC Class B certified. This high-ranking certification gives you the certainty of a reliable and well-performing product, even under strenuous circumstances. The LED panels are best suited for residential, commercial, or light industrial applications.
Consistent Color Representation
Using common cathode technology results in brighter and more colour-consistent LEDs. This technology guarantees the overall LED performance is very stable throughout use, no matter the conditions.
Opal Key Features
Specs
- Title
- Pixel Pitch
- LED Configuration
- Max Brightness Calibrated
- Panel Dimension
- Panel Resolution (H x V)
- Weight Per Panel
- Power Consumption Max/Average
- BTU Max/Average
- Transparency
- Serviceability
- Curving (Concave & Convex)
- Viewing Angle Vertical
- Viewing Angle Horizontal
- Refresh Rate
- Gray Scale
- Operational Temp/Humidity
- Storage Temp/Humidity
- IP Rating
- Certifications
- Opal Indoor 1.2 (300*300)
- 1.25mm
- 4 in 1 Common cathode
- 800nits
- 300mm x 300mm x 58mm
11.8” x 11.8” x 2.3” - 240 x 240
- 2.36kg | 5.2lbs
- 60W / 30W
- 205 / 95
- Solid
- Front / Rear
- Concave 5° ~ Convex 5°
- 140°
- 160°
- 3840Hz
- 14bit
- -20°C ~ 45°C, 10% ~ 90% HR
-4°F ~ 113°F, 10% ~ 90% HR - -40°C ~ 60°C, 10% ~ 90% HR
-40°F ~ 140°F, 10% ~ 90% HR - Indoor
- CE, FCC, ETL, PSE, RoHS, UL
- Opal Indoor 1.2 (300*600)
- 1.25mm
- 4 in 1 LED Common Cathode
- 800nits
- 300mm x 600mm x 58mm
11.8” x 23.6” x 2.3” - 240 x 480
- 5.17kg | 11.4lbs
- 120W / 60W
- 410 / 190
- Solid
- Front / Rear
- Concave 5° ~ Convex 5°
- 140°
- 160°
- 3840Hz
- 14bit
- -20°C ~ 45°C, 10% ~ 90% HR
-4°F ~ 113°F, 10% ~ 90% HR - -40°C ~ 60°C, 10% ~ 90% HR
-40°F ~ 140°F, 10% ~ 90% HR - Indoor
- CE, FCC, ETL, PSE, RoHS, UL
- Opal Outdoor 3.75 (300*300)
- 3.75mm
- Black SMD 1415 Common Cathode
- 5000nits
- 300mm x 300mm x 118mm
11.8” x 11.8” x 4.6” - 80 x 80
- 3.29kg | 7.25lbs
- 85W / 45W
- 290 / 135
- Solid
- Front / Rear
- Concave 15° ~ Convex 15°
- 140°
- 160°
- 3840Hz
- 15bit
- -20°C ~ 45°C, 10% ~ 90% HR
-4°F ~ 113°F, 10% ~ 90% HR - -40°C ~ 60°C, 10% ~ 90% HR
-40°F ~ 140°F, 10% ~ 90% HR - Outdoor, IP67
- CE, FCC, ETL, PSE, RoHS, UL
- Opal Outdoor 3.75 (300*600)
- 3.75mm
- Black SMD 1415 Common Cathode
- 5000nits
- 300mm x 600mm x 90mm
11.8” x 23.6” x 3.5” - 80 x 160
- 4.91kg | 10.8lbs
- 160W / 80W
- 545 / 250
- Solid
- Front / Rear
- Concave 15° ~ Convex 15°
- 140°
- 160°
- 3840Hz
- 15bit
- -20°C ~ 45°C, 10% ~ 90% HR
-4°F ~ 113°F, 10% ~ 90% HR - -40°C ~ 60°C, 10% ~ 90% HR
-40°F ~ 140°F, 10% ~ 90% HR - Outdoor, IP67
- CE, FCC, ETL, PSE, RoHS, UL
- Opal Outdoor 3.75 (600*600)
- 3.75mm
- Black SMD 1415 Common Cathode
- 5000nits
- 600mm x 600mm x 90mm
23.6” x 23.6” x 3.5” - 160 x 160
- 9.28kg | 20.5lbs
- 300W / 150W
- 1025 / 470
- Solid
- Front / Rear
- Concave 15° ~ Convex 15°
- 140°
- 160°
- 3840Hz
- 15bit
- -20°C ~ 45°C, 10% ~ 90% HR
-4°F ~ 113°F, 10% ~ 90% HR - -40°C ~ 60°C, 10% ~ 90% HR
-40°F ~ 140°F, 10% ~ 90% HR - Outdoor, IP67
- CE, FCC, ETL, PSE, RoHS, UL
- Title
Application Fields
- Corporate
- Creative installations
- Signage solutions
- Museums and digital art collections
- Architectural designs
