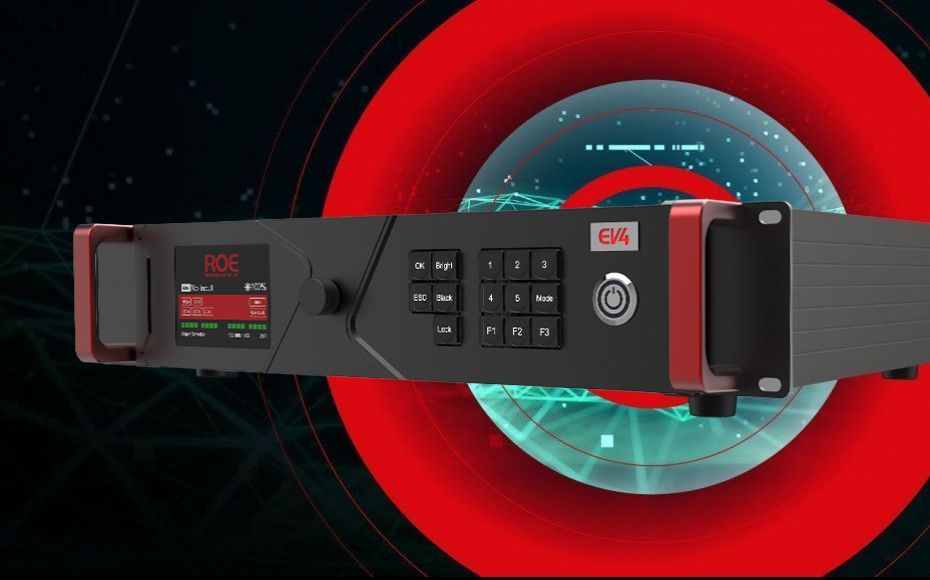

eV4 LED Processing Platform

eV4 LED Processor by ROE Visual

The eV4 Processor enables next generation image display and can handle 4K resolution display on a 60Hz frame rate, thus creating an outstanding image performance. Offering 10-bit per color output, the Evision eV4 processor supports real HDR to achieve striking visuals. The eV4 processor features an integrated image processor, processor redundancy, 4K HDR and is the first processor to combine 4K with a fiber output. The Fiber Distributor eVX10 enables long-distance signal transmission.

Request a demo

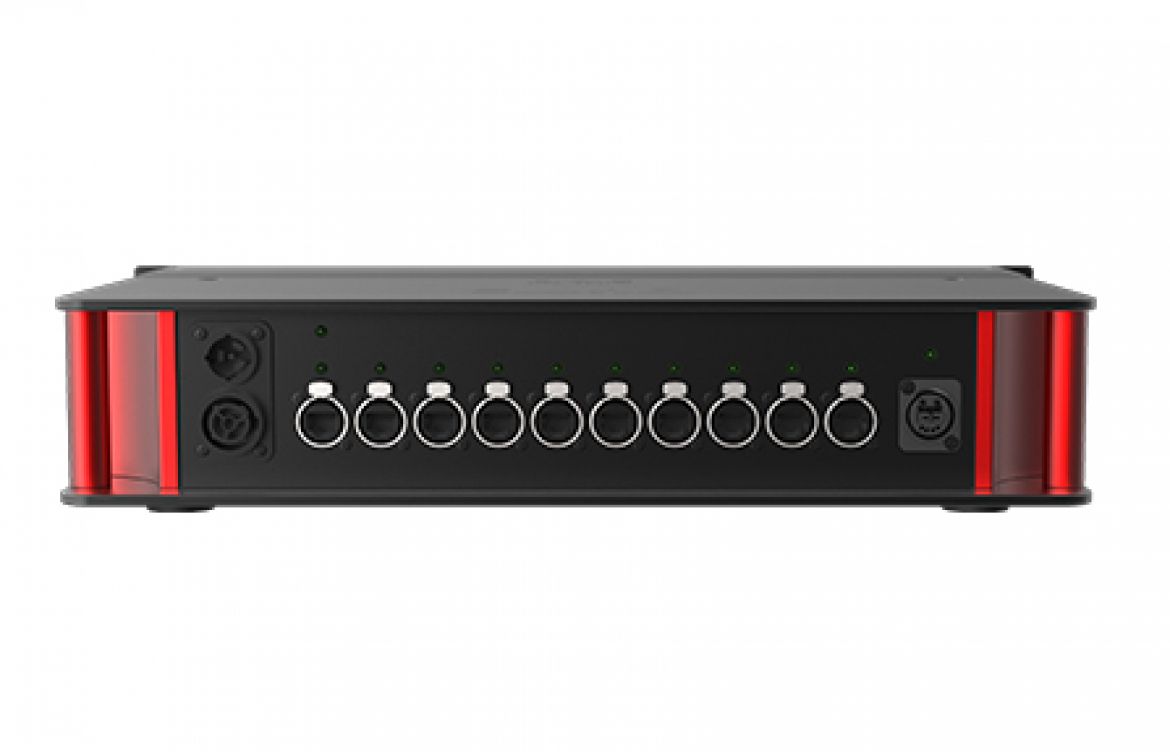

EVX10

eV4 - Next generation processing

The eV4 Processor features an integrated image processor, processor redundancy, 4K HDR and is the first processor to combine 4K with a fiber output. The Fiber Distributor eVX10 enables long-distance signal transmission. Offering 10-bit per color output, the eV4processor supports the HDR standard to achieve striking visuals.

Download the new software

ROE Visual regularly releases new iSet software for the Evision processors, download the latest version here.

Download the latest iSet software

iSet – Intuitive programming

Using the i-set software settings makes programming your project a breeze. With more standard pre-sets and easy mapping functionality, you have the freedom to create spectacular projects. The easy navigation and LCD read-out make menu selection intuitive and easy.

Integrated Image Processor
Edge correction
Low latency
Extended color adjustment and color processing functions
Scaling functions
Diverse input possibilities

LED Processing Platforms

eV4
  • Title
  • Inputs
  • Support input resolution 8 bit
  • 10 bit
  • Output ports
  • Fiber
  • Control ports
  • Loading capacity
  • Max width/height
  • Splice function
  • Zoom function
  • Brightness adjustment
  • Chromaticity adjustment
  • Gray scale at low brightness
  • Pip function support
  • 3D display
  • GEN lock
  • GEN lock loop
  • Power in
  • Weight
  • Height
  • Max output per port
  • Compatible with
  • Power consumption
  • eV4
  • 1 x HDMI2.0, 4 x 3G-SDI, 1 x DP1.2, 4 x DVI
  • 4096 x 2160 60Hz
  • 4096 x 2160 60Hz
  • 4 x 10G fiber
  • 4 x 10G single mode / 40 RJ45 / 4 EVX10 distributor
  • Artnet port, DMX control supported / 3 x USB2.0 B (F) / 2 x USB2.0 A (F)
  • 8,3 Million pixels
  • 8192/8192
  • Y
  • Y
  • Y
  • Y
  • Y
  • Y
  • Y
  • Y
  • Y
  • Neutrik True 1
  • 9,64 kg
  • 2U
  • 655360 px @60Hz, 8 bit
  • All types, optical fiber
  • 150w
Comparison
<< product.title >>
  • Title

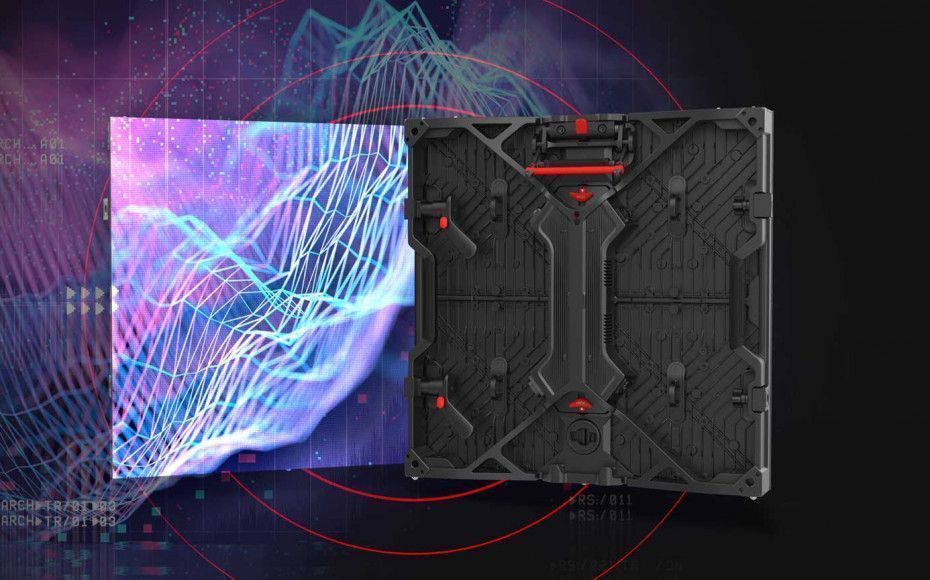

Ruby ROE Visual LED
